| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | 1pc/plywood case 1pc/iron frame case |
Quick Details
- Bucket capacity: 0.025
- Moving Type: Crawler Excavator
- Condition: New
- Brand Name: Jiasi
- Year: 2022
- Make: diesel
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: FDA CE ISO
- Rated Speed: 2.2km/h
- Machine Weight: 636
- Maximum Digging Depth: 1300
- Maximum Digging Height: 2350
- Operating Weight: 636
- Model Number: 08
Specifications
Product Description

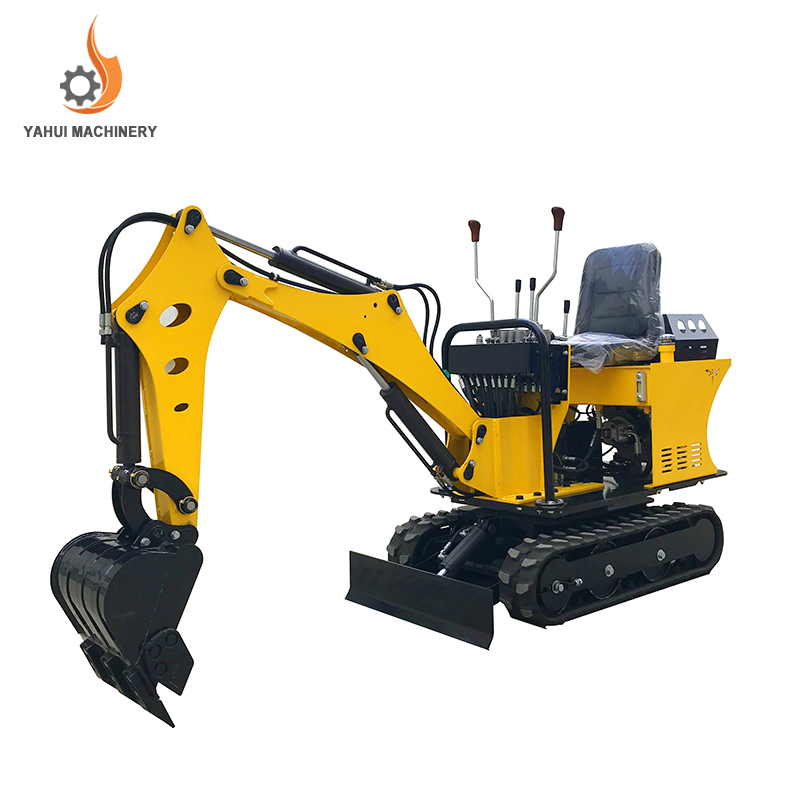

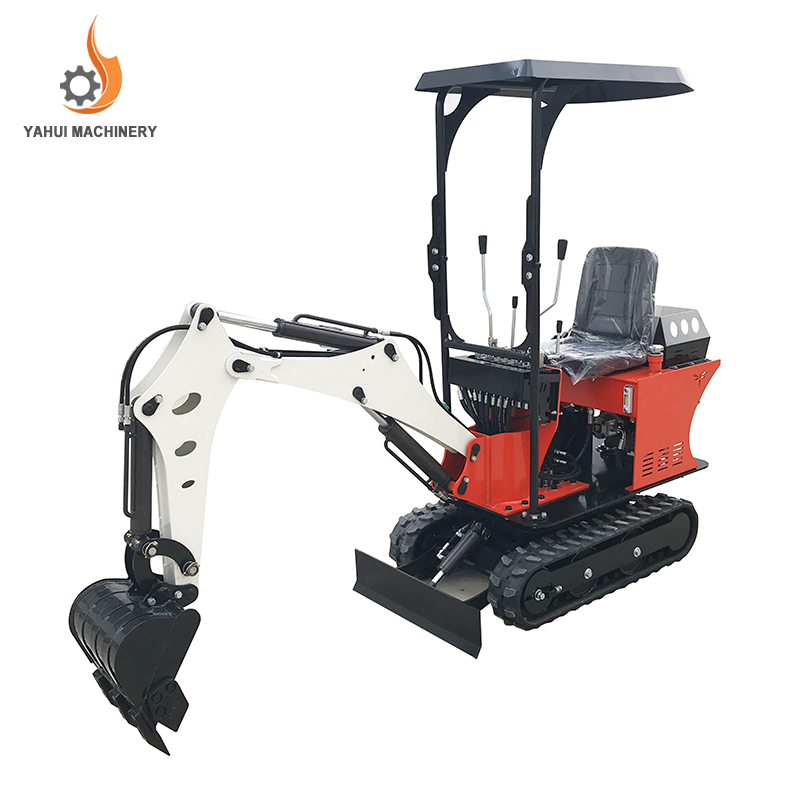

Product name: 08 Mini Digger Towable Backhoe Loader Hydraulic Crawler Excavator
Application: small works, small projects, in garden, farmland, mining,municipal works,
Vegetable greenhouse,
Digging trench. It is with small engine, simple design, easy to maintain.
Color: It can choose yellow, blue, red, black accepted customized.

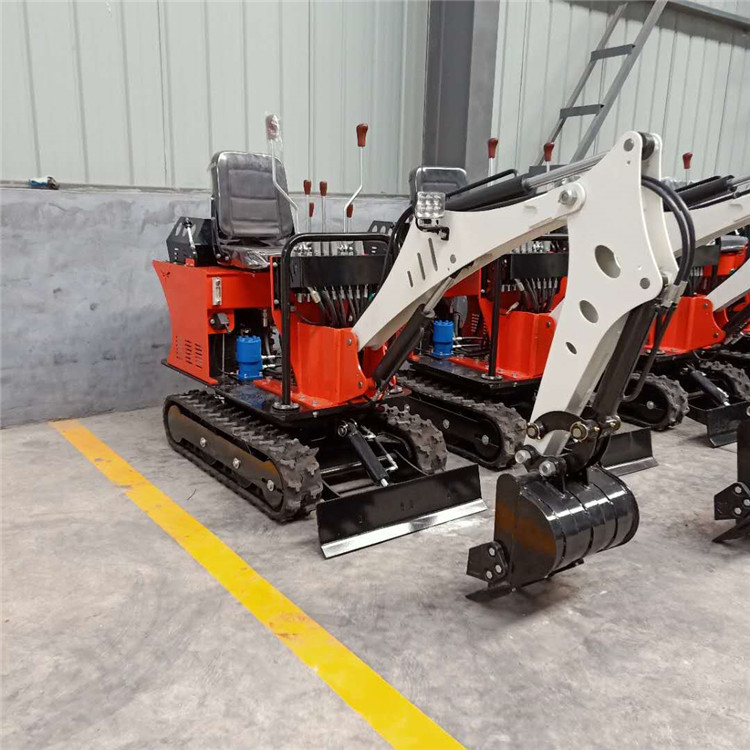

Detailed photos
Features:
Flexible to operate: Small figure and easy to operate, can be work in a narrow area.
Big performance in a compact design: Strong lift and dig performance helps you get the
Job done faster.
Safety one the job site: Courtesy work lights and a retractable seat belt can help you
Work safely.
Parameters:
08 excavator
| Specifications | ||
| Engineer powder | kw | 9.2 |
| Engineer Model | KOOP/CHANGCHAI 192 | |
| Bucket capacity | cbm | 0.025 |
| Working weight | kg | 636 |
| Max digging force | kn | 7.5 |
| Selected press | mpa | 14 |
| Rotary speed | rpm | 12 |
| Travel speed | Km/h | 2.2km/h |
| Gradeability | ° | 30 |
| Ground press | kpa | 19 |
| Main Demensions | ||
| Overall dimension | mm | 2430*760*1390 |
| Platform ground clearance | mm | 80 |
| Ground contact Track Length | mm | 1140 |
| Track width | mm | 150 |
| Operating range | ||
| Max.Digging reach | Mm | 2450 |
| Max.Digging depth | mm | 1300 |
| Max. Digging height | mm | 2350 |
| Max. Dumping height | mm | 1600 |
| Min. Radius of gyration | mm | 1100 |
| Max. Lift height of bulldozer blade | mm | 120 |
| Max.Digging depth of bulldozer blade | mm | 200 |
