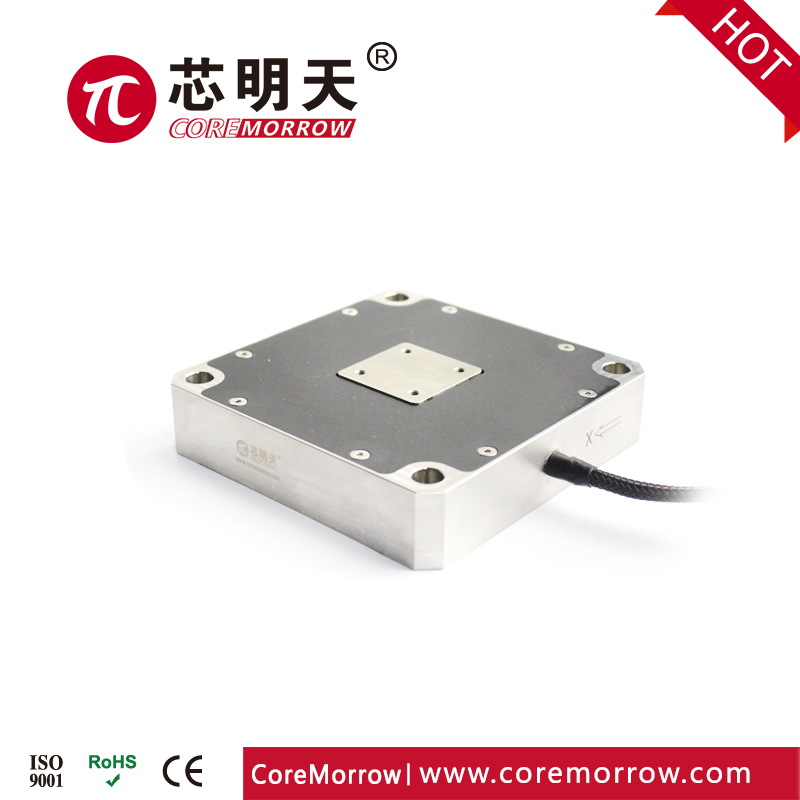

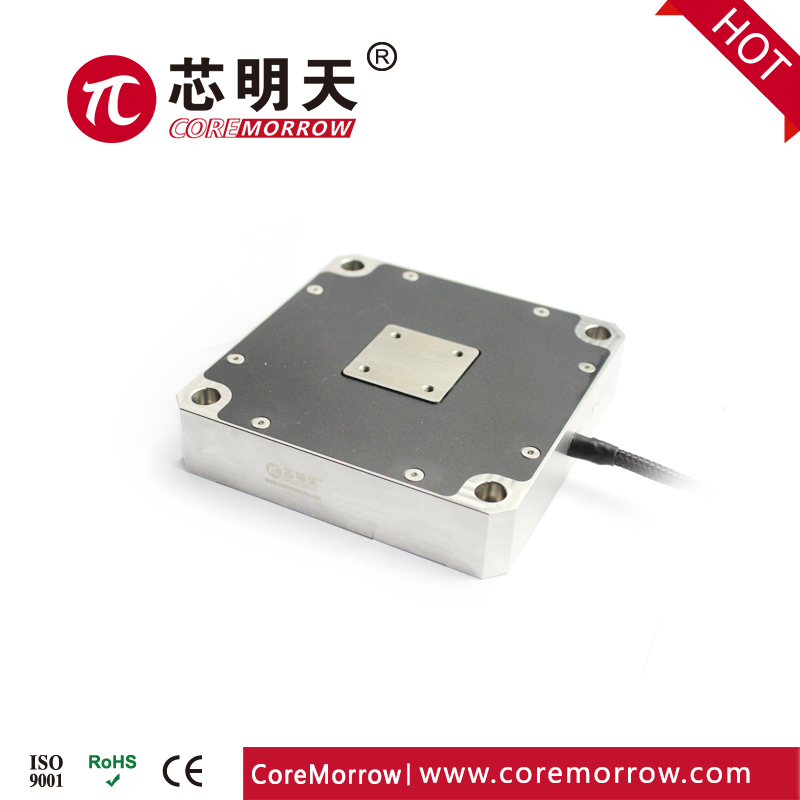

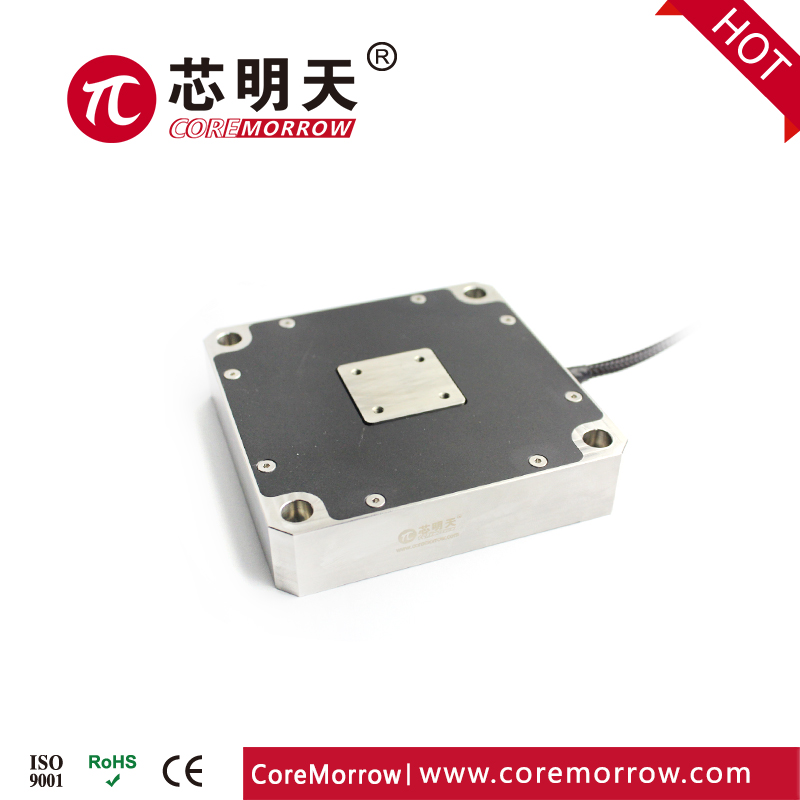

Piezo Stage, Piezo Nanopositioning Stage from CoreMorrow

FOB Price:	1000.00 - 9999.00 USD/Piece
Supply Ability:	500,000 Piece(s) per Year
Shipping:	DHL express
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Heilongjiang in China
Packaging Details:	40cm by 30cm by 25cm, not fixed

Quick Details

Brand Name: CoreMorrow
Accuracy: Nanometer scale
Magnification: not fixed
Measuring Time: no
Single Prism: no
Model Number: P60.X250
Driving voltage: 0 to 150V
Travel range: 0 to 250um

Specifications

Piezo StagePiezo Nanopositioning Stage from CoreMorrow

Charateristics:
Closed-loop version for high accuracy Anti-vibration design Differential drive
High/low-temperature/vacuum version available Fast response

Technical Data:

Type		P60.X250S	P60.X250K	Units
Active axes		X	X
Driving channels		2	2
Travel range(0~120V)		±130	±130	Μm±10%
Travel range(0~150V)		±165	±165	Μm±10%
Sensor		SGS	-
Resolution		9	3	nm
Linearity		0.1	-	%F.S.
Repeatability		0.04	-	%F.S.
Pitch/yaw/roll		<10	<10	μrad
Push/pull force		300/30	300/30	N
Stiffness		1.2	1.2	N/μm±20%
Unloaded resonant frequency		490	490	Hz±20%
Unloaded step time		80	40	Ms±20%
Load capacity		0.6	0.6	kg
El. Capacitance		24.6	24.6	ΜF±20%
Operating temperature		-40~+80	-40~+80	°C
Anti-vibration design	Half sine wave	15g, 11ms	15g, 11ms
Anti-vibration design	Back peak sawtooth wave	20g, 11ms	20g, 11ms
Material		Steel, Aluminum	Steel, Aluminum
Mass		950	950	g±5%
