Harbin Core Tomorrow Science & Technology Co., Ltd.
China Manufacturer with main products: Piezo Actuator, Piezo Stage, Piezo Nanopositioning Scanner, Piezo Objective Scanner, Piezo Tip Tilt Platform, Piezo Steering Mirror, Piezo... |
Home
>Products Catalog > Piezo Steering Mirror > Piezo Tilt & Rotation Stage from CoreMorrow for Vibration Simulation

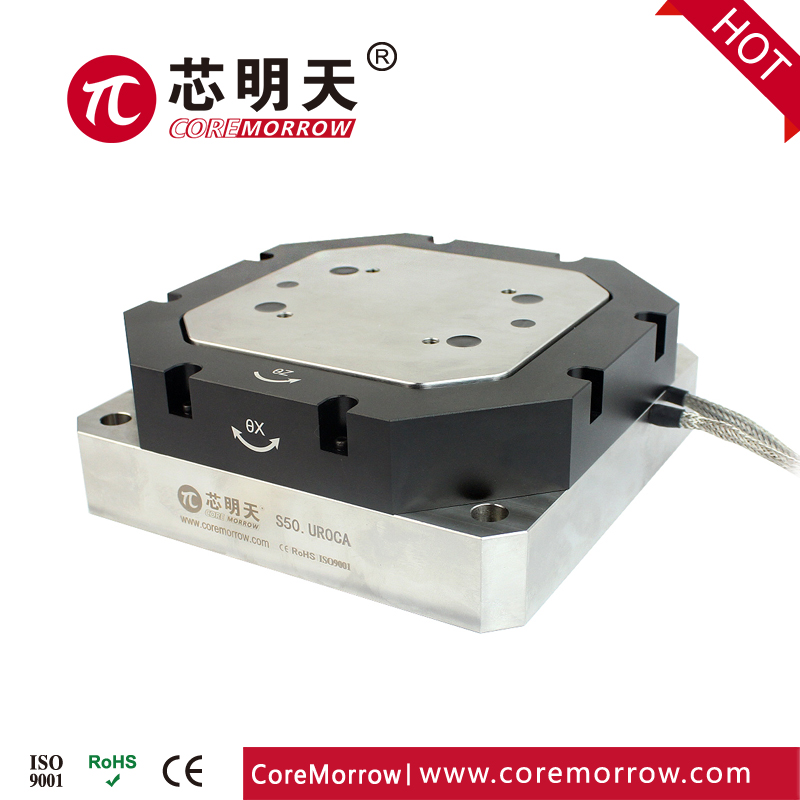

Piezo Tilt & Rotation Stage from CoreMorrow for Vibration Simulation
| FOB Price: | 1000.00 - 9999.00 USD/Piece |
|---|---|
| Supply Ability: | 500,000 Piece(s) per Year |
| Shipping: | DHL express |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Heilongjiang in China |
| Packaging Details: | 60cm by 60cm by 50cm |
Quick Details
- Brand Name: CoreMorrow
- Accuracy: nanorad scale
- Magnification: no
- Measuring Time: no
- Single Prism: no
- Model Number: S50
- Driving voltage: 0 to 150V
Specifications
S50.UR0C/KA piezo tilt/rotation platform is designed for large load applications, and load capacity is up to 5kg. Its closed-loop version utilizes capacitive feedback sensor, and its unloaded resonant frequency is up to 1kHz.
Technical Data
Type |
S50.UR0CA |
S50.UR0KA |
Units |
Active axes |
θx θz |
θx θz |
|
Nominal travel range( 0~120V) |
0.24/axis |
0.24/axis |
Mrad±10% |
Travel range(0~150V) |
0.3/axis |
0.3/axis |
Mrad±10% |
Sensor |
CAP |
- |
|
Resolution |
0.02 |
0.01 |
μrad |
Linearity |
0.3 |
- |
%F.S. |
Repeatability |
0.2 |
- |
%F.S. |
Unloaded resonant frequency |
1000 |
1000 |
Hz |
Operating frequency(@5kg,0.1mrad) |
≤400 |
≤400 |
Hz±20% |
Load capacity |
5 |
5 |
kg |
El.Capacitance |
14.4/axis |
14.4/axis |
ΜF±10% |
Material |
Al, Steel |
Al, Steel |
|
Mass |
9.5 |
9.5 |
kg±5% |
