Shenzhen Tesoo Optical Co., Ltd.
China Manufacturer with main products: 10mm Lens, M12 Lens |

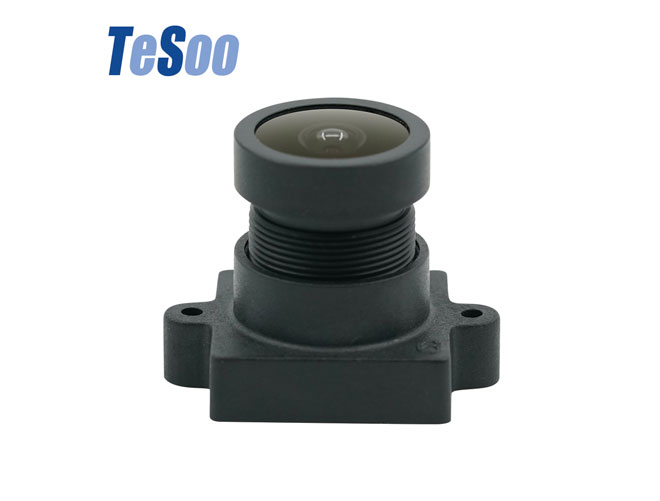

ED (Extra-Low Dispersion) Glass
| FOB Price: | 0.50 - 30.00 USD/Piece |
|---|---|
| Supply Ability: | 150,000 Piece(s) per Month |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Brand Name: /
- Size: /
- Type: /
- Material: /
- Color: /
Specifications
is universally used for car camera bracket reversing rearview image driving recorders. the steps of determining the assembly position of the car DVR lens include: selecting a suitable camera lens; obtaining the field of view data of the lens and the A-side data of the car; and performing data simulation on the acquired data to determine the assembly position. after adjusting the position of the car DVR lens, the angle between the camera and the horizontal plane is also adjusted to make it within the assembly tolerance range. the steps of adjusting the position of the car DVR lens correction device include: locating the most protruding part of the rear bumper of the car; adjusting the longitudinal zero position of the camera correction device so that the longitudinal zero coordinates of the camera correction device is located perpendicular to the most protruding part of the rear bumper online. Welcome to buy the qualified from Tesoo.
how to Choose Car DVR Lens?
Three Important Factors To Choose Superior Car DVR Lens
Viewing angle: the larger the car DVR lens's viewing angle, the wider range that can be recorded. Now the mainstream car DVR has a viewing angle of 120 degrees or more, and a better model can reach 170 degrees, and there are 360-degree models with no dead ends.
Image quality: image quality of car DVR lens depends on lens quality, sensor quality, and system configuration. of course, environmental factors such as light intensity, angle, and vehicle speed will affect the image quality. under the same conditions, the higher the pixel, the better.
Night vision ability: the quality of night vision mainly depends on two factors: aperture size; sensor ISO value range. the larger the aperture and the higher the ISO, the more sensitive to light, and bright video can be recorded in the evening or even at night.
Specifications of Car DVR Lens
ED (Extra-Low Dispersion) Glass
An optical glass developed by Tesoo that is used with normal optical glass in telephoto lenses to obtain optimum correction of chromatic aberrations.
PART No. |
TS-2717O-A00 |
TTL |
16.8mm |
EFL |
3.2mm |
F/NO |
F2.0 |
MBFL |
5.06mm |
SENSOR SIZE |
1/2.7" |
FOV | |
(D) |
152° |
(H) |
119° |
(V) |
60° |
MAX IMAGE CIRCLE |
Φ6.8mm |
Mount |
M12*0.5 |
CONSTRUCTION |
All Glass +Metal |
DIAMENSIONS |
Φ14*13.1 |
Operating temp. |
-40 ~ +85℃ |
Storage temp. |
-40 ~ +90℃ |
PART No. |
TS-2714P-A00 |
TTL |
14mm |
EFL |
2.9mm |
F/NO |
F2.4 |
MBFL |
4.31mm |
SENSOR SIZE |
1/2.7" |
FOV | |
(D) |
163° |
(H) |
132° |
(V) |
66° |
MAX IMAGE CIRCLE |
Φ7.0mm |
Mount |
M12*0.5 |
CONSTRUCTION |
All Glass +Metal |
DIAMENSIONS |
Φ14*9.7 |
Operating temp. |
-40 ~ +85℃ |
Storage temp. |
-40 ~ +90℃ |
PART No. |
TS-2718O-A00 |
TTL |
18mm |
EFL |
3.3mm |
F/NO |
F2.0 |
MBFL |
4.31mm |
SENSOR SIZE |
1/2.7" |
FOV | |
(D) |
150° |
(H) |
119° |
(V) |
60° |
MAX IMAGE CIRCLE |
Φ6.8mm |
Mount |
M12*0.5 |
CONSTRUCTION |
All Glass +Metal |
DIAMENSIONS |
Φ14*13.2 |
Operating temp. |
-40 ~ +85℃ |
Storage temp. |
-40 ~ +90℃ |
PART No. |
TS-2721N-C00 |
TTL |
21mm |
EFL |
3.3mm |
F/NO |
F2.2 |
MBFL |
5.1mm |
SENSOR SIZE |
1/2.7" |
FOV | |
(D) |
140° |
(H) |
110° |
(V) |
68° |
MAX IMAGE CIRCLE |
Φ6.8mm |
Mount |
M12*0.5 |
CONSTRUCTION |
All Glass +Metal |
DIAMENSIONS |
Φ14*15.9 |
Operating temp. |
-40 ~ +85℃ |
Storage temp. |
-40 ~ +90℃ |
Technology of Car DVR Lens
ED (Extra-Low Dispersion) Glass
An optical glass developed by Tesoo that is used with normal optical glass in telephoto lenses to obtain optimum correction of chromatic aberrations.
as one of, we have types of lens for sale, if you have needs, please contact us.
