Anhui Tianguang Sensor Co., Ltd.
China Manufacturer with main products: Types of Force Transducers |

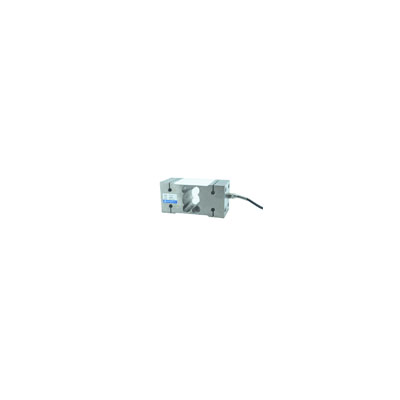

TJH-2D Parallel Beam Load Cell
| FOB Price: | 100.00 - 500.00 USD/Set |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Brand Name: Tianguang
- Material:: aluminium load cell
- Output: aluminium load cell
- name: aluminium load cell
Specifications
the product is adjusted at the four corners to ensure that it outputs consistently at all points in the specified load plane. Suitable for packaging scales, platform scales, electronic belt scales, batching scales, etc.
Specifications of TJH-2D Parallel Beam Load Cell
Technical parameter | |
Rated Load |
0.5~20 kN |
Comprehensive Precision |
0.03% FS |
Sensitivity |
2.0 mV/V |
Creep |
±0.03% FS/30min |
Zero Output |
±1% FS |
Temperature Effect on Zero |
±0.03% FS/10℃ |
Temperature Effect on Output |
±0.03% FS/10℃ |
Operating Temperature Range |
-20~+65 ℃ |
Input Resistance |
380±10 Ω |
Output Resistance |
350± 3 Ω |
Insulation Resistance |
5000 MΩ |
Safe Load Limit |
150% FS |
Bridge Voltage |
Reference 10V DC |
Material |
Alloy Steel |
Load Cell Mode of Connection |
Input+: Red |
Input-: Black | |
Output+: Green | |
Output-: White | |
Tianguang Sensor provides,, and etc. Contact us to know more.
