Guangdong Laswim Water Environment Equipment Co., Ltd.
China Manufacturer with main products: Swimming Pool Heat Pump, Heat Pump, Filter, Underwater Light |
Cold Climate Range Swimming Poo; Heat Pump
| FOB Price: | 2500.00 - 3000.00 USD/Set |
|---|---|
| Supply Ability: | 50,000 Set(s) per Year |
| Shipping: | EXW |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton |
Quick Details
- After-sales Service Provided: No overseas service provided
- Certification: CCC,CE,CSA
- Structure: Plate Heat Exchanger
- Brand Name: LASWIM
- Condition: New
Specifications
Basic Info.
Model NO.
LAS-KP-V
Product Description
Product Description

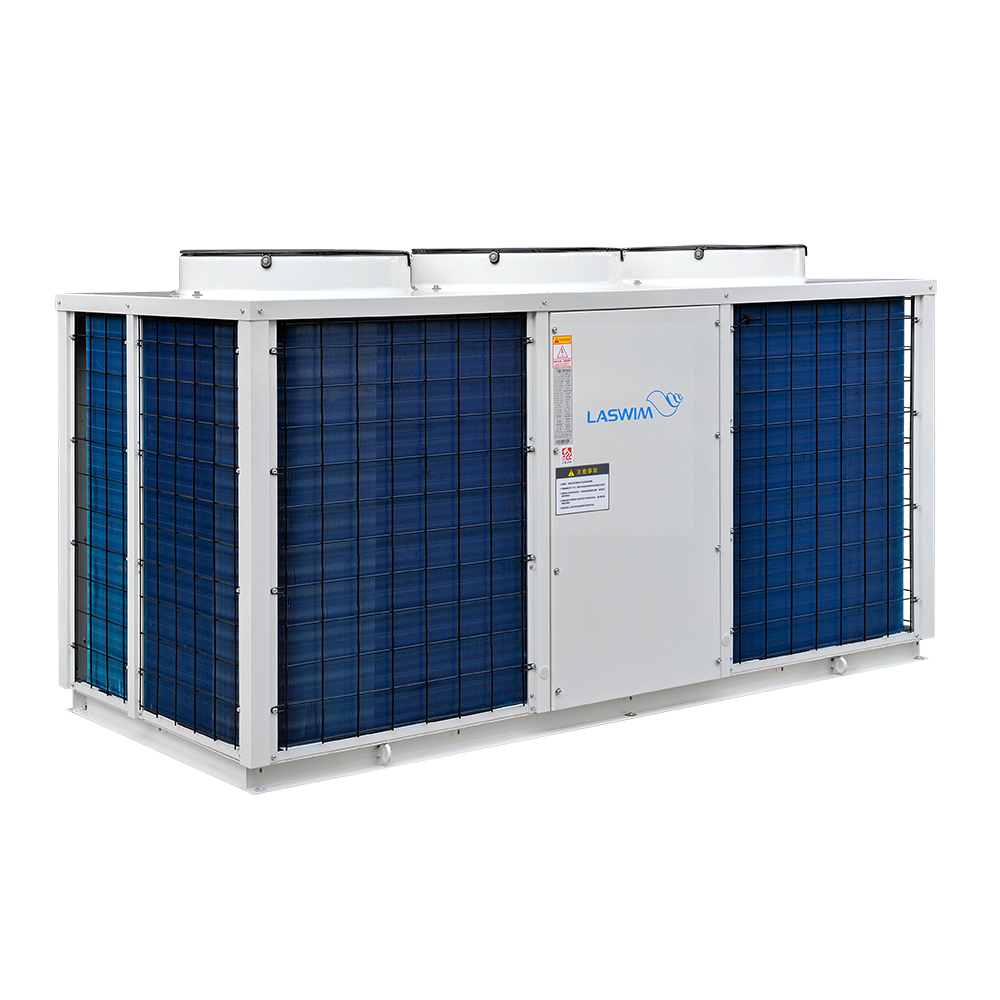

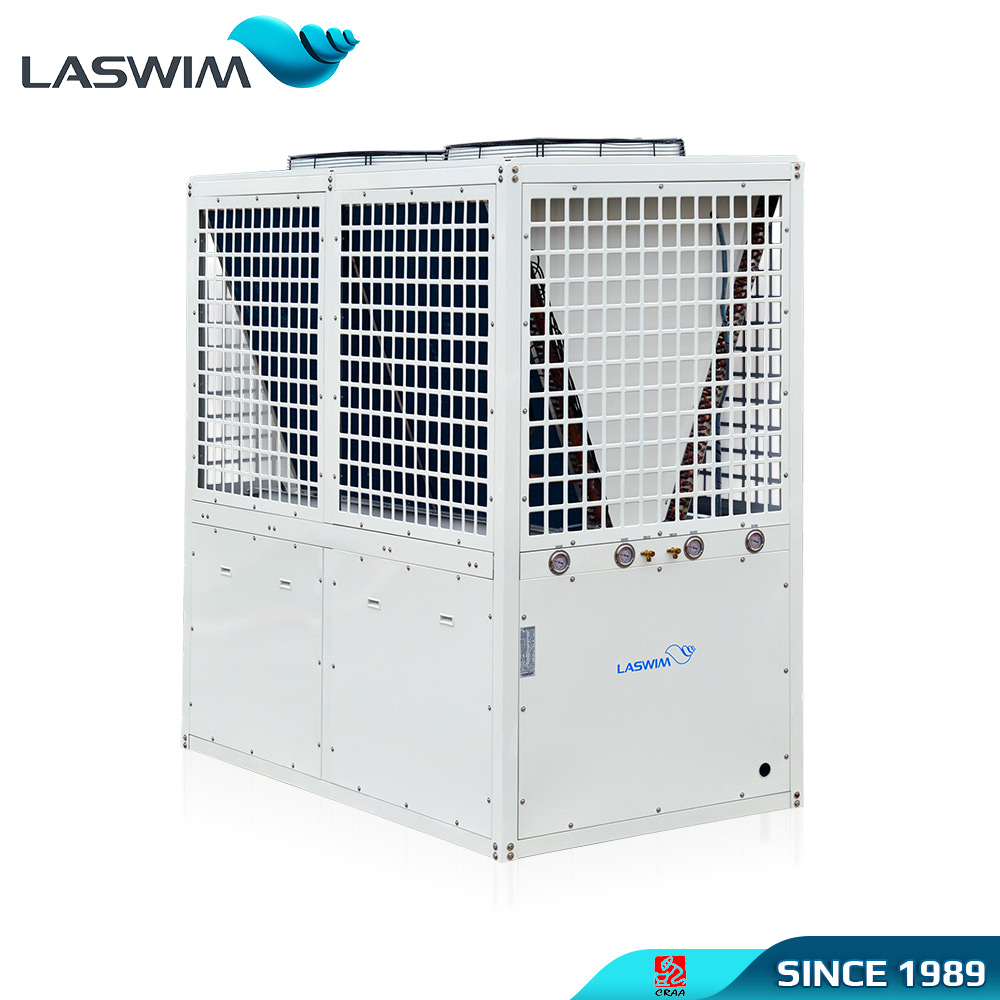

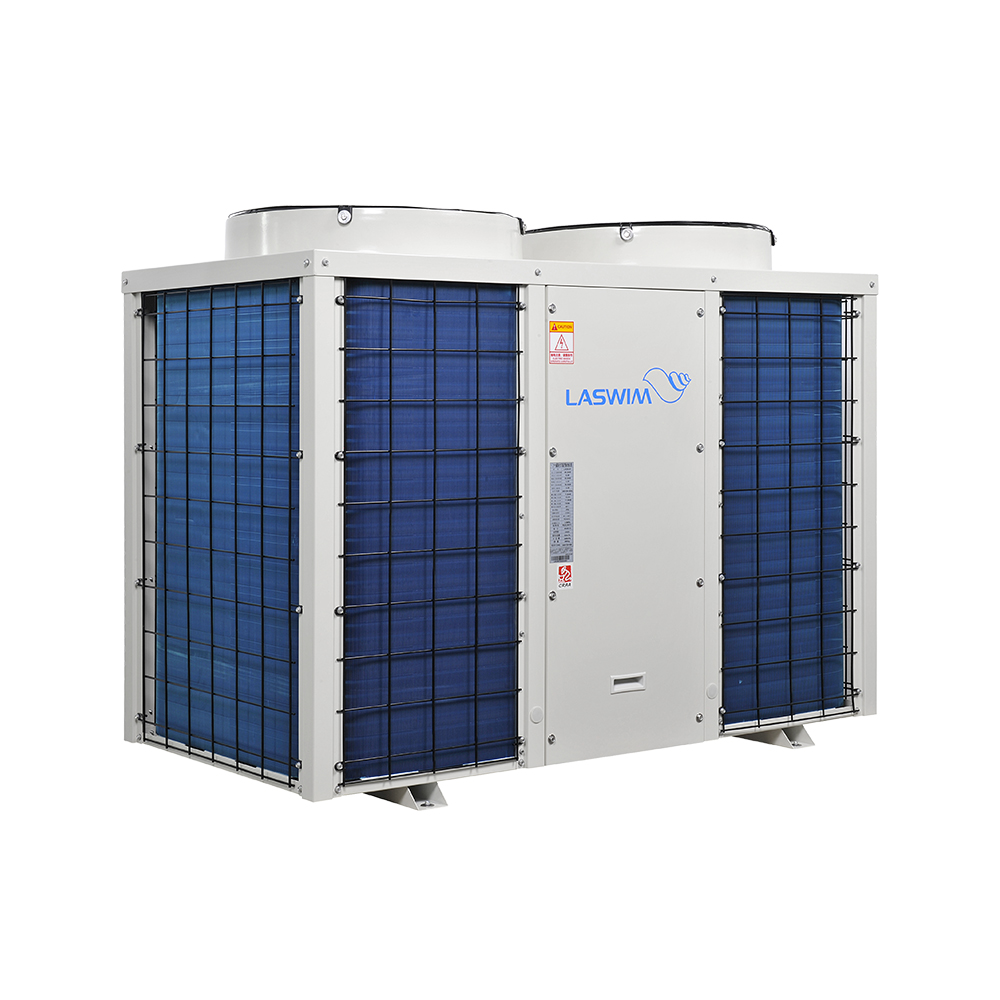

LOW TEMPERATURE V-TYPE SWIMMING POOL HEAT PUMP
LASWIM low temperature V-type commercial swimming pool heat pump is specially designed for commercial applications in low temperature areas.
It works with high efficient even under -10C(-30C EVI heat pump is available). this series heat pump is widely used for pools in hotels, SPA, water parks, gyms, competition pool, etc.
Features
1.Intelligent control for constant pool water temperature(max 40C)
2.Wide working air temperature range: -10C to 45C.
3.Anti-corrosion titanium in PVC heat exchanger for durable use.
4.Adopts V-type evaporator, with large heat exchanging surface and great heat absorption.
5.Multiple protections for safe operation and long service life.
6.the housing adopts high-quality galvanized sheet, with strong corrosion resistance.
7.Powerful centralized control and remote control is available for convenient operation and maintenance.
8.Automatic and forced defrosting function.
Product Parameters
| Model | LAS35-KP-V | LAS42-KP-V | LAS52-KP-V | LAS70-KP-V | LAS85-KP-V | LAS105-KP-V | LAS140-KP-V | LAS180-KP-V | LAS210-KP-V | ||
| Standard heating condition | Heating | kW | 40.2 | 48.2 | 56.3 | 80.4 | 96.4 | 112.6 | 160.8 | 192.8 | 225.2 |
| Capacity | |||||||||||
| COP | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | 5.58 | ||
| Low temperature | Heating | kW | 28.1 | 33.7 | 39.3 | 56.2 | 67.4 | 78.6 | 112.4 | 134.8 | 157.2 |
| Heating condition 1 | Capacity | ||||||||||
| COP | 3.91 | 3.91 | 3.91 | 3.91 | 3.91 | 3.91 | 3.91 | 3.91 | 3.91 | ||
| Low temperature | Heating | kW | 23.9 | 28.7 | 33.5 | 47.8 | 57.4 | 67 | 95.6 | 114.8 | 134 |
| Heating condition 2 | Capacity | ||||||||||
| COP | 3.32 | 3.32 | 3.32 | 3.32 | 3.32 | 3.32 | 3.32 | 3.32 | 3.32 | ||
| Cooling condition | Cooling | kW | 26.8 | 32.2 | 37.5 | 53.6 | 64.4 | 75 | 107.2 | 128.8 | 150 |
| Capacity | |||||||||||
| EER | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | ||
| Power supply | V/ph/Hz | 380V/3N/50Hz | |||||||||
| Rated input power | kW | 7.2 | 8.6 | 10.1 | 14.4 | 17.2 | 20.2 | 28.8 | 34.4 | 40.4 | |
| Rated input current | A | 12.2 | 14.6 | 17.1 | 24.4 | 29.2 | 34.2 | 48.8 | 58.4 | 68.4 | |
| Max. Input power | kW | 11.8 | 14.2 | 16.5 | 23.6 | 28.4 | 33 | 47.2 | 56.8 | 66 | |
| Max. Input current | A | 19.8 | 23.8 | 27.7 | 39.6 | 47.6 | 55.4 | 78.2 | 95.2 | 110.8 | |
| Max. outlet water temperature | C | 40 | |||||||||
| Operating air temperature | C | -10~45 | |||||||||
| Heat exhanger | Titanium in PVC heat exchanger | ||||||||||
| Max. Pressure | MPa | 2.8/4.2 | |||||||||
| Refrigerant | R22/R410A | ||||||||||
| Noise level | dB(A) | ≤64 | ≤64 | ≤65 | ≤66 | ≤67 | ≤68 | ≤70 | ≤71 | ≤71 | |
| Water inlet/outlet size | mm | 50 | 50 | 50 | 50 | 50 | 50 | 65 | 65 | 65 | |
| Circulating Water flow rate | m3/h | 8.6 | 10.4 | 12.1 | 17.3 | 20.7 | 24.2 | 34.6 | 41.5 | 48.4 | |
| Water pressure drop | kPa | 40 | 41 | 42 | 63 | 68 | 69 | 52 | 53 | 54 | |
| Net weight | Kg | 330 | 350 | 410 | 600 | 680 | 750 | 1000 | 1050 | 1180 | |
| Net dimension L*W*H | mm | 1400*900*1600 | 1400*900*1600 | 1400*900*1600 | 1900*1000*1960 | 1900*1000*1960 | 1900*1000*1960 | 1900*2000*1960 | 1900*2000*1960 | 1900*2000*1960 | |
