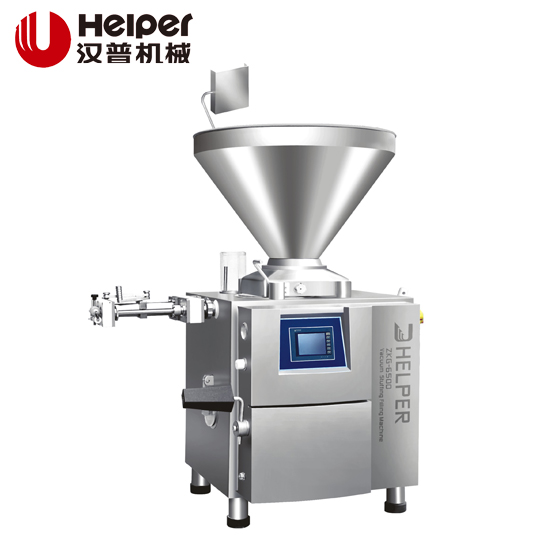

Vacuum Industrial Sausage Filler Machine

FOB Price:	200.00 - 300.00 USD/Set
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Hot sale sausage meat extruder machine|Sausage ...

Price:4,000.00-5,000.00 USD/Set

Min. Order:1 Set
Sausage Stuffer

Price:

Min. Order:
Sausage Tying Machine

Price:1,000.00-5,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Weight: 1000 kg
Voltage: 380 V 50hz
Brand Name: HELPER
Condition: New
Warranty: 1 year
Certification: CE
Dimension(L*W*H): 2210*1400*2140 mm
Power(W): 9.7 kw
Production Capacity: 1000 kg
Model Number: ZKG-6500

Specifications

Vacuum Industrial Sausage Filler Machine

1.Brief Introduction:

the Vacuum fillers ZKG-6500 is designed for mass food filling production line, linked with twister or twisting machine,Length porting device, clipper, filling for kinds casing sausage,ham, hot dogs; lined with bagging equipment or canning Equipment, filling for meat canned,Shrimp slip, Pet food and so on.

2.Techincal parameters:

Model	Portioning Range	Max Filling Capacity	Hopper Capacity	Power	Voltage	Net Weight	External Dimension
ZKG-6500	5-9999 g	6500 g	220 L	8.3 kw	380 V	1000 kg	221014002140

3.Performance features:

Vane cell feed structure to assure portioning accuracy
Servo motor and PLC controller
Stepless filling speed adjustment
Stepless twisting speed adjustment
Full made stainless steel structure meets all hygienic requirements
High degree of vacuumization filling process
Auto lifting device

3. Appilications:

ZKG-6500 Vacuum Fillers linked with twister ( twisting device)

ZKG-6500 Vacuum Fillers linked with Twisting and hanging machine,applied for calibre 14-35 mm,Sausage length 15-200 mm

ZKG-6500 Vacuum Fillers linked with ,Applied for calibre 20-125 mm

ZKG-6500 Vacuum Fillers linked to bagging equipment / canning equipment, applied for meat canned, Shrimp Slip, pet food etc.
