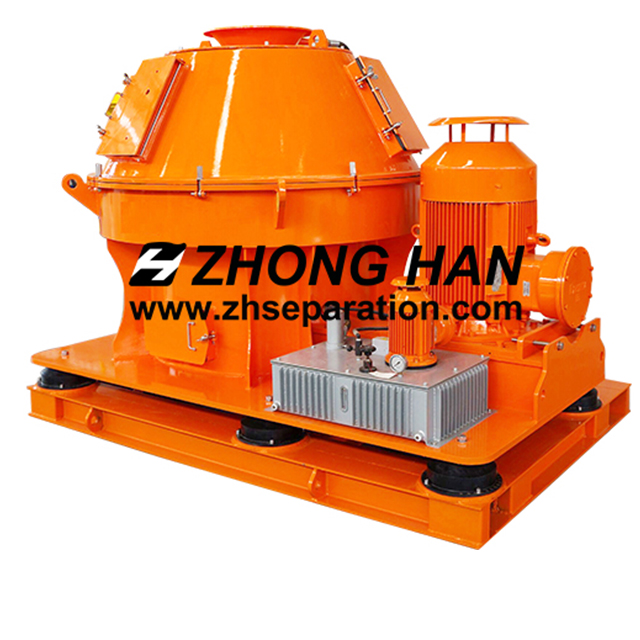

Vertical Cuttings Dryer for Drilling Waste Management

FOB Price:	10000.00 - 50000.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Year
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Tianjin in China

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Brand Name: ZhongHan
Application: Oil and Gas Drilling
Condition: New
Model Number: +8615132663778
Production Capacity: Tianjin

Specifications

It is a single-stage continuous working Vertical scraper discharge drying centrifuge, also called vertical drying Centrifuge. Oilfield drilling waste treatment is one of the important equipment for the non-ground treatment of mud, which helps to solve the problem of Separation and drying of drilling waste in the current oil-based mud Environment and water-based mud environment. It is the need for mud not to meet the environmental protection requirements. the speed can reach 900RPM, which Can form a separation factor of 420G and effectively separate the liquid in the Drill cuttings. the discharge scraper is made of cemented carbide material and Has a long service life. Each replaceable optional component has passed the Dynamic balance test, and the balance of the whole machine after the Replacement of the component. Independent oil circuit cooling system, equipped with a scientific oil tank cooling system, is required for use in high Temperature environments. the discharge port can be equipped with a screw Conveyor to facilitate the conveying of dry drill cuttings and the continuous Operation of the equipment.
