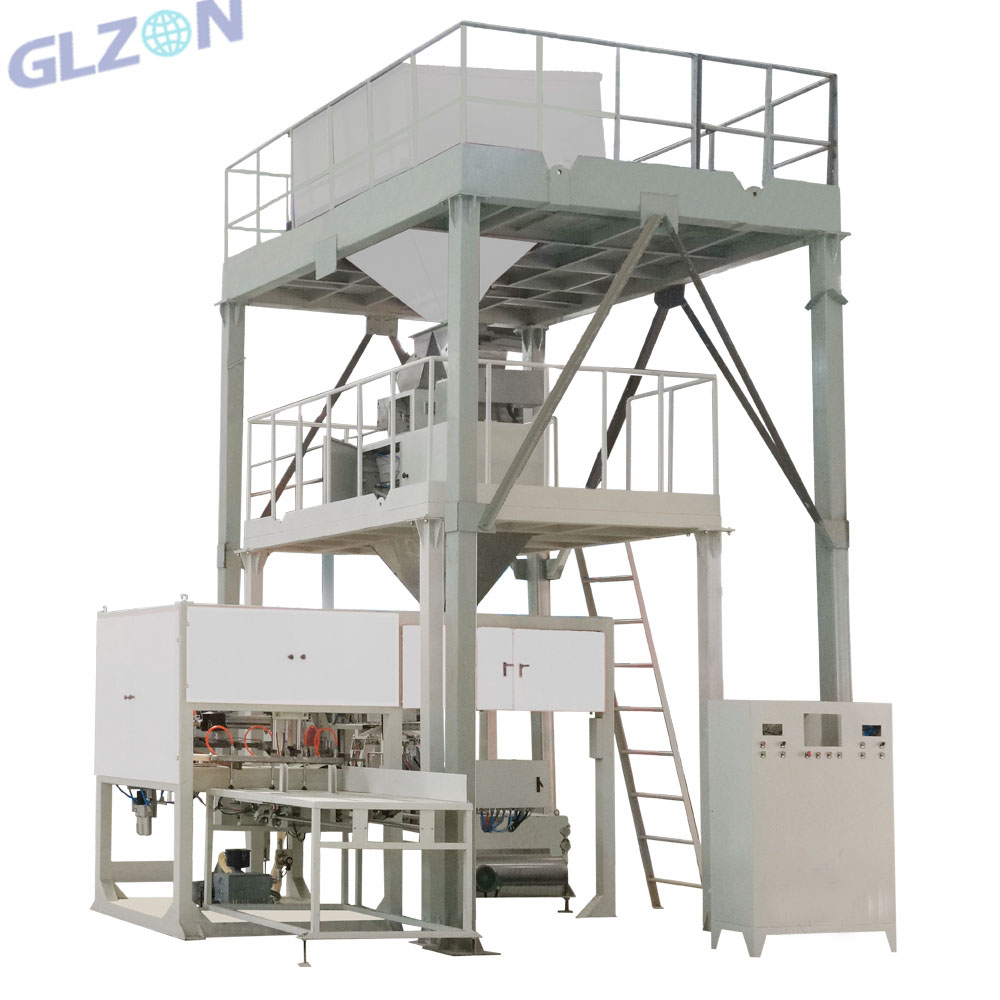

Full Automatic Packing Machine

Specifications

Automatic packaging machine is composed of automatic bag feeding mechanism, bag loading mechanism, automatic weighing quantitative packaging scale, bag clamping device, folding hot sealing machine, bag pouring machine, shaping machine, metal detection machine, conveyor eliminating machine, weight re-inspection machine, inkjet machine, other optional equipment, electrical instrument control cabinet and various conveyors.1. Automatic weighing and quantitative packing scale: automatic weighing and quantitative packing scale of automatic packing machine uses original imported German HBM series sensor, original imported Canadian Germaine instrument, part of the material in contact is made of stainless steel, and the part in contact with the material is polished more than 200 mesh.2. Bag feeding mechanism: the bag feeding mechanism of automatic packaging machine adopts two position automatic switching mode and motor drive to realize the functions of bag feeding and bag moving.2 horizontal bag trays can store 200 empty bags (depending on the thickness of the bag).When one stack of bags is used up, another stack of bags will automatically arrive at the location of the bag, to ensure that there is no stop.When you need to add a packing bag, an alarm is automatically generated. If all the packing bags are used up, the packing machine automatically stops working.Capacity: 800bags/h.3. Bag-loading mechanism: the bag-loading mechanism of automatic packaging machine with two arms and bag-loading manipulator, bionic structure, original design, patented technology, all kinds of pockets can be applied.the action steps of automatic bag loading machine only need 5 short stroke steps to complete a bag loading, so the structure is simple, easy to operate, and the workload of maintenance is greatly reduced.Manipulator action is completed by servo motor, cylinder, the action is in place, can arbitrarily adjust the Angle of the servo motor in order to better achieve the connection with the automatic bag clamping device.the vacuum pump of Bosch in Germany is used for bag picking and bag stretching.Main features: (1) vacuum bag, manipulator bag;(2) Alarm of bag shortage in bag warehouse;(3) insufficient compressed air pressure alarm;(4) bagging detection and bag blowing function;Part of the material in contact with the material is stainless steel.
