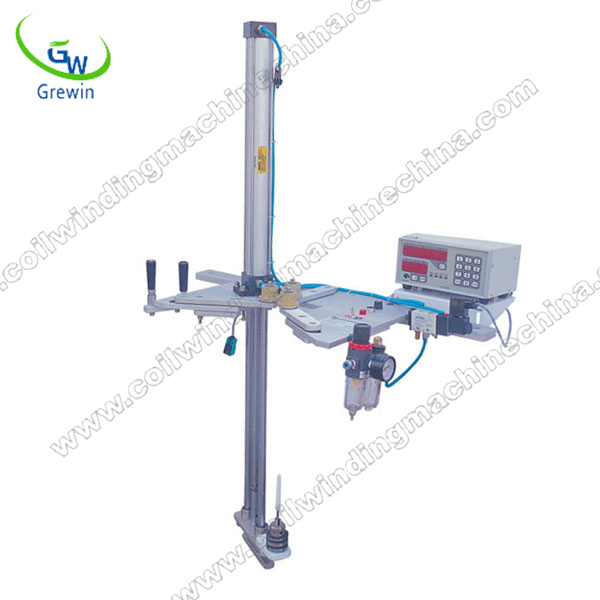

GWM-9020H Hook Type Winding Machine
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
Quick Details
- Brand Name: GREWIN
- material: Steel
- Size: 0
- Color: white and black
- Materials: Steel
- Model Number: GWM-9020H
Specifications
Specifications:
Wire diameter |
0.05-1.1 |
Max.Winding speed |
1500rpm |
Max.Final coil.O.D |
Φ8-60 |
Wire spacing |
Proportional linkage |
Min.Final coil.I.D |
Φ3 |
Supply voltage |
AC 220V |
Max.Finalcoil height |
25 |
Mechanical dimensions |
|
Controller storage capacity Programs |
29 set |
Weight |
FEATURES:
Hook Type Winding Machine has 4 standard hook size with specials available.
Air operated with air compressor
Hook Type Winding Machines' Spreading by stepping motor
Hook Type Winding Machine can accurately count turns of winding by photo-electricity sensor
Programmable winding direction,winding returns range(Turns or Angle) and segment winding angle
Accurately wire spacing by programmable controller
Memory capacity accommodates 999 sequences of parameters with off-power memory retention
ADVANTAGES:
Air operated with air compressoe,Digital controller,easy to operate
Complete varieties, wide wire diameter cross domain, can be used in one machine
the exchange line is good. Various types of wearing parts can be interchangeable
Good stability, quality assurance of moving parts
Hook Type Winding Machine has hIgh efficiency, high speed winding wire diameter
the operation is simple and easy to learn
APPLICATION:
Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,coNverter inductor and heavy toroidal core etc.
PRACTICAL APPLICATION:
TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the Hook Type Winding Machine.
Provide free consultation about production process technology of electronic products.
order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
PACKAGING:
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): for small euipped parts for Hook Type Winding Machine, Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: for larger scale Hook Type Winding Machine,we have special skilleD carpenter, who would make the proper wooden case with exact thickness,density,length. the up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
