Full-Automatic Compound Fertilizer Packaging Machine

Specifications

SW-ABF-800, the full-automatic compound fertilizer packaging machine, is also known as the full-automatic granular packaging machine. this full-automatic packaging machine is an important member of modern industrial packaging, which mainly packs granular materials in batches and quickly.

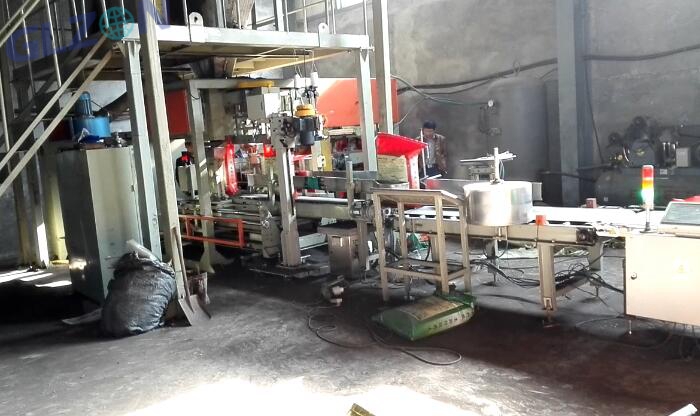

Automatic compound fertilizer packaging machine is mainly composed of automatic bag feeding mechanism, automatic weighing mechanism, quantitative packaging mechanism, conveying mechanism, automatic folding and sewing mechanism and automatic code spraying mechanism. the bag loading manipulator in the automatic packaging machine can replace the original manual bag loading, and the bag loading speed can reach more than 1200 per hour. the automatic weighing mechanism will automatically weigh the materials according to the set weight. after the bag loading is finished, the quantitative packaging machine will automatically fill the weighed materials into the bag. the entrainment device will automatically loosen the bag, and the bag will fall onto the conveyor, which will convey the bag to the folding machine for automatic folding and sealing. Finally, the conveyor will output the bag and wait for the stacking system to stack, thus completing the whole process.
Automatic sorting of empty bags: the bags used by enterprises are divided into cold-cut bags and hot-cut bags. during the processing of hot-cut bags, the bags are stuck together due to irregular cuts, which makes it difficult to open the bags by vacuum suction cups. It is necessary to treat the bag opening by bag opening equipment. Only after the treatment of the previous process can the newly purchased bags enter the next process better.
Fully automatic packaging machine for compound fertilizer has higher requirements for compound fertilizer packaging bags. Enterprises must require that the packaging bags have at least one side covered with film in the process of purchasing packaging bags, and the packaging bags without film on both sides cannot be used. both double-layer coated and coated packaging bags can be used normally, and the weight of a single packaging bag should be no less than 80g.
Picking up of packaging bags: Qualified empty packaging bags are picked up by vacuum suction cups, and the lifting mechanism lifts the packaging bags to a certain height.
