Solarborn Technologies Co., Ltd.
China Manufacturer with main products: Solar Panel |

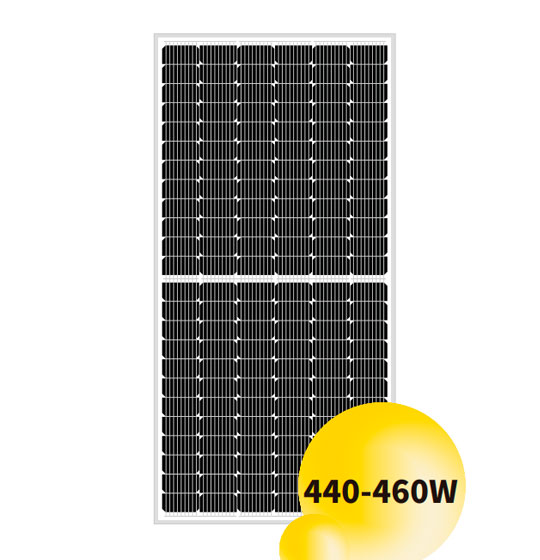

440W-460W Mono Solar Panel with 144 Pieces Solar Cells
| FOB Price: | 1.00 - 10000.00 USD/Square Meter |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Max. Power: N/A
- Number of Cells: N/A
- Size: N/A
- Material: Polycrystalline Silicon
- Brand Name: solarborn
Specifications
144 solar cells with a side length of 166mm can be made into 440w, 445w, 450w, 455w, 460w, and 166mm solar cells. 450-watt solar panel size is 2094*1038*35mm. Solar panels are often used in distributed photovoltaic projects as a key component of the, which is reliable, durable, versatile, ready to install, each panel has been quality tested to ensure safety and service life, and sell well all over the world.
Get Free Quote
Parameter of 440W-460W Mono Solar Panel with 144 Pieces Solar Cells
Electrical Characteristics of 440W Mono Solar Panel with 144 Pieces Solar Cells
Module Type |
SLB144M8-440 |
Maximum Power (W) |
440 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
40.85 |
Optimum Operating Current (IMP) |
10.77 |
Open Circuit Voltage (VOC) |
48.52 |
Short Circuit Current (ISC) |
11.24 |
Module Efficiency (%) |
20.2 |
Electrical Characteristics of 445W Mono Solar Panel with 144 Pieces Solar Cells
Module Type |
SLB144M8-445 |
Maximum Power (W) |
445 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
41.09 |
Optimum Operating Current (IMP) |
10.83 |
Open Circuit Voltage (VOC) |
48.79 |
Short Circuit Current (ISC) |
11.31 |
Module Efficiency (%) |
20.5 |
Electrical Characteristics of 450W Mono Solar Panel with 144 Pieces Solar Cells
Module Type |
SLB144M8-450 |
Maximum Power (W) |
450 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
41.32 |
Optimum Operating Current (IMP) |
10.89 |
Open Circuit Voltage (VOC) |
49.06 |
Short Circuit Current (ISC) |
11.38 |
Module Efficiency (%) |
20.7 |
Electrical Characteristics of 455W Mono Solar Panel with 144 Pieces Solar Cells
Module Type |
SLB144M8-455 |
Maximum Power (W) |
455 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
41.55 |
Optimum Operating Current (IMP) |
10.95 |
Open Circuit Voltage (VOC) |
49.33 |
Short Circuit Current (ISC) |
11.45 |
Module Efficiency (%) |
20.9 |
Electrical Characteristics of 460W Mono Solar Panel with 144 Pieces Solar Cells
Module Type |
SLB144M8-460 |
Maximum Power (W) |
460 |
Tolerance Wattage (W) |
0~+5 |
Optimum Power Voltage (VMP) |
41.8 |
Optimum Operating Current (IMP) |
11 |
Open Circuit Voltage (VOC) |
50 |
Short Circuit Current (ISC) |
11.73 |
Module Efficiency (%) |
21.2 |
WE are a professional.There is different types of like435w solar panel. If you want toBuy chinese solar panels,please contact us,we can give you a reasonableSolar panel companies cost and high qualityChinese solar panels.

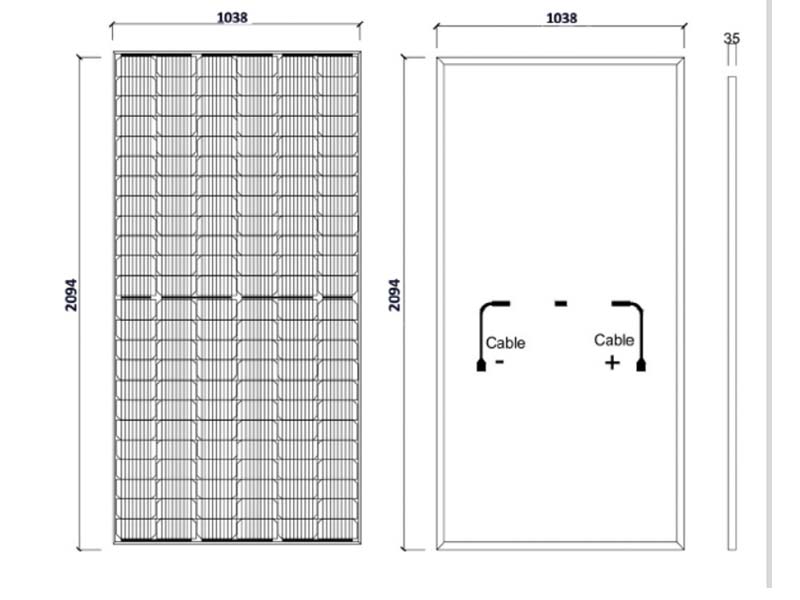

Structure of 440W-460W Mono Solar Panel with 144 Pieces Solar Cells
