ASV-100 Transformer Evacuation System, Portable Transformer Oil Drying Equipment

FOB Price:	4000.00 - 7000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	by sea/air
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	plywood case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE ISO
Weight: 500KG
Brand Name: ASSEN
Condition: New
Dimension(L*W*H): 1339*950*1260MM
Power(W): 24
Voltage: 400,380,220
Model Number: asv-100
Working Pressure: 133pa
name: transformer evacuation system

Specifications

Application:

ASV seriesUnit is used for vacuuming of Power vacuum equipment in substation industry, power supply bureau, power plant and transformer manufacturing plant. the working vacuum of this unit is 1 torr, and the ultimate vacuum that can be achieved is 5pa. It is not suitable for Removing gases that are too high in oxygen, toxic, explosive, water-bearing, Corrosive to metal materials, and chemically reactive to pump oil.

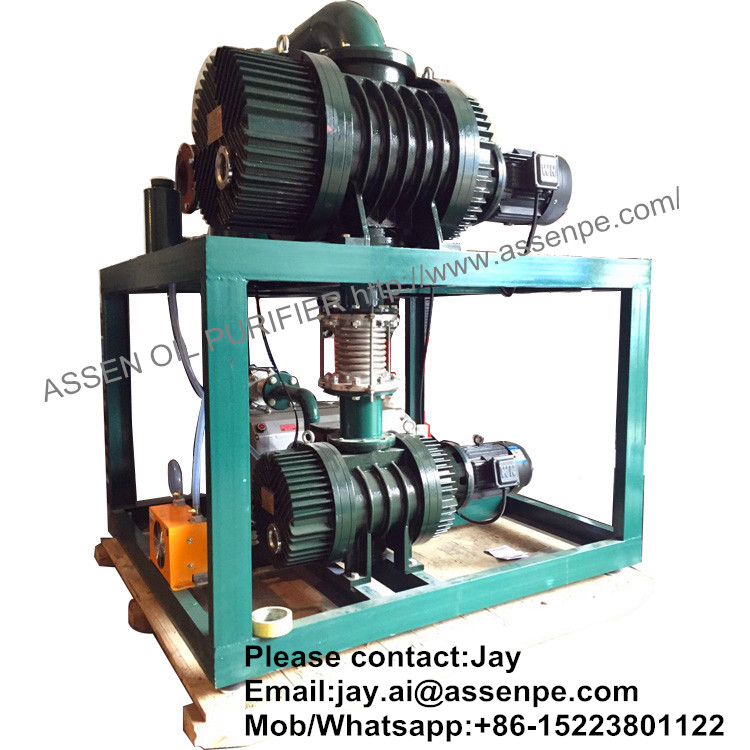

ASV100 Transformer Evacuation SystemPortable Transformer Oil Drying Equipment

Features:

It has the Characteristics of quick start, high pumping speed, stable performance and easy Operation.

the Roots Pump is used as the main pump and the rotary vane vacuum pump is used as the first Stage pump.

Configure A digital vacuum gauge to accurately observe and control the vacuum of the Pumped container.

Adopt France Schneider electrical appliance as the control components.

Fully Automatic operation, it can run without a person, the status is displayed by Indicator.

the User-friendly design, low noise, low energy consumption and low operating Costs.

Optional mode:

the whole structure can be made into mobile and fixed.

Can be made into fully enclosed, open, concealed.

Optional PLC intelligent control, touch screen operation and Dynamic display according to user requirements.

Technical Parameters:

Model		ASV-30	ASV-70	ASV-150	ASV-300	ASV-600	ASV-1200
Capacity (L/s)		30	70	150	300	600	1200
Ultimate vacuum		5 PA
Stages		Single	Double stages
Pumping speed of backing Pump (L/s)		30	15	30	70	70	150
Pumping speed of roots pump (L/s)		-	70	150	300	600	1200
Power (kw)		2	4	6.5	9	11	18.5
Power supply		380V 3Ph 50Hz (or Customized )
Weight (kg)		240	480	650	960	1250	1560
Dimension (mm)	L	700	1000	1100	1360	1500	1700
	W	500	600	650	900	1100	1150
	H	1200	1180	1350	1700	1850	1950
