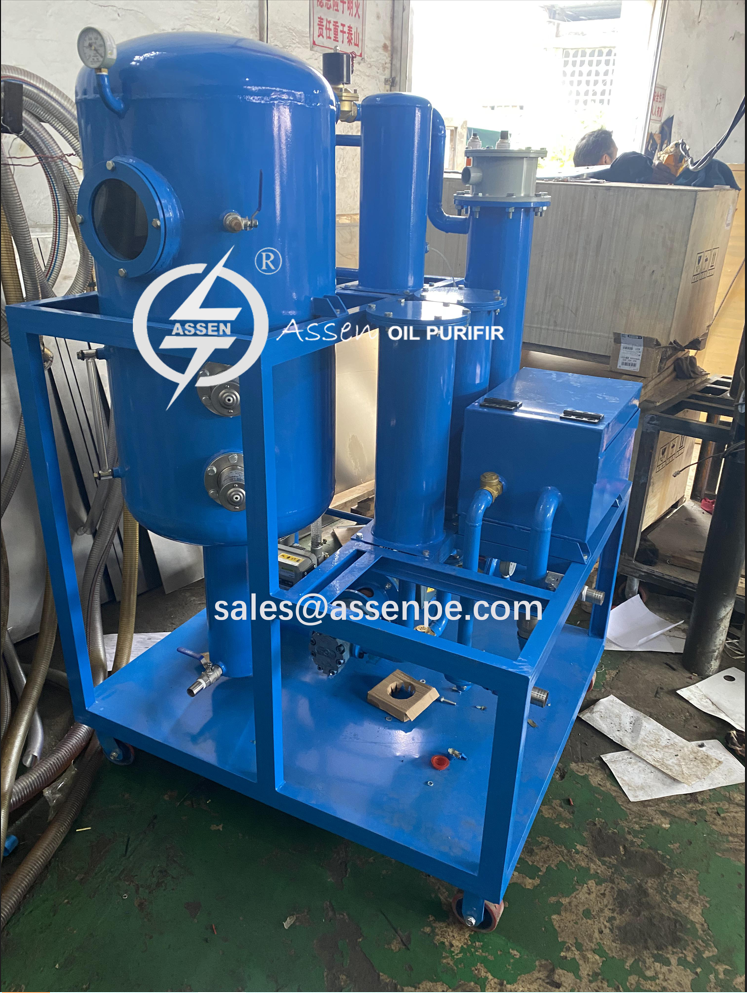

Vacuum Lubricating Oil Purifier Cleaning Machine, Hydraulic Oil Filtration System Unit

Specifications

Application:

TYA hydraulic Oil purifier is catered to reclaiming leaked hydraulic oil whereby the removal of emulsified water and dirt contamination is critical. It circulates oil at a Very low velocity, removing submicron particles and large contaminants from Hydraulic fluids and lubricating oils.

Product Features:

1. Strong impurity removal Ability. Large area and deep precision filter can remove fine particles in the oil.

2. Multi-stage cylinder filter, Large flow and washable filter element ensure the high filtration efficiency. Due to the use of step by step encryption technology, the serious pollution of Lubricating oil can be purified to the qualified standard. the designed auto Backwash system can automatic clean a large number of impurities in the Filter.It not only improves the continuous working time of the equipment, but Also extend the life of the filter.

3. Advanced medium heat Absorption and condensation system.

4. Automatic temperature control and heating, automatic separation of condensate water device, simple operation, Safe and reliable.

5. Super emulsifying ability, not Only separate a large amount of water in the oil, but also remove the trace Water in the oil

6. Combined with coalescence, Separation and vacuum dehydration, the water separation device adopts Coalescence and separation technology, which can quickly separate a large Amount of water and moisture from the lubricating oil with high water content.

7. Deep and high-precision FH Rectangular filter system can effectively remove iron filings, dust and Impurities in the oil.

8. Self-developed H, P, M polymer Material filtration technology.

9. Adopt high quality original Components and connecting sealing materials to meet the requirements of high Viscosity lubricating oil filtration with high temperature, and expand the type And range of oil that can be purified by oil filter.

10. Adopt high quality filter Material which can contain large amount of stains. It also guaranteed the high Corrosion resistance, temperature resistance, excellent mechanical strength, High accuracy in removal of impurities and long service life.

11. Humanized designed double Infrared liquid level control system, with phase sequence protection, overload Protection and over-voltage protection of the electrical automatic protection Control system.It also adopt with constant temperature automatic control System, to ensure that the operation is simple, safe and reliable. the machine Can work online for a long time, unique oil pump, low noise, in line with the World's high standards of environmental protection requirements.

Optional

Optional Liquid-ring vacuum pump

TECHNICAL DATA:
