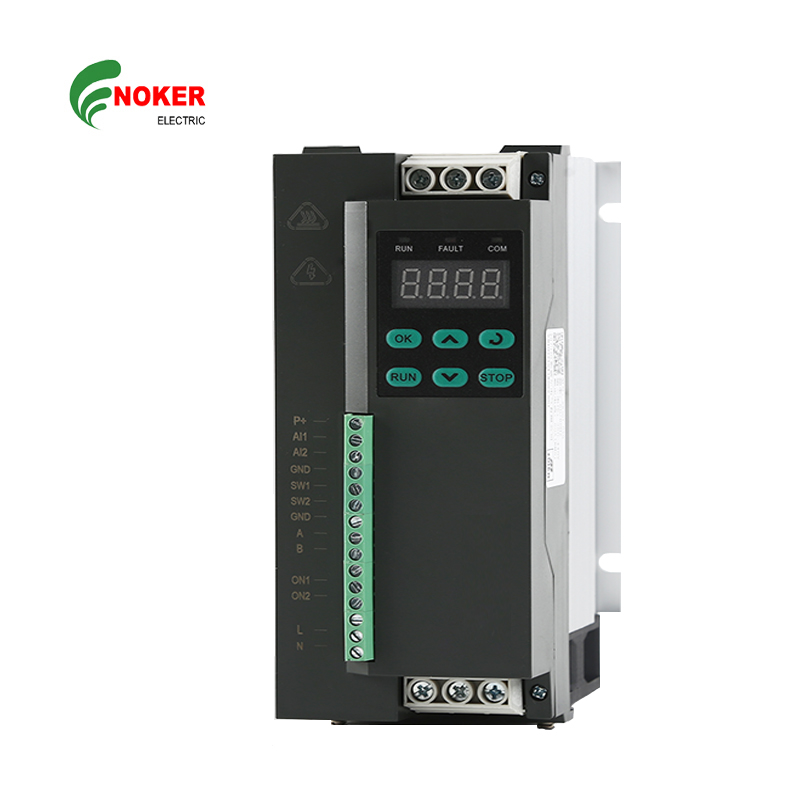

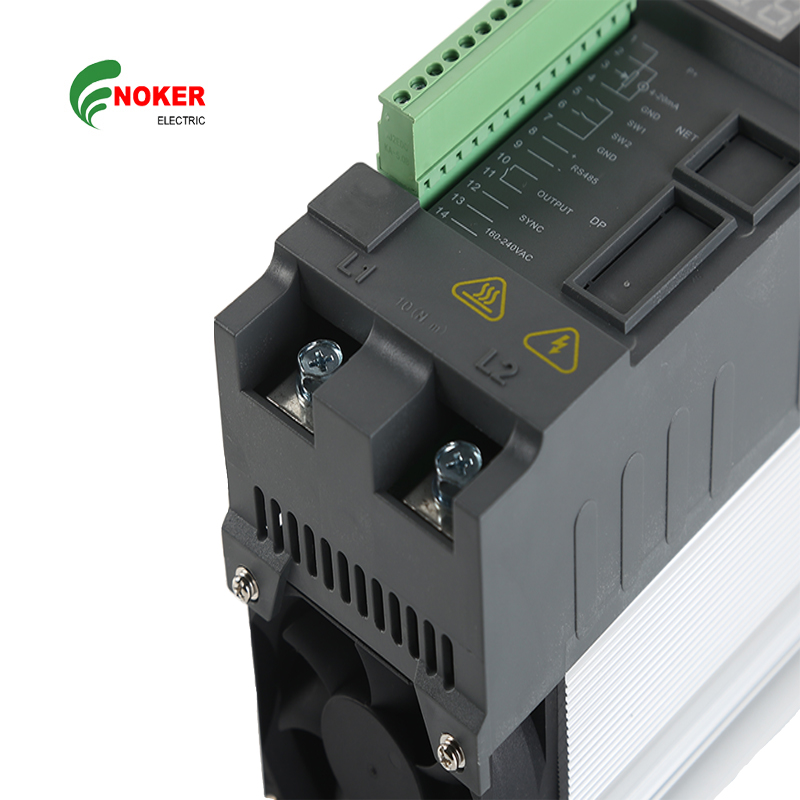

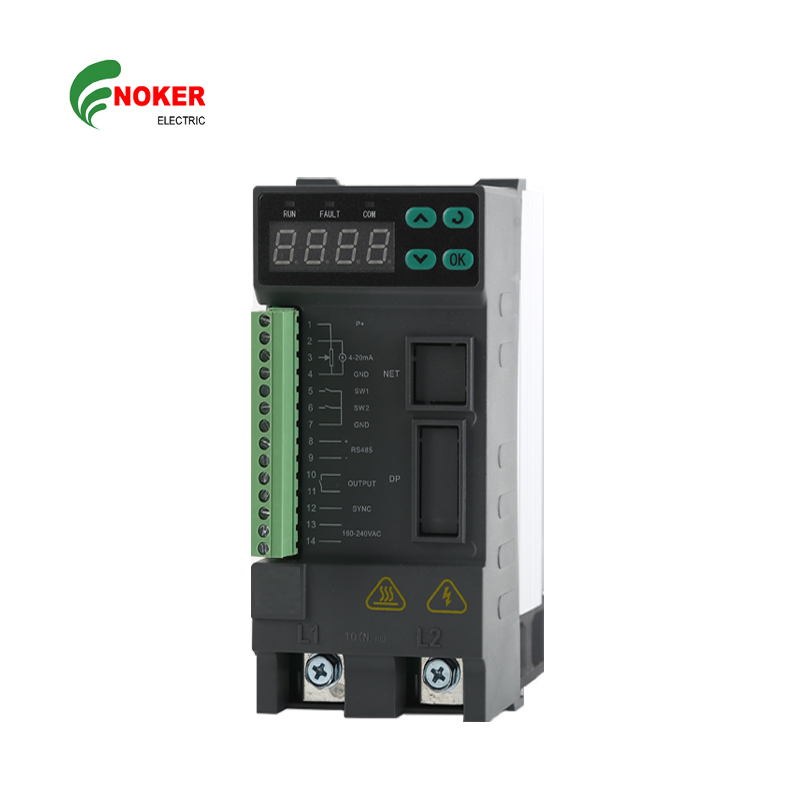

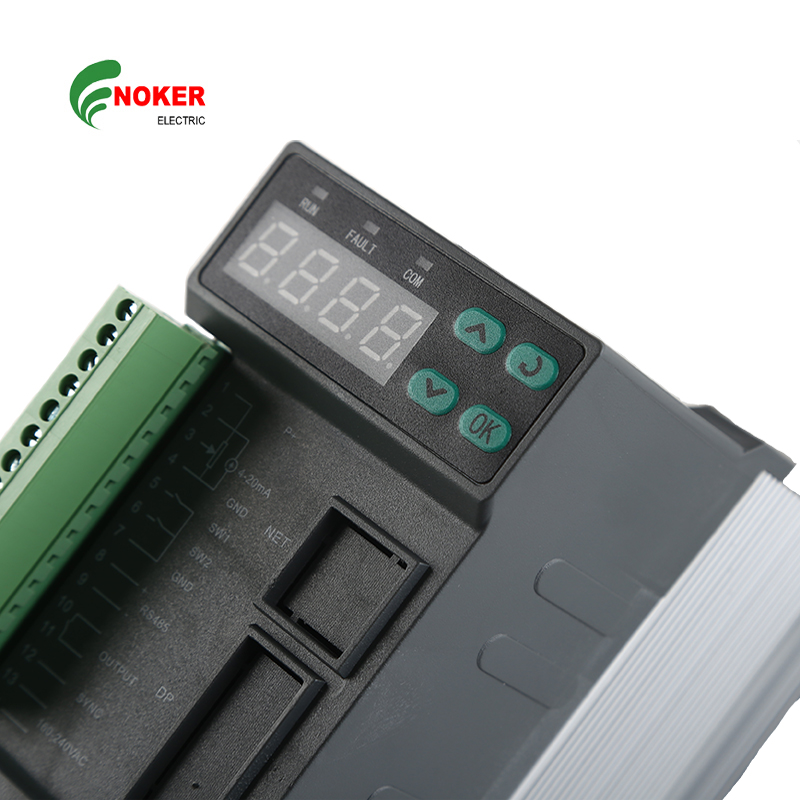

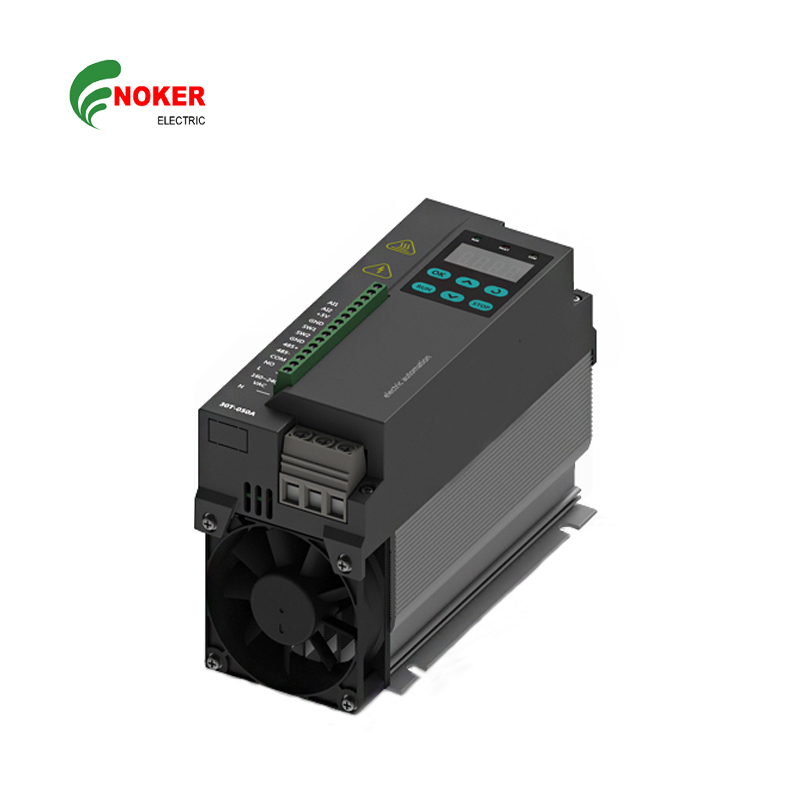

Triple Phase Scr Power Regulator 380v 100a Heater Thyristor Power Controllers

FOB Price:	60.00 - 380.00 USD/Piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shaanxi in China

Quick Details

Phase: Three Phase
Usage: JIW
Brand Name: Noker
Warranty: 12 months

Specifications

Rated voltage: 220/380vac
Control signal: 4-20mA, 0-5vdc, 0-10vdc
Usage: for heating industry
Rated current: 25-350A
Phase: Three phase
Model number: SCR-6
Frequency: 50/60Hz
Cooling: Force wind cooling

1. Built-in high performance, low power microcontroller;
2. Peripheral features;
2.1. Support 4-20mA and 0-5V/10v two given;
2.2. Two switch inputs;
2.3. Wide range of primary loop voltage(AC110--440V);
3. Efficient cooling solution, such small size, light weight;
4. Practical alarm function;
4.1. Phase failure;
4.2. Overheat;
4.3 Overcurrent;
4.4. Load break;
5. One relay output, 3A AC250V, 3A DC30V;
6. Max current 350A;
7. to facilitate centralized control RS485 communication;
Triple Phase Scr Power Regulator 380v 100a Heater Voltage Regulator
