Tiancheng Optics Co., Ltd.
China Manufacturer with main products: Cylindrical Lens Supplier, Cylindrical Lens Factory |
Right Angle Prism TianCheng Optics CO., Ltd
| FOB Price: | 1.00 - 10000.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Type: Roller
- Structure: Cylindrical
- Number of Row: /
- Outside Diameter: /-/ inch
- Bore Size: /-/ inch
- Structure: /
- Type: /
Specifications

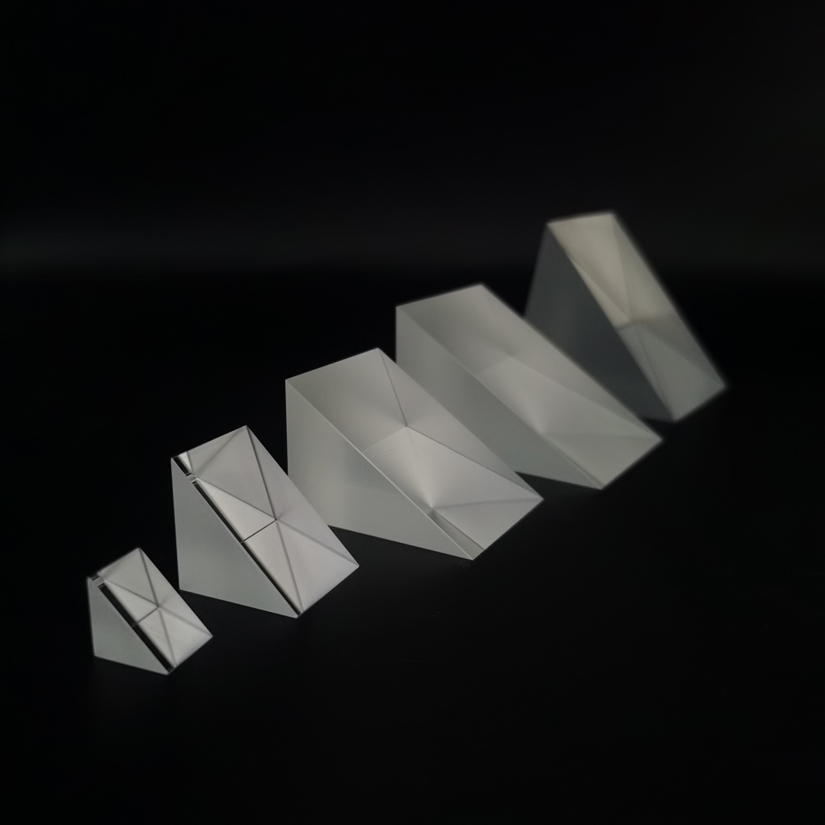

Right angle prism is the 90 degree prism.
A. Standard Prism
B. Various Material
C. Differnet Coating
D. Good Price
Specification of Right Angle Prism
Material |
BK7 Grade A Optical Glass or UV Fused Silica |
Dimension Tolerance |
+0.0, -0.2 mm |
Clear Aperture |
>80% |
Surface Quality |
60-40 Scratch and Dig |
90° Deviation |
3', 1' or 30' |
Flatness |
Λ/2 @632.8 nm |
Protective Bevel |
0.25 mm x 45° |
Right Angle Prism Capacity
Material |
Optical Glass, Fused Silica, Sapphire |
Dimension |
1-250 mm |
Dimension Tolerance |
+0/-0.1 mm |
Surface Flatness |
Λ/10@632.8 nm |
Surface Quality |
10-5 |
Angular Accuracy |
5 Second |
Coating |
Uncoated, AR, HR, Beamsplitter, etc. |
BK7 Right Angle Prism Standard Products
Size (mm) |
3 min. Deviation |
1 min. Deviation |
30 sec. Deviation |
Part No. |
Part No. |
Part No. | |
A=B=C=3.2 |
TAP101 |
TAP201 |
TAP301 |
A=B=C=4.0 |
TAP102 |
TAP202 |
TAP302 |
A=B=C=10.0 |
TAP103 |
TAP203 |
TAP303 |
A=B=C=12.7 |
TAP104 |
TAP204 |
TAP304 |
Is a professional, We provideOptical components china,Cylindrical glass lens,Projector lens for sale, optical right angle prism, right angle prism china and etc. Want to knowRight angle prism uses, contact us..
There are many, but we are one of the best choices for you.
