Shenzhen Leguo Network Technology Co., Ltd.
China Manufacturer with main products: POE Injector, POE SWITCHES, POE Splitter |
LGLGUO PSI348G Gigabit Poe Combiner, Splitter
| FOB Price: | 1.20 - 1.50 USD/Other |
|---|---|
| Supply Ability: | 100,000 Yard(s) per Month |
| Shipping: | Yantian Port |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: lglguo
- Certification: CE,FCC
- Function: POE
- Transmission Rate: 10/100/1000Mbps
- Products Status: Stock
- Model Number: PSI348G
- Switch Capacity: 1Gbps
- Communication Mode: Full-Duplex & Half-Duplex
Specifications
Psi-348 (psi-348g) Poe power supply supports various DC power inputs. According to the voltage required by your Poe network equipment, the power adapter can be connected to psi-348. through psi-348, the DC power can be loaded into the RJ45 Ethernet power supply port to power network equipment without Poe function.
of course, using psi-348, in addition to converting the power adapter to Poe Ethernet for output, you can use the second group of psi-348 to split the transmission network line source that receives data (LAN) data and Poe power into data (LAN) port and DC power, and output it to devices that generally do not have Poe function DC in (such as IP cam, wireless base station, other devices, etc.) (refer to application mode 1).

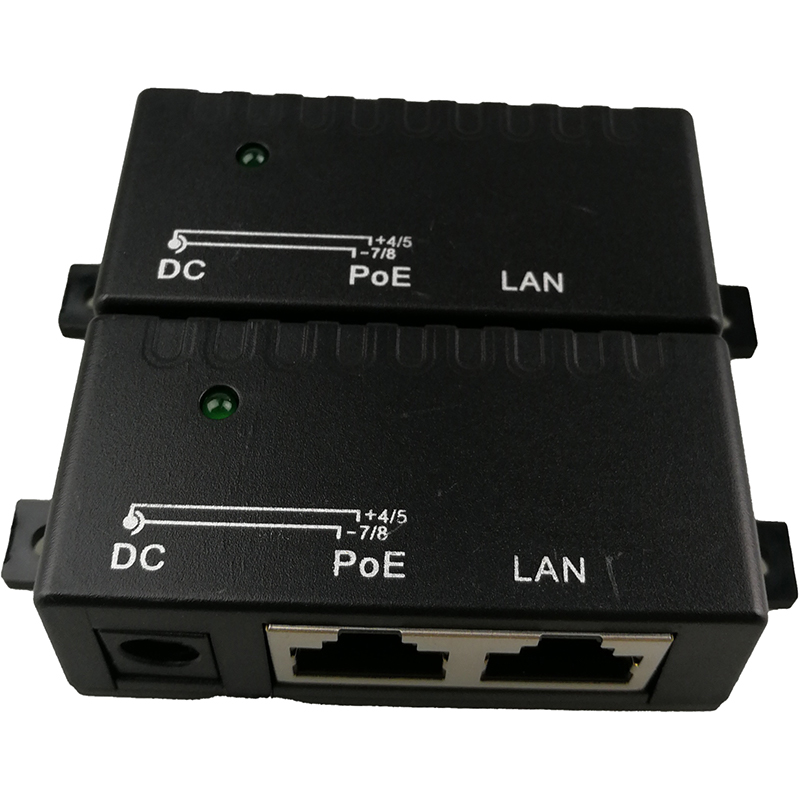

Psi-348 data transmission will use (1/2; 3/6) pin transmission above CAT5, while Poe power supply will use (4/5; 7/8) pin transmission technology for operation.
Psi-348 has simple wall hanging and simple connection mode, which provides a better solution for difficult power supply setting, provides a simple erection mode for complex environments, and saves unnecessary wiring costs.
Psi-348 simple Poe power supply
the voltage can be DC 3 ~ 48V.
the current can reach 1000mA
It can be fixed on the wall with self tapping screws
LED light display ensures voltage and current

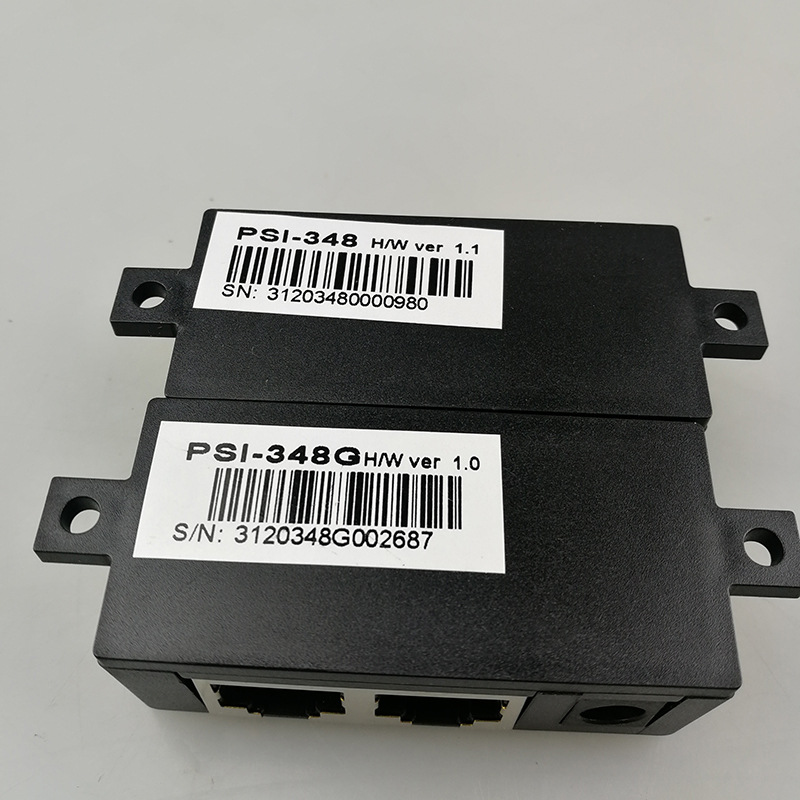

PSI-348:10/100Mbps; Midspan mid span power supply (45+; 78-)
PSI-348G: 10/100/1000Mbps; Midspan mid span power supply (45+; 78-)
