Automatic Horizontal Sliding Folding Insulated Aluminum Door Industrial

FOB Price:	130.00 - 150.00 USD/Square Meter
Supply Ability:	1,000 Square Meter(s) per Month
Shipping:	Shanghai port
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Standard seaworthy package

Quick Details

Door Material: PU
Surface Finishing: Finished
Position: Industrial
Open Style: Folding
Brand Name: WUXI NEWTON
Type: Accordion Doors
Model Number: NTFD
Application: Fireproof, Commercial, Subway, Aircraft Hangar
Door panel thickness: 57mm, 77mm
Opening speed: 90 Degree at 7 Seconds
Door Panel Color: White, Ash White, Customized
Operation Method: Automatic / Manual
Door Panel Plate: Doubled-Sided 0.8mm Steel
Roller Material: ABS
Track Thickness: 3mm
Opening Style: One-Way, Bidirectional
Control Method: Radar, Remote Control, Induction Coil, Infrared

Specifications

Automatic Horizontal Sliding Folding Insulated Aluminum Door Industrial

- Product appearance

the external panel color is white & gray, and special colors are customized;
the color can be customized according to RAL color cards;
Surface anodized / galvanized / painted surface treatment is carried out on all hardware;
Surface spraying treatment is carried out on aluminium alloy accessories

- Product features

Hidden frame design: the frame of door is made of cold-rolled galvanized steel, and designed with U-shape concave and convex grooves molded by special rolling machine. It is covered with 0.6mm to 1.2mm of aluminium plating zinc plate or aluminium alloy plates on both sides, and foamed overall.
It has higher strength, the thickness (57mm & 77mm) is optional.
It has multi-section structure doors, when the door doesn't need to be completely opened, a part of the door will open to reduce the open & close time, and heat loss.
the top of the door is sealed with high density double-layer brush. the door frames and each door panel are sealed with EPDM.
the top rail is made by 4mm thickness steel plates, and mounted directly on the side wall or fixed on the eaves. the thickness should not be less than 4mm.
the bottom water deflector is made of 2mm thickness aluminium alloy guide slots with a small angle of waterproof slope (or more special design configuration). the bottom water deflector is configured as standard when there are more than 3 sections / panels in a single door, and it is optional when less than 2 sections / panels.
Door and hinge are connected by embedded pull rivet nuts, the hardware for connecting the door is embedded rivet nuts.
the top rail is made of 50x50x3mm steel or 5mm thickness aluminium alloy, the top rail with one-sided four flods is made of 4mm galvanized steel molding rails.
Hanging wheels are made of sealed bearings and PA66 nylon, four wheels can increase the strength and make the door move smoothly.
Configuration range: Standard width of single-section can be 650mm to 1200mm, the maximum width of single section is 1500mm, the thickness of the door panel is 57mm or 77mm optional. for the 77mm panel, it is appropriate door height of 8000mm, and the maximum height of a single door panel is 13000mm; for the 57mm panel, it is appropriate door height less than 8000mm.

- Safety lock

A latch and a handle fixed on a manual folding door panel.
Electric gate motor automatic lock in the closed position; with a clutch device, it allows to open the door manually.

- Options

Single or double-sided panels and all external hinge facilities can choose standard Ral colors for polyester powder coating.
Drive part uses a low-noise fast motor (opening time can be set according to the motor).
Double visible acrylic window or tempered laminated window.
Wicket can choose escape lock.

- Opening style

Bidirectional folded open
One-way folded open

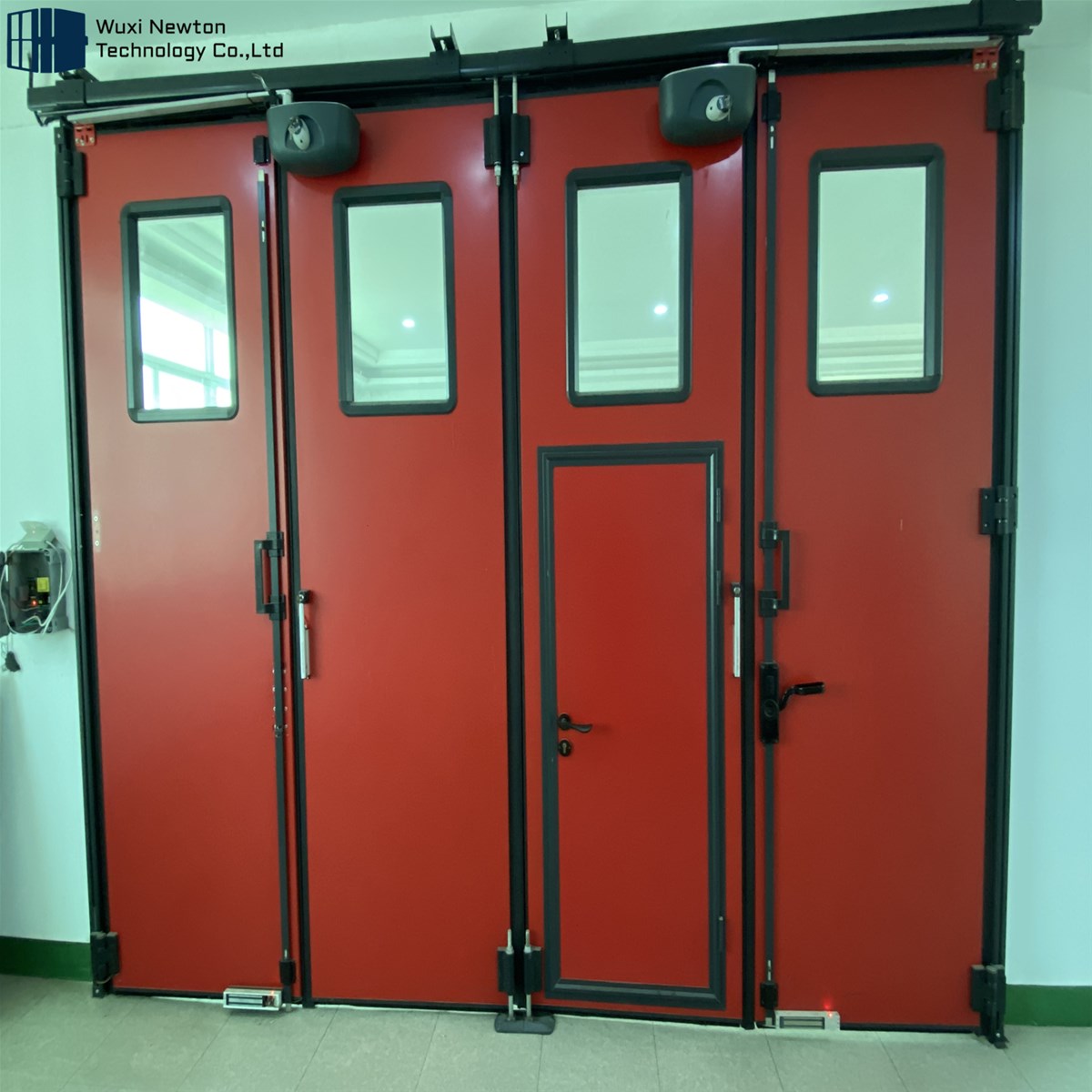

- 24V folding door opener optional

LED screen (multiple language), easy to install and test
Electronic limit switch, the open & close limitation is precise and stable
Can connect the external manual release

Technical parameter:

1. Power supply: 230±10%, 50-60Hz

2. Motor working voltage: 24V

3. Power: 40W

4. Maximum torque: 300Nm

5. Mximum door width (single panel): 2.5m(200kg)/2m(250kg)

6. Limitation: Electron

7. Opening time: 15 seconds

8. Speed reduction: Yes

9. Auto-reverse: Intelligent torque detect system

10. Self-locking: Mechanic

11. Manual release: Release the torque

12. Operating frequency: Low intensive use

13. Operating ambient temperature: -20°C~+50°C

14. Protection level: IP44/IP55

15. Weight: 16kg

- Different folding door types
Automatic type
Manual type

- Our strength
1. Door panel
Our folding door complies to European standard, the door panel is made of double-sided 0.8mm BAO steel color-coated plate, and the middle is filled with 50kg of polyurethane per cube meter. the integration process adopts 1.5mm galvanized steel plate to form a built-in hidden structual frame design. the force combines the three materials into one and the strength is improved. Zero welding joint on the surface, the weight per square is up to 24kg, which not only ensures the wind resistance strength, but alos protects the surface of the door panel from rainwater corrosion. In addition, a small pedestrian door can be opened on the common passage door panel, which is more convenient.
2. Hardware

All load-bearing hinges of the folding door are made of precision alloy casting, each hinge is installed with a compression bearing, and a stable groove is customized at the installation of each load-bearing hinge and the door panel. Each single load-bearing hinge or suspension wheel bears 600kg, and increases door panel sealing device. the track thickness is 3mm, adopt doublt tracks system, the rollers are made by ABS materail.

- Our Professionalism
Our team works in this industry with many years' experience, from the design, manufacture, package, delivery, installation and commissioning, maintenance after-sale service, we provide all-sided supports for our customers at every link, particularly, our technicans can design the suitable door based on the customers' practical demand to save the cost, and provide our customers the effective training to help them operate and maintain the doors properly.

- Package
Qualified plywood for LCL; and Qualified carton or pallet for FLC, however, we are able to provide the package according to your specified requirements.

- Service scope
1. Factory and production online inspection
2. Pre-shipment inspection
3. One year warranty: as long as the goods is received, we will provide one year warranty to supply the accessories free of charge
4. Installation video support: during the installation, we will provide the videos or other documents to help you install the doors successfully, if necessary, we will provide the online guidance.
5. Timely response: Our sales will provide the quick response to help you solve the problem timely.

- about us

WUXI NEWTON TECHNOLOGY CO.,LTD is the manufacturer in the field of all kinds of automatic doors in China, includes Automatic folding doors, automatic industrial sectional doors, high speed roll-up doors, garage door, door hardware kit, with a well established reputation for outstanding performance.

Recognized worldwide for its proprieraty design and manufacturing know how. NEWTON has been involved in this industry since 2000. We got here on the basis of providing optimal solutions and strong supports to clients who buy our products.

We understand what our customers need to stay competitive:

Optimal design for different projects
at an affordable rate
in the pastest possible

Meeting these goals requires precision in everything we do, and all stages are controlled strictly by our skilled operators and technicians.

We are proud to offer our high quality automatic doors to the world market. but more importantly, we are pround we've helped our customers meet their demands, to grow their businesses.
