Automatic Cage Loader Automatic Loading Unloading Cage

FOB Price:	150000.00 - 208000.00 USD/Unit

In Stock

Inquiry Now

Quick Details

After-sales Service Provided: No overseas service provided
Condition: New
Brand Name: liangyou
Weight: 7000kg
color: Multiple

Specifications

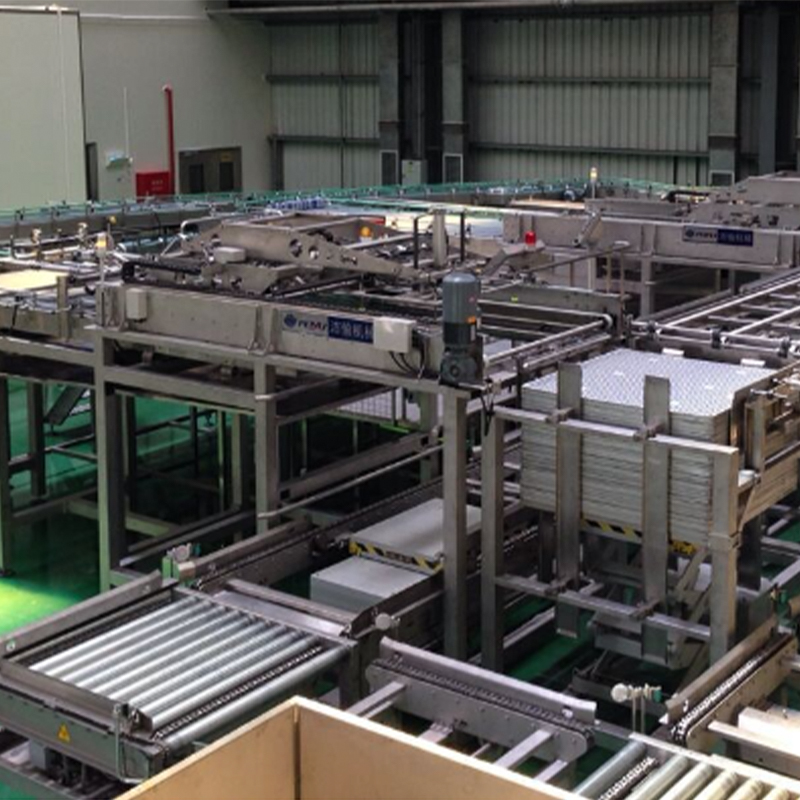

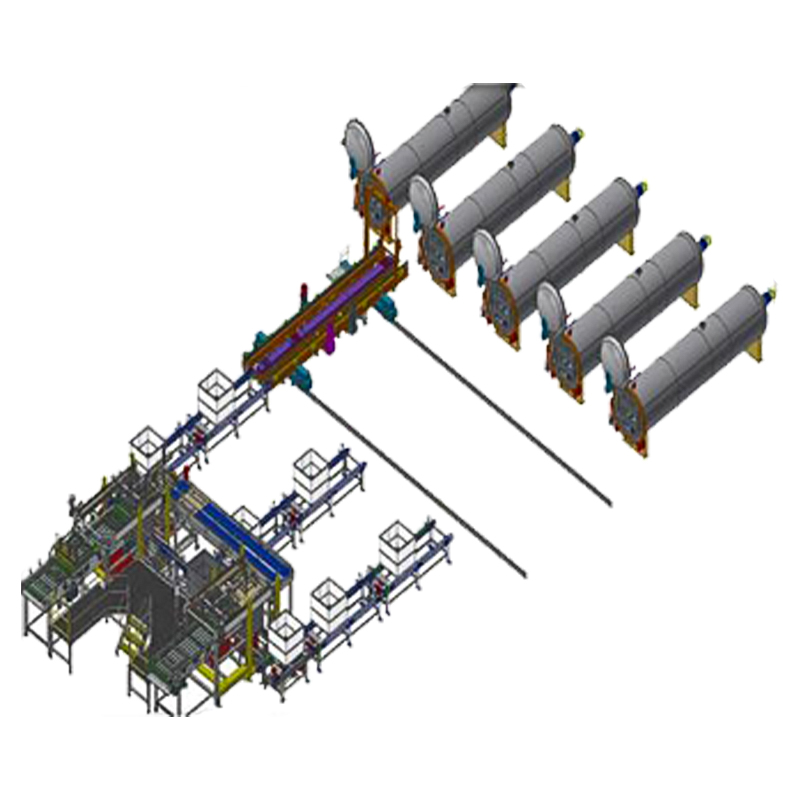

the filled products enter the cage loading machine by the conveying line and are automatically placed into the cage baskets in an orderly manner.
the cage basket conveying line automatically sends the full baskets of products into the sterilization kettle.
the sterilized products are sent to the cage unloading machine by the cage basket conveying line, and the products are automatically taken out of the cage frame.

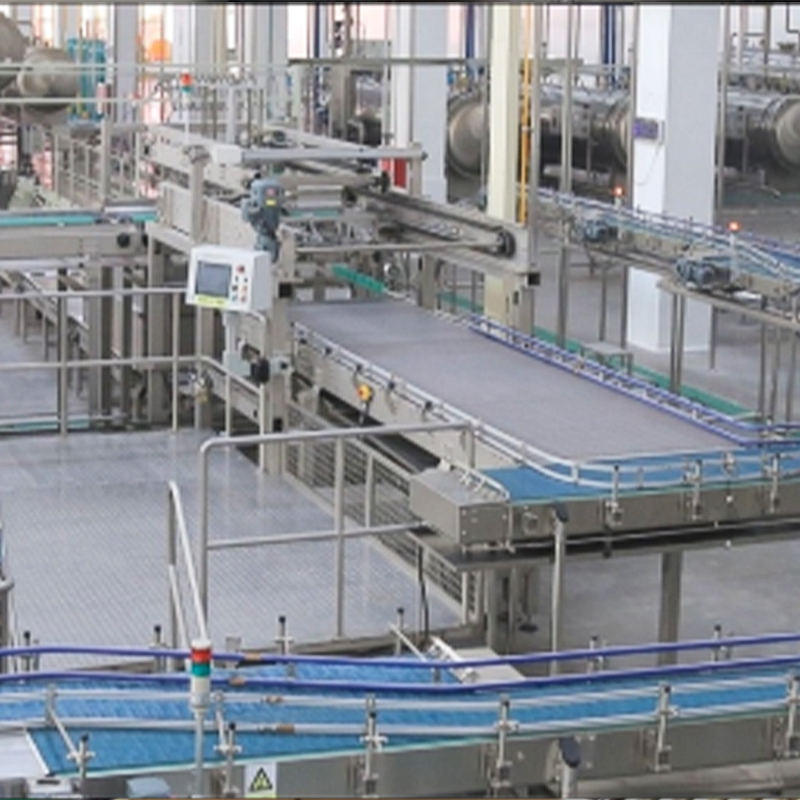

the products are automatically sent to the post-packaging equipment for testing and packaging by the conveying line.
1, Hydraulic lifting system can adopt two-stage scissor lifting platform, avoiding the shortcomings of traditional oil cylinder which needs to do foundation and digging pit in advance.

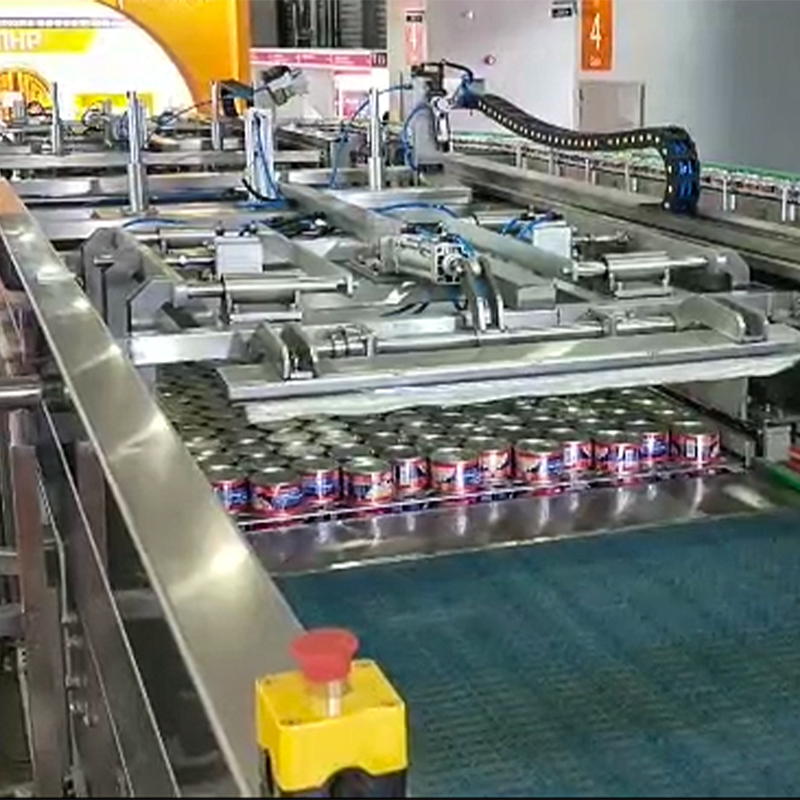

2, Automatic loading and unloading cages all adopt pneumatic clamping mechanism, avoiding the phenomenon of inverted cans and dropped cans when transplanting.
3, the partition is sucked by German PIAB vacuum system, with stable vacuum and cyclic operation, realizing fully automatic unmanned operation.
4, the whole automatic loading and unloading cage needs only one person to operate, and the automatic servo loading and unloading cage can easily realize the loading and unloading of five layers of products per minute, with stable, reliable operation and high production efficiency.
Automatic cage loader Automatic Loading Unloading Cage
