Shandong Yonik Laser Equipment Co., Ltd.

China Manufacturer with main products: Three Chucks Pipe and Tube Cutting Machine, Universal Laser Pipe Cutting Machine, Handheld Laser Welding Machine, Handheld Laser Cleaning...

Home >Products Catalog > Yonik Handheld Laser Welding Machine for Carbon Steel, Stainless Steel

Yonik Handheld Laser Welding Machine for Carbon Steel, Stainless Steel

FOB Price:	4700.00 - 6000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	Qingdao port
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	plywood box

Quick Details

After-sales Service Provided: No overseas service provided
Certification: CE,SGS
Usage: metal welding
Brand Name: yonik
Voltage: 220V/380V
Warranty: 1 year
Power(W): 1000W, 1500W,2000W
Wavelength: 1080MM
Condition: New
name: Handheld Laser Welding Machine
Cooling Type: industrial water chiller
Fiber Length: standard10m ,max 15m
Operate Mode: continuation/modulate
Welding Speed Range: 0-120mm/s

Specifications

Laser welding is a method of using a high-energy density laser beam as a heat source to locally heat the material in a small area, and melt the material to form a specific molten pool to achieve the effect of welding. Laser welding is mainly used in the welding of thin-walled materials, precision parts, etc. It can realize spot welding, splicing welding, sealing welding, stitch welding, etc., with small thermal deformation, beautiful and smooth weld seam, high quality weld seam, no need for secondary grinding deal with. In recent years, laser welding has been widely used in the welding of stainless steel, carbon steel, galvanized sheet, copper, aluminum and other products.

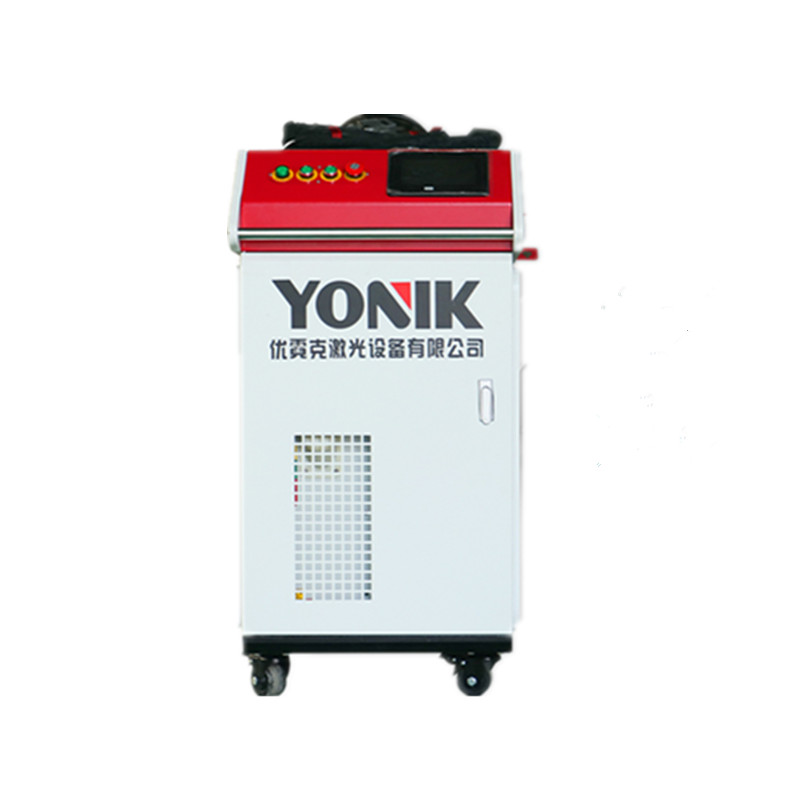

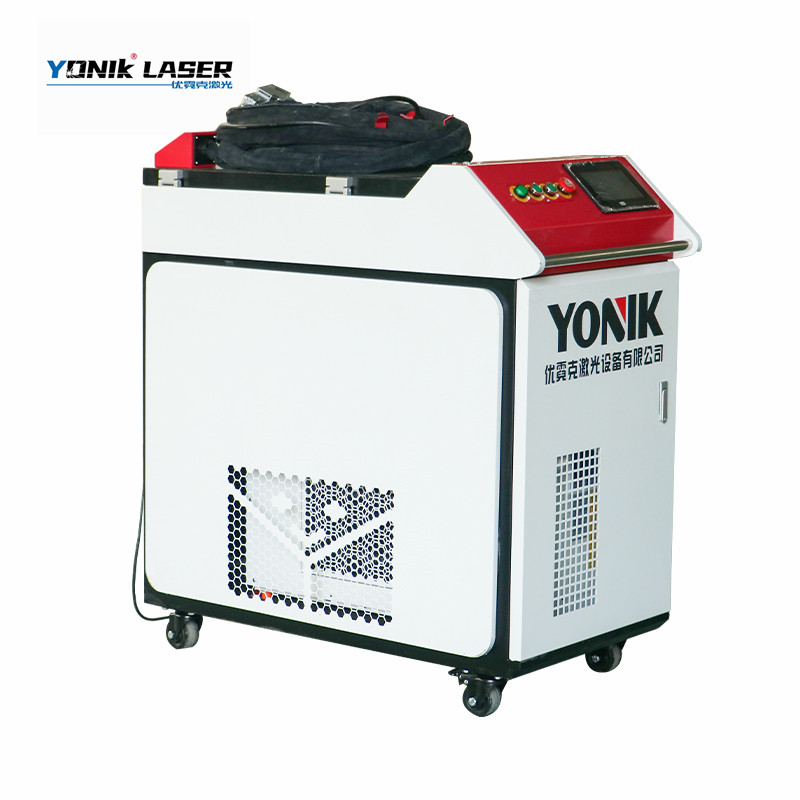

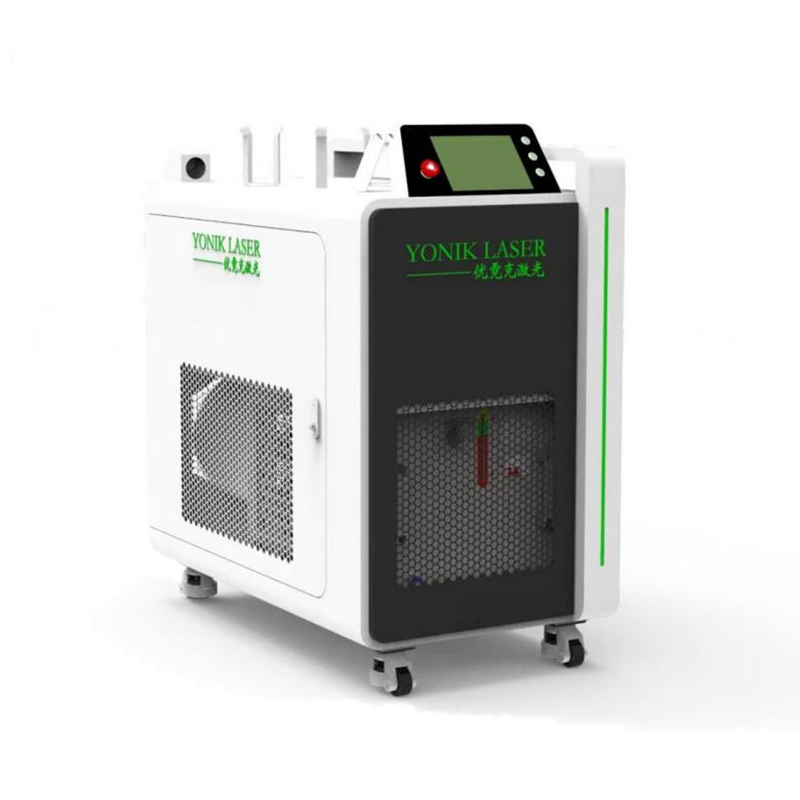

Yonik Handheld Laser Welding Machine for carbon steel stainless steel

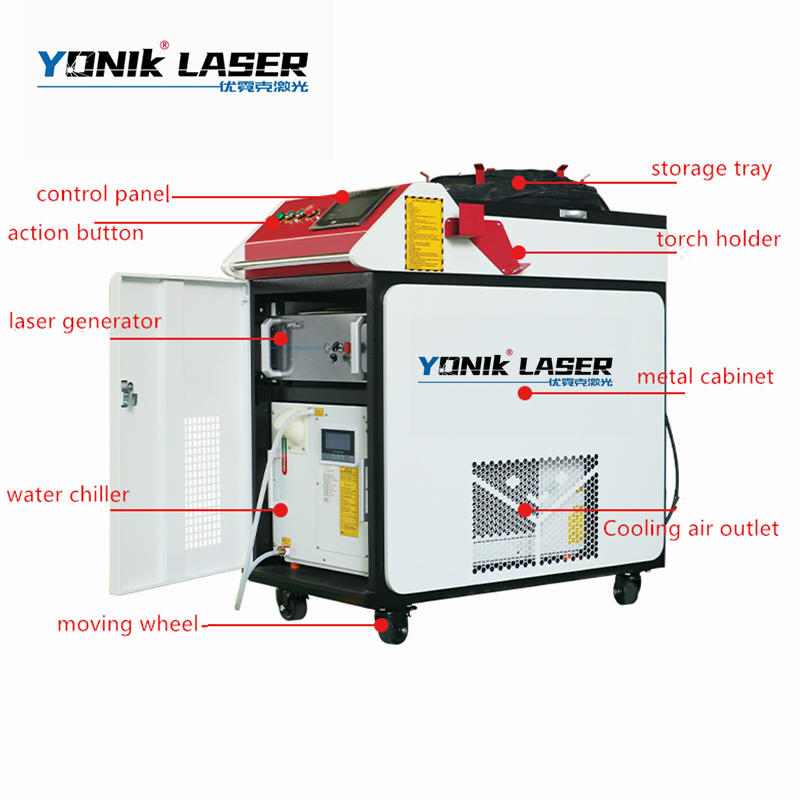

the hand-held laser welding machine adopts a hand-held swinging welding head, which is flexible and simple to operate, and does not require professional welder skills. It is suitable for small batches and large batches of production and processing. It is widely used in sheet metal processing, cabinet kitchenware, chassis cabinets, stair handrails, elevator escalators, display shelves, Doors and windows, advertising models, stainless steel products and many other industries.

L Welding with high speed, welding seams appearance, beautiful smooth weld, without secondary processing, saving time and cost.

L Handheld welding head, simple ad flexible, long distance welding, welding the workpiece at any angle.

L without distortion,laser welding consumables less, long life, more safe and environmentally friendly.

L in the automotive, sheet metal, electronic and other industries gradually replace argon arc welding.

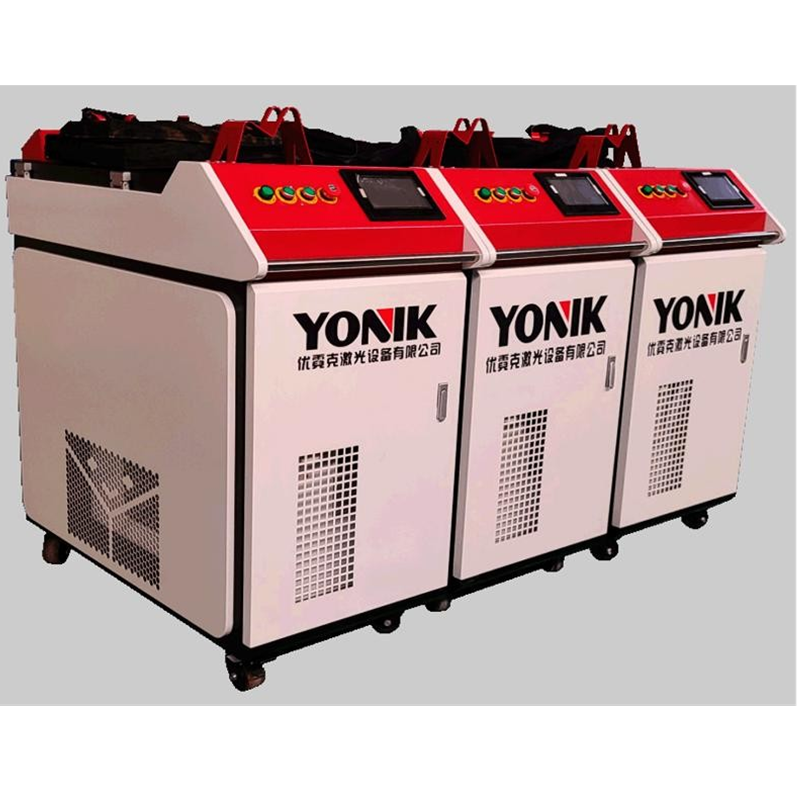

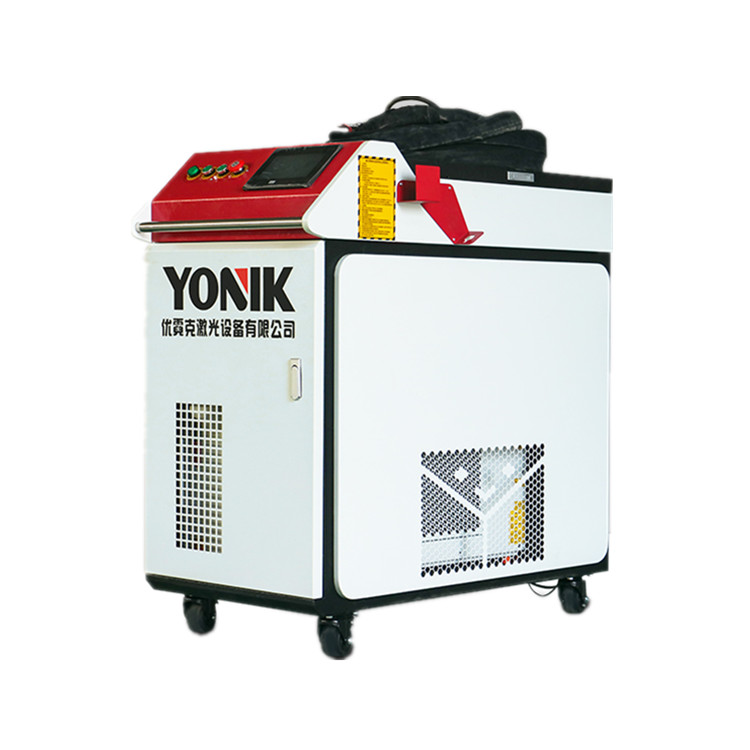

Yonik Handheld Laser Welding Machine for carbon steel stainless steel

Items	Parameter
Machine Model	Hand-Held fiber laserWelding machine
Laser Power	1000W,1500W,2000W
Laser Wavelength	1070nm
Fiber Length	Standard10m ,max 15m
Operate Mode	Continuation/modulate
Welding Speed Range	0-120mm/s
Cooling Type	Industrial water chiller
Working Environment	15-35℃
Welding Thickness	0.5-6mm
Welding Gap Requirements	≤0.5mm
Working Voltage	220V/380V
