Glory Information Limited
China Manufacturer with main products: We Offer Absolute Quality Products and 40% ~ 90% Discount |

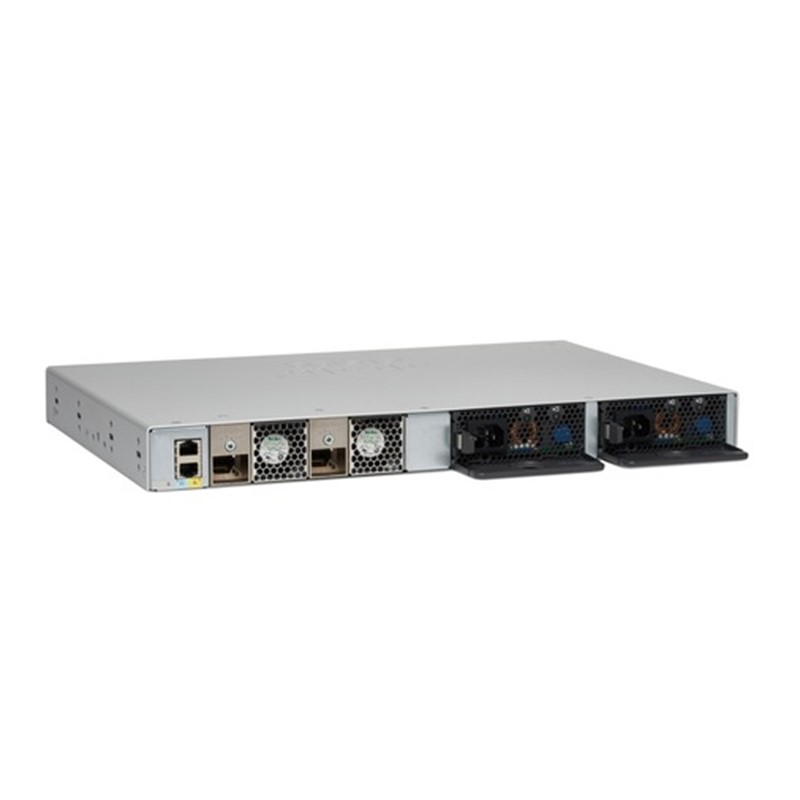

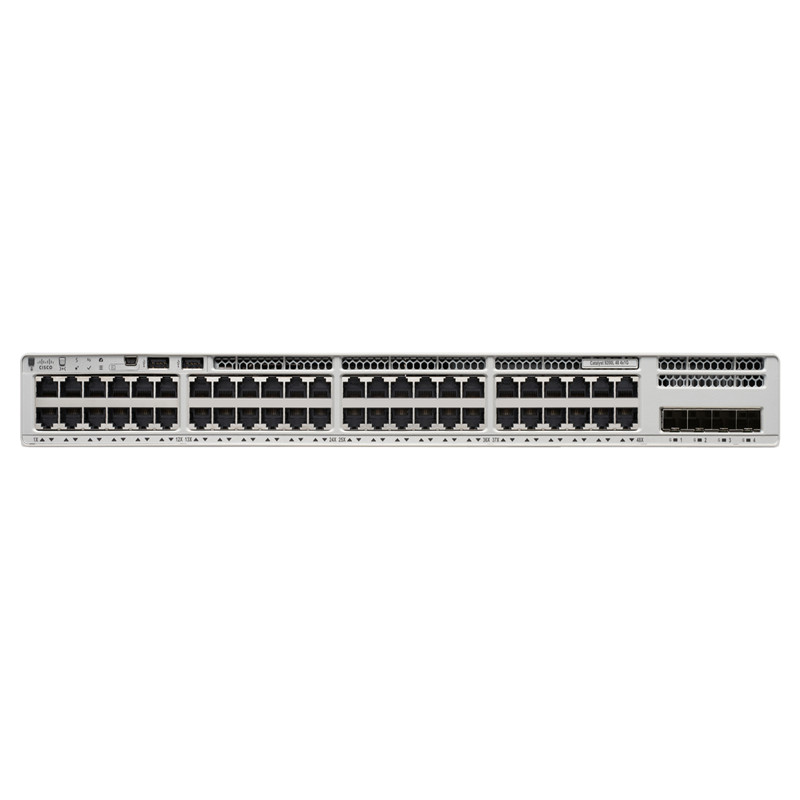

Original Catalyst 9200L 48 Port Data Switch C9200L-48T-4X-E
| FOB Price: | 3899.00 - 3900.00 USD/Piece |
|---|---|
| Payment Terms: | Other, HSBC |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Max. Voltage: 100 to 240 VAC, 50 to 60 Hz
- Max. Current: 12A
- Brand Name: CISCO
- Operating Temperature: Normal operating temperature* and altitudes: -5 degrees Celsius to +4
- Color: grey
Specifications
Product Information
C9200L-48T-4X-E is the Catalyst 9200L 48-port Data 4x10G uplink Switch, with Network Essentials software. Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. with its family Pedigree, Catalyst 9200 Series switches offer simplicity without compromise it is secure, always on, and IT simplified.
as foundational building blocks for the Digital Network Architecture, Catalyst 9200 Series Switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging Intelligence, automation and human expertise that no other vendor can deliver regardless of where You are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps Your business up and running seamlessly. Combine that with open APIs of IOS XE and Programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you Need now with investment protection on future innovations.
with full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular Uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industrys Unparalleled solution with differentiated resiliency and progressive architecture for cost-effective Branch-office access.
Packing Information
Catalyst 9200L 48 port Data Switch C9200L-48T-4X-E is sealed in original box. We will Also pack C9200L-48T-4X-E with second box before shipping.
C9200L-48T-4X-E Specification Downlinks total 10/100/1000 or PoE+ copper ports
48 ports data Uplink configuration
4x 10G fixed uplinks Default primary AC power supply
PWR-C5-125WAC Fans
Fixed redundant Software
Network Essentials Chassis Dimensions
1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cmVirtual Networks
1 Stacking bandwidth
80 Gbps Total number of MAC addresses
16,000 Total number of IPv4 routes (ARP plus learned routes)
11,000 (8,000 direct routes and 3,000 indirect routes) IPv4 routing entries
3,000 IPv6 routing entries
1,500 Multicast routing scale
1,000 QoS scale entries
1,000 ACL scale entries
1,500 Packet buffer per SKU
6 MB buffers for 24- or 48-port Gigabit Ethernet models Flexible NetFlow (FNF) entries
16,000 flows on 24- and 48-port Gigabit Ethernet models DRAM
2 GB Flash
4 GB VLAN IDs
1024 Total Switched Virtual Interfaces (SVIs)
512 Jumbo frames
9198 bytes Wireless bandwidth per switch
N/A Switching capacity
176 Gbps Forwarding rate
261.9 Mpps Mean time between failures (hours)
503,400
