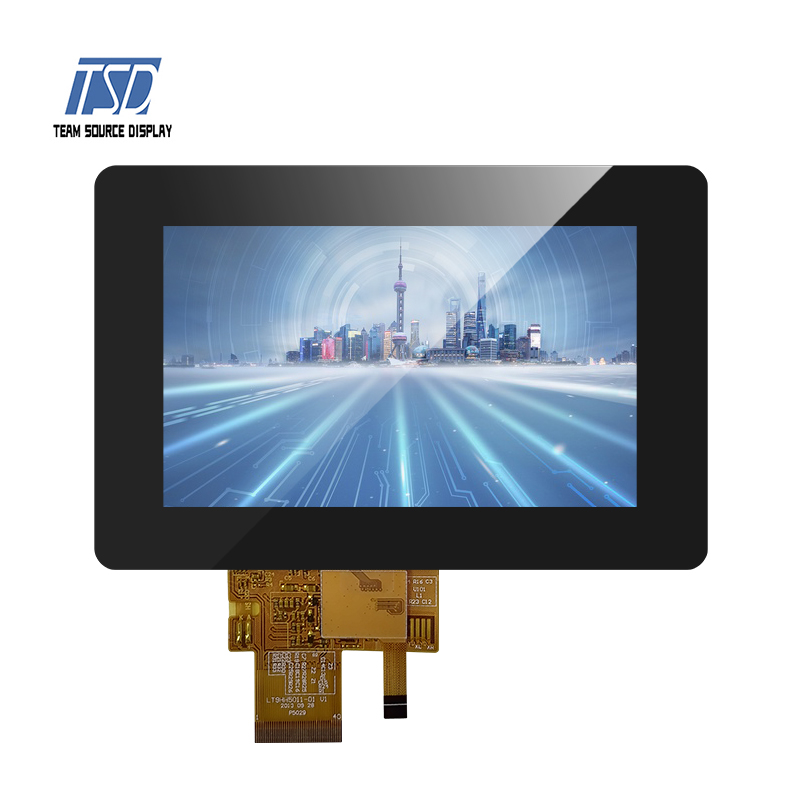

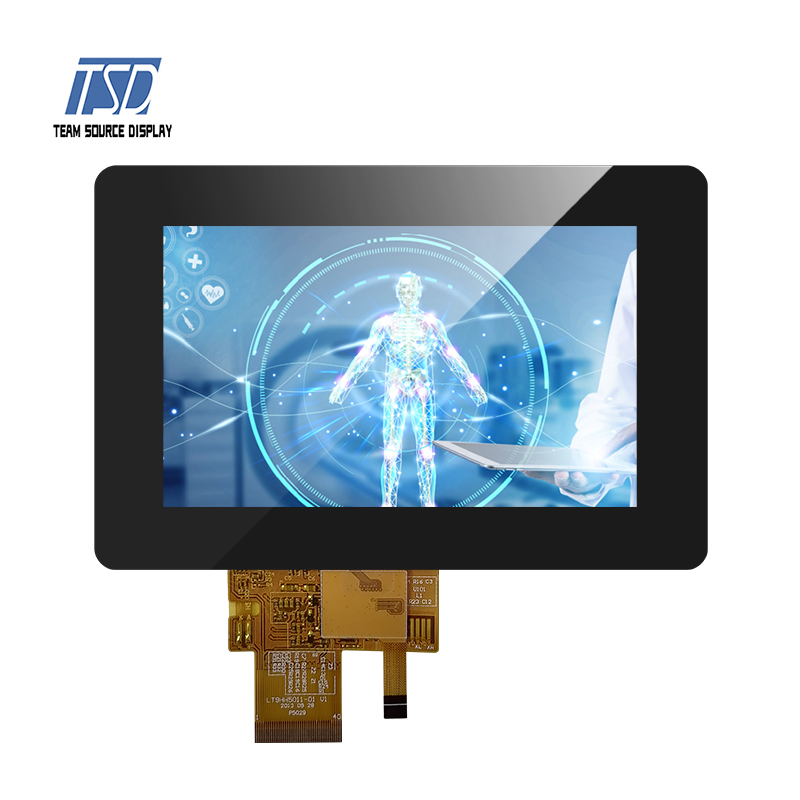

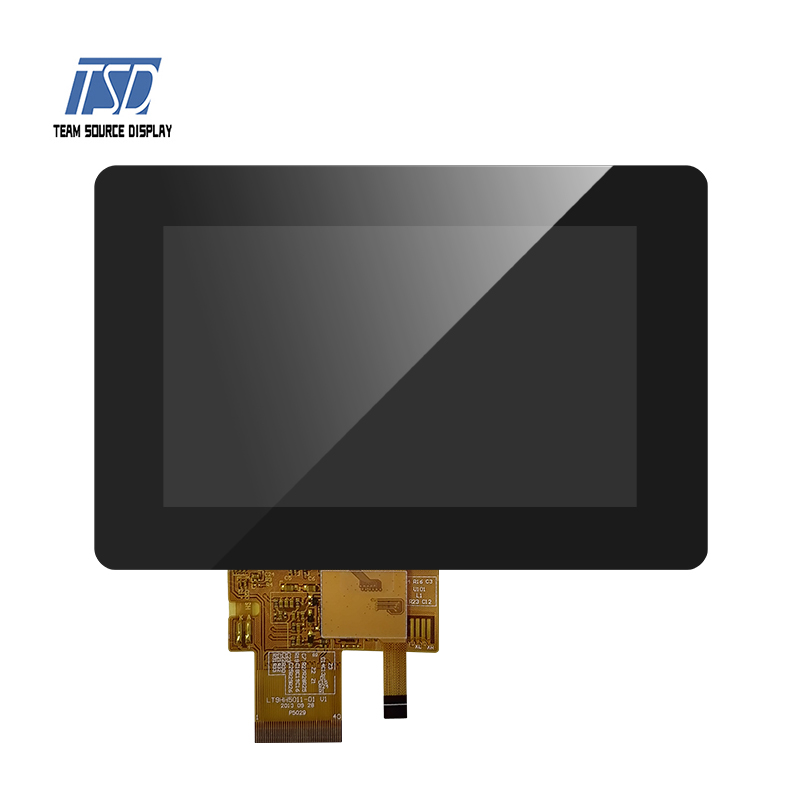

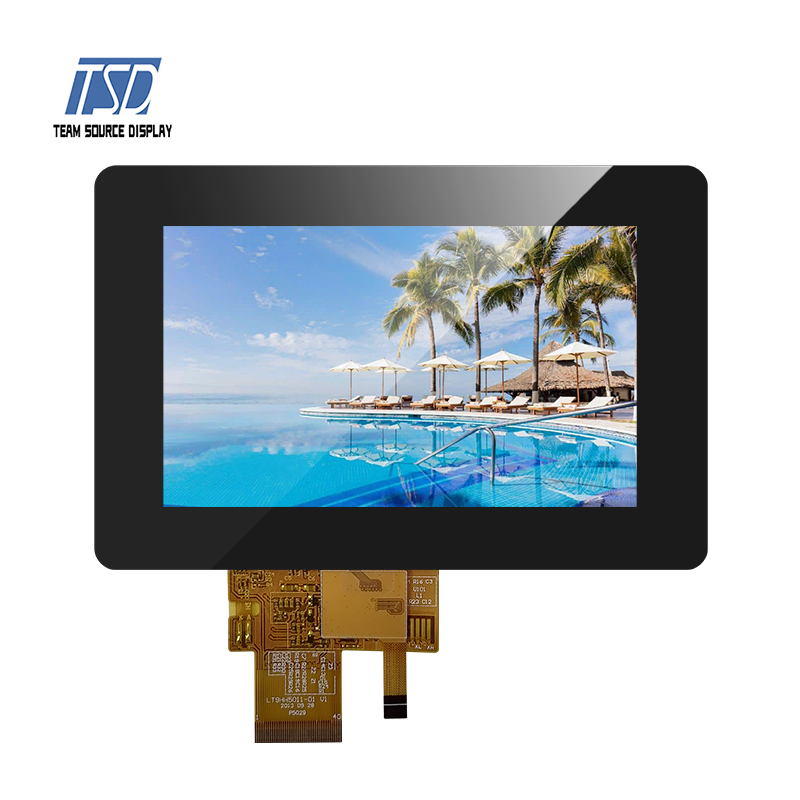

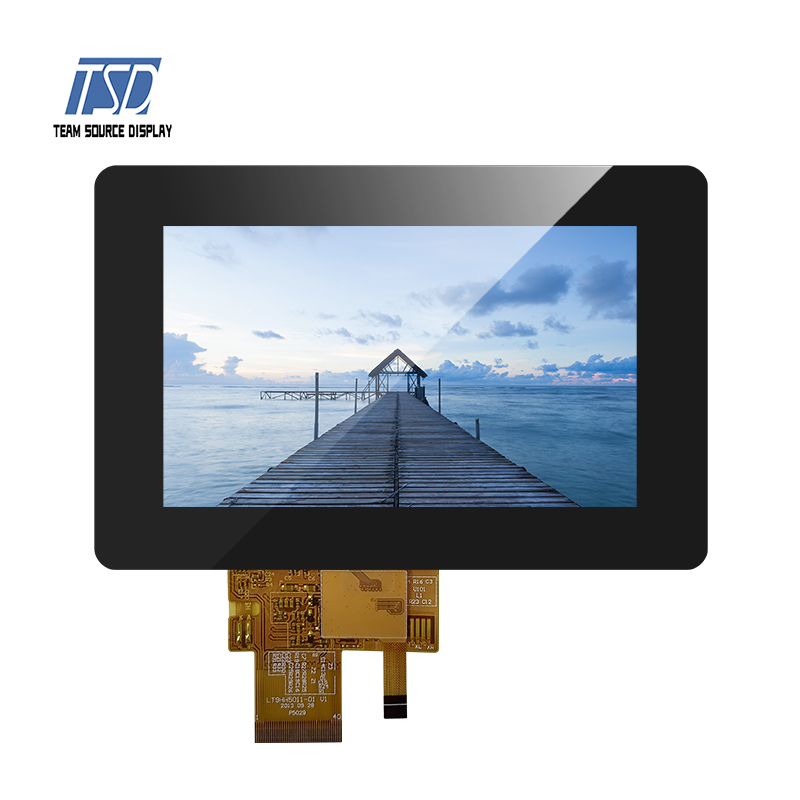

ILI5480 IC 500nits 5.0 Inch TFT LCD Display 800x480 with TTL Interface TFT LCD Module

FOB Price:	5.00 - 19.00 USD/Piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Type: TFT
Brand Name: TSD
Interface Type: TTL
Resolution: 800*480
application: Smart Home
Model Number: TST050WVHI-12C
Outline mm: 120.70x75.80x3.00mm
Active Area: 108.00x64.80mm

Specifications

5.0 Inch 800x480 Resolution ILI5480 IC 500nits TFT LCD Display Screen with TTL Interface

Product Description

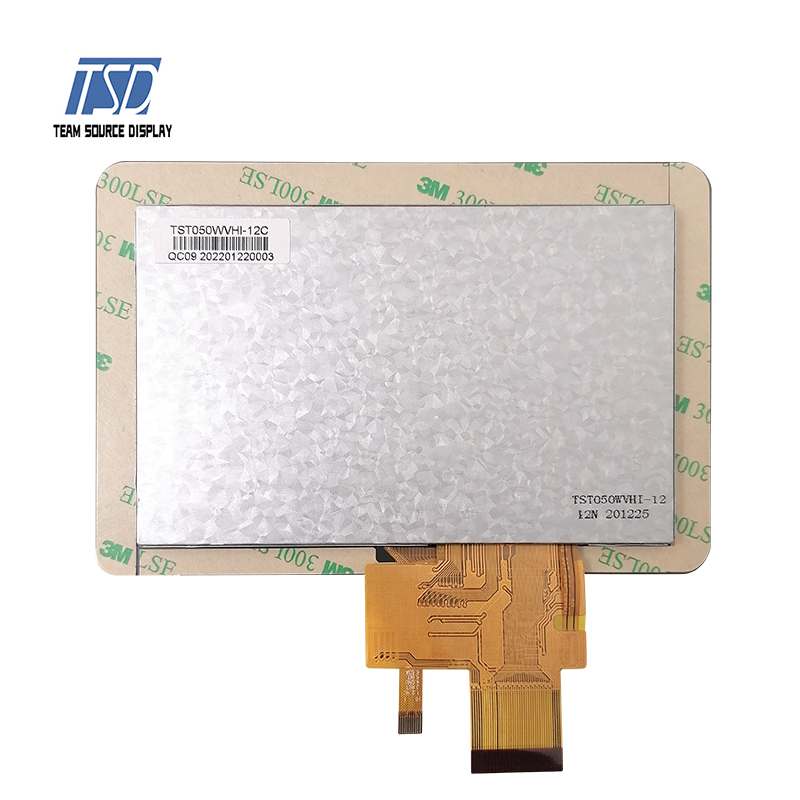

Team Source Display model TST050WVHI-12C is a color active matrix thin film transistor (TF T) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. this model is composed of a TFT LCD panel, a driving circuit, a backlight system and a touch panel. this TFT LCD has a 5.0 (16:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel).
Resolution. this CTP size of 5 inch TFT LCD display is 140.7*93.83*1.6, LCD outline dimension is 120.7*75.8*2.8 (Typ), and it's display area is 108*64.8.

Product Paramenter

Type	5 Inch TFT LCD Display
Model Number	TST050WVHI-12
Resolution	800xRGBx480
Outline mm	120.70x75.80x3.00mm
AA mm	108.00x64.80mm
Interface	TTL/RGB
Luminance	500nits
Driver IC	ILI5480/ILI6123H
Viewing Direction	12 O'clock
Operating Temperature	-20℃~+70℃
Storage Temperature	-30℃~+80℃
Original Place	Dongguang, CN
Brand Name	TSD
Warranty Period	1 year
Supply Ability	1500000 per month
Customized	FPC, CTP/RTP, logo, color, size etc
Payment	T/T Paypal, WU, CC etc.

ILI5480 IC 500nits 50 Inch TFT LCD Display 800x480 With TTL Interface TFT LCD Module
