4.3 Inch 480x272 HX8257 IC 340nits TFT LCD Display Screen with RGB Interface LCD Touch Screen
| FOB Price: | 5.00 - 25.00 USD/Piece |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Type: TFT
- Brand Name: TSD
- Interface Type: RGB
- Resolution: 480xRGBx272
- application: Smart Home, Industry
- Model Number: TST043WQVH-122C
- Outline mm: 105.50x67.20x2.90mm
- Active Area: 95.04x53.86mm
- Viewing: 12 O'clock
- Driver IC: HX8257
- Luminance: 340nits
Specifications
4.3 Inch 480x272 HX8257 IC 340nits TFT LCD Display Screen with RGB Interface
Product Description

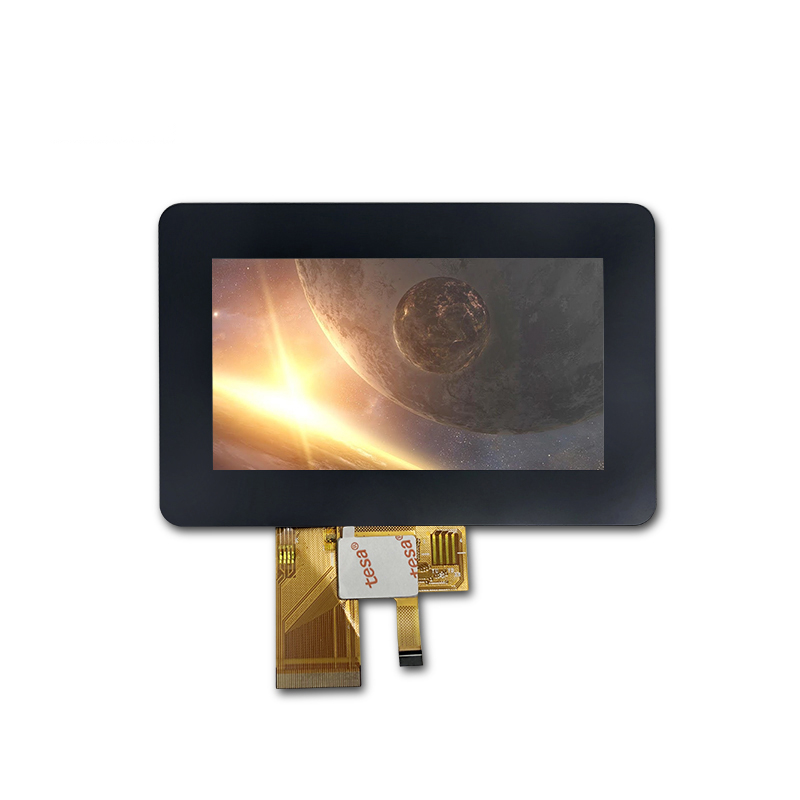

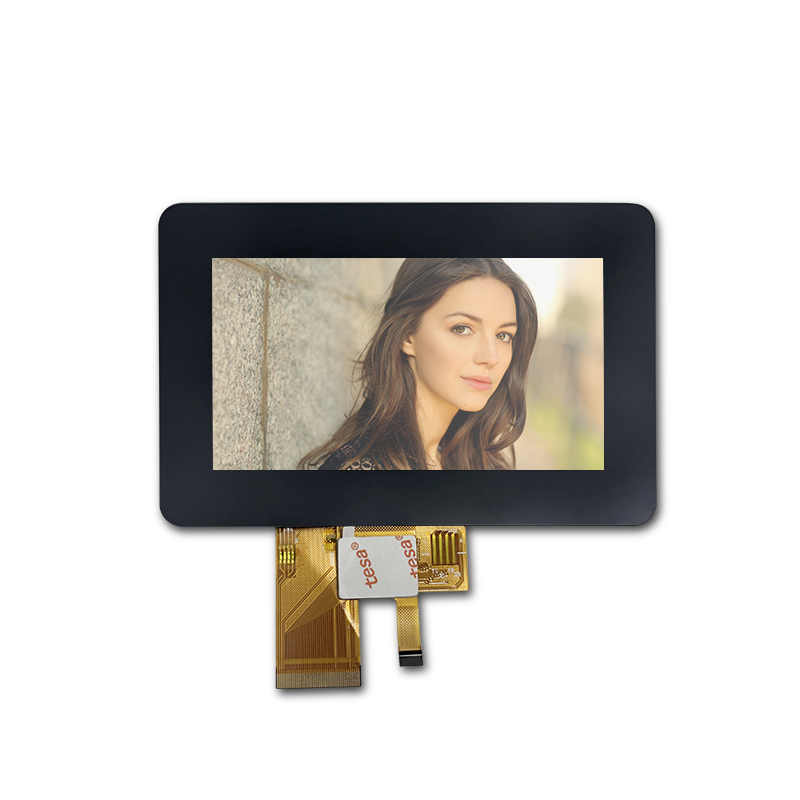

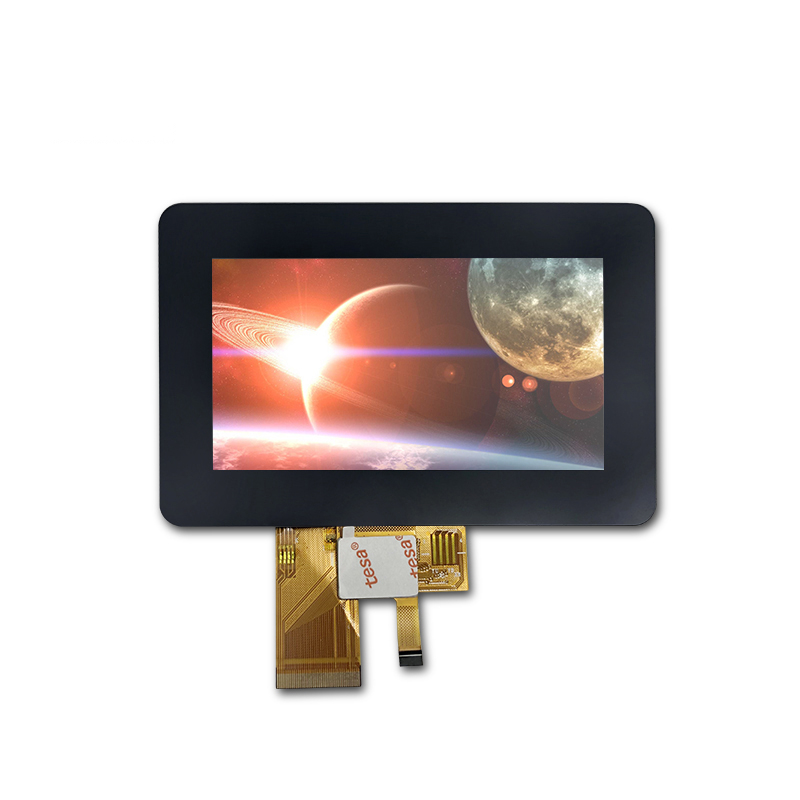

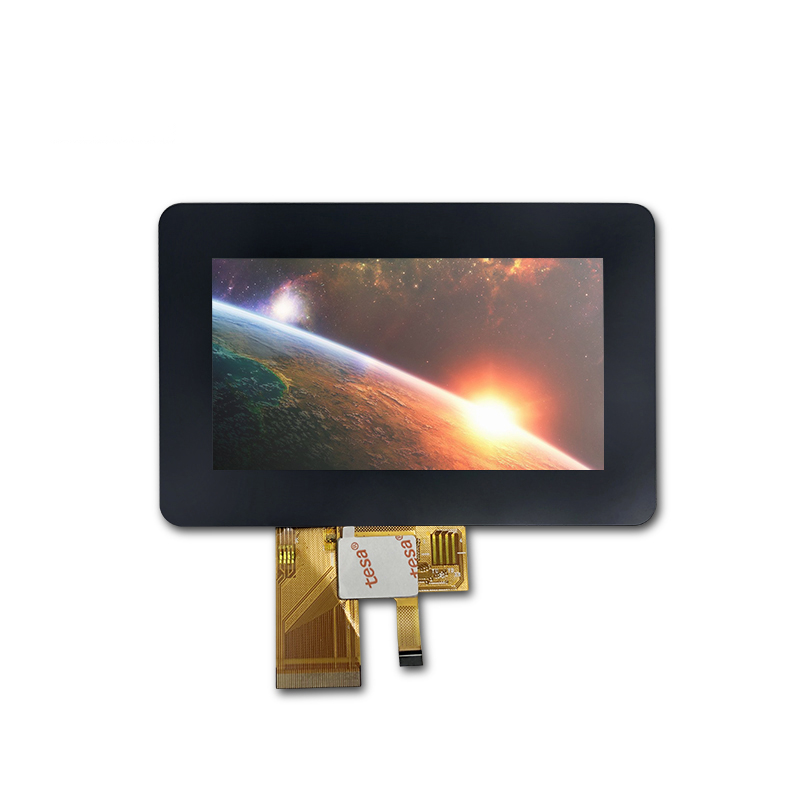

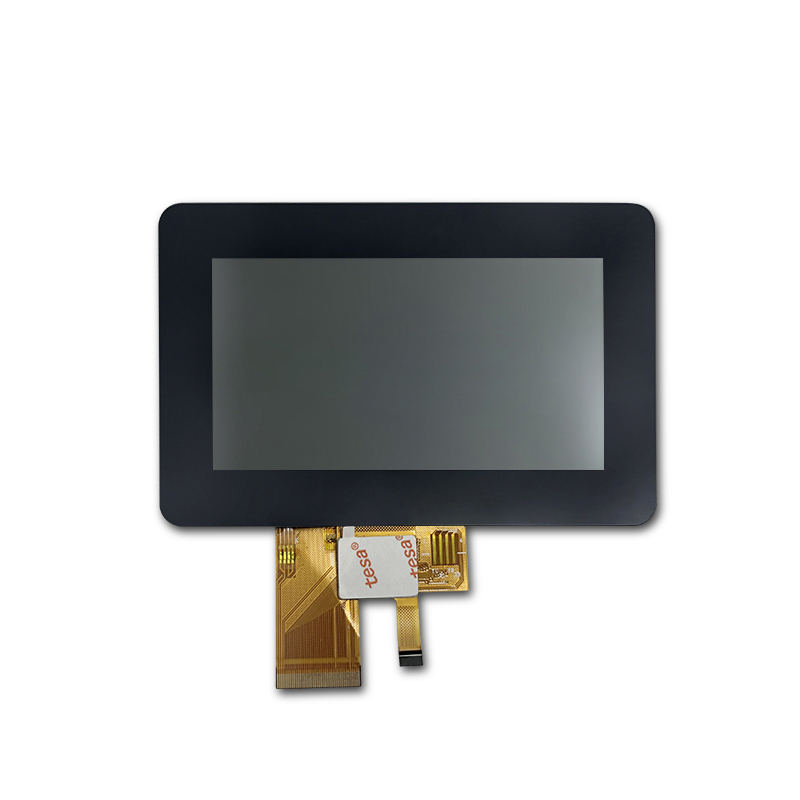

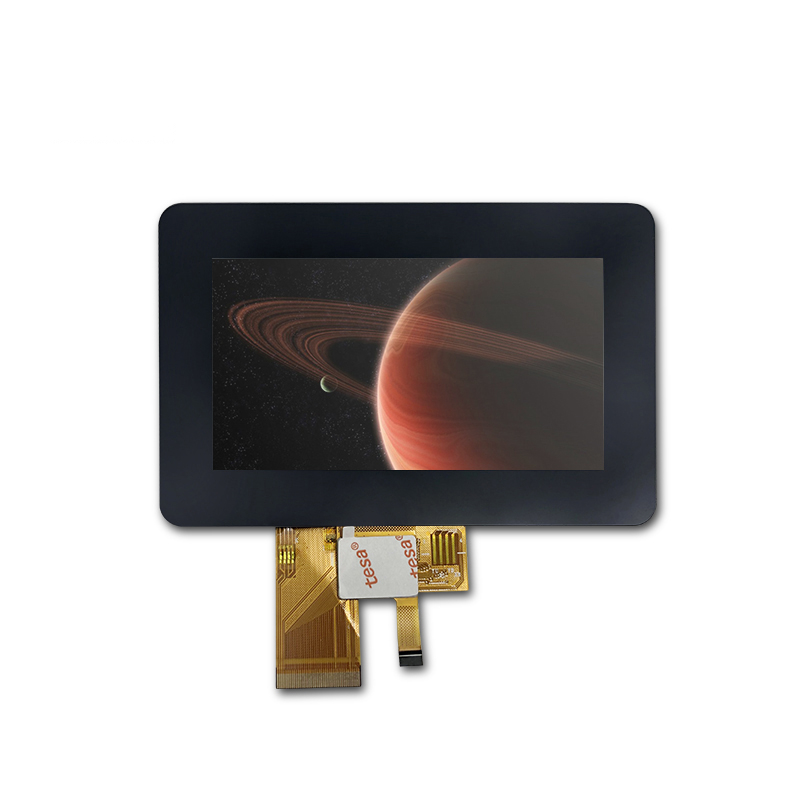

Team Source Display LCD model TST043WQVH-122C LCD display is mainly composed of LCD panel, backlight, circuit board. this 4.3 inch liquid crystal display with a resolution of (WQVGA) 480x272 and support to connected by TTL/RGB interface. the penetration rate of CTP is only 80%, so the luminance of 4.3 inch TFT liquid crystal display is 340nits. the outline size of TST043WQVH-122C LCD display is 105.50x67.20x2.90 mm and the active area size is 95.04x53.86 mm.
LCD Type: 4.3 inch a-si TFT, Transmissive, normally white, TN
Color Depth: 16.7M
LED: 10 LEDs, 20mA
TP: with TP/Lens
Product Paramenter
| Type | 4.3 Inch TFT LCD Display |
| Model Number | TST043WQVH-122C |
| Resolution | 480xRGBx272 |
| Outline mm | 105.50x67.20x2.90mm |
| AA mm | 95.04x53.86mm |
| Interface | RGB |
| Luminance | 340nits |
| Viewing Direction | 12 O'clock |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Original Place | Dongguang, CN |
| Brand Name | TSD |
| Warranty Period | 1 year |
Supply Ability |
1500000 per month |
Customized |
FPC, CTP/RTP, logo, color, size etc |
Payment |
T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 4.3 inch |
