370nits 4 Inch 720x720 ST7703 TFT LCD Display with MIPI Interface
| FOB Price: | 5.00 - 15.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000,000 Piece(s) per Week |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Type: TFT
- Brand Name: TSD
- Interface Type: MIPI
- Resolution: 720*720
- application: Smart Home, Industry
- Model Number: TST040WVBS-25C
- Outline mm: 74.83x78.98x2.6mm
- Active Area: 71.93*71.93mm
- Viewing: All O'clock
- Interface: MIPI
- Luminance: 370nits
- Driver IC: ST7703
Specifications
4 Inch 720x720 Resolution MIPI interface ST7703 TFT LCD Display with 370nits
Product Description

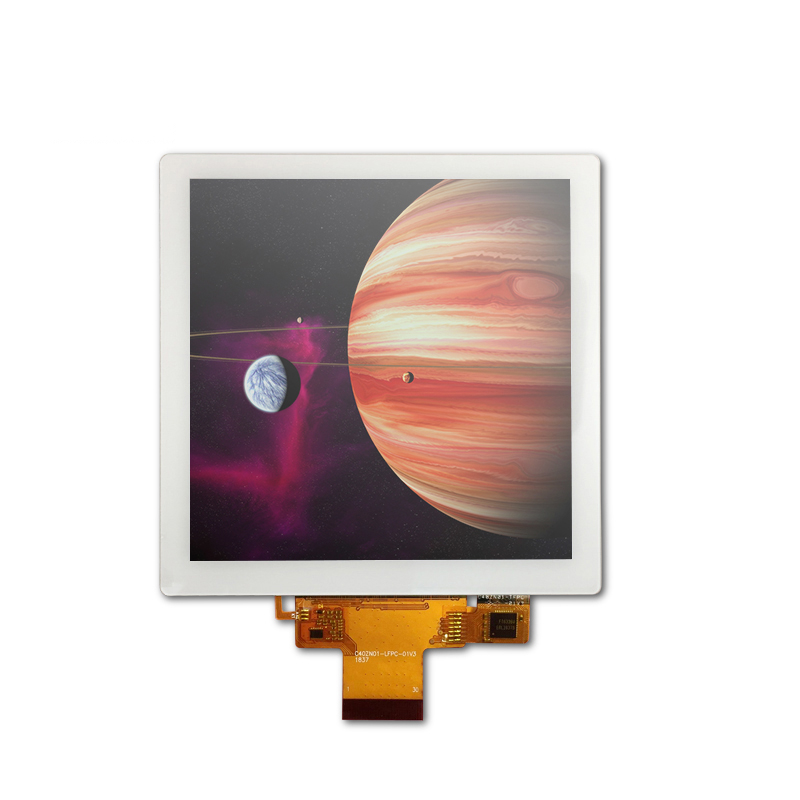

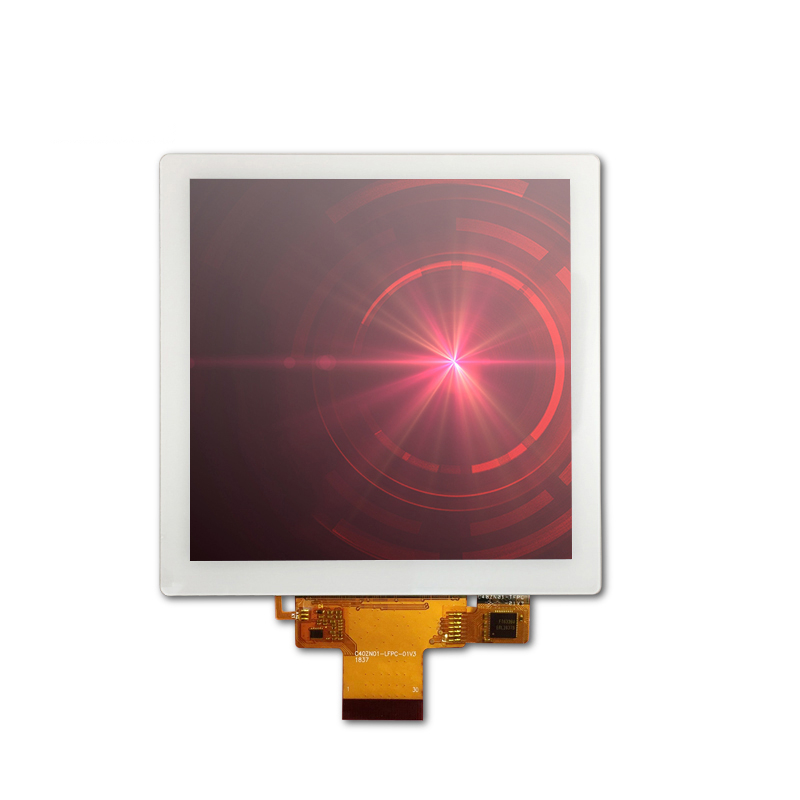

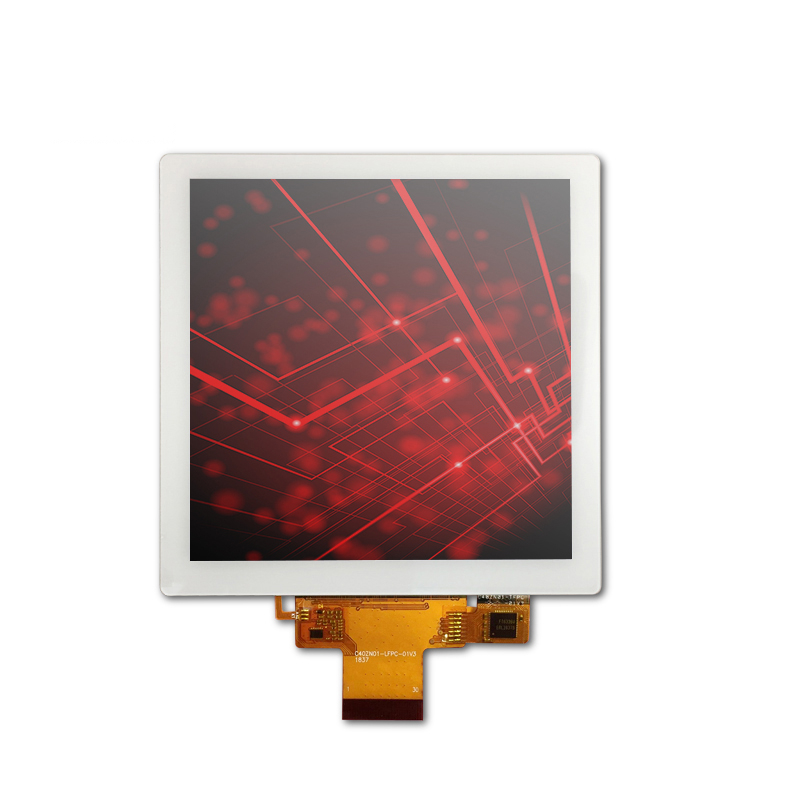

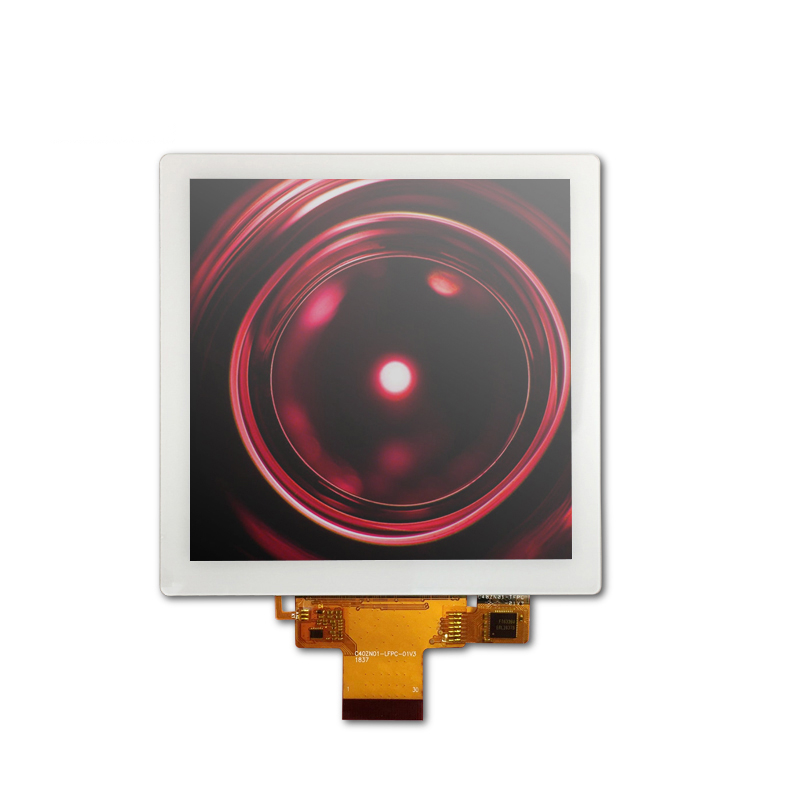

TST040WVBS-25C is high-quality transmissive TFT liquid crystal display with a resolution of 720*RGB*720, 370nits luminance with mipi interface and was built in ST7703 driver IC. this black color LCD display is IPS glass, can be viewed from all angles. the module size of this model is 74.83x78.98x2.6 mm and the active area size is 71.93*71.93 mm.
Product Paramenter
| Type | 4.0" TFT LCD Display |
| Model Number | TST040WVBS-25C |
| Resolution | 720*RGB*720 |
| Outline mm | 74.83x78.98x2.6mm |
| AA mm | 71.93*71.93mm |
| Interface | MIPI |
| Luminance | 370nits |
| Viewing Direction | All O'clock |
| Driver IC | ST7703 |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Original Place | Dongguang, CN |
| Brand Name | TSD |
| Warranty Period | 1 year |
Supply Ability |
1500000 per month |
Customized |
FPC, CTP/RTP, logo, color, size etc |
Payment |
T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 4.0 inch |
