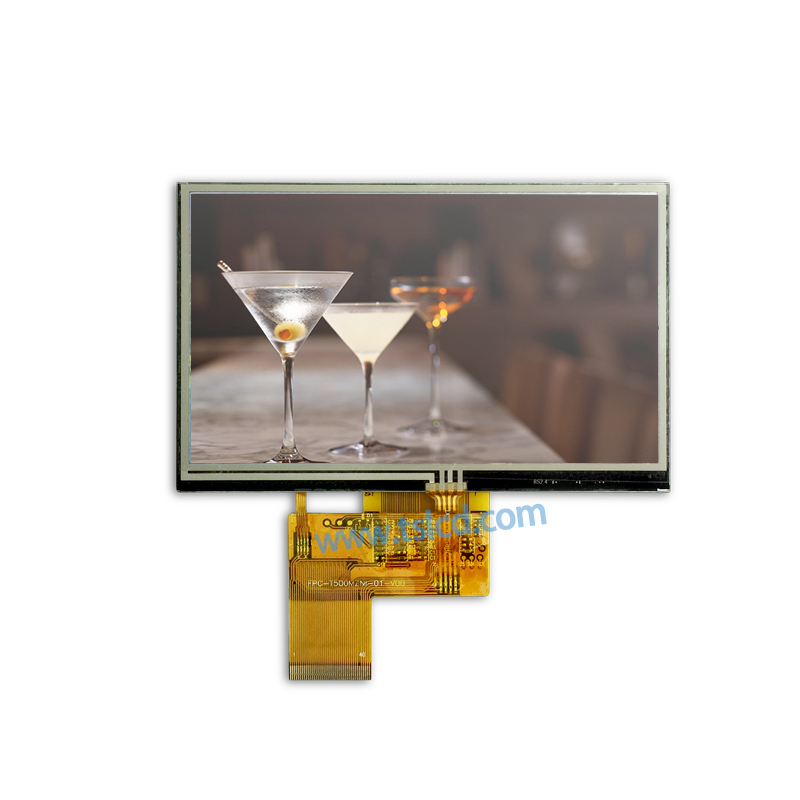

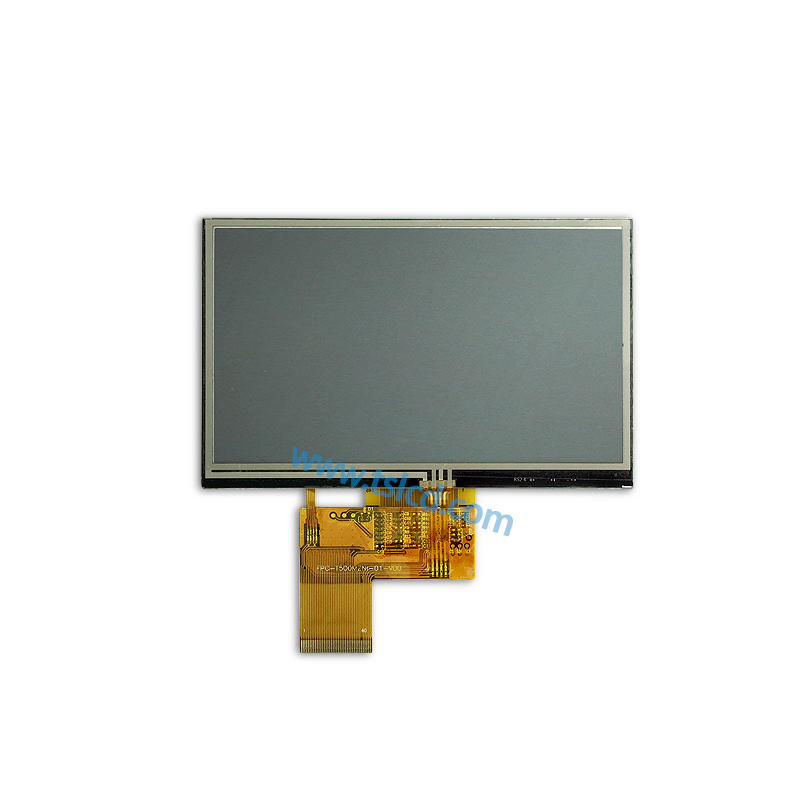

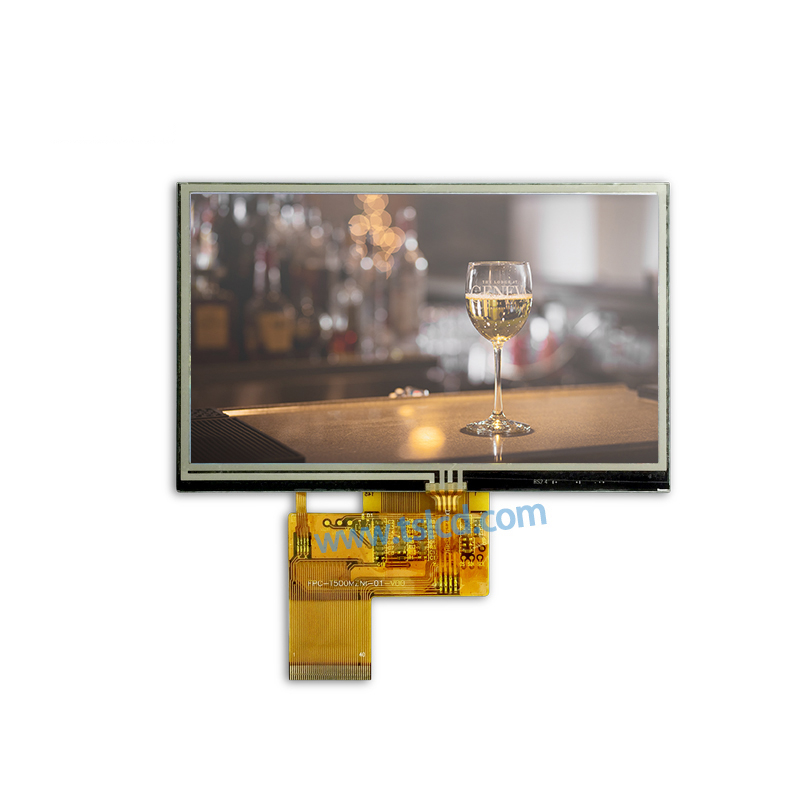

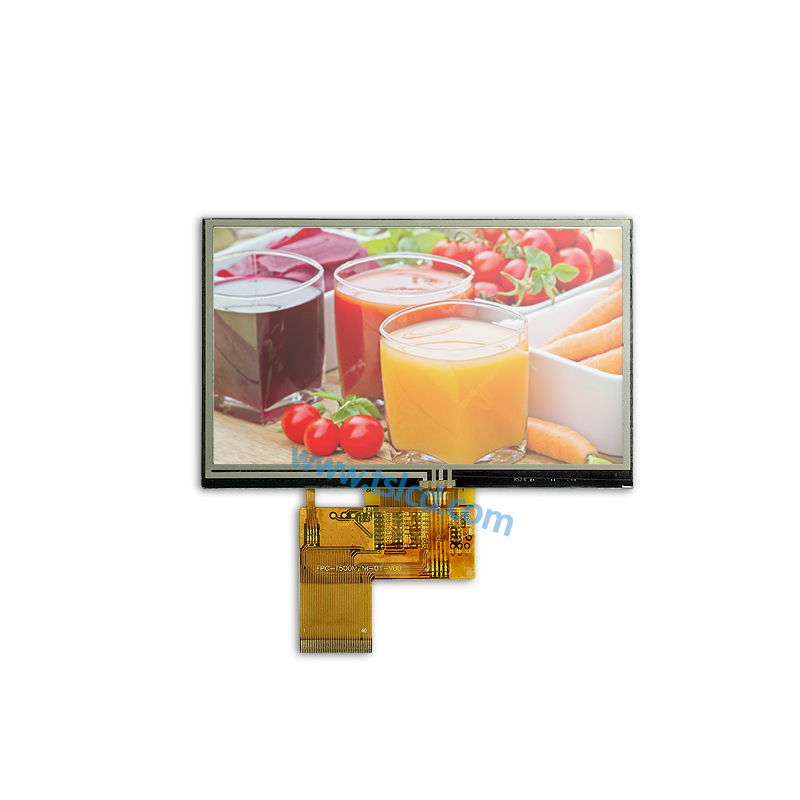

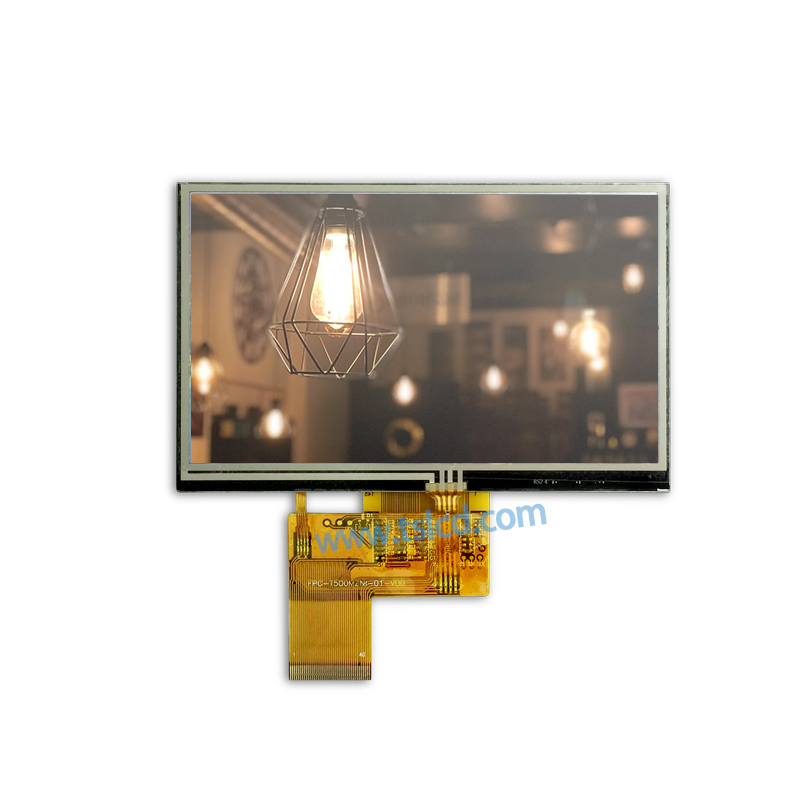

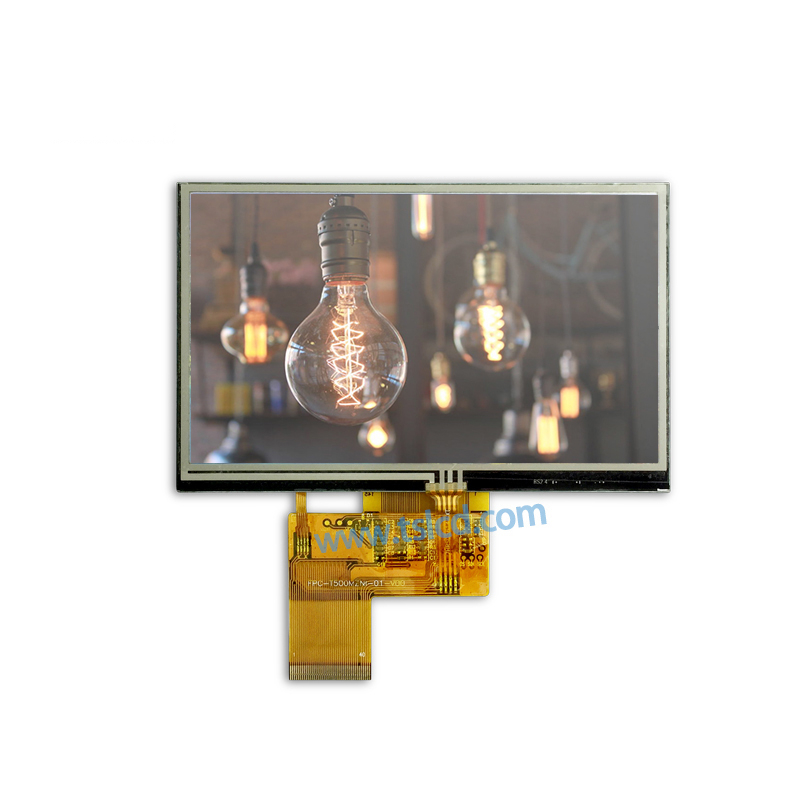

5 Inch 480x272 ST7257 IC 300nits TFT LCD Display Screen with RGB Interface
| FOB Price: | 8.00 - 19.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000,000 Piece(s) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Type: TFT
- Brand Name: TSD
- Interface Type: TTL
- Resolution: 480xRGBx272
- application: Smart Home, Industry
- Model Number: TST050WQBS-44
- Outline mm: 120.70x75.80x3.15mm
- Active Area: 110.88x62.832mm
- Viewing: 6 O'clock
- Driver IC: ST7257
- Luminance: 300nits
Specifications
5 Inch 480x272 ST7257 IC 300nits TFT LCD Display Screen with RGB Interface
Product Description
TST050WQBS-44 belongs to Team Source Display 5 inch series products, which is a 5 inch color TFT liquid crystal display module with 480x272 resolution. this 5 inch transmissive LCD screen is made of TN glass, and was driven by ST7257 driver IC. this 5 inch TFT liquid crystal display support connected by RGB interface and show bright colors and brightness. the outline size of this 5 inch LCD display is 120.70x75.80x3.15mm and the active area size is 110.88x62.832 mm.
Product Paramenter
| Type | 5 Inch TFT LCD Display |
| Model Number | TST050WQBS-44 |
| Resolution | 480xRGBx272 |
| Outline mm | 120.70x75.80x3.15mm |
| AA mm | 110.88x62.832mm |
| Interface | RGB |
| Driver IC | ST7257 |
| Luminance | 300nits |
| Viewing Direction | 6 O'clock |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Original Place | Dongguang, CN |
| Brand Name | TSD |
| Warranty Period | 1 year |
Supply Ability |
1500000 per month |
Customized |
FPC, CTP/RTP, logo, color, size etc |
Payment |
T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 4.3 inch |
