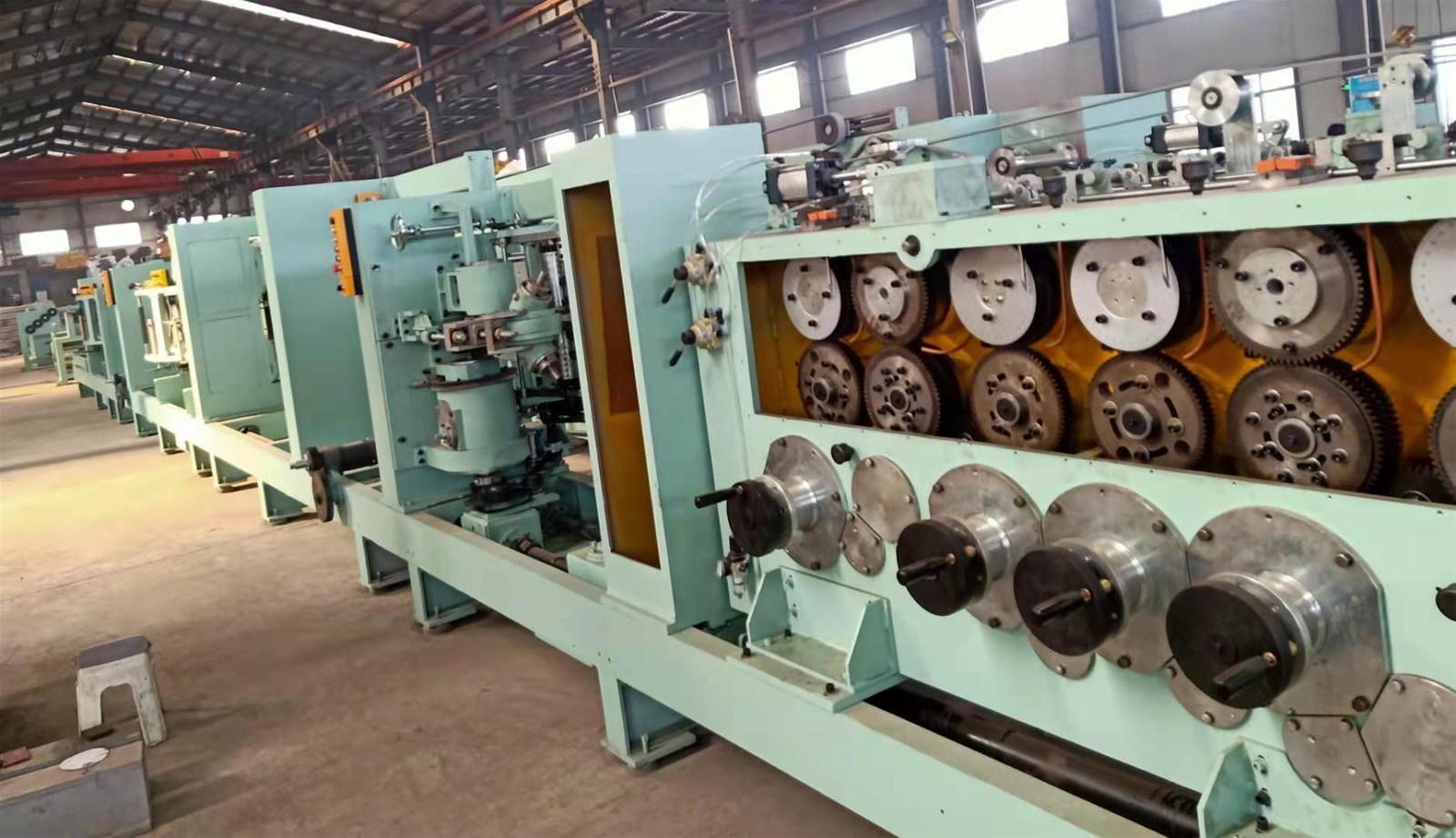

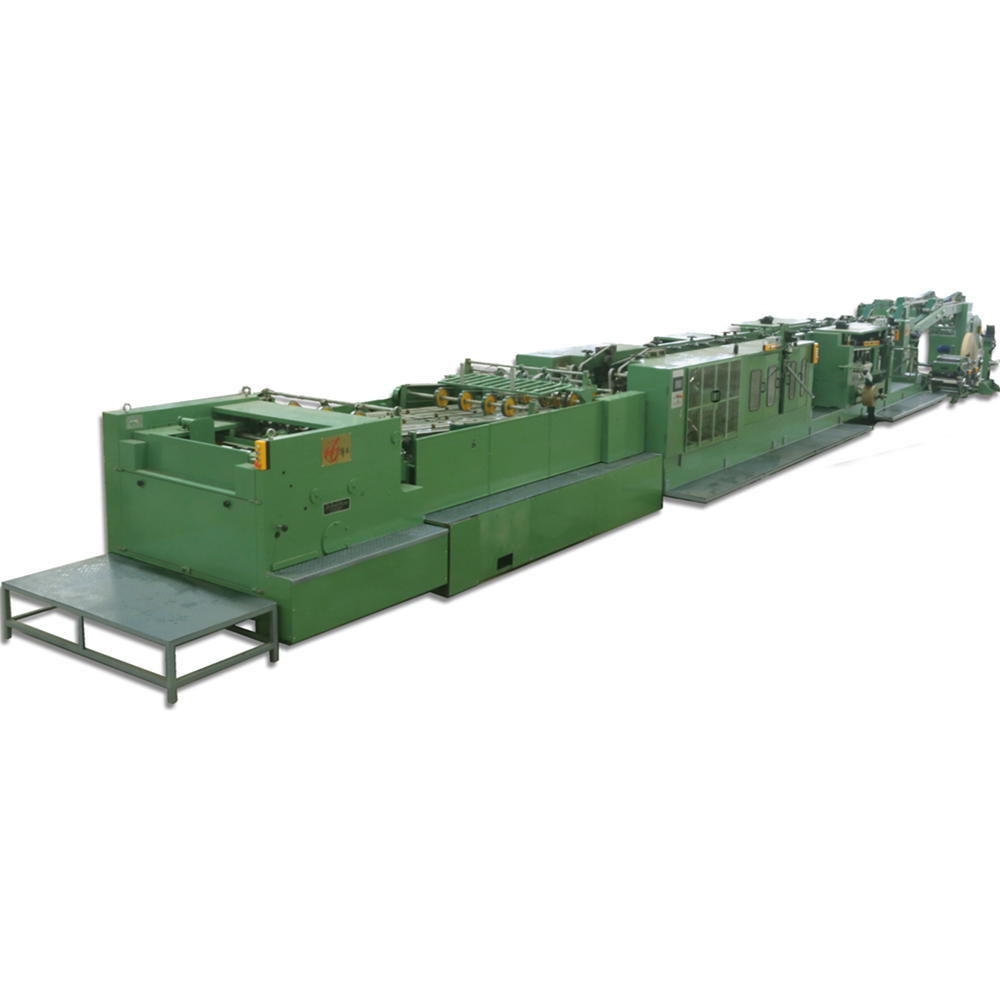

HD100-ID Kraft Paper Bag Making Machine Square Bottom Machine

FOB Price: 540000.00 - 603500.00 USD/Set
Supply Ability: 12 Set(s) per Year
Shipping: FOB QINGDAO
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Type: Multi-Function Packaging Machine
  • Brand Name: Huatian
  • Packaging Material: Paper
  • Packaging Type: Bags
  • Application: Chemical,Food,Building materials
  • Function: Gluing
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Dimension(L*W*H): 24.80m*4.7m*1.90m
  • Model Number: HT100-ID
  • Power: 21.36kw
  • Driven Type: Electric
  • Automatic Grade: Automatic
  • Condition: New
  • Maximum Production Output: 110pcs/min
  • Distance of Between Sack Bottom Centers: 330-670mm
  • Length of Finished Paper Bag: 430-780mm

Specifications


  • HD100ID kraft paper bag making machine Square Bottom MachineMaximum Production Output: 110 pcs/min
  • Distance of between Sack Bottom Centers: 330-670mm
  • Length of Finished Paper Bag:430-780mm
  • Tube Width: 360-550mm
  • Tube Bottom Width: 90-125 mm
  • Basic Configuration:
    A. Equipped with paste attachments for one kind of bottom width of reinforced valve paper strip
    B. Equipped with four print rollers and a set of gear for printing one length specification.
    C. Equipped with two online dichromatic printing machines for bottom reinforced paper belt, one on each side;
    D. Equipped with 5 sets of glue supply pump station powered by diaphragm pump;
    E. Equipped with a conventional clamping output system.

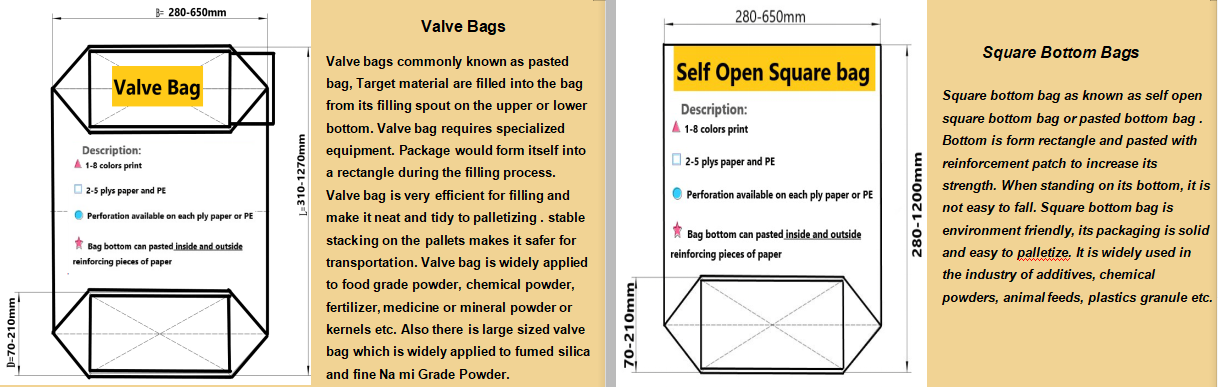

1. Has the function of pasting valve paper: Paper belt of valve width 150-300mm,length 140-290mm.Has the function of pasting reinforced valve, external sleeve valve and internal sleeve valve.

2. Has the function of bag bottom pasted reinforcing pieces of paper. Reinforcement paper weight 75-90g/, the paper belt width 80-125mm, paper length 200-450 mm, paper plate diameter max 1300 mm.

3. Total Power:21.36kW. (A total of 13 sets of motor, which including: main motor 7.5kW x 1 set, sorting motor 1.1kW x 1 set, glue pump 0.75 x 4 set=3.0kW, automatic correction of motor 0.07kW X3 sets =0.21kW, lifting motor for paper plate 0.75kW X3 sets=2.25kW, German dry vacuum pump7.3kW x 1 set, )

4. Total Weight: 24.20 T

5. Exterior Dimensions: 24.80m 4.7m 1.90m

6. Operation Panel (Touch Screen): DELTA

7. Control PLC: DELTA

8. Speed Control Equipment: DELTA converter

9. Electrical Control Cabinet: 1 set

10. Customer Power Supply Conditions: 380 ± 10V 50HZ 3 4L AC

11. the high pressure air supplied by the buyer shall meet the pressure 0.8MPa, air demand 1.7m3/ min. the high pressure air is dehumidified, dusted and purified;

12. Equipped with german vacuum pump(ultimate vacuum mbar 0.5 300 m3/h 7.3kW)

13. the surface paint of the bottom machine is ______ color (According to the customer)

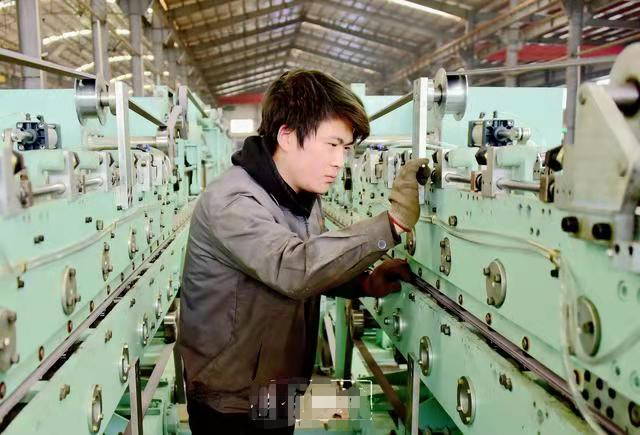

* Bag making machine installation, commissioning and personner training:Our company send technicians to buyer to install and debug.

* Warranty period:  12 months WARRANTY of the whole machine.
