DC24V Brushless Motor Digital Vehicle Security Parking Barrier Gate Provides Accurate & Safe System Operation

FOB Price:	380.00 - 480.00 USD/Set
Supply Ability:	2,000 Set(s) per Month
Shipping:	Shenzhen, China by sea
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Export standard Carton

Quick Details

Brand Name: Jayda
material: Cold Roll Sheet
Color: Customizable
Warranty: 2 years
Card Type: Electronic
Model Number: JDDZ-10
Open / close time: 0.6~6 seconds adjustable
Life Cycle: 4.5 million times
Motor Type: DC24V brushless motor

Specifications

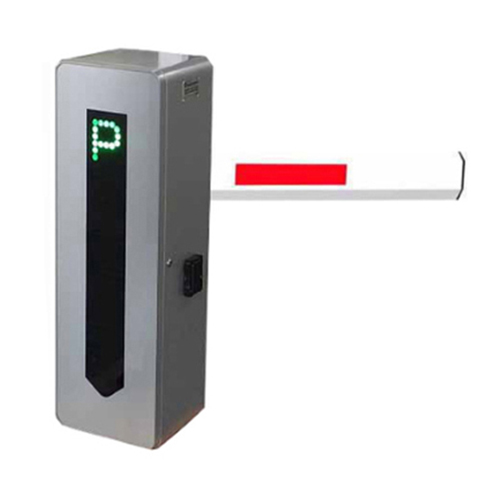

Vehicle security JDDZ-10 is an effective automatic traffic barrier that can be used as Parking barrier gate for car park and security control. Adopting Advanced DC24V digital brushless motor and update control technology, it Provides variabe speed ranging 0.6~6 seconds for different Applications, ensuring rapid opening times, easy handling, great Reliability and long life span. Equipped with standard interfaces, Vehicle security parking barrier gate JDDZ-10 is flexible integration Various access control system, and also can be controlled by remote Control and push addition, the UV-resistant and Environmental-friendly powder coating finish of the compact housing has Amazing performance of corrosion resistent, dust-proof, rainproof and Rustproof.

DC24V brushless motor digital vehicle security, motorized barrier gate, automatic car park barrier gate provides accurate and safe system operation with encoder

Features
1. Programmable open & close gate arm speeds
2. Direct drive motor auto-reverses upon contacting obstruction
3. Reliability for high usage
4. Accurate and safe system operation with encoder
5. Auto-close function upon departure of the vehicle
6. Auto reverse feature in case an object has been hit
7. Quality product resistant to weather conditions
8. Low power consumption for economical operation
9. Easy to use and maintain
10. None corrosive housing made of powder coated cold-roll sheet

Applications
Car parks
Company grounds
Residential building
Toll stations
Large business complexes
Airports

Parameters

Power Supply	AC220V/ AC110V±10%, 50/60hZ
Rated Power	140W
Motor Type	DC 24V brushless digital motor
Motor Speed	1500RPM
Open Time & Boom Length	1.0~1.2 seconds	2.5 meter straight boom
	1.5~2.0 seconds	3.0 meter straight boom
	2.0~2.5 seconds	3.5 meter straight boom
	2.5~3.0 seconds	4.0 meter straight boom
	3.0~3.5 seconds	4.5 meter straight boom
	3.5~4.0 seconds	5.0 meter straight boom
	4.0~4.5 seconds	5.5 meter straight boom
	5.0~6.0 seconds	6.0 meter straight boom
Noise	≤60dB
Error Action	≤0.001%
Interfaces	IR sensor, vehicle detector, RS485, open/ close/stop
Output	Relay output, max AC240V, 5A bearable
Life Cycle	≥4.5 million times
Work Temperature	-35℃~60℃, Relative humidity:≤90%, no condensation

Vehicle Security Parking Barrier Gate Design
