Zhejiang Yangtze River Pumps Co., Ltd.
China Manufacturer with main products: Pumps, Centrifugal Pumps, Diaphragm Pumps, Submersible Pumps, Sewage Pumps, Gear Oil Pumps |

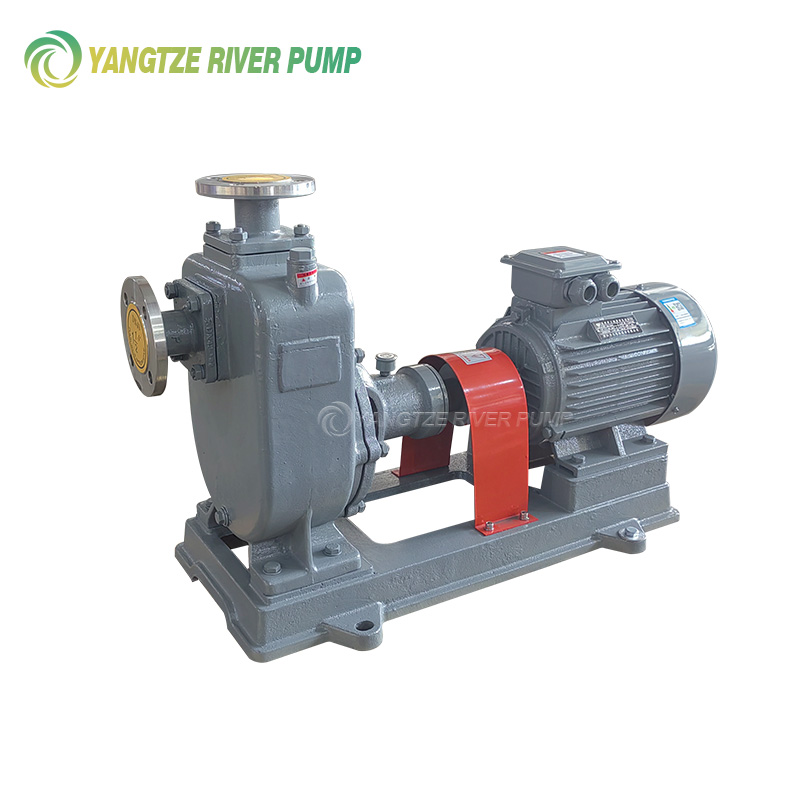

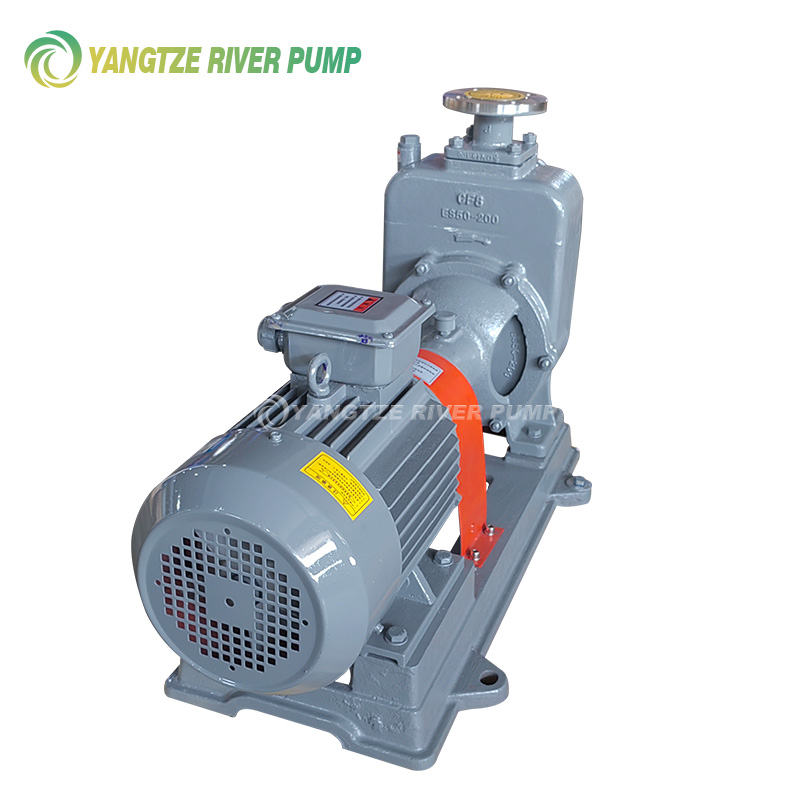

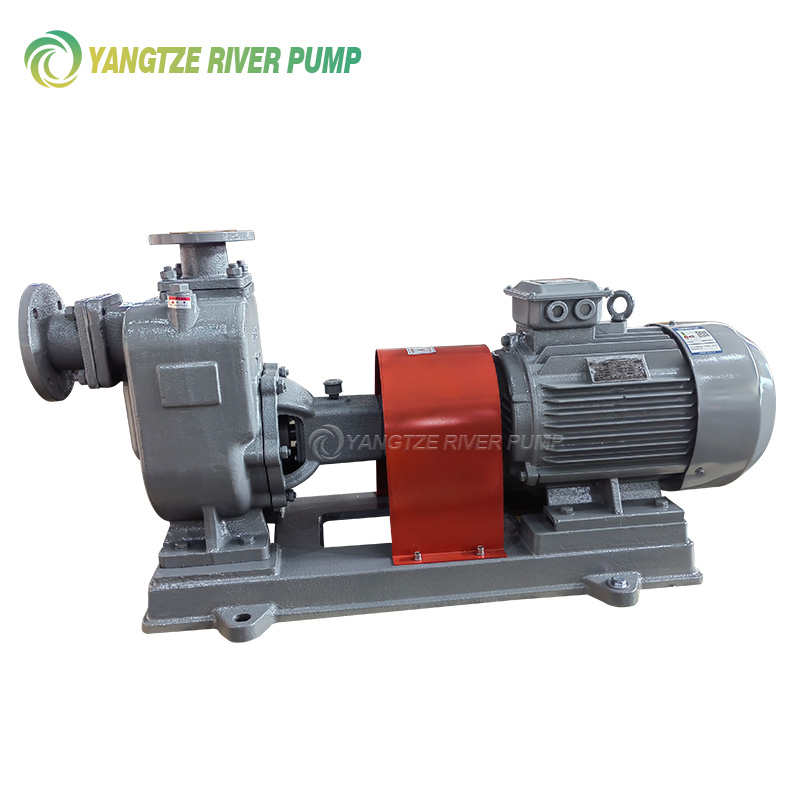

Self Priming Sewage Centrifugal Pump
| FOB Price: | 1.00 - 1000.00 USD/Unit |
|---|---|
| Supply Ability: | 5,000 Unit(s) per Month |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Pressure: Low Pressure
- Standard or Nonstandard: Standard
- Power: Electric
- Structure: self-priming pump
- Brand Name: Yangtze River
- Application: Sewage
- Usage: Water
- Theory: Centrifugal Pump
- Model Number: ZW
Specifications
Summary
ZW Non Clogging Self priming sewage centrifugal pump is based on the diffuser principle, this pump is a combination of self priming and non clogging. It adopts wide flow channel of the impeller to transfer sewage with big solids, long fiber impurity, sediment impurity.

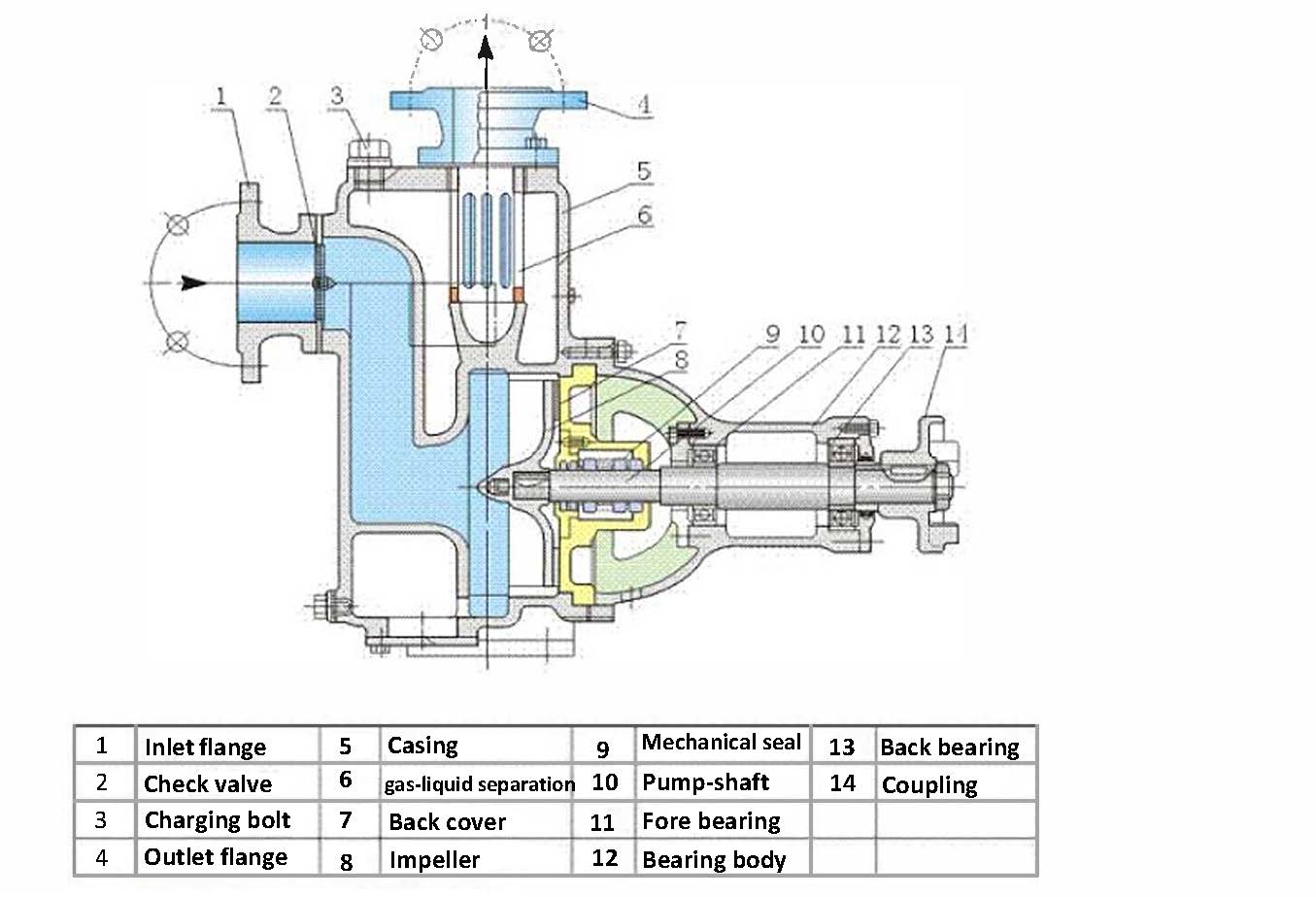

Construction
Advantage
1. Back-pull-out construction: Convenient formaintenance and troubleshooting.
2. Daily maintenance can be performed rapidly bycommon tools,saving time and labor.
3. Strong solids passing capacity:wide flow path impeller structure and non-clogging design.
4. with only the suction line down in the liquid (thepump shall be filled with water for first start).
5.the series of ZW series self-priming pumps do not need to install a bottom valve, but only need to ensure that there is a quantitative amount of liquid in the pump body.
Product details
Working Principle: Self Priming Pump
Usage: Water, Oil, Chemical, Food
Size: 32-200mm
Flow: 3.2~280m3/h
Head: 12~80m
Power: 1.1~90kW
Suction Head: 5-6.5m
Material: Cast Iron, SS304,SS316, Duplex SS, (copper impeller)
Impeller Type: Close Impeller/wide-cross Impeller for self priming sewage pump
Max. Temperature: 120°C ( can customize max temperature: 200°C)
Application
Marine,Municipal sewage engineering,river pond aquaculture,Light Industry,Agricultural,Papermaking, Textile, fiber, pulp,chemical, electrical,Fuel oil,Mixed suspension,chemical media.
