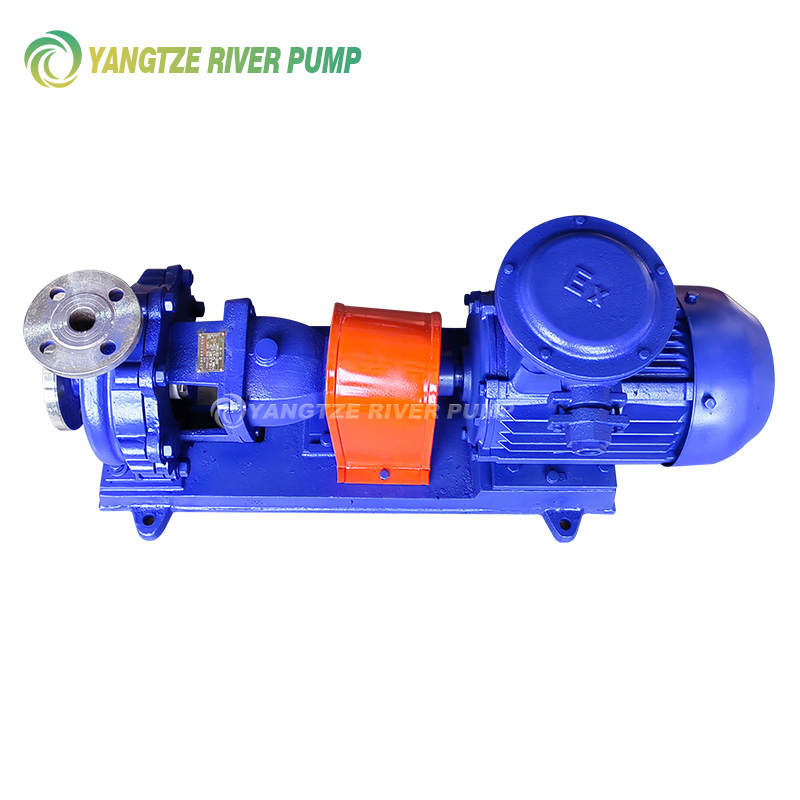

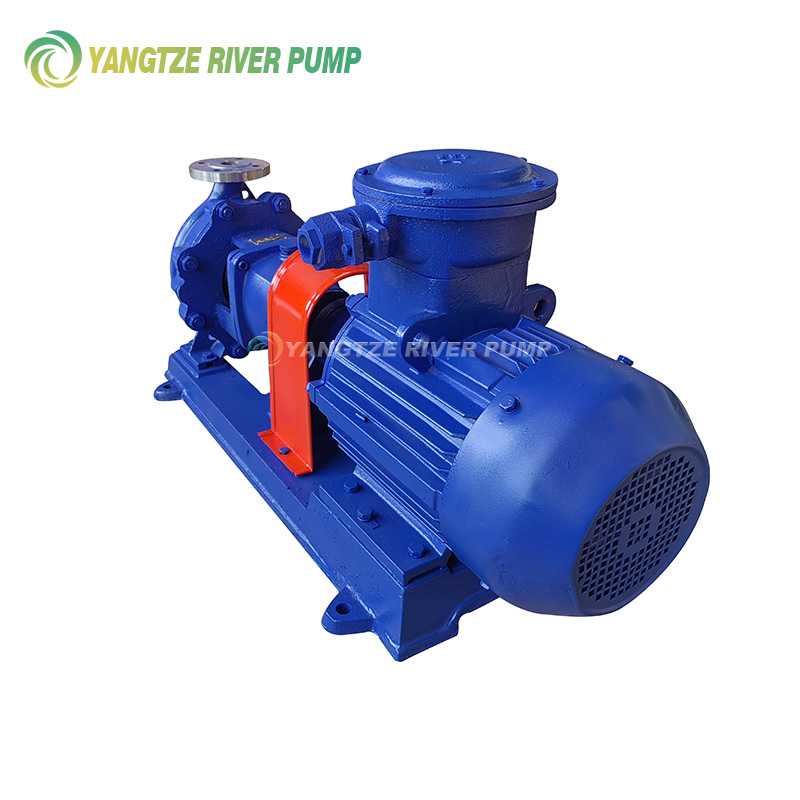

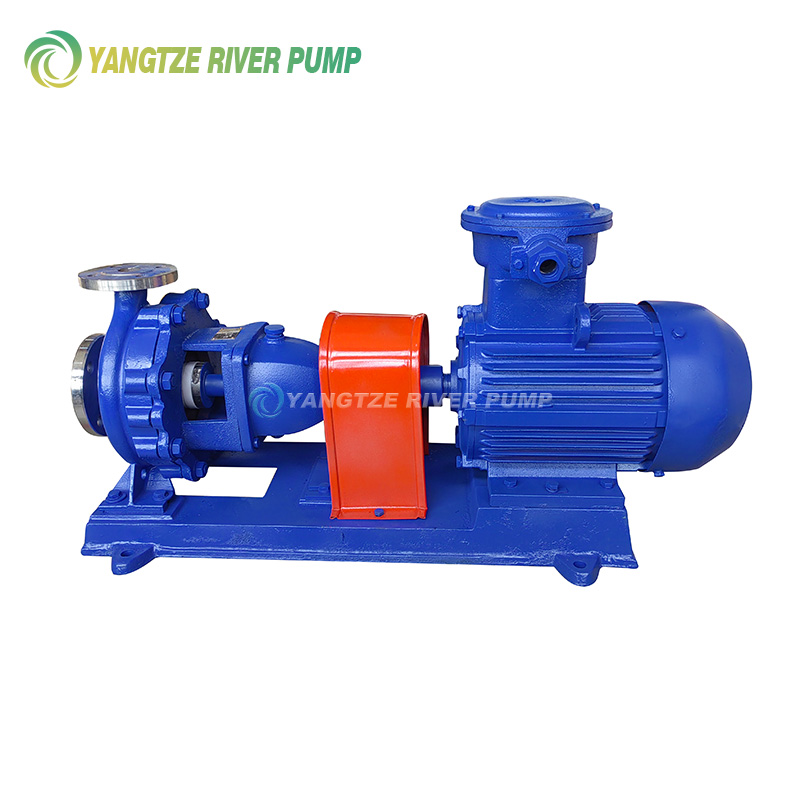

Single Stage Acid Resistant Centrifugal Pump

FOB Price:	1.00 - 1000.00 USD/Unit
Supply Ability:	5,000 Unit(s) per Month
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Water Pump Use 3kw Windmill

Price:5,000.00-6,000.00 USD/Set

Min. Order:1 Set
(HS-326)3-Cylinder Plunger Pump

Price:

Min. Order:
Sewage Water Pump (Wasted Water)

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

Pressure: Low Pressure
Standard or Nonstandard: Standard
Power: Electric
Structure: Single-stage Pump
Brand Name: Yangtze River
Fuel: Diesel
Theory: Centrifugal Pump
Model Number: IH

Specifications

Summary

Yangtze IH type single stage acid resistant centrifugal pump, which is a single-stage single-suction cantilever centrifugal pump, and its rated performance points and dimensions are in accordance with the international standard ISO2858-1975 (E). It is one of the energy-saving pump products popularized in worldwide. It is designed and developed by Yangtze technicians. the pump is widely used in industrial and agricultural urban drainage, fire water supply and so on. For transferring corrosive media at 20℃120℃ or sanitary media with physical and chemical properties similar to water.

Construction

Product Performance

Products Name:Single stage acid resistant centrifugal pump

Size:32~200 mm, 1.5~8 inch

Flow:6.3~400 m3/h

Head:5~125 m

Power:0.55~110 kW

the highest work pressure:1.6 Mpa

Standard:ISO2858

Heating Jacket:Can

Shaft Seal Type:Single Mechanical Seal, Double Mechanical Seal

Material:SS 304, SS 316, 2205 duplex stainless steel

Impeller Type:Close Impeller, Semi-open Impeller, Open Impeller

Product details

Working Principle:Single stage acid resistant centrifugal pump

Usage:Corrosive Chemical Liquid, Acid, Alkaline, Sea Water, Oil, Food

Main Applications:Chemical and petrochemical industries, Pharmaceutical industry, Paint industry, Plastic and rubber industries, Ferrous and non-ferrous metal industries , Paper and cellulose industries, Textile industry, Food and drink industries

Shaft Seal Type:Single Mechanical Seal, Double Mechanical Seal

Material:SS 304, SS 316, 2205 duplex stainless steel

Impeller Type:Close Impeller, Semi-open Impeller, Open Impeller

Heating Jacket:Can

Advantages

with stable flow and head

Large variety of medium temperature -20℃~105℃

Easy for maintenance, only need to dismantle spacer coupling

Corrosion resistance for most of chemicals

Abrasion and erosion resistance, double end mechanical seal is available

Few leakage with various shaft seal for different operating condition
