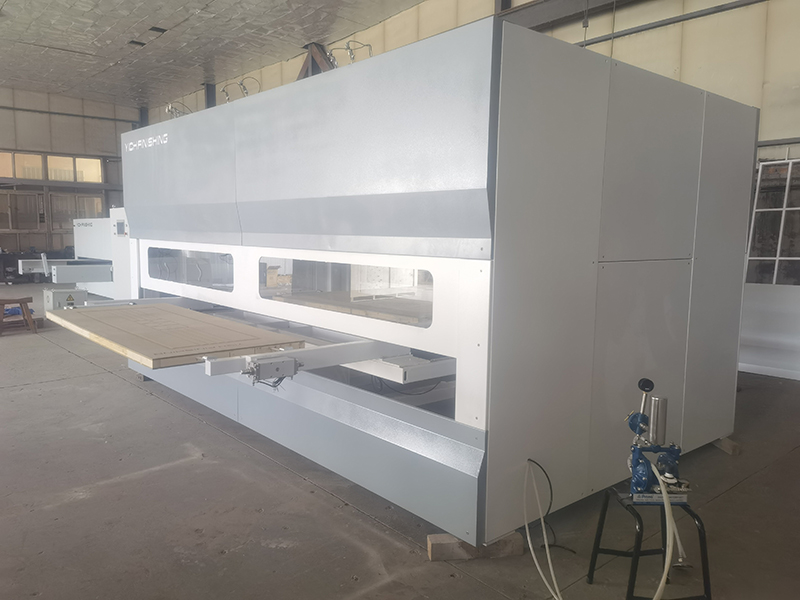

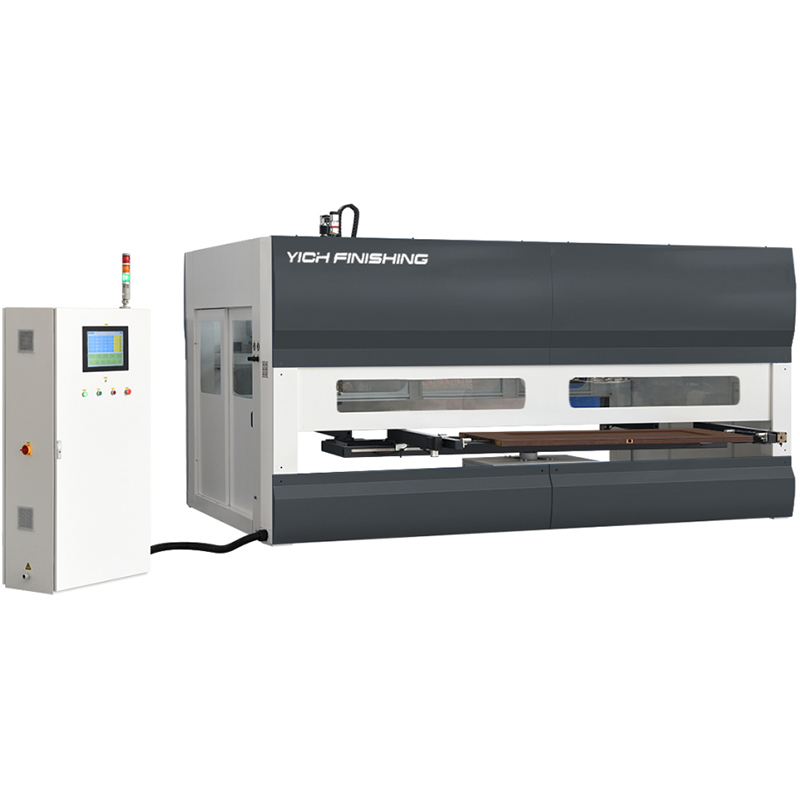

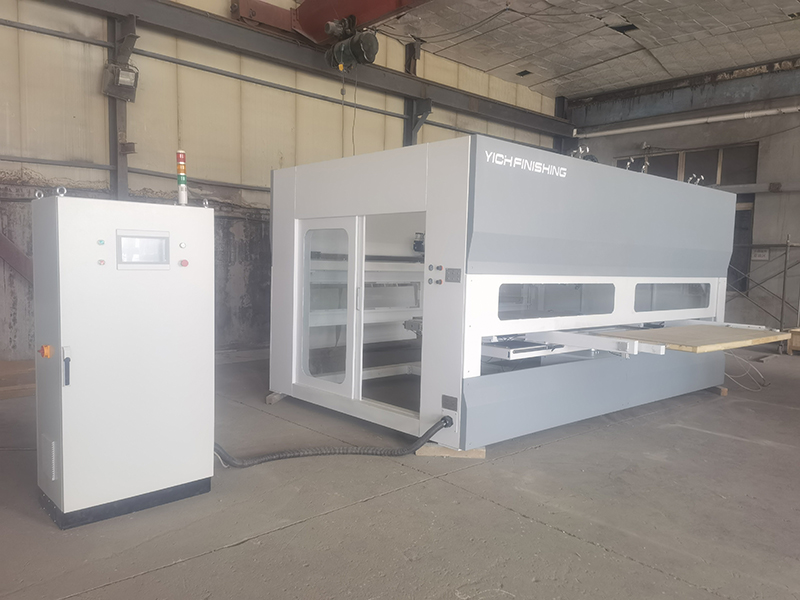

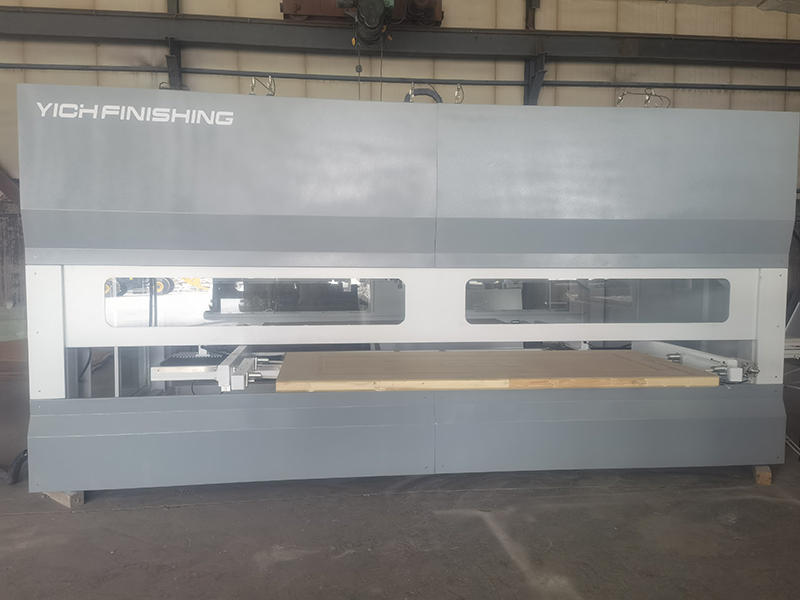

Excellent Performance MDF Door Automatic Paint Spraying Machine

FOB Price:	20000.00 - 25000.00 USD/Set
Supply Ability:	50 Set(s) per Month
Shipping:	sea transporting
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Plastic Foam Packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: YICH FINISHING
Condition: New
Certification: CE, SABER
Voltage: Customerize
Model Number: YICH-DPSM2500D

Specifications

General description of MDF Door Automatic Paint Spraying Machine
1.this machine is specially used to spray Sealer, primer, finish coat on door panels to make the interior doors & exterior. with the help of holding shaft, also can painting for furniture panel, kitchen cabinet doors, door & window frame etc.

2.It can not only spray the varnish paint & color paint, but also can spray the color ink.

3.this machine can paint about 100-150 Pieces of interior doors per shaft (8 working hour/shaft), can paintabout 250-450 square meters of furniture panels, or kitchen cabinet Doors

4.When working, this machine only need 1 or 2 normal workers to load the work piece and discharge the painted doors, furniture panels, kitchen cabinet doors,etc

5.this machine should be located in a dust Free room with the air inlet & exhaust system.

6.this machine can spray the PU,UV, Water Base paint, NC, PE, AC paint, etc, Also can spray theLaminating glue for PVC or wood veneer laminating doors,kitchen cabinet Doors,etc

7.Before painting 1 kind of door panel or Furniture panel, we pre-set the spray parameters of the door, such as width,height, thickness into the controller through the LCD Touch Screen, when finish setting and saving, then the controller will generate the Spraying program for this kind door panel, and will store this spraying program into the data base of PLC. Then in the furniture, if you want to paint this Kind door panel, just need to take this spraying program and run, no need Re-set. When painting, after loading the door panel, the worker just need to Press the start button on the feeding part is ok.

8.this machine can paint 2 surface+4 sides of the door panel at 1 time, about take 1.5-2minute, can paint 1Surface+4 sides of furniture panel or cabinets door at 1 time

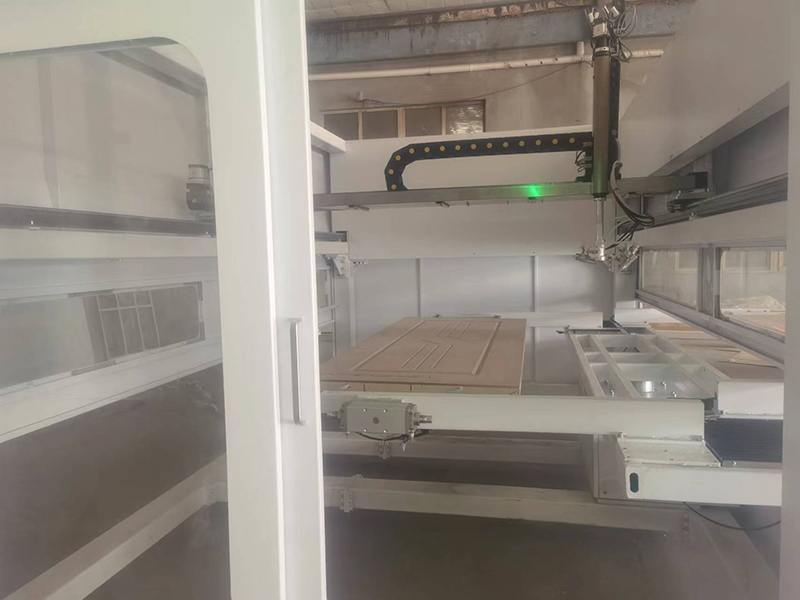

9.the painting shaft adopts cross moving
Technical Parameters of MDF Door Automatic Paint Spraying Machine

Model	YICH-DPSM2500D
Max. Work Piece Size	26001300150 mm
Max. Work Weight	100 kg
Working Thickness	1-100mm
Power of servo motor of the X-Shaft	1.5 kw
Power of servo motor of the Y-Shaft	0.75 Kw
Power of servo motor of the Z-Shaft	0.4 Kw
Rotary Servo Motor	0.2 Kw
Swing Servo Motor	0.1 Kw
Working Pressure	0.5-0.8 Mpa
Total power of the machine	3.5KW
Machine weight	2000kg
Machine size	480039002230mm
