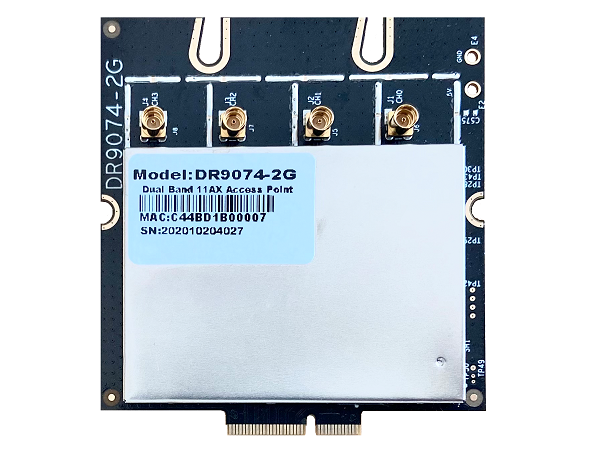

Wallys|Network Card DR9074-2.4G (PN01.1) QCN9074 802.11ax 4x4 2.4GHz Wifi6

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Jiangsu in China

Quick Details

Features

Qualcomm Atheros

2.4GHz, max 23dBm per chain, up to 1147Mbps

Single Band 2.4GHz 4x4

4 spatial streams (4SS)

M.2 E Key Interface

PCI Express 3.0 Interface

Absolute Maximum Rating

Parameter	Rating	Unit
Operating Temperature Range	-20 to 70	C
Storage Temperature Range	-40 to 90	C
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%

HardWare Specifications

Symbol	Parameter
Chipset	Qualcomm Atheros QCN9074
WLAN Host Interface	PCI Express 3.0 Interface
System Memory	2Mbit serial I2C bus EEPROM
Standard Operating Voltage	5V
Operating Systems	QSDK
Host Interface	M.2 E Key
Antenna Cable / Port	4 x MMCX Connectors,4T4R
Frequency Range	2.412GHz-2.472GHz
Data Rates for WALN	2.4GHz, max 23dBm per chain, up to 1147 Mbps
Channel Spectrum Widths for WLAN	Support 20/40MHz at 2.4GHz
Modulation Techniques	OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM
Temperature Range	Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity	Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification	TBD
Power Consumption	TBD
Reference Design	PN01.1
Dimensions (WxHxD)	57mm x 63mm x 6mm

Wallys Communications (Suzhou ) Co., LTD
