Luoyang Huatian Packaging Machinery Co., Ltd.
China Manufacturer with main products: Valve Bag Forming Machine Flat Bottom Kraft Paper Bag Machine, Automatic Square Bottom Pasting Machine, Multiwall Paper Bags Machine, Three... |
Home
>Products Catalog > Tube Kraft Paper Bag Making Machine > HD100-IB 25kg 50kg Valve Bag Cement Bagging Making Machine

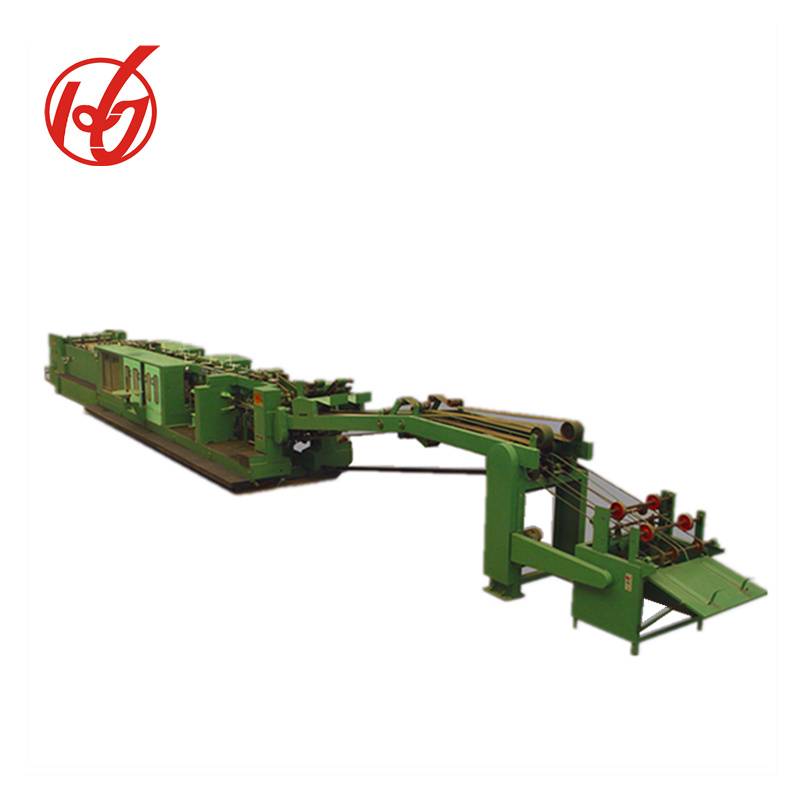

HD100-IB 25kg 50kg Valve Bag Cement Bagging Making Machine
| FOB Price: | 490000.00 - 499000.00 USD/Set |
|---|---|
| Supply Ability: | 12 Set(s) per Year |
| Shipping: | FOB QINGDAO |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
Quick Details
- Type: Packaging Line
- Brand Name: Huatian
- Packaging Material: Paper
- Packaging Type: Bags
- Application: Chemical,Food,Building materials
- Type: Kraft Paper Bag Packaging Line
- After-sales Service Provided: Engineers available to service machinery overseas
- Weight: 23.80T
- Dimension(L*W*H): 22.20m*3m*1.90m
- Model Number: HD100-IB
- Power: 23.32kW
- Driven Type: Electric
- Automatic Grade: Automatic
- Condition: New
- Maximum Production Output: 125pcs/min
- Distance of Between Sack Bottom Centers: 350-680mm
- Tube width: 380-550mm
- Sack bottom width: 80-125mm
Specifications
1. Maximum Production Output: 125 pcs/min
2. Distance of betweenSackBottom Centers: 350-680mm
3. Tube Width: 380-550mm
4. Sack Bottom Width: 80-125 mm
5. Has the function of pasting reinforced valve, external sleeve valve and internal sleeve valve;paper belt of valve: 120-275mm, length 120-250mm, the diameter of paper plate of valve≤1300mm
6. Total Power:23.32KW. A total of6 sets of motor, which including: main motor7.5kW x 1 set, sorting motor 1.1kW x 1 set, glue pump 0.75 x 1 set, Compressed air refrigerated dryer 0.97Kw x 1 set,Vacuum pump5.5kW x 1 set, Screw Compressors 7.5kw x 1 set.
7. Total Weight:23.80 T
8. Exterior Dimensions: 22.2m2.9m 1.90m
9. Operation Panel (Touch Screen): DELTA
10. Control PLC: DELTA
11. Speed Control Equipment: DELTA converter
12. Electrical control cabinet: 1set
13. Customer power supply conditions: 380±10V 50HZ 3 4L AC
14. A screw air compressor (0.8MPa 1.20m3/min7.5kW)
15. A store jar (0.8MPa 1.0m3)
16. A compressed air refrigerated dryer: 1 set (0.97kW)
17. A Vacuum pump (-0.093MPa 2.80m3/min5.5kW)
18. EQuipped with a sets of forming attachments and glue wheel, used to make the sackswith bottom width and tube width, and accessories for pasting one kind of valve reinforce sheet.(If add other configuration, the buyer can be proposed and agreed upon when commercial negotiations.)
