Portable Water Well Drilling Pipe PVC Well Casing & Screen Pipes Pn10-Pn20 for Water

FOB Price:	0.50 - 49.90 USD/Meter
Supply Ability:	10,000,000,000 Ton(s) per Year
Shipping:	FOB SHANGHAI OR QINGDAO AFTER YOUR 50% T/T advancement
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Mid East
Place of Origin:	Jiangsu in China
Packaging Details:	Naked or as per request

Quick Details

Thickness: 1.2MM -28 MM
Length: 5 / 10 / 20 FT
Specification: OD 20 MM -300 MM
Material: PVC
Brand Name: TZ
Standard: GB/T 10002.1-2006
Model Number: V02

Specifications

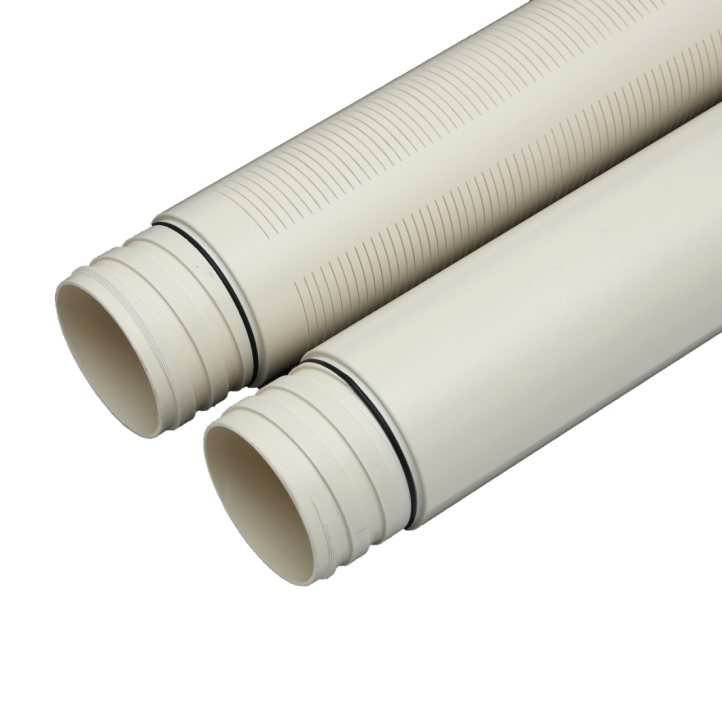

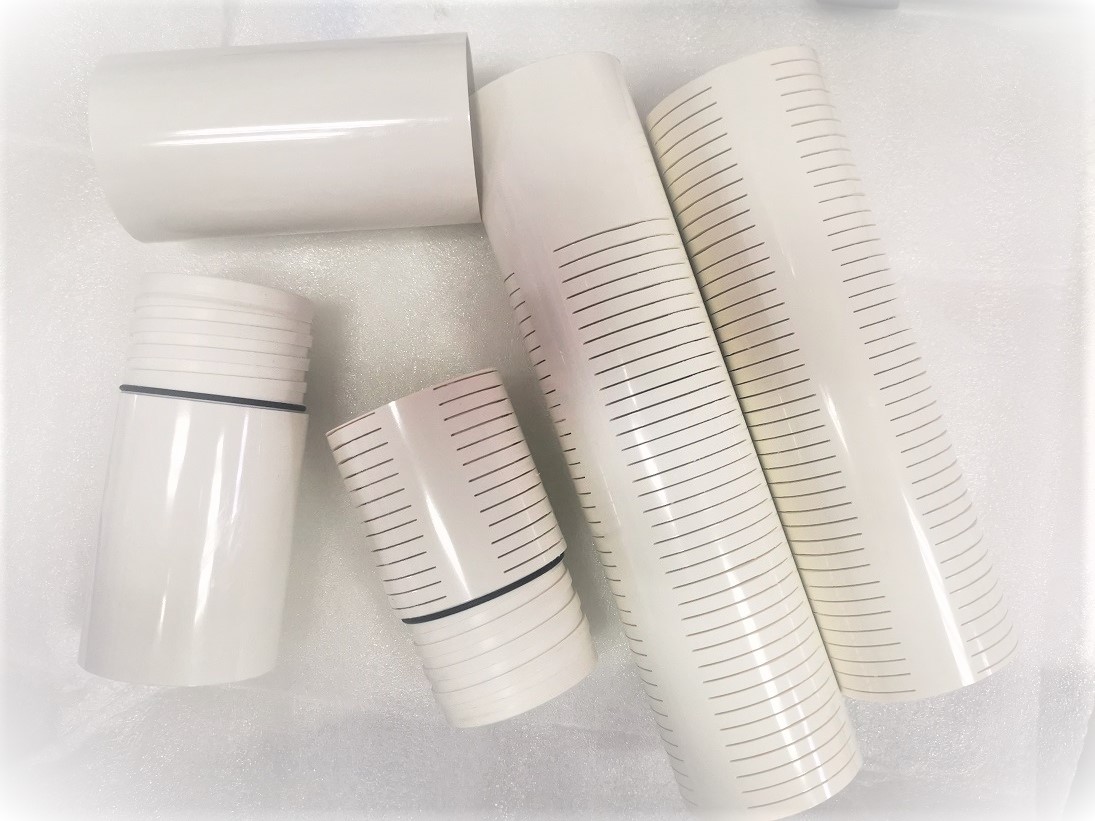

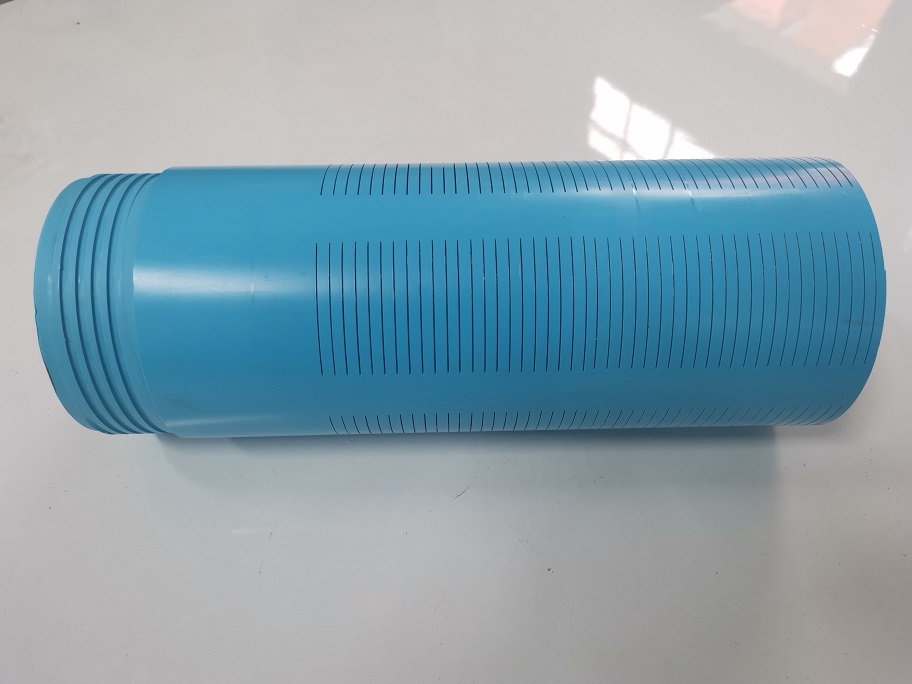

PVC Well Casing Pipe and Screen Pipes are an ideal prodcut for protection of domestic, irrigation, industrial & mining bore wells, keeping out the gravel pack and foreign particals providing clean and clear water from the bore wells.

Portable Water Well Drilling Pipe Pvc Well Casing and Screen Pipes pn10pn20 for Water

Common Size and working pressure as table below:

Nominal Diameter ND(mm)	Slot (mm)	Outer Diameter x Thickness (mm)	Nominal Pressure (Mpa)	Approx. Weight (kg/m)	Ring Stiffness (kN/m2)	Tensile Yield Stress (Mpa)
32 PVC casing	/	Φ32 x 3.0	2.0	0.41	SN≥12.5	≥43
32 PVC Screen	0.3-0.5	Φ32 x 3.0	2.0	0.40	SN≥12.5	≥43
50 PVC casing	/	Φ50 x 4.0	1.6	0.85	SN≥12.5	≥43
50 PVC Screen	0.3-0.5	Φ50 x 4.0	1.6	0.83	SN≥12.5	≥43
63 PVC casing	/	Φ63 x 4.7	1.6	1.29	SN≥12.5	≥43
63 PVC Screen	0.3-0.5	Φ63 x 4.7	1.6	1.25	SN≥12.5	≥43
90 PVC casing	/	Φ90 x 5.4	1.25	2.15	SN≥12.5	≥43
90 PVC Screen	0.3-0.5	Φ90 x 5.4	1.25	2.09	SN≥12.5	≥43
110 PVC Casing	/	Φ110 x 5.3	1.25	2.61	SN≥12.5	≥43
110 PVC Screen	0.3-0.5	Φ110 x 5.3	1.25	2.54	SN≥12.5	≥43
125 PVC Casing	/	Φ125 x 6.0	1.25	3.36	SN≥12.5	≥43
125 PVC Screen	0.3-0.5	Φ125 x 6.0	1.25	3.27	SN≥12.5	≥43
140 PVC Casing	/	Φ140 x 6.7	1.25	4.21	SN≥12.5	≥43
140 PVC Screen	0.3-0.5	Φ140 x 6.7	1.25	4.09	SN≥12.5	≥43
160 PVC Casing	/	Φ160 x 7.7	1.25	5.52	SN≥12.5	≥43
160 PVC Screen	0.5-0.8	Φ160 x 7.7	1.25	5.37	SN≥12.5	≥43
200 PVC Casing	/	Φ200 x 9.6	1.25	8.61	SN≥12.5	≥43
200 PVC Screen	0.5-0.8	Φ200 x 9.6	1.25	8.37	SN≥12.5	≥43

1. Resistant erode

PVC pipe has stable chemical property, which can resistant most of acid and alkali.

2. Service life long

Traditional pipe service life is 20-30 years. PVC pipe service life is at least 50 years at a set temperature and pressure.

3. Excellent sanitary performance

PVC pipe is produced by used Tin or Ca/Zn stabilizer, its sanitary performance is full according to GB/T17219 standard and Ministry of Health of the People's Republic of China related water criterion.

4. PVC pipe has better slotted (bored) rate, strong resistant pressure, larger cross flowing, and is the best choice replace steel and concrete slotted (bored) pipe in many fields.

5. Easy installing

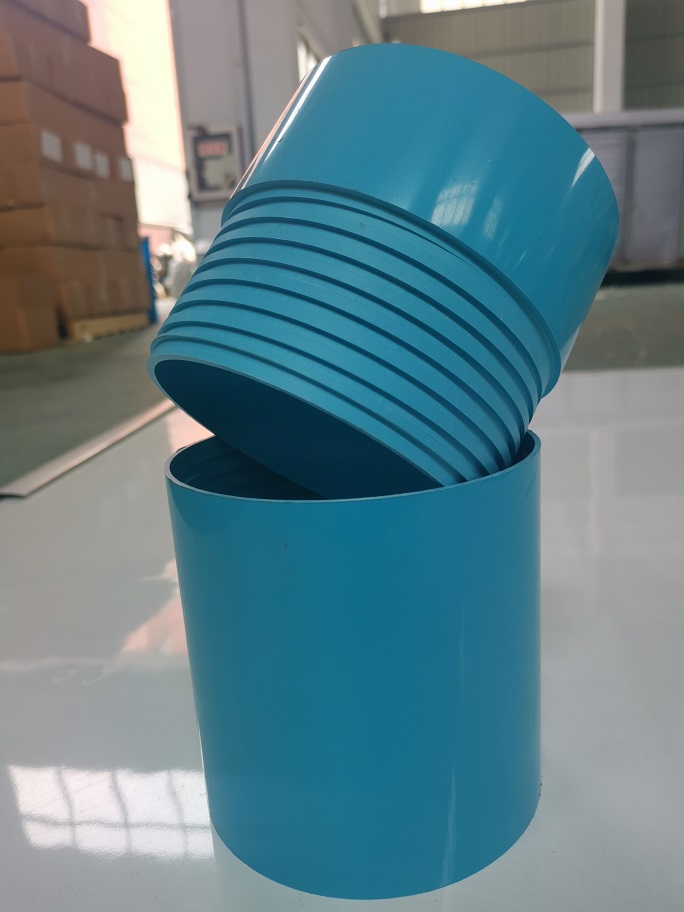

PVC slotted (bored) pipe joint form: elastic seal ring joint, cement joint, also crew joint and flange joint. In additional, PVC-M pipe is density low, weight light, lower requirements for worker and construction equipment, construction cost also is lower compared concrete pipe, steel pipe.

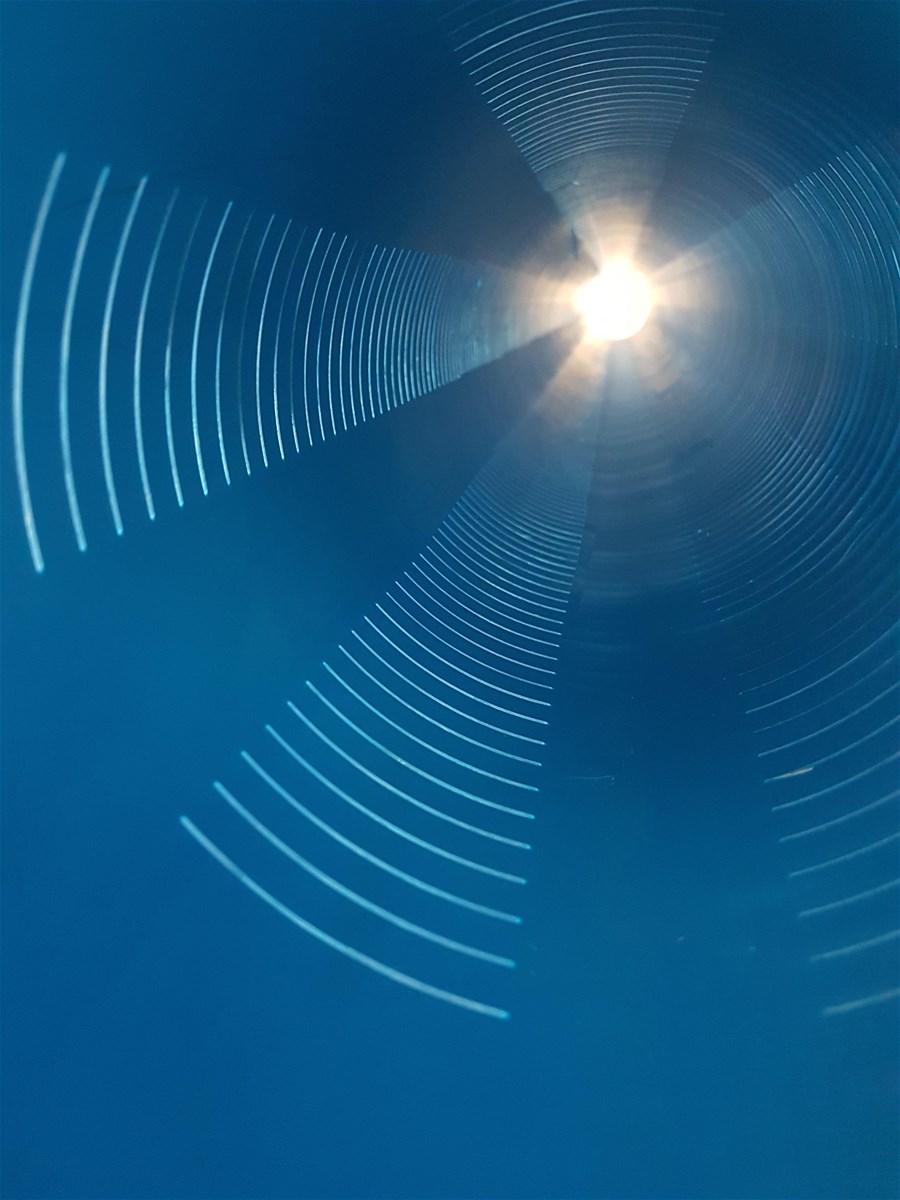

6. Inside wall smooth, no furring, flowing easier, no block(n=0.008---0.009),excellent resistant bacteria. It can effectively guarantee pipes long time straightway. for turning over swash field, PVC-M pipes also easily wash clear.
