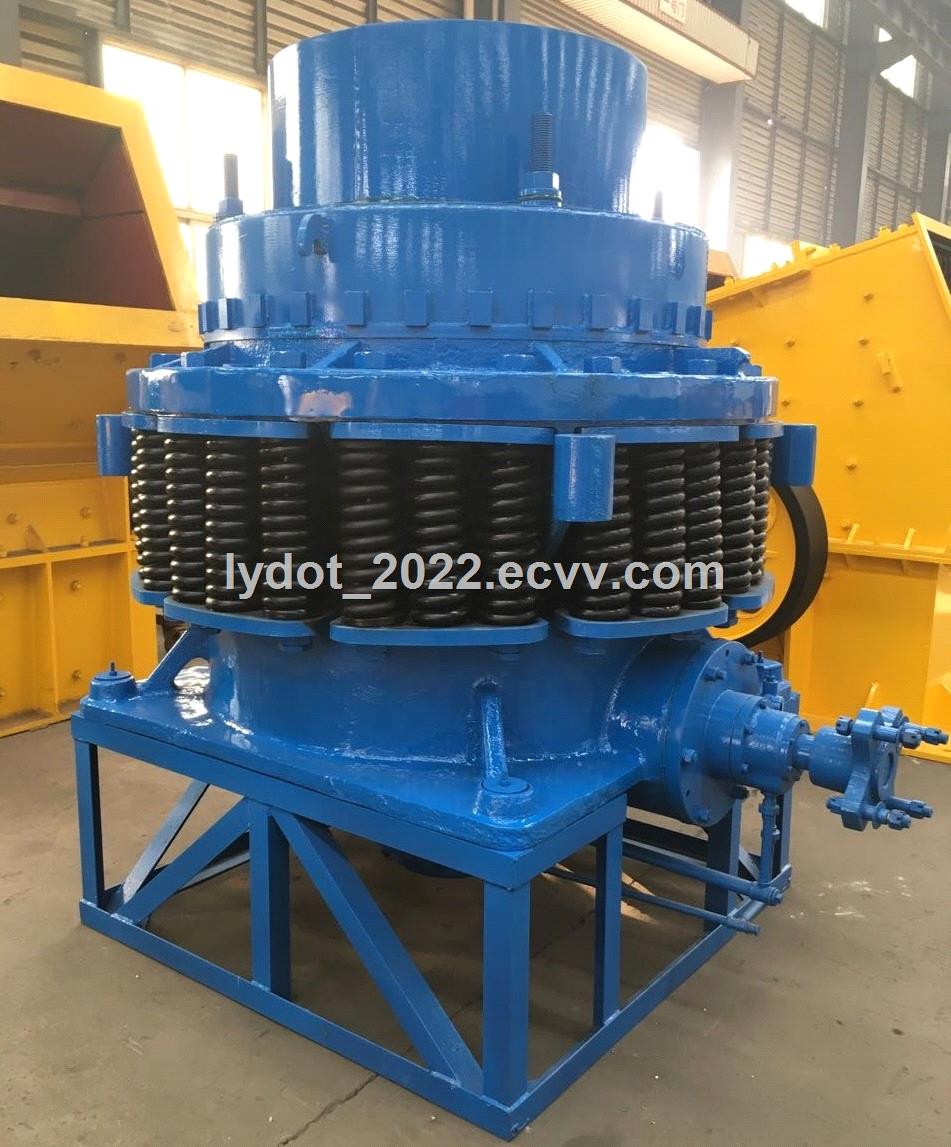

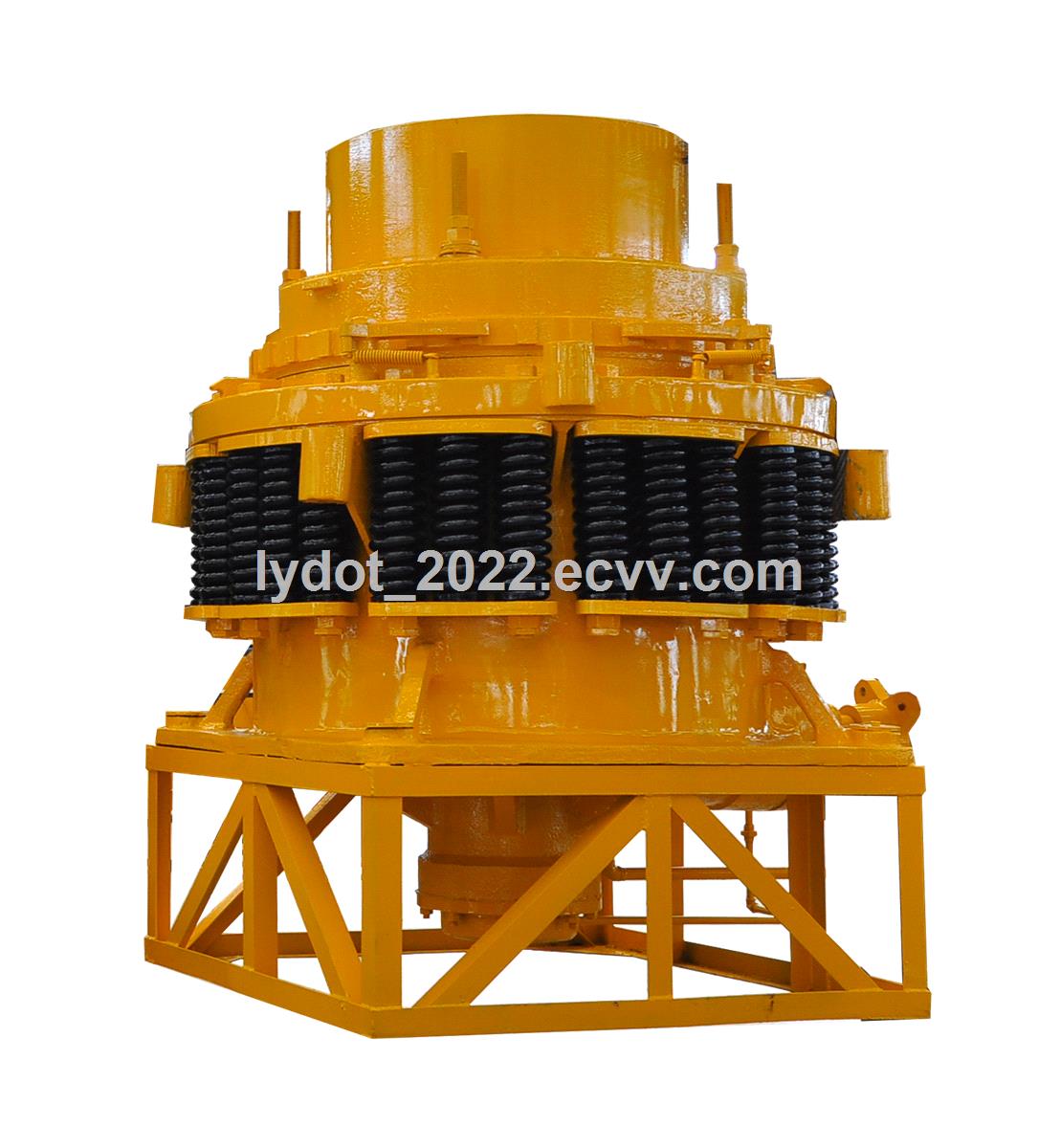

Competitive Price Rock Stone Spring Cone Crushers Used In Mining Industry

FOB Price:	5000.00 - 100000.00 USD/Unit
Supply Ability:	200 Set(s) per Quarter
Shipping:	Port in China
Payment Terms:	L/C, D/P

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Standard Export Packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: one year
Brand Name: DOT
Motor Type: AC Motor
Condition: New
Certification: ISO9001
Weight: 11200
Dimension(L*W*H): 2692*1640*2350mm
Model Number: PYB900
Capacity(t/h): 50-90
Power(W): 55
Application: Mining,building material,metallurgy industry,road&bridge engineering
Type: Cone Crusher
Mantle&Concave: Mn13Cr2
Style: Spring Cone Crusher
Core Components: Motor, Bearing
Key Selling Points: Easy to Operate
Spare Parts: Offered

Specifications

Competitive Price Rock Stone Spring Cone Crushers Used In Mining Industry

1.Brief Introduction:
the standard type (PYB) is applied to secondary Crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine Crushing.

Competitive Price Rock Stone Spring Cone Crushers Used In Mining Industry

2.Techincal parameters:

Model		Dia.of Cone(mm)	Cavity	Feed Opening Size(mm)	Output Size(mm)	Capacity (t/h)	Power (kw)	Weight (t/h)	Overall Dimension(mm)
PYB	900	900	Fine	115	15-50	50-90	55	11.2	269216402350
PYZ			Meidum	60	5-20	20-65		11.2
PYD			Coarse	50	3-13	15-50		11.3
PYB	1200	1200	Fine	145	20-50	110-168	110	24.7	279018782844
PYZ			Meidum	100	8-25	42-135		25
PYD			Coarse	50	3-15	18-105		25.3
PYB	1750	1750	Fine	215	25-60	280-480	155	50.3	391028943809
PYZ			Meidum	185	10-30	115-320		50.3
PYD			Coarse	85	5-13	75-230		50.2
PYB	2200	2200	Fine	300	30-60	590-1000	280	83	462233024470
PYZ			Meidum	230	10-30	200-580		83
PYD			Coarse	100	5-15	120-340		83

3.Performance features:

2. the quick -wearing spare parts are made by highly wear-resistant materials,less Consumption,lower running cost.

3. the Diversification of cavity type can meet the needs of different users.

4. Hydraulic Protection and hydraulic clearance,high degree of automation,easy Operation,maintenance more convenient.

5. the Independent multi-point lubrication system control can realize automatic Machine security..

6. the use of Large-diameter shaft and heavy-duty main frame to ensure that the equipment Rugged and reliable operation.
