Home >Products Catalog > 8.51mm Low Pressure Fluorosilicone Fuel One Way Duckbill Check Valve Kit DB851 for Car Engine

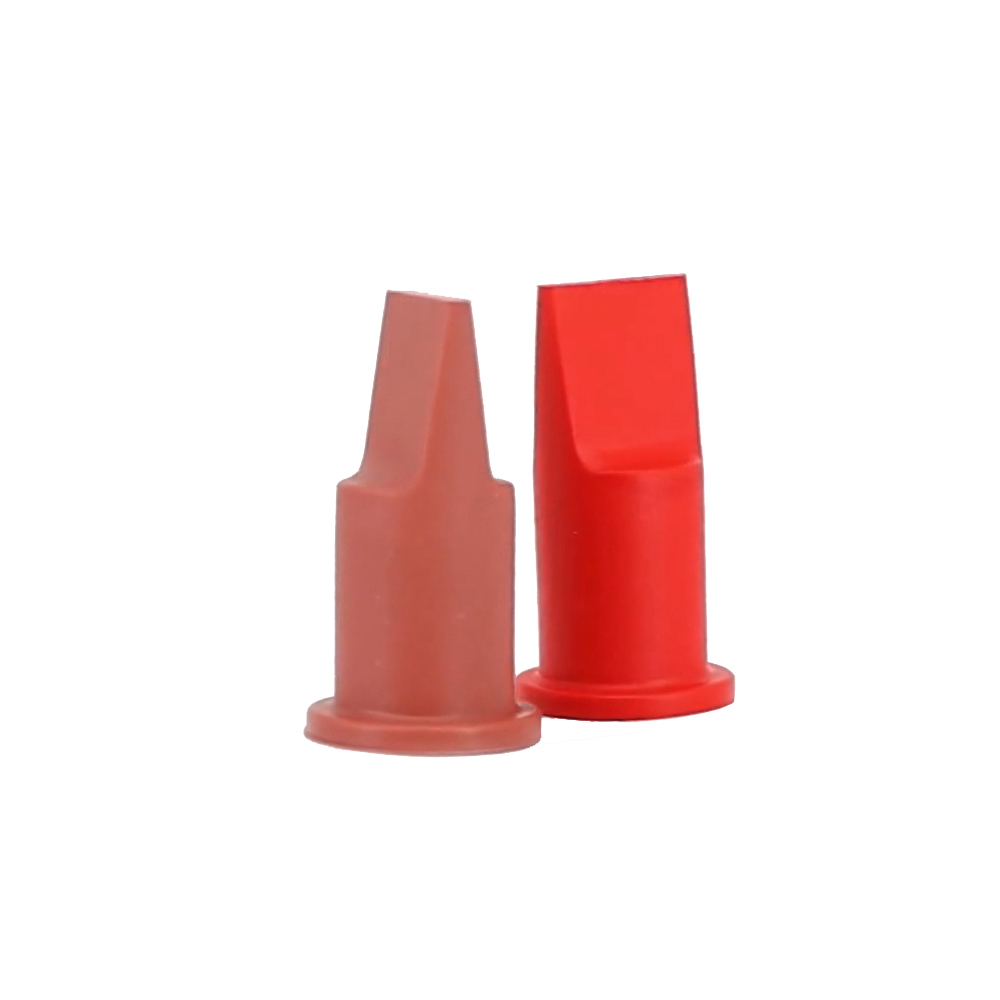

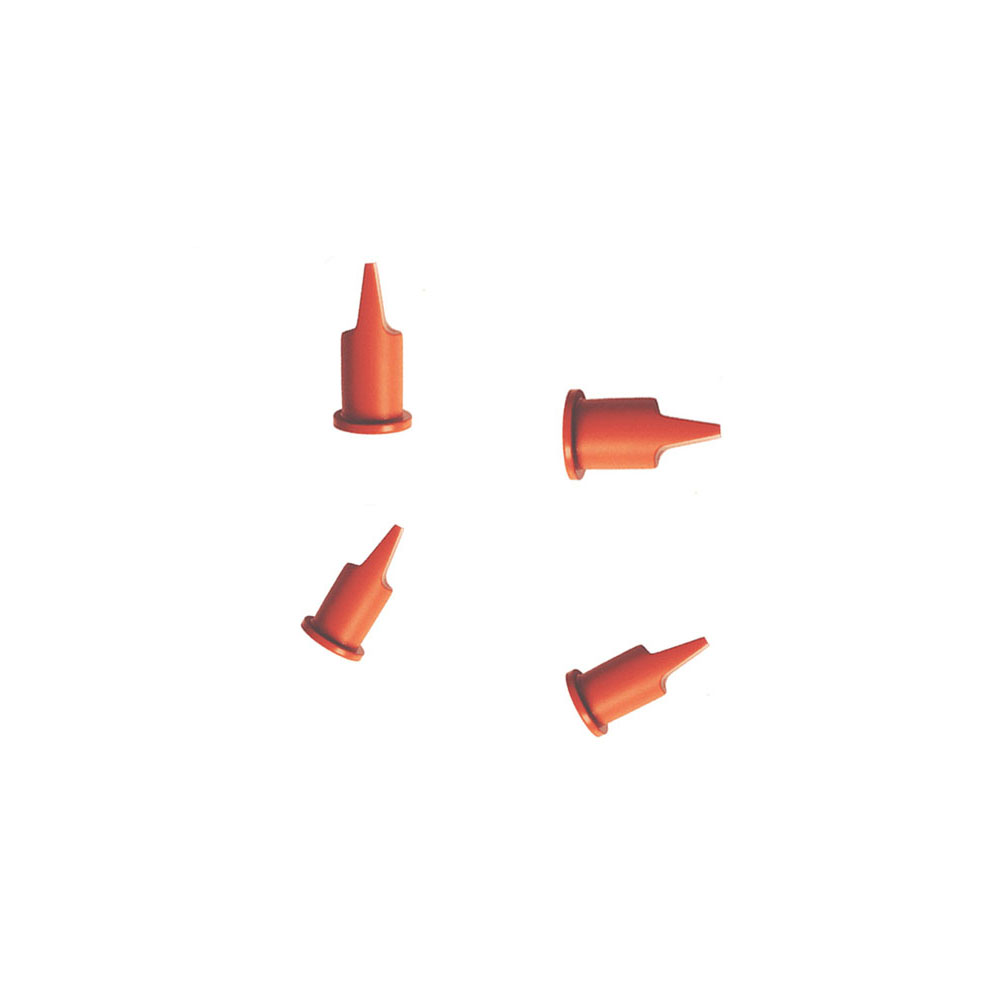

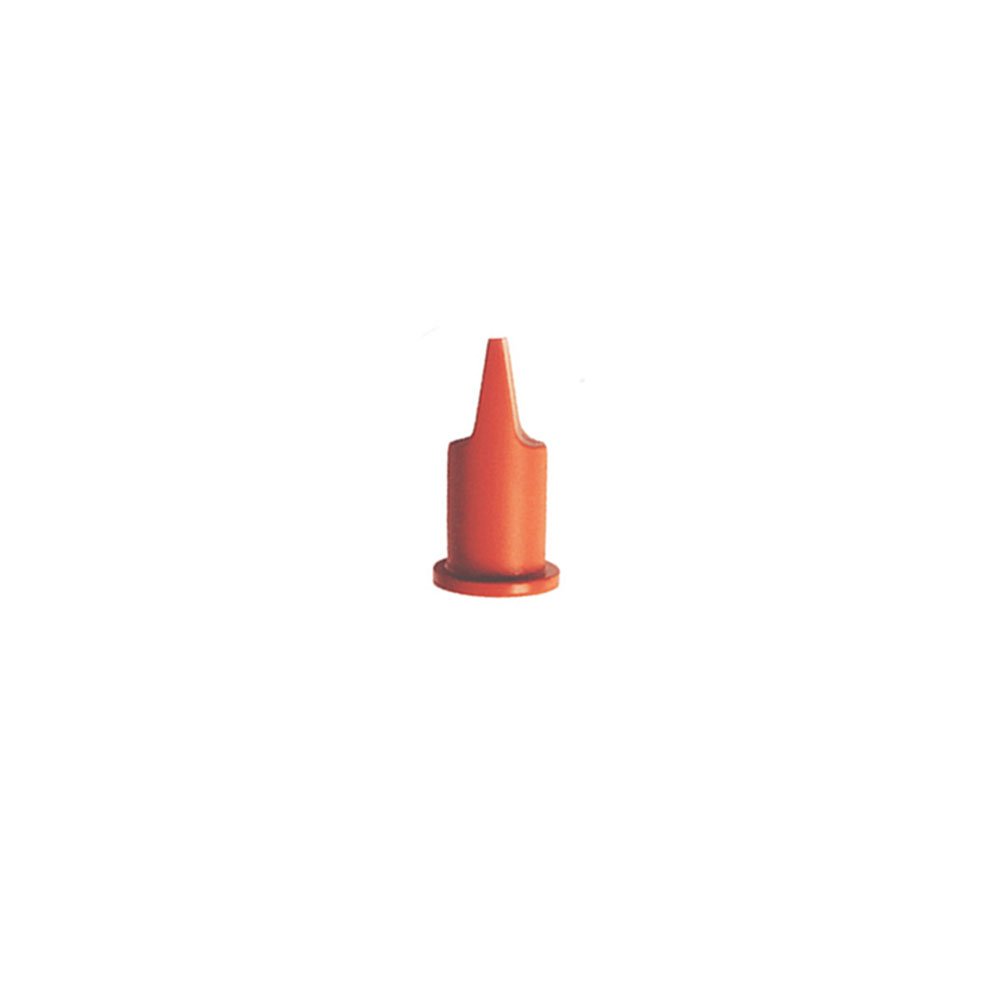

8.51mm Low Pressure Fluorosilicone Fuel One Way Duckbill Check Valve Kit DB851 for Car Engine

FOB Price:	0.10 - 1.50 USD/Piece
Supply Ability:	500,000 Unit(s) per Month
Shipping:	Fuzhou
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	Polybag

Quick Details

Brand Name: Back Valve
Temperature of Media: High Temperature
Material: Rubber
Pressure: Low Pressure
Standard or Nonstandard: Standard
Model Number: DB851
Port Size: 8.51mm
Media: Gas
Power: Hydraulic
Structure: Check
Model: DB851
Material: FVMQ
Opening Pressure: 0-5Kpa

Specifications

PRODUCT DETAIL

PRODUCT ITEM: 8.51mm Low Pressure Fluorosilicone Fuel One Way Duckbill Check Valve Kit DB851 for Car Engine

Model	Material	Type	Opening Pressure	Back Pressure	Sealing OD/mm
DB851	FVMQ	Duckbill	0-5Kpa	<=500Kpa	8.51mm
Color	Customize Per Pantone Color Number
Hardness	40 Shore A to 80 Shore A ( Normal is 50-60 Shore A )
Material	Silicone/VMQ, EPDM, FKM/Viton, FluoroSilicone/FVMQ, NBR etc.
Back Valve International

851mm Low Pressure Fluorosilicone Fuel One Way Duckbill Check Valve Kit DB851 For Car Engine

MORE to CHOOSE:

Rubber Valve--Duckbill Valve
Type	Model	Sealing OD/mm	Height/mm	Link ( Click )
Duckbill	DB380	3.80	10.00
	DB405	4.05	9.90
	DB470	4.70	10.80
	DB508	5.08	5.10
	DB600	6.00	12.00
	DB600-1	6.00	8.50
	DB780	7.80	14.00
	DB851	8.51	21.00
	DB950	9.50	11.70
	DB1257	12.57	22.60
	DB400	4.00	6.50
Available Material		Silicone/VMQ, EPDM, FKM/Viton, FluoroSilicone/FVMQ, NBR etc.
Application		Medical Feeding Pump, Sphygmomanometer, Aquarium, Water Dispenser, Soap Dispenser, Coffee machine, Fuel Pump System, Air Vacuum Pump, Ozone Generator, Analytical Machine, Spray Systems,Garden Tools, etc.
Back Valve International

in order to advise you a best cost effective valve, we want to know:

1) Where does the valve you use in? Which equipment?

2) What kinds of medium will the valve come into contact with? Such as water, air, fuel or else?

3) What is the using temperature?

4) What is the opening pressure of the valve you requested?

5) What is the size/port size of the valve you want?

6) What is the annual quantity for the valve?

7) More information like flow rate, back pressure etc will be better for us to help you.

FAQ

Q1: Are you a manufacturer or trading company?

A: We are a professional manufacturer of various kinds of back valves like Elastomer rubber valve ( Duckbill Valve, Umbrella Valve, Duckbill Umbrella Combination Valve ), Plastic check valve, Plastic pipe connector, PVC/TPU tubings etc. We have our own Vulcanization machine, Injection machine, Ultra-Welding Machines.

Q2: how do you control the products quality?

A: We will do all the process per ISO 9001 quality system. Also We have QC to do the sampling inspection when in production,and do 2^nd 100% inspection for the products before shipment to make sure the back valves to our clients are qualified.

Q3: What is the lead time for an order?

A: Usually it will 10-15 days to finish the goods, but sometimes it depends on the order quantity.

Q4: how do you to handle the quality issue if the products have defectives after received?

A: We will cover the defectives in the next order or we can compensate.

Q5: What is your Payment Terms?

A: Sample order: 100% T/T in advance. Production Order: Small amount: 100% T/T in advance. Big amount: We do 50% Deposit in advance before production, balance payment before shipment.

Q6: If we offer you a rough or detailed technical drawing, can you customize for us?

A: Yes, we can do OEM/ODM work, if any technical limits on your design, we will share you how to modify the design.

and with a new design valve, normally there will need a new mould which will have a mould cost. but the mould cost can be refunded by Equivalent value products ( Back Valves ) when up to a certain quantity.
