Home >Products Catalog > Thermostatic liquid bath > DTS-BE Series Intelligent Portable Thermostat for Testing Thermocouple Thermistor & Thermometer

DTS-BE Series Intelligent Portable Thermostat for Testing Thermocouple Thermistor & Thermometer

FOB Price:	1600.00 - 5000.00 USD/Piece
Supply Ability:	1,200 Piece(s) per Month
Shipping:	choose
Payment Terms:	D/A, D/P, T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	foam carton packaging

Quick Details

Usage: Portable THERMOSTATIC BATH
Power: Electronic
Brand Name: DEARTO
Warranty: ONE YEAR
weight: 26kg
Model Number: DTS-BE Series
Dimensions(mm):: 420*215*480
Color:: Red/White
Display resolution: 0.001
Control method: Touchscreen
Power supply: 220VAC
Certification: ISO9001
Rate of heating: 6.5~11.5/ min
Work area dimensions: 60*300(mm)
Dimensions (mm): 500*220*600
Working medium: Special media

Specifications

Product Description

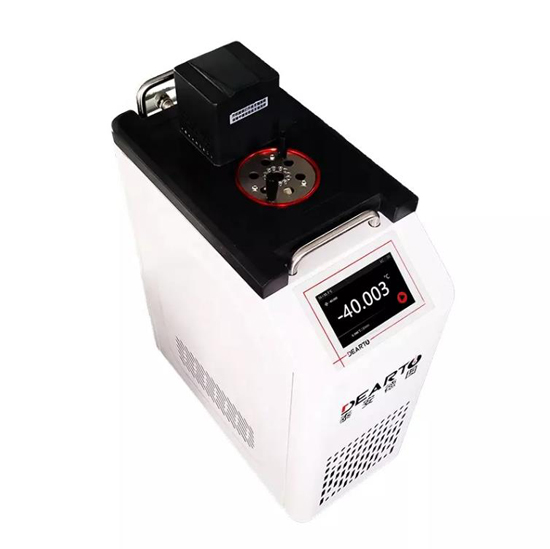

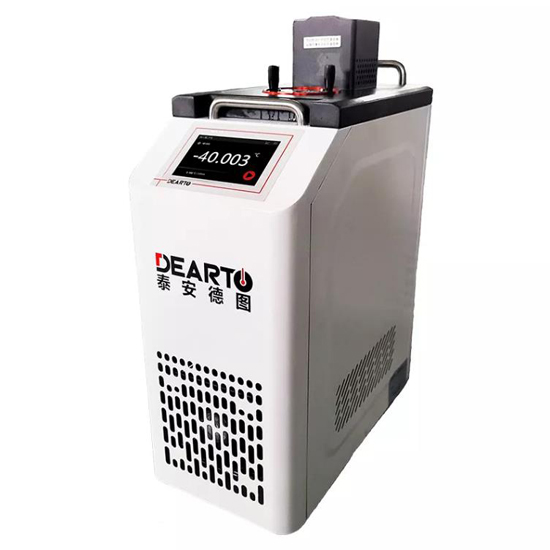

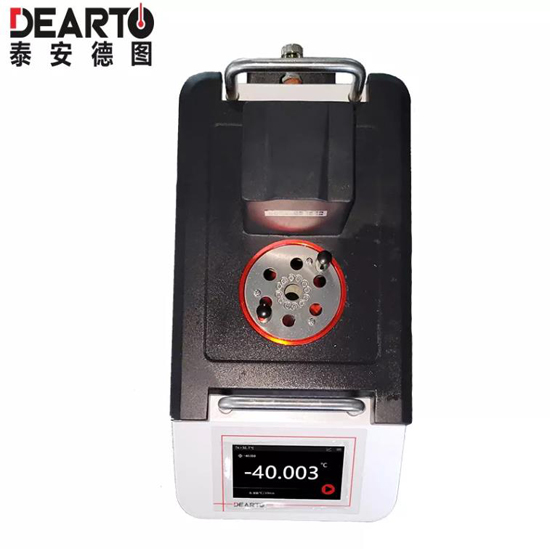

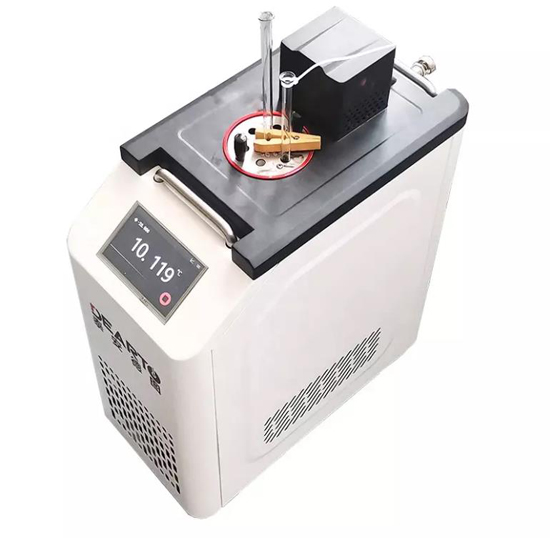

DTS-BE ultra-portable intelligent thermostatic bath is a high-precision automatic temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system, intelligent PID adjustment to achieve automatic temperature control. The groove is compact, lightweight, easy to carry and durable. It is suitable for field verification / calibration of temperature sensors such as industrial thermal resistance, low temperature thermocouple, sheathed thermocouple, working glass liquid thermometer, standard mercury thermometer, bimetallic thermometer, pressure thermometer and so on.
DTSBE Series Intelligent Portable Thermostat for testing thermocouple thermistor and thermometer

Product features:

1. Small size, easy to carry.

2. Intelligent touch screen design, support multi-touch.

3. Can display temperature deviation and fluctuation data in real time.

3. Automatic subsection temperature control, fast heating "zero" overshoot.

4. Microcirculation technology, the temperature field is uniform and stable.

5. Support multi-point temperature calibration, temperature sensor can be segmented multi-point correction.

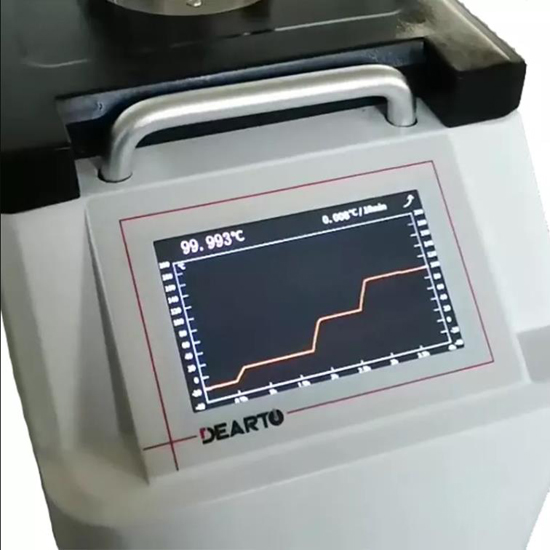

6. Temperature curve real-time display.

7. Temperature data is automatically saved to the U disk.

8. Has overheating protection, heating limit function, safe and reliable.

9. Have RS-232 communication interface, can connect to the upper computer.

Technical indicators

Product name	Portable intelligent thermostatic bath	Portable intelligent refrigeration thermostatic bath

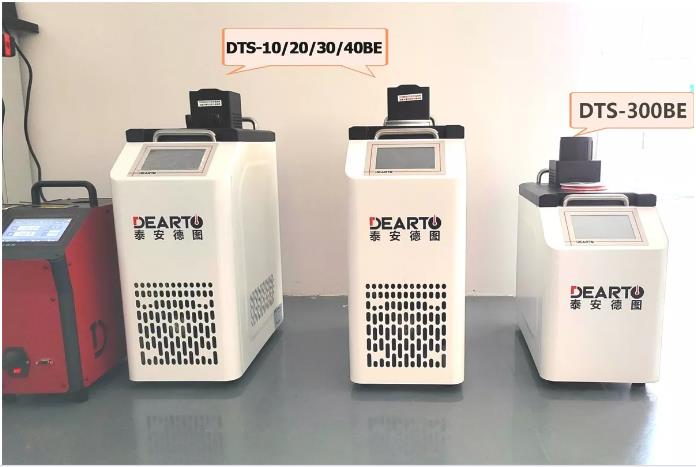

Model	DTS-300BE	DTS -20BE	DTS -40BE
Temperature range	50℃~300℃	-20℃~150℃/180℃	-40℃~95℃/180℃
Control mode	Touchscreen	Touchscreen	Touchscreen
Temperature fluctuation	≤±0.02℃/10 min(100℃)	≤±0.02℃/10 min(0℃)	≤±0.02℃/10 min(0℃)
Temperature uniformity	≤0.02℃(100℃)	≤0.02℃(0℃)	≤0.02℃(0℃)
Rate of heating	6.5℃~11.5℃/ min	6.5℃~11.5℃/ min	6.5℃~11.5℃/ min
Display resolution	0.001℃	0.001℃	0.001℃
Work area dimensions	Φ60300(mm)	Φ80270	Φ80270
Dimensions (mm)	420215400	500220600	500220600
Working medium	Silicone oil	Special media	Special media
Remarks	Flange dimensions customized to customer requirements

DTSBE Series Intelligent Portable Thermostat for testing thermocouple thermistor and thermometer
