46mm Antenna Radar Level Transmitter 26GHz Explosion Proof

FOB Price:	400.00 - 1800.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Carton , 60cm,30cm,30cm

Quick Details

Brand Name: NUOYINGJIAYE
Size: 46mm
Type: Radar Level Transmitter
Material: 304 316L (optional)
Color: blue
Model Number: NYRD-806
Transmit frequency: 26GHz
Accuracy: 3mm
Range: 30m
Process temperature: -40~130,-40~250
Ambient humidity: 0~90%
Signal output: 4...20mA/HART/RS485/Modbus...
Supply power: 24V DC 220VAC (optional)
Explosion-proof grade: Exia CT6(optional)
Protection class: IP67

Specifications

Very Small Size Non Contact Radar Level Transmitter

26GHz NYRD-806 Radar Level Meter

the radar level meter NYRD80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. the antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.

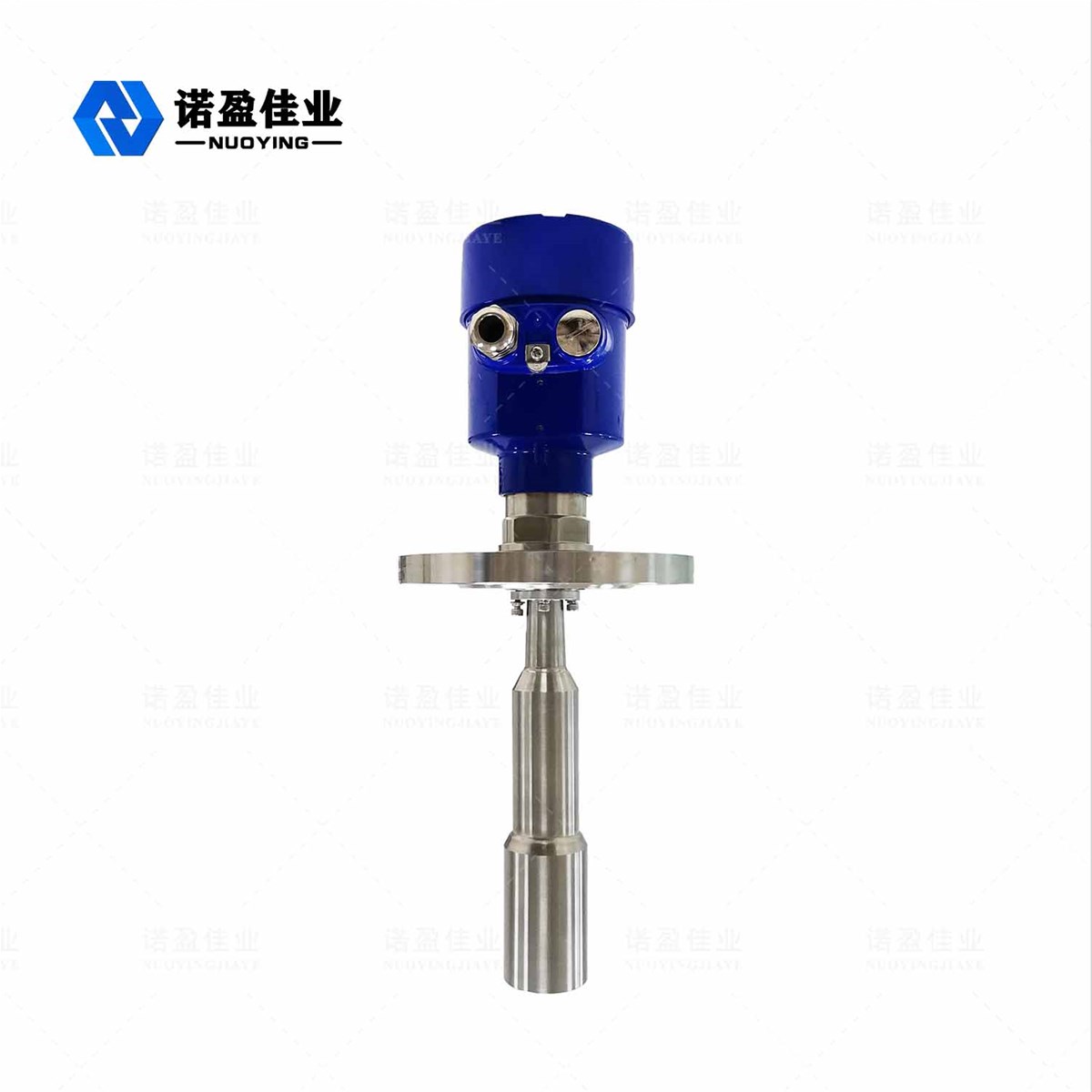

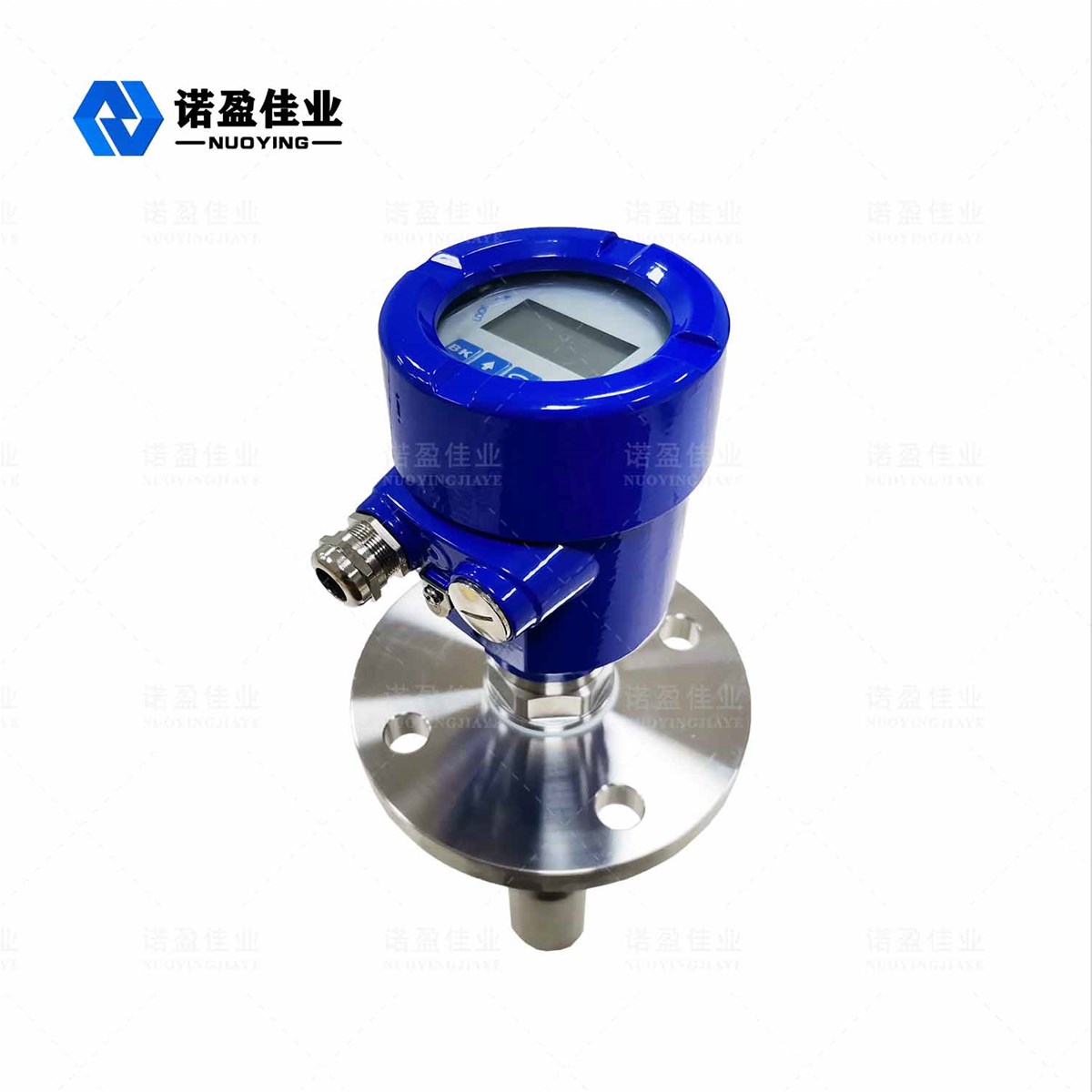

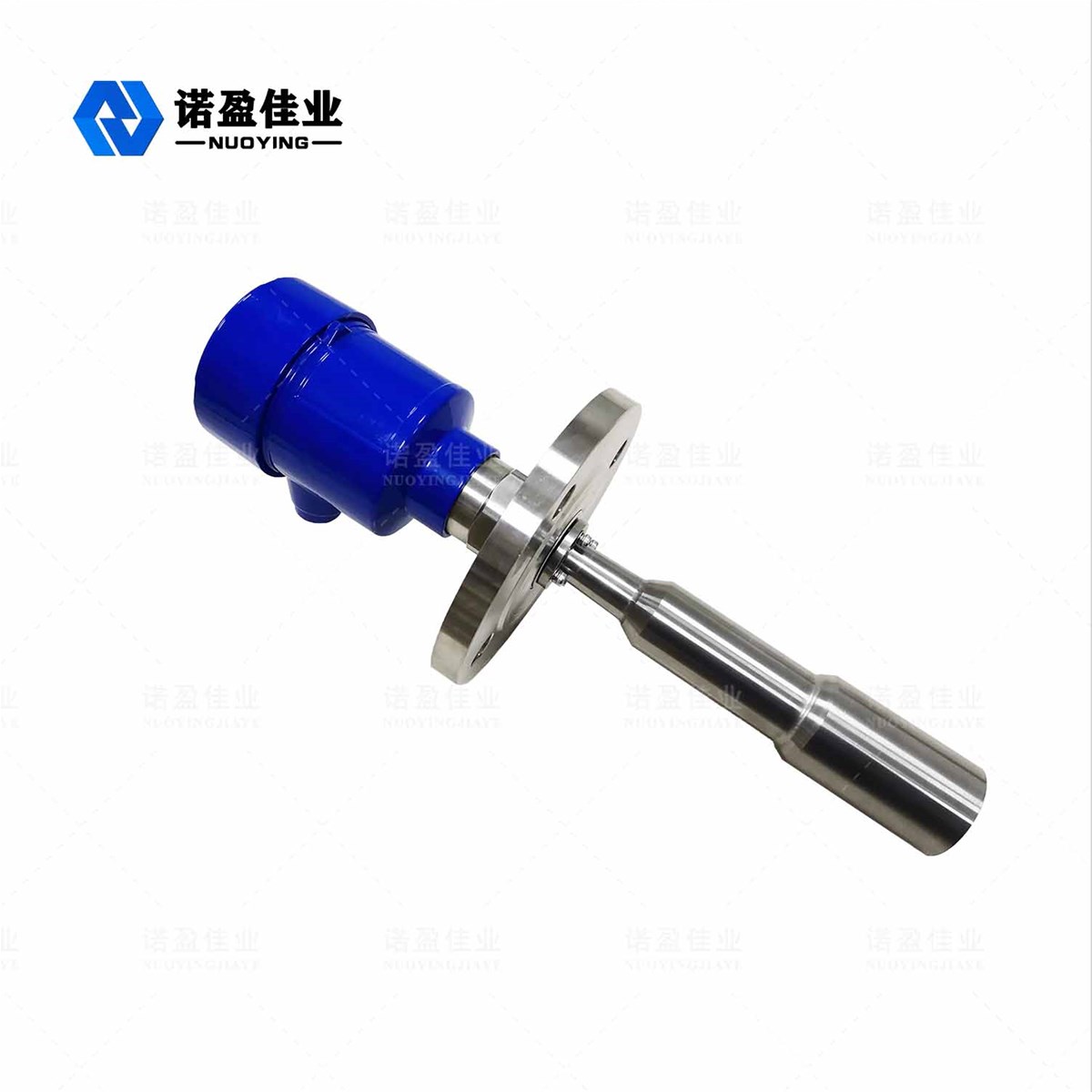

46mm Antenna Radar Level Transmitter 26GHz Explosion Proof

Radar Level Meter Technical Parameter

Typical application	Temperature, pressure, and slightly corrosive liquid etc
Transmit frequency	26GHz
Accuracy	3mm
Range	30m
Antenna material	304 316L (optional)
Echo sampling	100 times/s
Process temperature	-40~130℃,-40~250℃
Ambient humidity	0~90%
Resolution	1mm
Process connection	Universal flange
Electrical Interface	M201. 5, " NPT
Signal output	4...20mA/HART/RS485/Modbus...
Supply power	24V DC 220VAC (optional)
Power	3W
Explosion-proof grade	ExiaⅡCT6(optional)
Protection class	IP67

Note: Products Can be Customized according to the Specific requirements of Users!

Radar Level Meter Measuring principle

the radar level antenna emits a narrow microwave pulse and transmits it down through the antenna. after the pulse touches the surface of the medium being measured, it is reflected back and accepted by the antenna system again, transmitting the signal to the electronic circuit part automatically converted into a object position signal(because the pulse propagation speed is extremely fast, the time it takes for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous.)

Radar Level Meter Design features

the antenna is small in size and easy to install; Non-contact radar, no wear, no pollution.
Almost not affected by corrosion and foam; It is almost unaffected by changes in water vapor, temperature and pressure in the atmosphere.
Serious dust environment has little influence on the work of high frequency level meter.
Shorter wavelength and better reflection on inclined solid surface.
the beam angle is small and the energy is concentrated, which enhances the echo capability and is beneficial to avoiding interfering objects.
the blind area of measurement is smaller, and good results can be obtained for small tank measurement.
High signal-to-noise ratio enables better performance even under fluctuating conditions.
High frequency is the best choice for measuring solid and low dielectric constant media.
