Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m

FOB Price:	600.00 - 1000.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Dog Enclosures Designed around the Security and...

Price:10.25-30.68 USD/Set

Min. Order:100 Sets
Series Control Box (Manual, Electric, Automatic...

Price:

Min. Order:
MC56F815X Mcu Attack|Chip Decryption

Price:10.00 USD/Piece

Min. Order:1 Piece
IP67 Aluminum Waterproof Box

Price:1.00-10.00 USD/Piece

Min. Order:100 Pieces
Animal Enclosure Mesh

Price:1000.00-10000.00 RMB/plenty

Min. Order:
trampoine with enclosure

Price:25.00-35.00 USD/Set

Min. Order:300 Sets
TS Enclosure

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Carton,40cm30cm30cm

Quick Details

External Size: 40cm30cm30cm
Type: radar
Protection Level: IP67
Brand Name: NUOYINGJIAYE
Color: blue
Model Number: NYRD900
Power supply: 24VDC, 220VAC
Signal output: 4...20mA/HART/RS485/Modbus...
Process temperature: -40-+260
Process pressure: -0.1-+4.0MPa
Process connection: Thread, Bracket, Flange, Sanitary clamp (optional)
Protection level: IP65, IP67, IP68 (optional)
Explosion-proof grade: ExiaCT6 Ga, ExdCT6 Gb
Antenna form: lens antenna, anti-corrosion lens antenna
Antenna material: PTFE, 304+PTFE

Specifications

Radar Level Meter Operating Principle

FM wave FMCW radar products (also called millimeter wave radars), because they use millimeter wave bands with a higher frequency than Ku band radars, they are important in remote target detection and strong smoke and dust environments, such as long-distance imaging and multi spectral imaging. Application, and can detect smaller targets than microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.

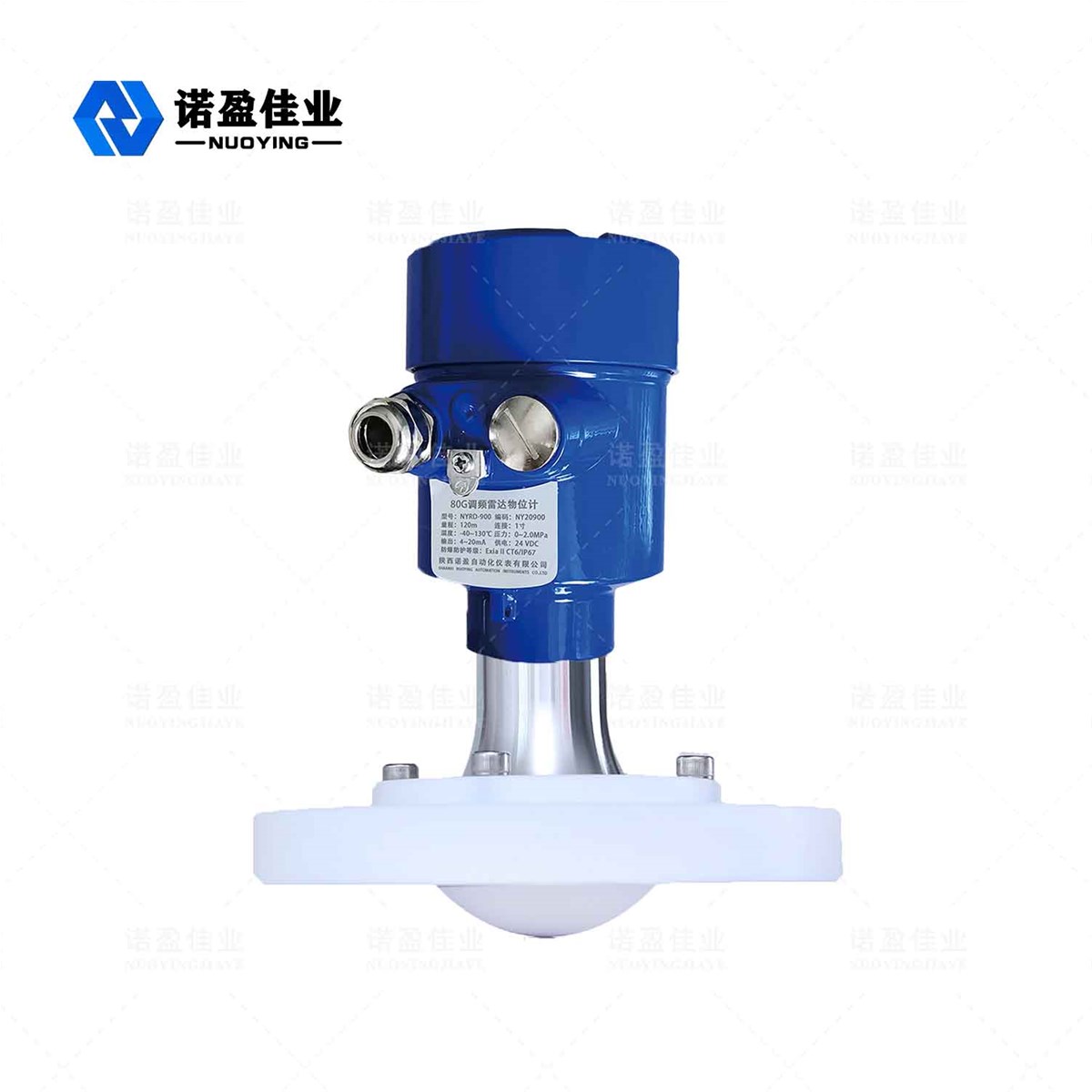

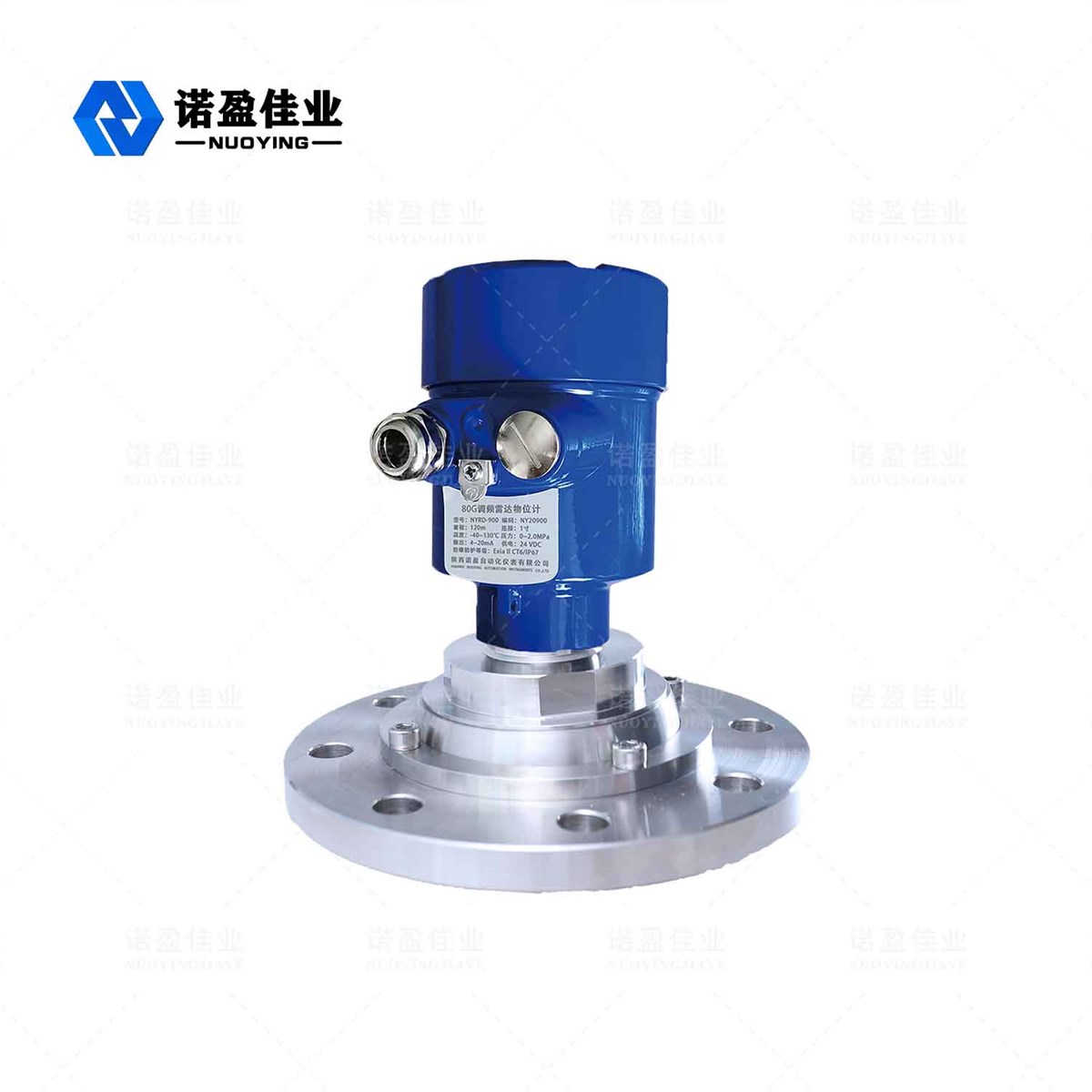

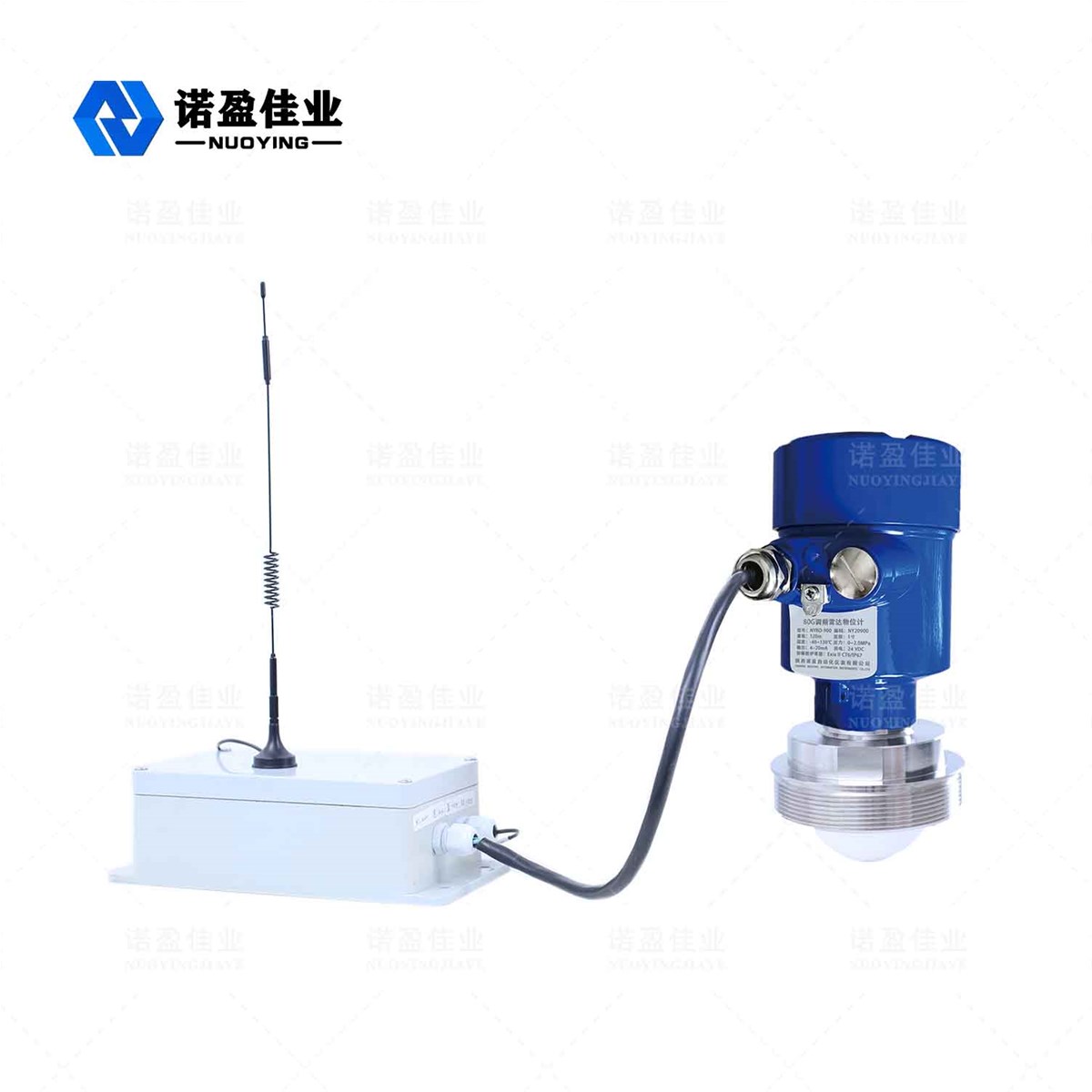

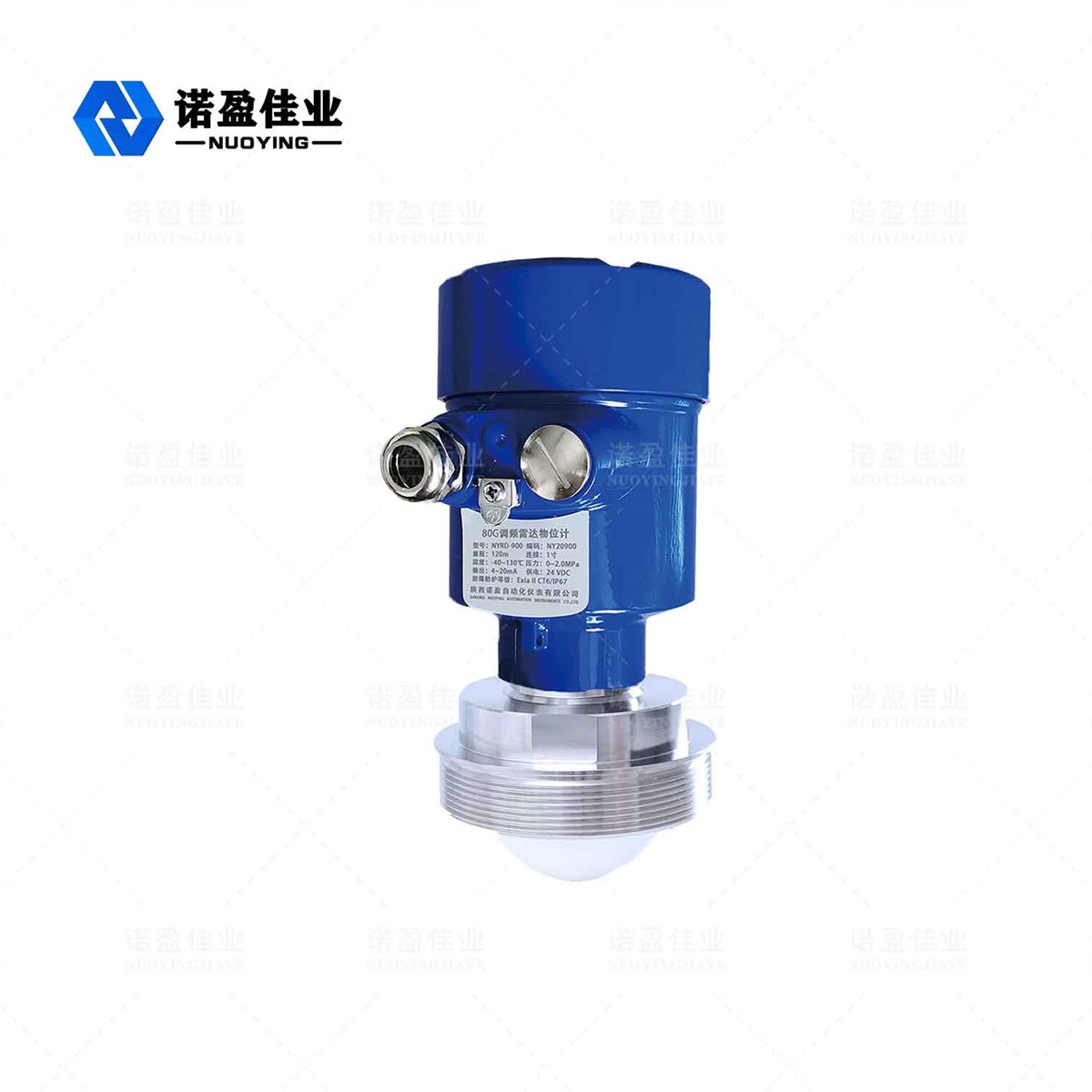

Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m

Radar Level Meter Design Features

Very good transient performance: Based on self-developed CMOS millimeter wave radio frequency chip, it realizes a tighter radio frequency architecture and a higher signal-to-noise ratio.

5GHz working bandwidth, so that the product has higher measurement resolution and measurement accuracy.

Coherence: Dipole oscillation driven by dry current or non-linear difference frequency effect of coherent laser pulse;

Low energy: the millimeter-wave photon energy is only a few millielectron volts, and there will be no X-ray ionization and damage to the substance to be detected, so it is not easy to damage the substance to be detected.

Strong penetrability: It has strong penetrating power for non-polar materials. Many non-metal non-polar materials have less absorption of rays in this band, so they can be used to detect the internal structure of materials. for example, ceramics/cardboard/plastic products/foams are transparent to electromagnetic radiation in this band, and can also be used for airport/station safety monitoring, such as detecting machinery/explosives and drugs, or for circuit board welding detection.

Easily absorbed by polar molecules; this band has less scattering in non-uniform materials, and can detect and measure water vapor content. It is also possible to study the material composition or carry out quality control by analyzing their characteristic spectrum.

Large range and small blind area. the maximum range can reach 120m, and the blind zone can reach 8cm.

Small beam angle and small antenna size make it easy to install. It is less affected by the size of the tank body and the interference of obstacles.

the wavelength is shorter, and it has better reflection characteristics on the solid surface, so no special universal flange is needed for aiming.

Support remote debugging and remote upgrade to facilitate the maintenance work of on-site personnel.

Radar Level Meter Technical Parameter

Transmitting frequency	76GHz81GHz, FM scanning frequency width 5GHz
Antenna form	Lens antenna, anti-corrosion lens antenna
Antenna material	PTFE, 304+PTFE
Measuring range	0.08120m
Measurement accuracy	0.05%0.1%F.S
Power supply	24VDC, 220VAC
Signal output	4...20mA/HART/RS485/Modbus...
Process temperature	-40+130℃, -40+260℃ (≥260℃ can be customized)
Process pressure	-0.14.0MPa
Process connection	Thread, Bracket, Flange, Sanitary clamp (optional)
Protection level	IP65, IP67, IP68 (optional)
Explosion-proof grade	ExiaⅡCT6 Ga, ExdⅡCT6 GB

Note: Products Can be Customized according to the Specific requirements of Users!
