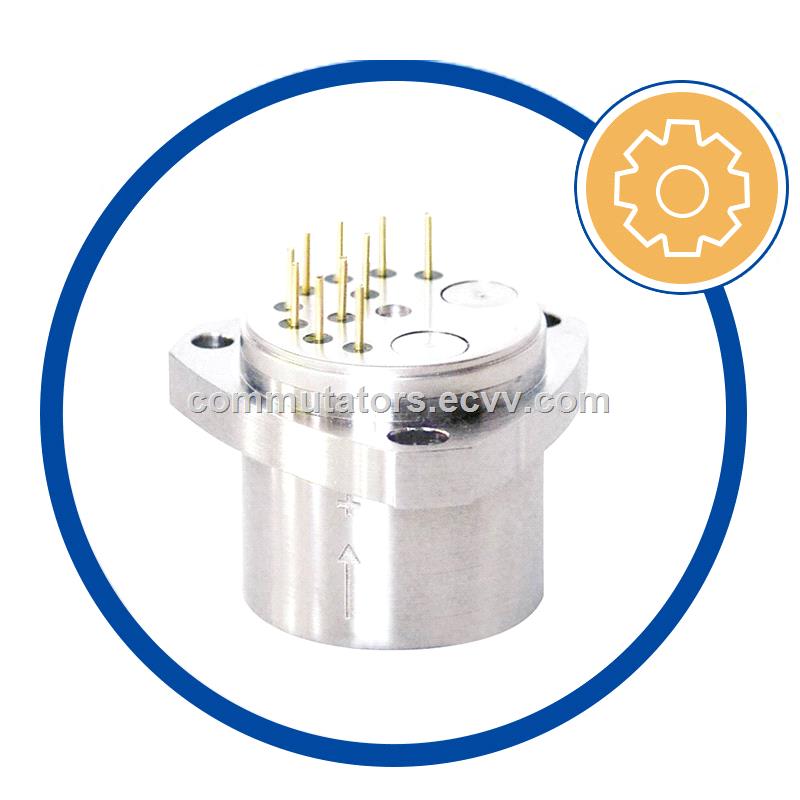

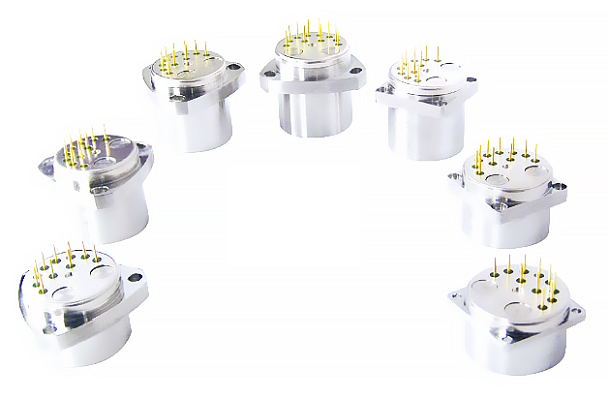

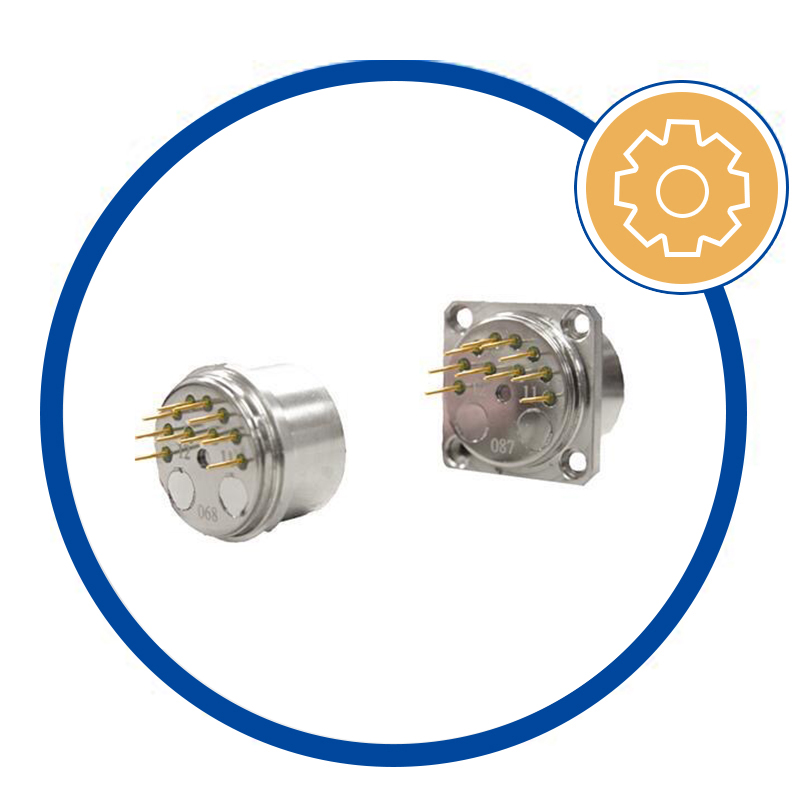

Hight Accuracy Vibration Stable Repeatibility Quartz Flexible Accelerometer for Oil & Gas & Aircraft

FOB Price:	1450.00 - 1580.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Month
Shipping:	FOB NINGBO
Payment Terms:	T/T, Western Union, Paypal

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	Eastern Europe, Mid East, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	10PCS/BOX

Quick Details

Output: Digital Sensor
Theory: Optical Sensor
Usage: Speed Sensor
Brand Name: ORIENTAL
material: Metal
Model Number: KT-JB1
Accuracy Grade: 0.1g
Measure Range: RS=100,Need +/-50
Band Width: >=300Hz

Specifications

Product Description

Product Parameters

1.Key performance data

Electrical performance
Working voltage	±(12~15)VDC
Insulation resistance	50MΩ,@50VDC
Power consumption	<240mw@15v<>
Current consumption	<= ± 20mA

Technical performance
	JB1-01	JB1-02		JB1-03
Range	±50g
Threshold	5ug
Bias (K0)	<±3mg
Bias (K0) temperature drift	<=±10μg/C		<=±10μg/C		<=±10μg/C
K0 one-month repeatability	<=10μg		<=20μg		<=30μg
Scale factor(K1)	1.05--1.3 mA/g
Scale factor(K1)Temperature drift	<60ppm/C
K1 One-month repeatability	300ppm	300ppm		300ppm
K0& K1Comprehensive repeatability Note1	<2mg	<2mg		<3mg
Noise(R of sampling:840 OHM	<=5mv <=8.4mv <=8.4mv
Band width	800---2500 Hz
Maximum operating temperature	135C	160C		185C

Environment condition
Sine vibration(No electricity added)	30g 0 ~ peak,(20~800 )Hz
Random vibration(No electricity added)	20gram, (20~500) Hz
Shock(No electricity added)	1000g,0.5msec,half sine

Contact us for more exact information for Quartz Accelerometer.
