NYRD-805 Non Contact Level Transmitter PTFE 0-10m Measuring Range

FOB Price:	400.00 - 1200.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Carton, 30cm20cm20cm

Quick Details

External Size: 30cm20cm20cm
Type: radar
Protection Level: IP67
Brand Name: NUOYINGJIAYE
Color: blue
Model Number: NYRD-805
Typical application: various corrosion liquid
Signal output: 4... 20mA/HART (two / four) RS485/Modbus...
Process temperature: -40C~130
Process pressure: -0.1-0.3MPa
Power supply: 24VDC (two lines, four lines)
Protection level: IP67
Explosion-proof grade: ExiaCT6 Ga, ExdCT6 Gb
Process connection: Thread, Flange
Accuracy: 3mm

Specifications

NYRD805 Non Contact Level Transmitter PTFE 010m Measuring Range

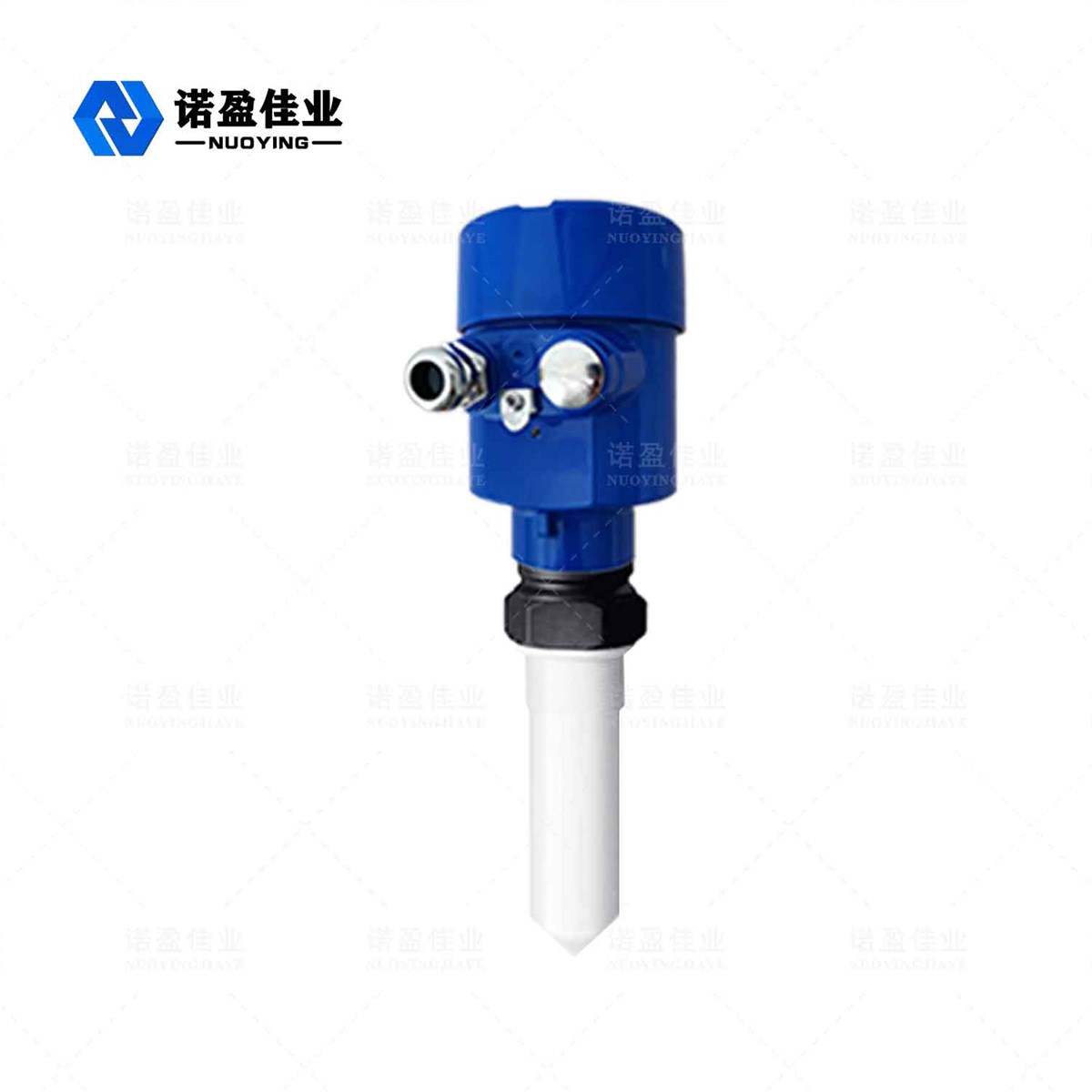

26GHz NYRD-805 Radar Level Meter

the NYRD805 radar level meter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 10 meters. the antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc..

Radar Level Meter Technical Parameter

Application	Various corrosion liquid

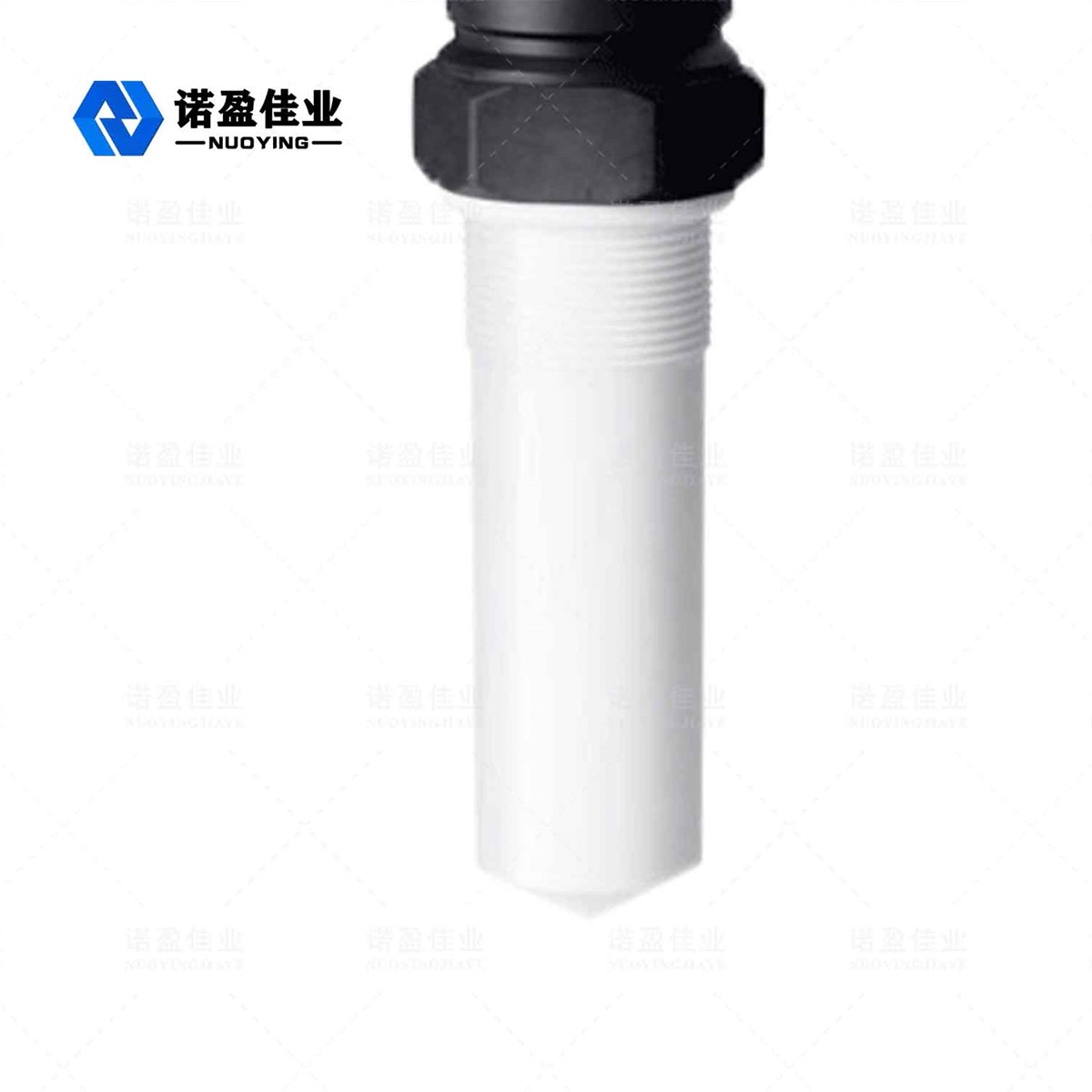

Antenna material	PTFE
Measurement range	10m
Frequency range	26GHz
Accuracy	±3mm
Medium temperature	-40C~130℃
Process pressure	-0.10.3MPa
Power supply	24VDC (two lines, four lines)

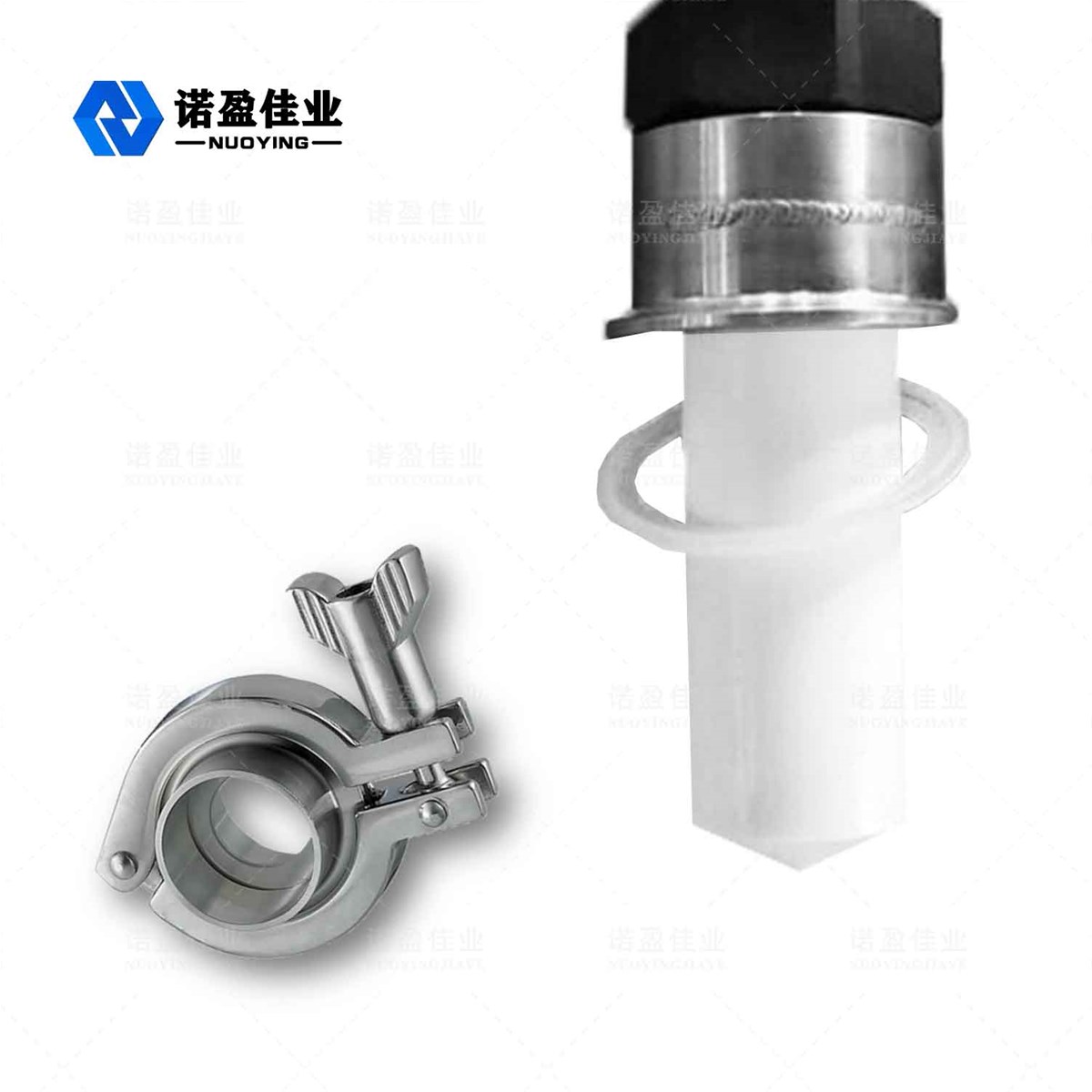

Process connection	Thread, Flange
Protection grade	IP67
Explosion-proof grade	Exia II C T6 Ga/ Exd ia IIC T6 GB
Signal output	4... 20mA/HART (two / four) RS485/Modbus...

Note: Products Can be Customized according to the Specific requirements of Users!

Radar Level Meter Operating Principle

the radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. after the pulse touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. the time taken is almost instantaneous).

Radar Level Meter Design Features

the antenna is small in size, easy to install; non-contact radar, no wear and no pollution.

Unaffected by corrosion, foam, water vapor, temperature and pressure changes.

the beam angle is small and the energy is concentrated, which enhances the echo ability and helps to avoid interference.

the measurement blind area is smaller, and it can also achieve good results for small tank measurement.

High signal-to-noise ratio for better performance even under fluctuating conditions.
