12VDC Radar Level Transmitter 10m Microwave Level Transmitter

FOB Price:	590.00 - 1050.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Carton,60cm30cm30cm

Quick Details

External Size: carton,60cm30cm30cm
Type: radar
Protection Level: IP67
Brand Name: NUOYINGJIAYE
Color: blue
Model Number: NYRD-810
Typical application: Monitoring Solids, dust, particles, etc
Signal output: 4...20mA/HART/RS485/Modbus...
Process temperature: -40~130
Ambient humidity: 0~90%
Power supply: 24V DC (optional)
Protection level: IP67
Explosion-proof grade: ExiaCT6 Ga, ExdCT6 Gb
Range: 80m
Resolution: 1mm

Specifications

26GHz NYRD-810 Radar Level Meter

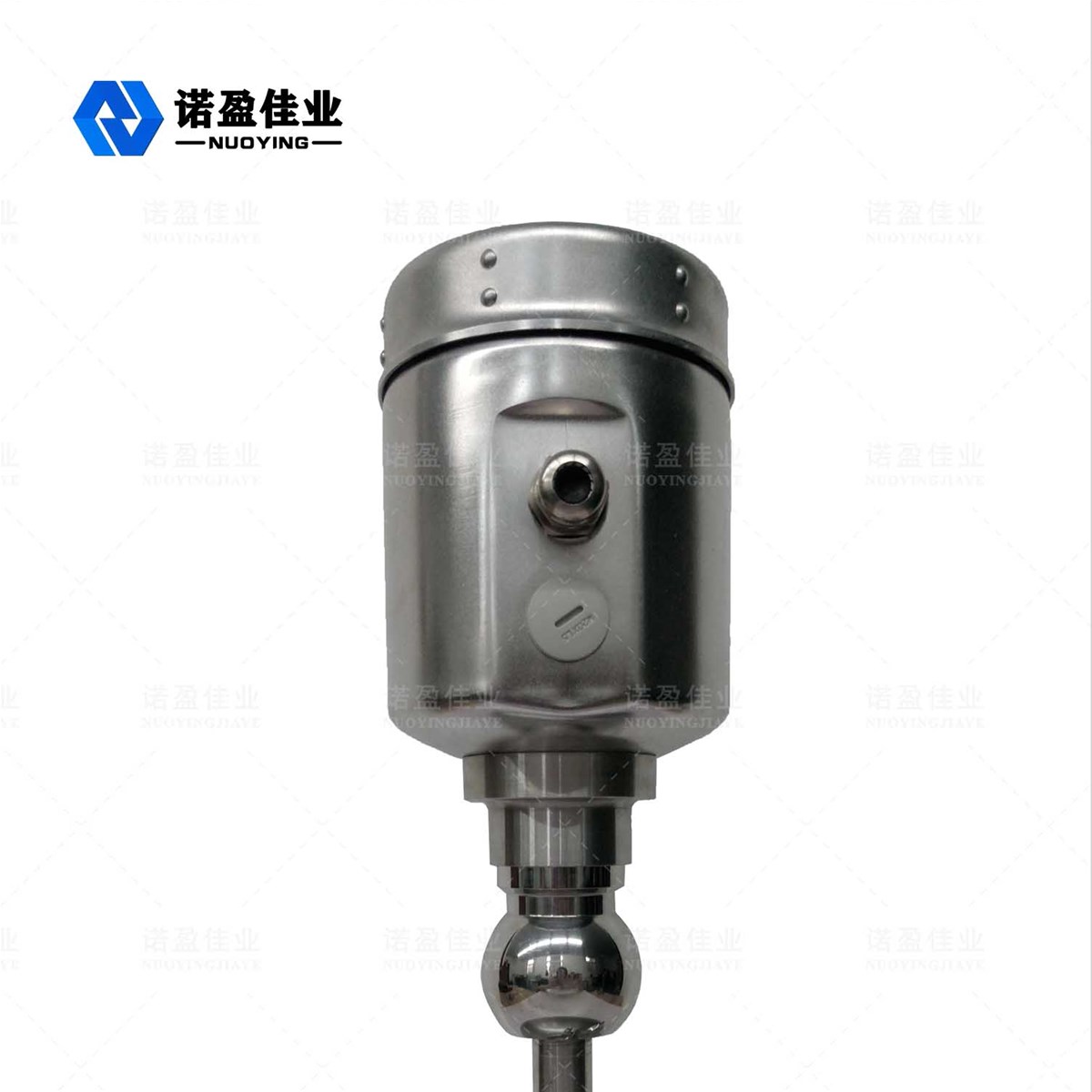

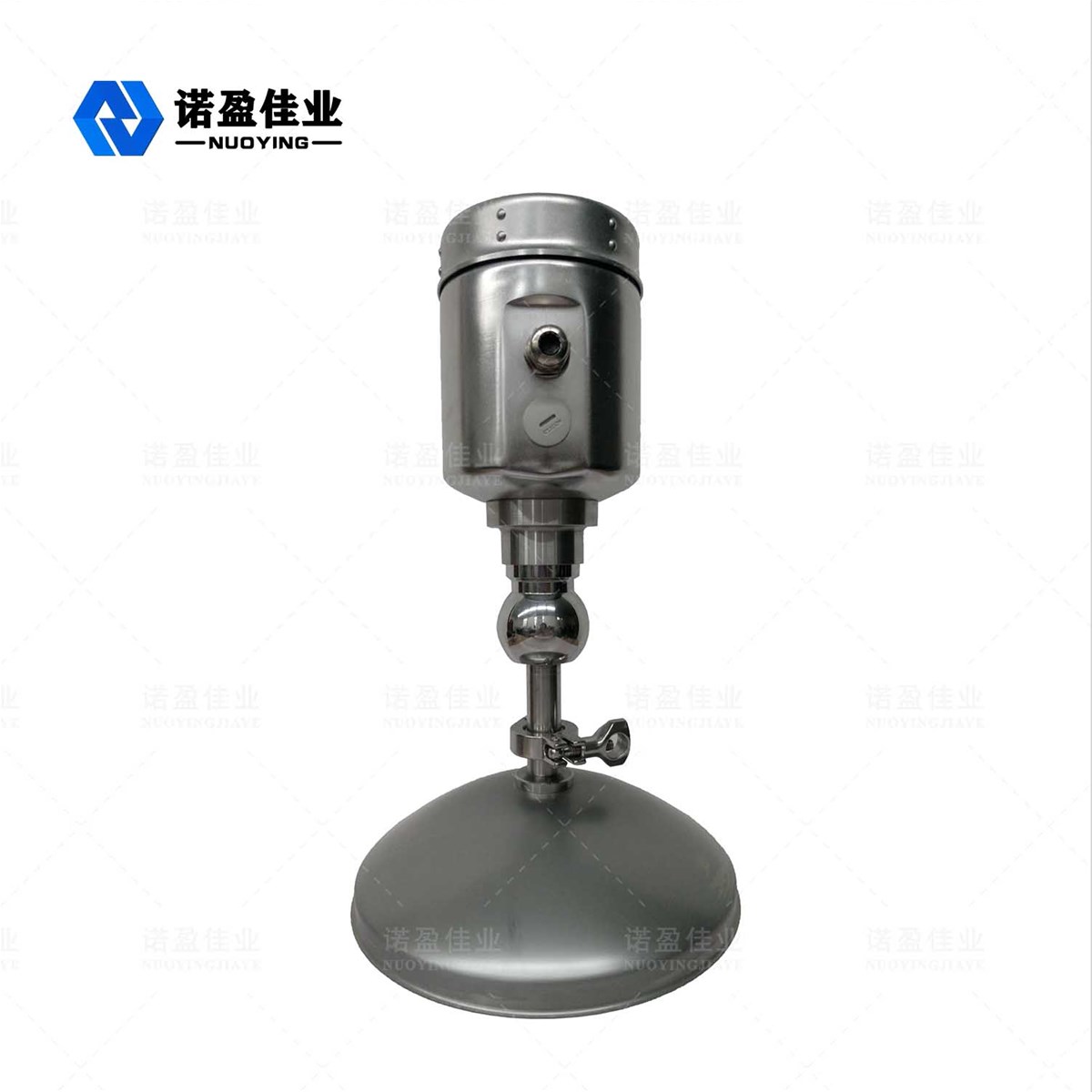

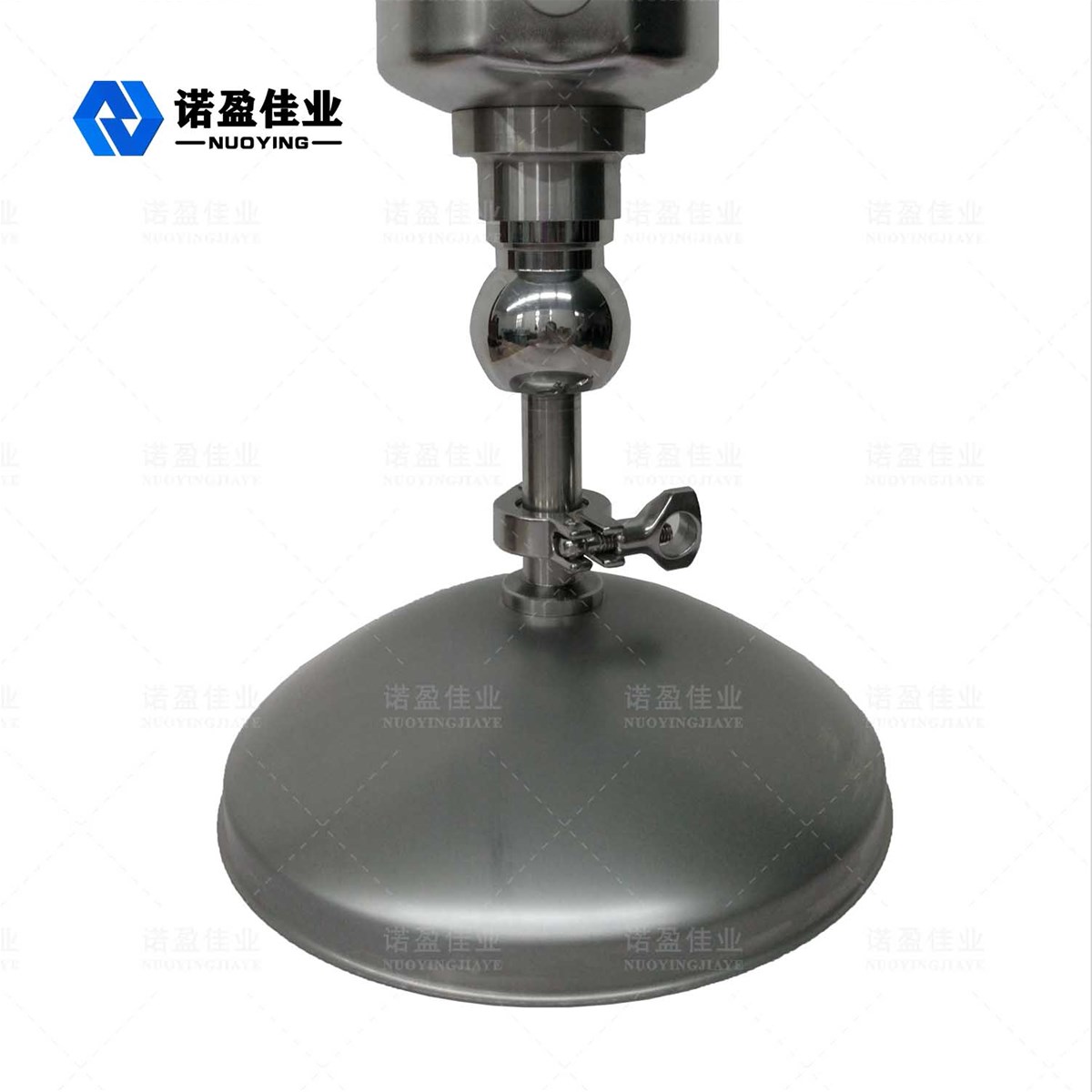

the NYRD-810 parabolic antenna radar level gauge is a non-contact radar level gauge that uses the pulse principle. It can be widely used to measure solid material levels, process containers, strong dust, easy crystallization, and condensation.

12VDC Radar Level Transmitter 10m Microwave Level Transmitter

Radar Level Meter Technical Parameter

Typical application	Monitoring Solids, dust, particles, etc
Transmit frequency	26GHz
Accuracy	3mm
Range	80m
Antenna material	304 316L (optional)
Echo sampling	100 times/s
Process temperature	-40~130℃
Ambient humidity	0~90%
Resolution	1mm
Process connection	Flange or bracket installation
Electrical Interface	M201. 5, " NPT
Signal output	4...20mA/HART/RS485/Modbus...
Supply power	24V DC (optional)
Power	3W
Explosion-proof grade	ExiaⅡCT6(optional)
Protection class	IP67

Note: Products Can be Customized according to the Specific requirements of Users!

Radar Level Meter Working Principle

Measurement principle the radar level meter transmits a microwave pulse signal with a narrow J and very low energy through an antenna. this pulse signal is transmitted in space at the speed of light and is reflected when it encounters the measured medium. the reflected signal is received by the instrument, and the pulse signal is transmitted and the pulse signal is received. the time interval is proportional to the distance between the reference plane and the surface of the measured medium. the distance between the antenna and the surface of the medium can be measured by measuring the time interval between transmission and reception.
