Round Sight Glass with Borosilicate Glass

FOB Price:	10.00 - 100.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Shipping:	by air or by express
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	carton with foam

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: linkglass
Weight: 2kgs
color: clear
Model Number: 221011

Specifications

Borosilicate Glass for circular sight glasses or tubular sight glasses
Borosilicate glass is a kind of glass with silica and boron trioxide as the main glass-forming element. Borosilicate glasses become famous for having very low coefficients of thermal expansion, making them more resistant to thermal shock than soda-lime glass. Borosilicate glass is fit to be used in sight glass lens,
Borosilicate glass is ultra and clear glass with good thermal and chemical properties and outstanding transparent

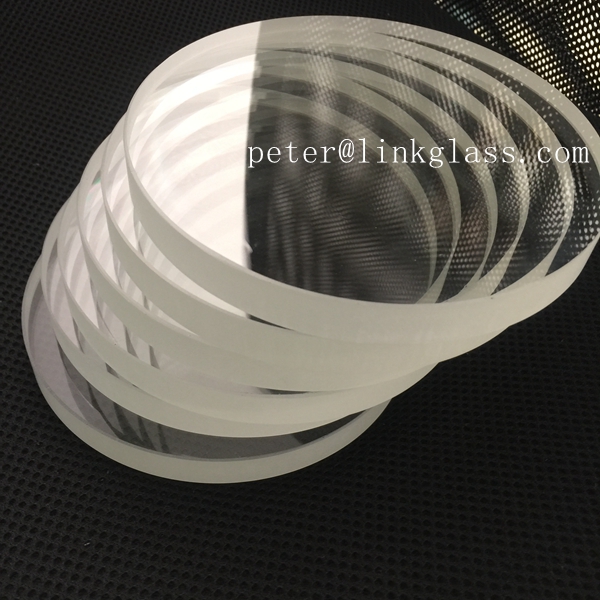

round sight glass with borosilicate glass
Parameters
Dimensions(mm): 1200600,1150850,11501700.(other size upon request)
Available thickness(mm): 1mm-25mm,we also can offer it if you want more thickness.
Density (g/3 ) (at 25℃): 2.23±0.02
Co-efficient of expansion(α)(20-300℃): 3.3±0.110-6
Softening point(℃): 820±10
Identical temperature difference(K): 100 >300(Strengthening type)
Maximum working temperature(℃): =450
Refractive(nd ): 1.47384
Light transmission: 92%(thickness≤4mm;91%(thickness≥5mm)
Application
Circular sight glass lens
Tubular borosilicate glass
Appliance glass such as furnace, microwave, gas stove etc.
Industry Glass such as sight glass, linings, etc.
Lighting equipment (protective glass for high-power spotlights and other lamps)
Photovoltaic module
Optical filters
Primary material for fully tempered glass
Main properties
High temperature stability
Good surface quality
Outstanding transparency in the visible, UV and IR ranges
Can be tempered
High chemical resistance
Environmental engineering and chemical engineering (lining layer of repellence, autoclave of chemical reaction and safety spectacles);

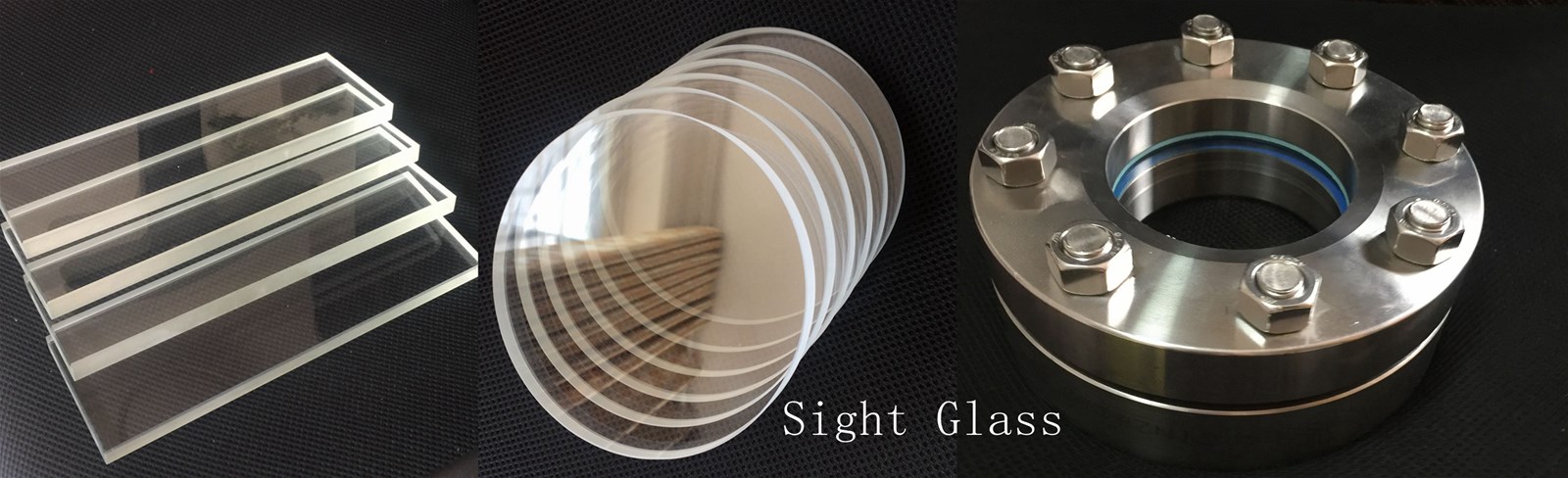

Our circular sight glass is required in all areas where the visual inspection of processes in vessels has to be ensured under pressure, at high temperatures or on exposure to chemicals. these sight glasses is made mainly from borosilicate glass, we also produce sight glass lens with alumino-silicate glass or quartz glass or sapphire glass
round sight glass with borosilicate glass
