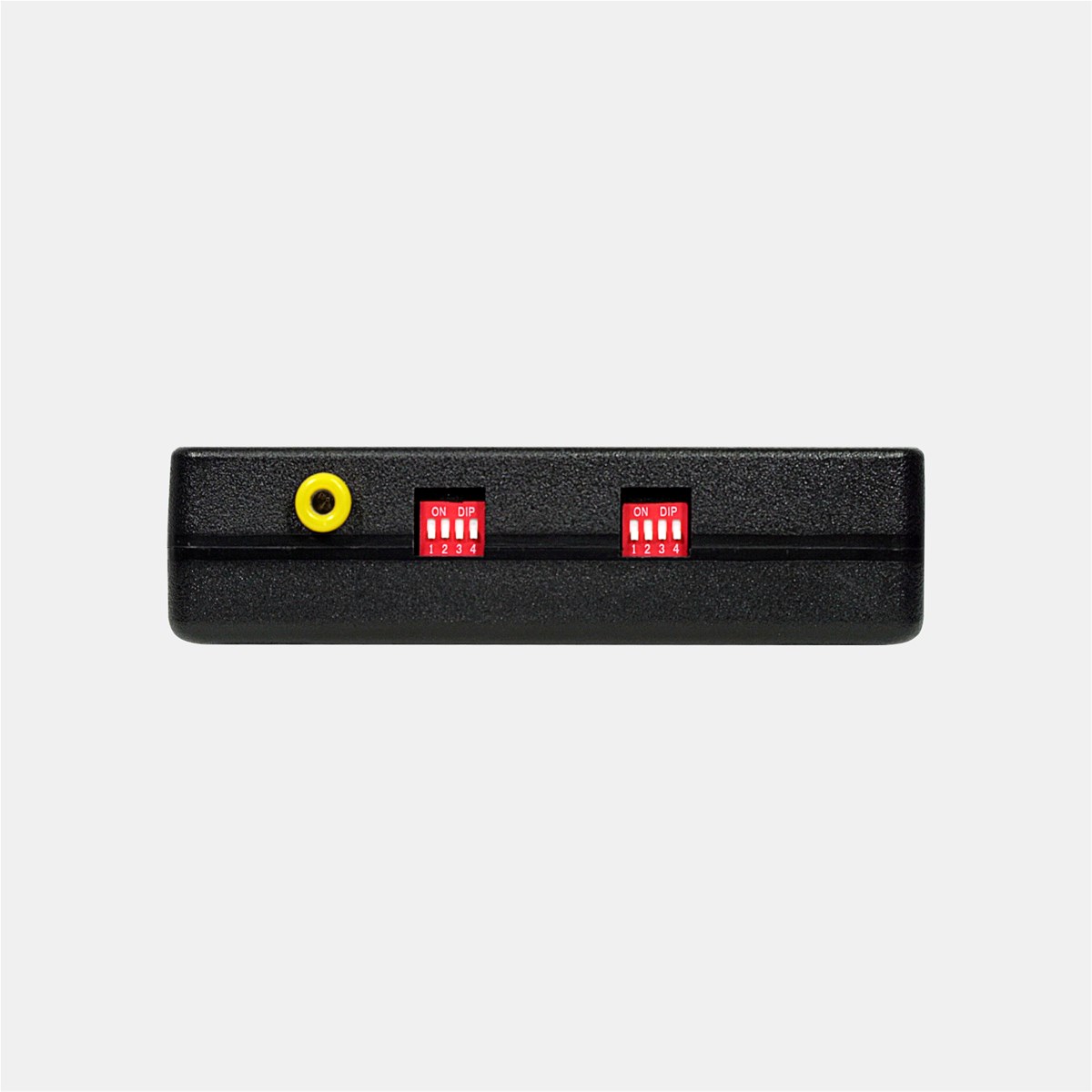

Dual Footwear/Wrist Strap Tester_001-6506

Specifications

Safety

• Do not disassemble the product without permission
• Do not use in dangerous environment(such as flammable and explosive)
• Do not use in place with plenty of oil or water, High temperature and humidity

• Comply with ISO/CD8782-I Standard
• Comply with the limit request of ANSI/ESD S20.20 on calibration test for wrist strap/human body system resistance and footwear/human body system resistance
• Comply with the request of ANSI/ESD S1.1 on auditing test for wrist strap/human body system resistance
• Comply with the request of ANSI/ESD STM 9.1 on auditing test for footwear/human body system resistance
• Comply with the request of ANSI/ESD TR53 on periodic verification method for wrist strap/humanBody resistance and footwear/human body resistance
• Comply with the limit request of IEC 61340-5-1 on periodic verification test for wrist strap/human body resistance and footwear/human body resistance
• Comply with limit request of GJB3007A-2009 on periodic verification test for wrist strap/human body resistance and footwear/human body resistance

• Test single wrist strap and shoes system resistance at the same time
• Wrist strap testing range: 750K-10M
• Footwear testing range:750K-100M
• Test both shoes at the same time to save testing time
• Three connecting ways to connect wrist strap:banana socket/alligator clip/snap
• Accuracy: +/-10%

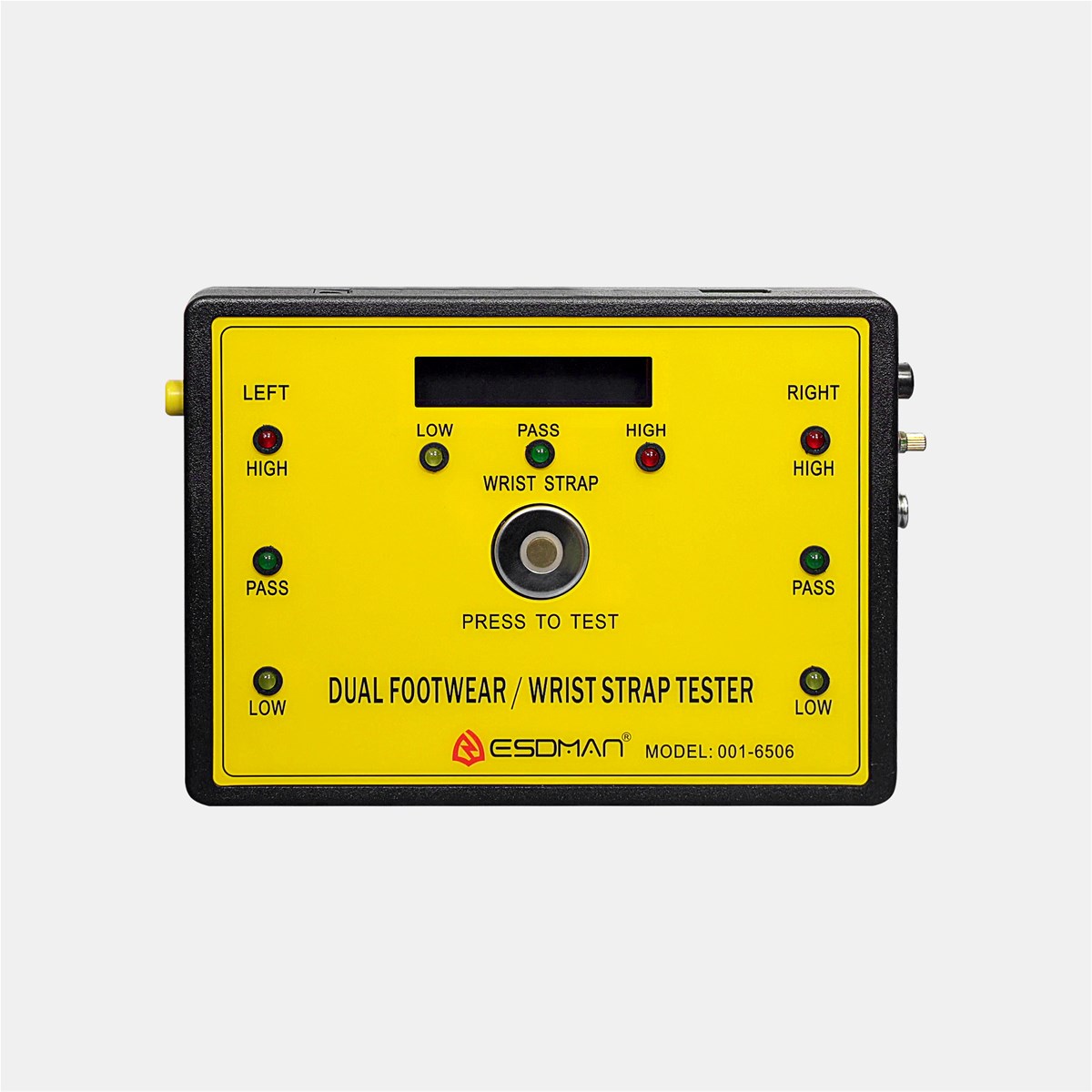

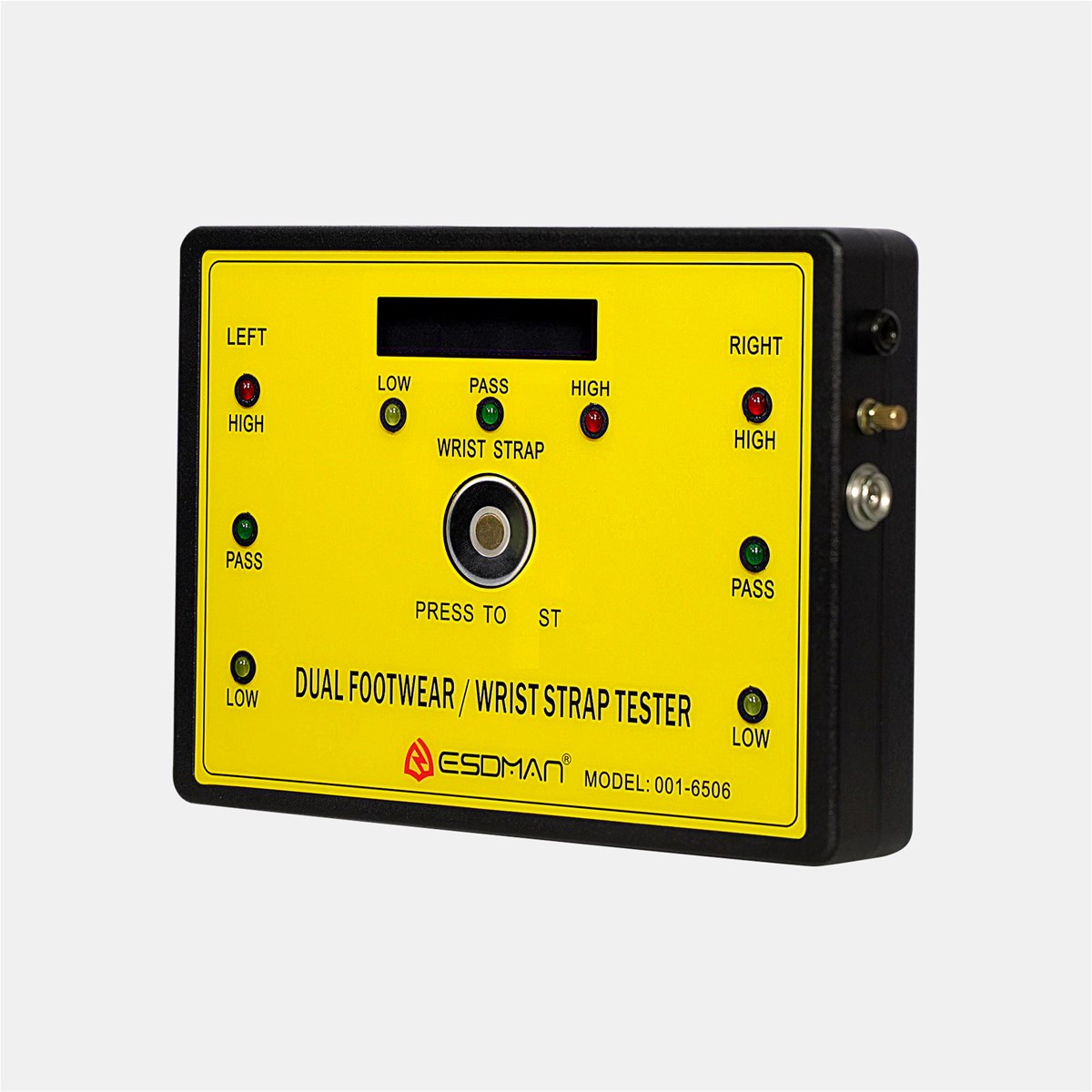

• Corresponded LED light of FAIL LOW/PASS/FAIL HIGH display testing result
• Test FAIL comes with audible alarm
• Automatically alarm function remind operator to replace battery when in Low Battery
• Integrated design and easy to install
• Wall mounted installation or used with adjustable foot bracket
• Low voltage for safety power supply
• Beautiful design meet with ergonomics
• Fast test and stable testing result

• Loose sleeve,insert bracket through testing board and screw sleeve,as chart A B
• Fix the shoes connecting wires on the two sides of foot plate separately and fasten the bracket on the foot plate.( note:2 connecting wires correspond two testing loops,blue wires is for left footwear and black for right ) as chart C,D
• Fix the meter base into the bracket and lead out the connecting wires,as chart E
• Connect the two wires for shoes into meter socket,blue wire on left and black wire on right,as chart F
• Counter-clockwise rotate sleeve and make the bracket extend to suitable place,then tighten the sleeve lock to complete the installation,as chart G

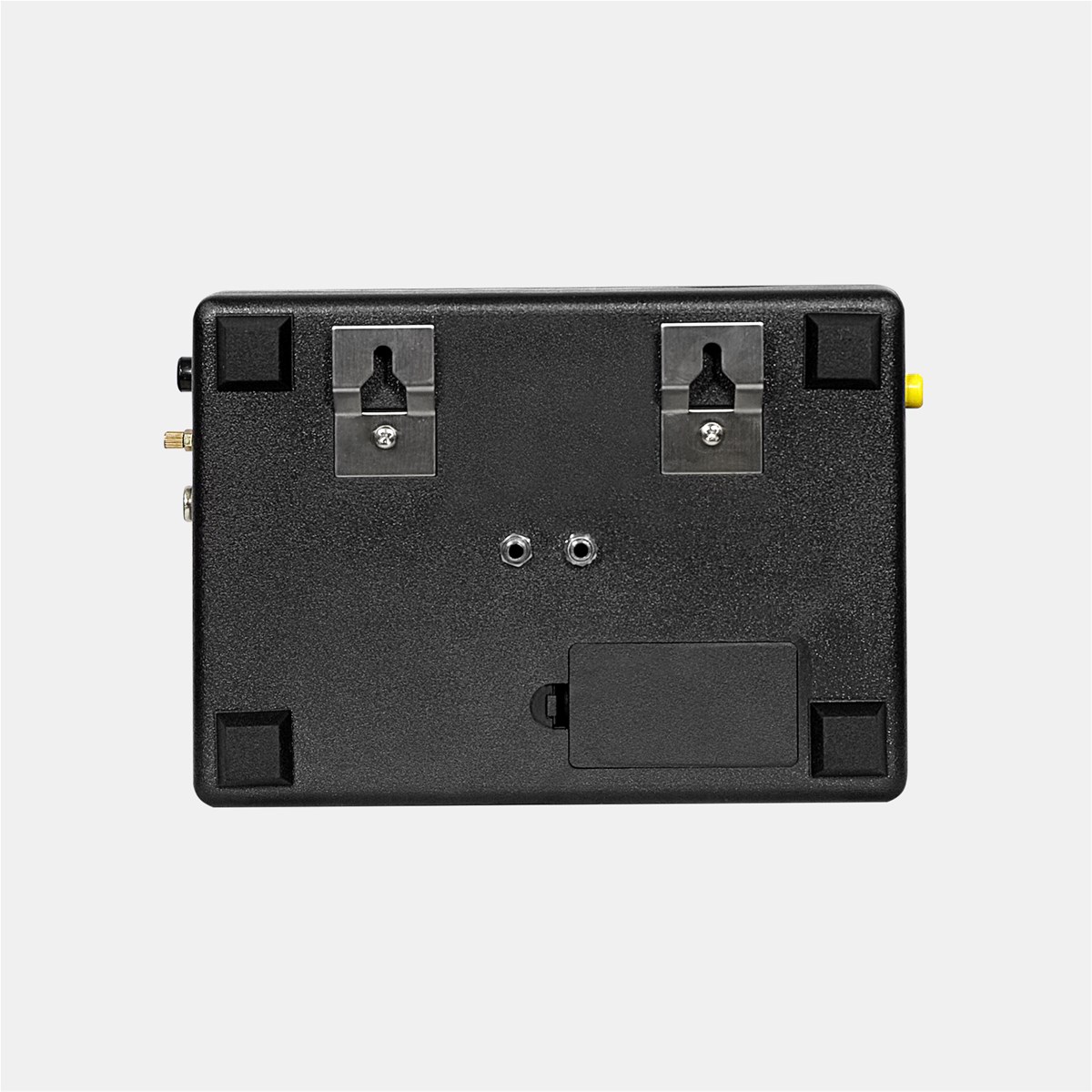

• Wall mounted installation can save space.Connect the tester with another set of wires, and install the wire according to the identification. The other end of the wire is connected to the bottom plate, and the wire is installed according to the identification.Make 2 nails on the wall to complete the installation(center to center distance is 86mm)

• Wear footwear and stand on the footplate
• Wear wrist strap and connect it or alligator clip into socket
• Press" PRESS to TEST" button,the LED indication of top middle is wrist strap resistance
• Notice:Gently press test button,do not press and rotate the test button by gravity(it will cause the Internal connecting wire broken and can not be used)

• 12 months from the date when products arrived at the buyer's place

• this product is inspected by ESDMAN QC,when it is in normal use within the warranty period,if it is damaged or fails due to poor design and manufacturing,free maintenance could be provided

• Test button,socket and ground wires belong to the loss part and are not covered by warranty
• Damage,breakage or failure due to abnormal use
• Failure caused by modification or disassemble of maintenance not from ESDMAN
• Failure caused by fire,natural disaster,flood,earthquake and other natural irresistible factors.
• Failure caused by abnormal voltage etc external factors.
