Hubei Craun Technology Equipment Co., Ltd.
China Manufacturer with main products: Solid Control Equipment, Drilling Waste Managment, Mud Treatment System, Slurry Treatment System, Shale Shaker, Mud Cleaner, Decanter... |
High-G Force Shale Shaker For Oil & Gas Drilling
| FOB Price: | 15000.00 - 19000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Shipping: | FOB shanghia or Tianjin |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | wooden cases |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Condition: New
- Brand Name: CRAUN
- Weight: 1480
- color: blue
- Model Number: GLZS103E
Specifications
the following example is for you reference.
1.Brief Introduction:
1> Adopting the superior material Q235B from domestic large steel mills, wear resistant rubber protection on the bottom beam;
2> the whole design adopts the mechanics analysis & ANSYS finite element analysis to avoid the resonance during the usage of the shaker and make sure the Optimization of screening effect;
3> the angle of shaker box is adjusted synchronously by screw rod, which can be controlled from - 1 ° - 5 °;
4> the Composite, Stainless steel, Iron framework screen can be provided according to the medium and control particles;
5> Motor: International brand high G motor with free maintenance, Martin/Oli motor;
6> Screen can be disassembled and installed quickly by adopting the wedge block pressing device;
7> Vibrating beam adopts the integral profile design, as well as adopts the twice heat treatment and stress relief technology.
2.Techincal parameters:
Composite material Stainless Steel Silt Steel Frame Polyurethane the capacity for above is based on mud density 1.2g/cm,mud viscosity 45s and screen 40 mesh.ModelGLZS103E
GLZS104E
GLZS104D
GLZS206
GLZS208 Capacitym3/h
≤120
≤150
≤150
≤120
≤150 gpm
≤528
≤660
≤660
≤528
≤660 Motor Power(kW)1.52
1.722
1.8652
1.8652
1.942 Output Force(Gs)≤7.5
≤7.5
≤8.0
≤8.0
≤8.5 Double Amplitude(mm)4.2~6.0
4.5~6.5
4.5~6.5
4.8~7.0
4.6~6.7 Deck Adjustment-1 °~+5° Screen MaterialScreen Size(mm)5851165
5851165
5851165
5851165
5851165 Screen Qty(pcs)3
4
4
6
8 Screen Area(m2)2.04
2.73
2.73
4.1
5.46 Design scope°C
-20~50 °F
-13~122 Noise(dBA)75-85 Weight(kgs)1420
1650
1720
1780
1850 Dimension(mm)2370x1690x1430
2950x1690x1420
2950x1690x1420
2370x1690x1550

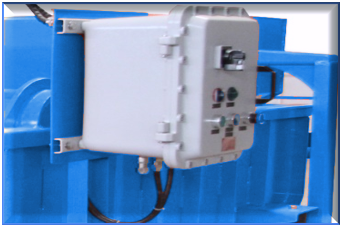

2950x1690x1450 Explosion-ProofExIIBt4/IECEx/ATEX
None
None
None Remark
3.Performance features:
High G force
Long life
Service Guarantee
-
Free Service Charge
