Waterproof Polyester Membrane Keypad Switch

FOB Price:	0.20 - 0.80 USD/Piece
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Also add special structure to make the products more attractive, like backlight, fluorecent etc..

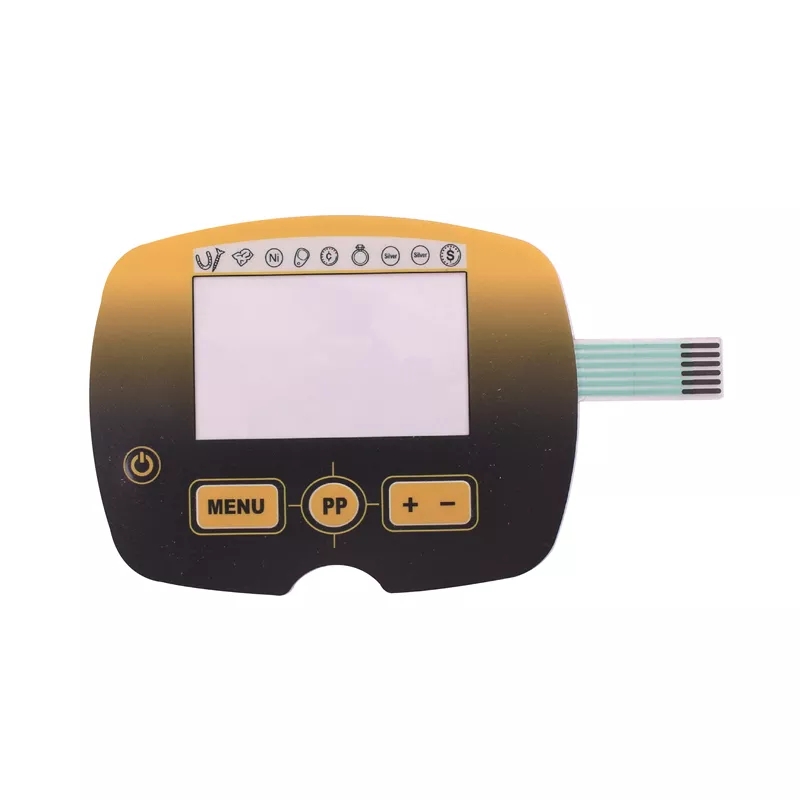

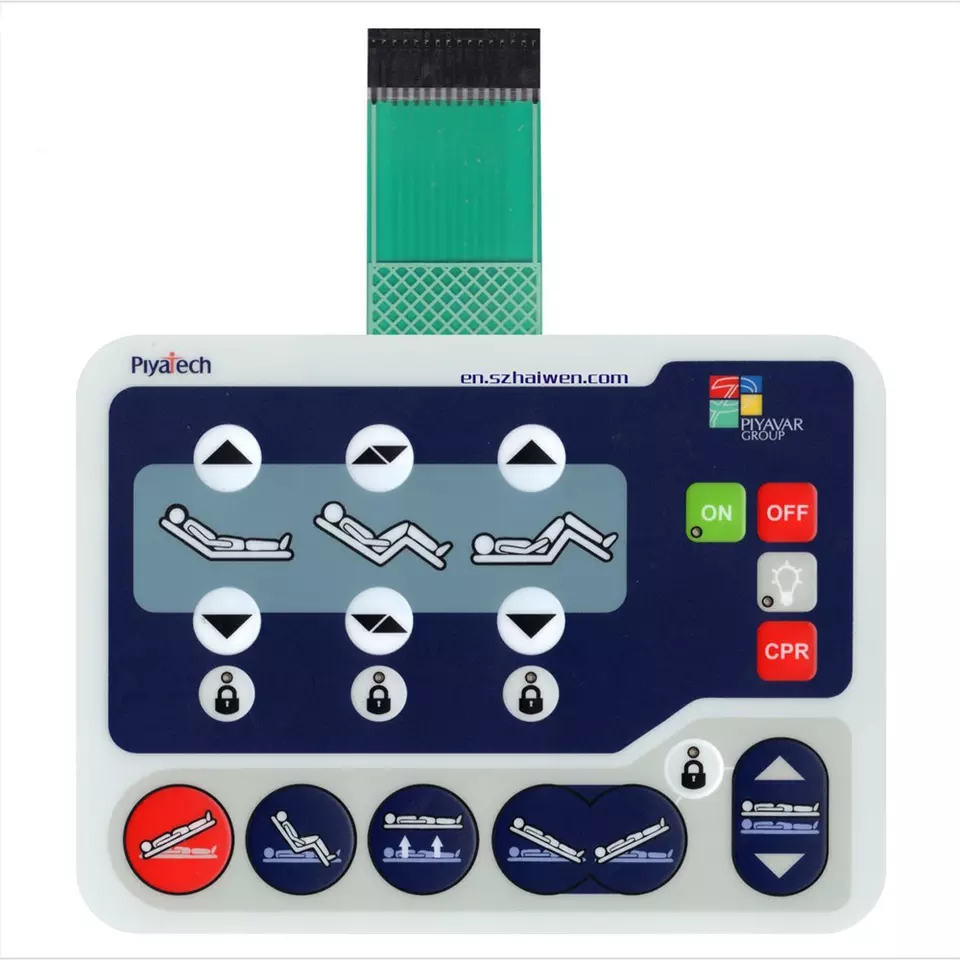

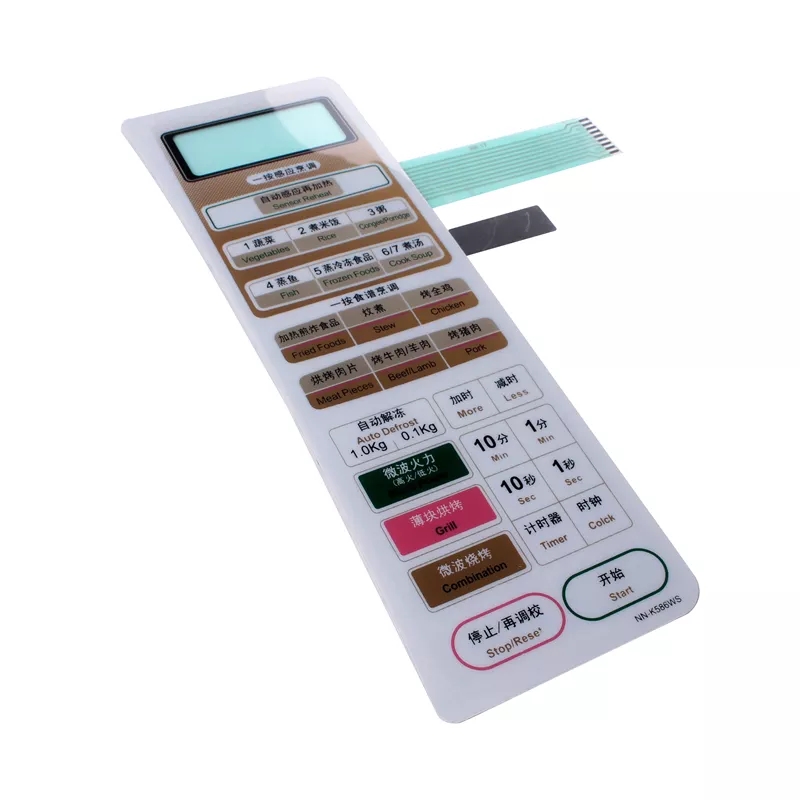

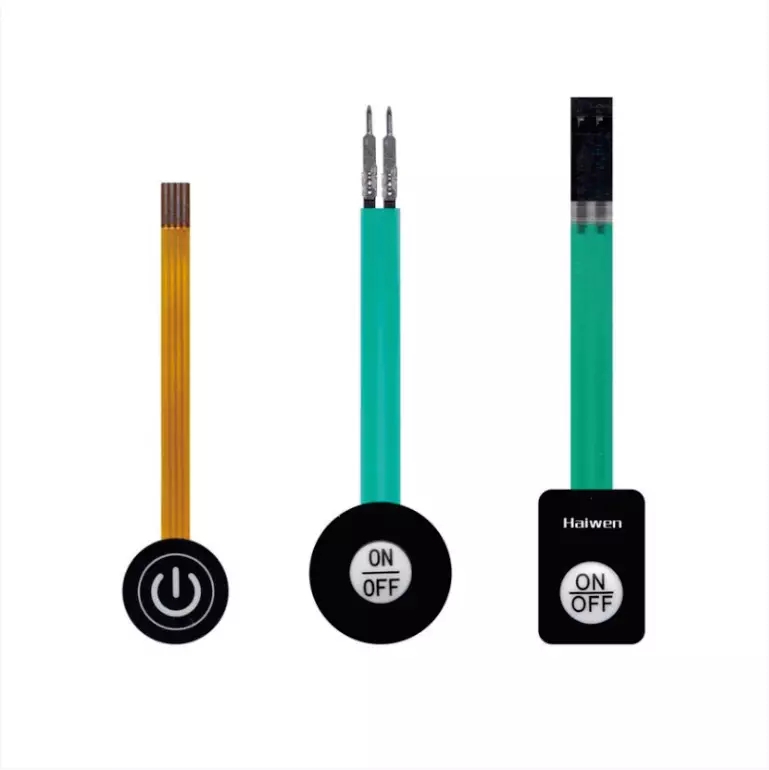

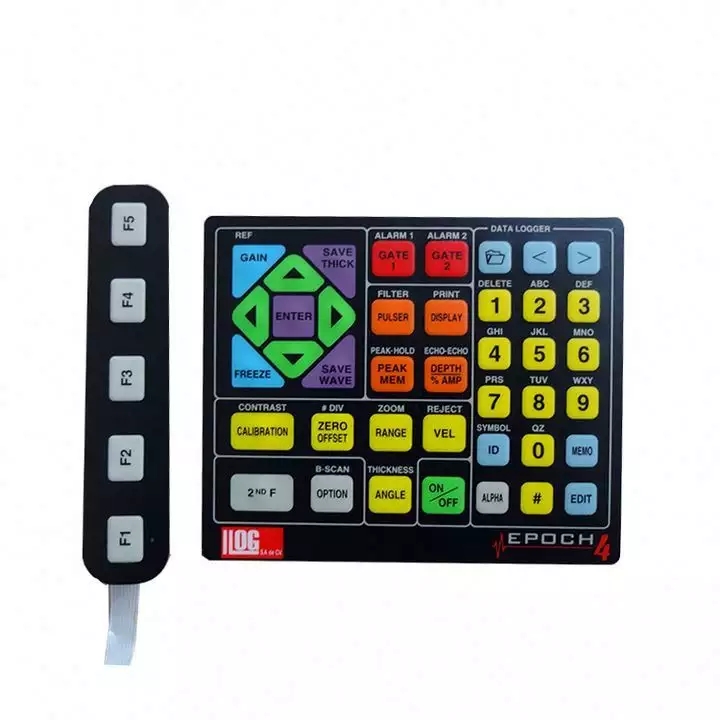

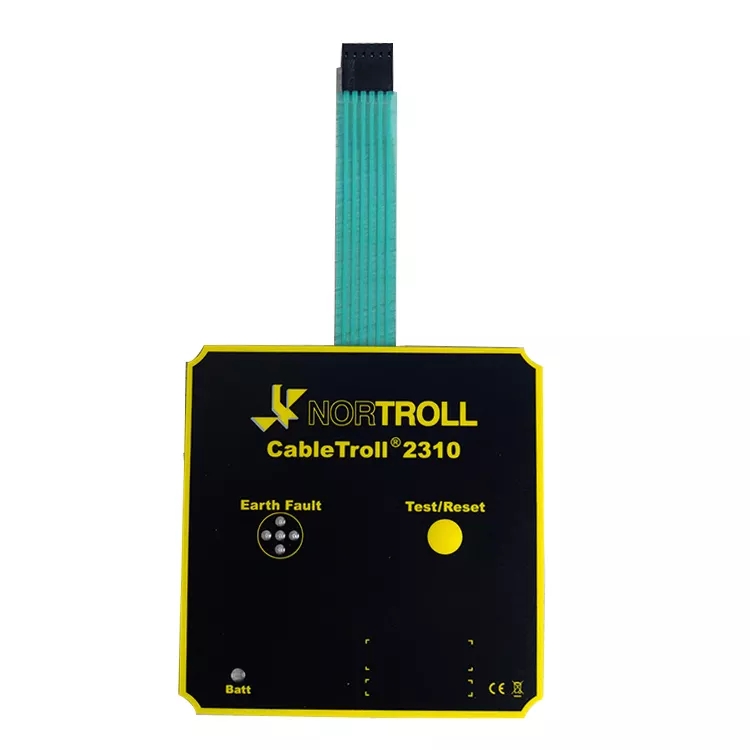

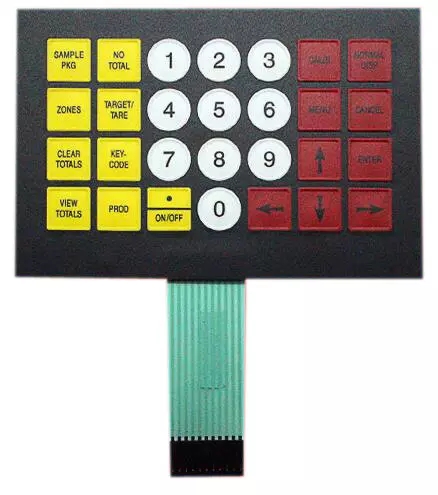

Waterproof Polyester Membrane Keypad Switch

Expect for getting your design idea, then we will work hard together to achieve it.

Technical Specification

Environmental	Operating Tem	from -20 to 65 °C/ -4 to 149 °F
	Storage Tem	from -40 to 85 °C/ -40 to 185 °F
	Seal	3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.
	Special sealing options are available for wet environments.
Mechanical	Travel	.007 inches to.015 inches
Mechanical	Operating Force	4oz to 8oz
Electrical	Operating Voltage	30 volts maximum
	Operating Current	10 microamps to 100 milliamps, resistive
	Closed Circuit Resistance	100 ohms typical, dependent on size and layout
	Open Circuit Resistance	10 megohms
	Operating Power	1 watt maximum
	Circuitry	X-Y matrix or one side common
