Zhongjun Imitation Rittal Cabinet, Cold-Rolled Steel Plate, Support Customization

Specifications

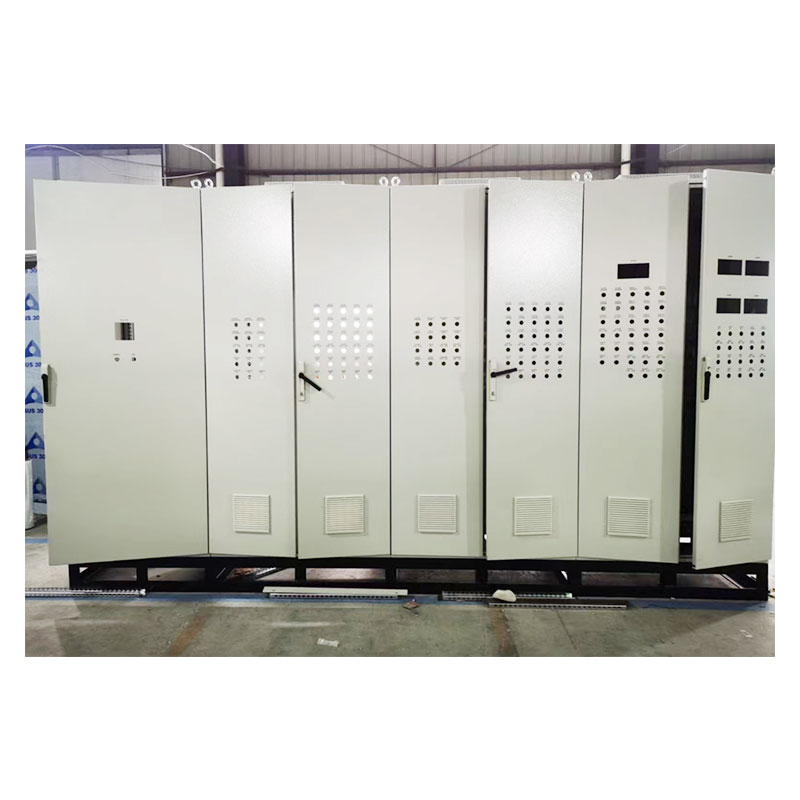

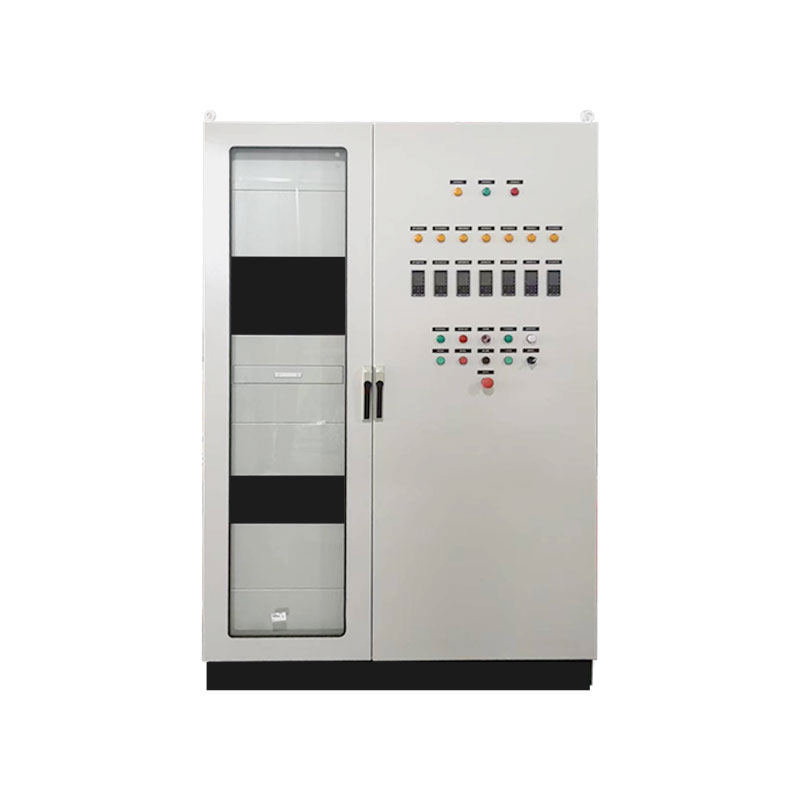

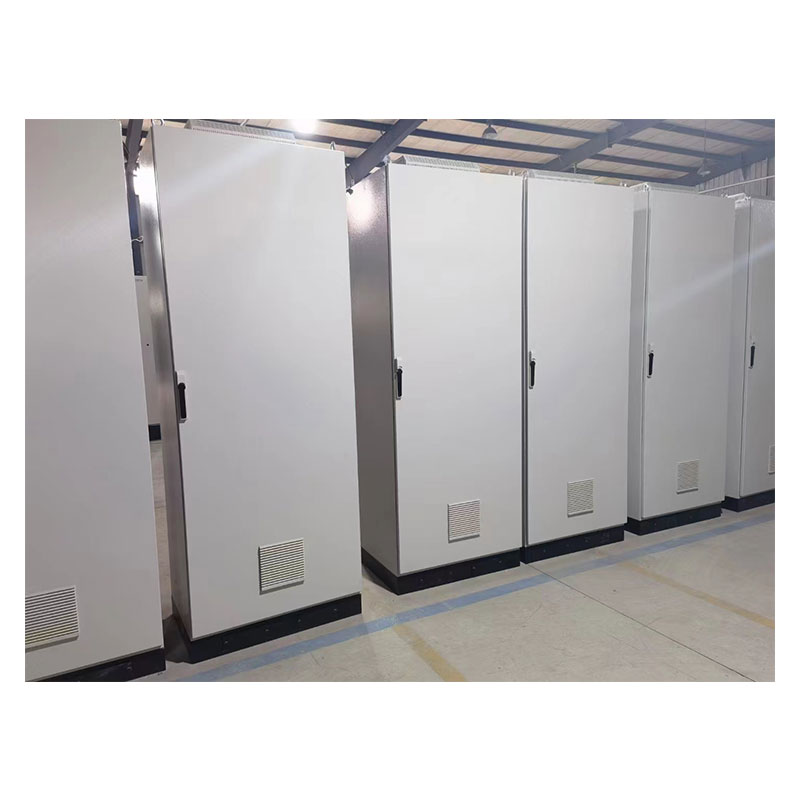

Imitation Rittal cabinet
Material: cold-rolled steel plate (customizable stainless steel)
Surface treatment: cabinet dip primer, the outside is powder coated, the color can be divided into RAL7032 and RAL7035 two (the appearance treatment of stainless steel tacit technology is brushed treatment), weave, the mounting plate is galvanized
Standard configuration: door panel, cabinet, sealing strip, grounding kit, mounting plate, door lock, back panel, (side panel is not removable)
Frame: five-pleated profile Door panel: 2.0mm Mounting plate: 2.5mm Back plate: 1.5mm
Steel plate thickness: box body 1.5mm, door panel 2.0mm, mounting plate 2.5m

the application of imitation Rittal cabinets in these 3 aspects:
1. Imitation Rittal cabinets are used in the power industry, which can replace GGD and other cabinets, and the engineering level is significantly improved. The interior is equipped with mounting beams or metal plate parts, which can be freely adjusted up, down, left, right, front and back to bear the weight of electrical components. It should be noted that if some heavy equipment, such as large switches or reactors, are installed inside the Vito cabinet, it needs to be thickened and the installation structure considered. In addition, the frame of the Rittal cabinet needed to be reinforced.
2. Imitation Rittal cabinets are widely used in the automation industry. Various frequency converters and PLCs are ideal for mounting on mounting plates or beams of cabinets together with fan filters or air conditioning units. Imitation Rittal cabinets provide a very comfortable working environment for these designs.
3. Imitation Rittal cabinets are increasingly used in the network communication cabinet industry. the rack structure of the 19-inch network cabinet in the cabinet is very suitable for the installation and use of switches, servers, and other equipment. The flexible frame construction of Rittal cabinets offers a variety of mounting options and wide selectivity and scalability. There are more and more use scenarios for imitation Rittal cabinets, and the cost performance is getting higher and higher.

Specifications and models:
Carbon steel ES228060, Carbon steel ES228080, Carbon steel PS228060, Carbon steel PS228080
Stainless steel ES228060, Stainless steel ES228080, Stainless steel PS228060, Stainless steel PS228080
