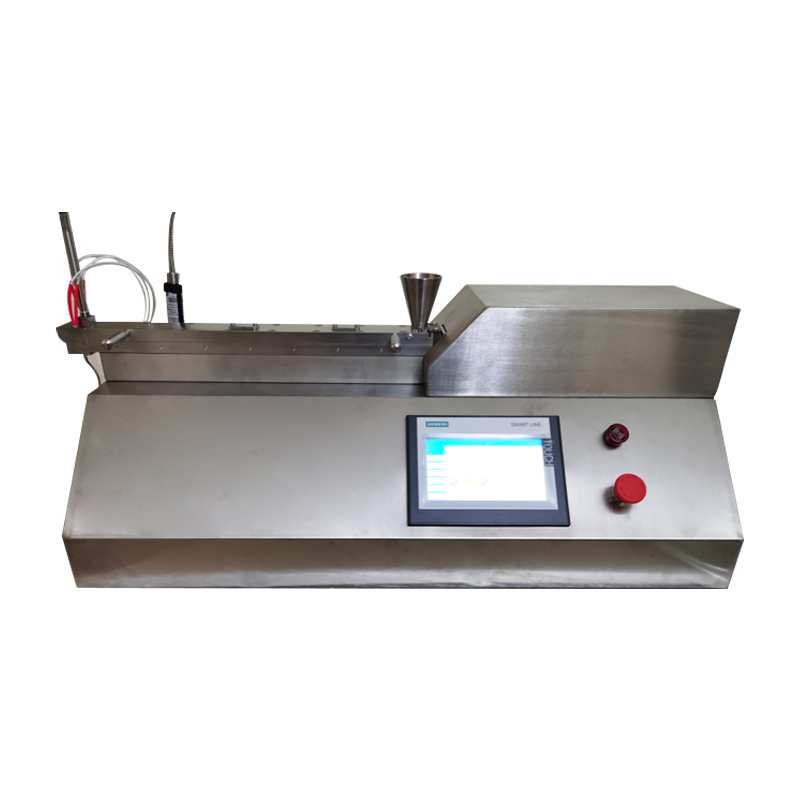

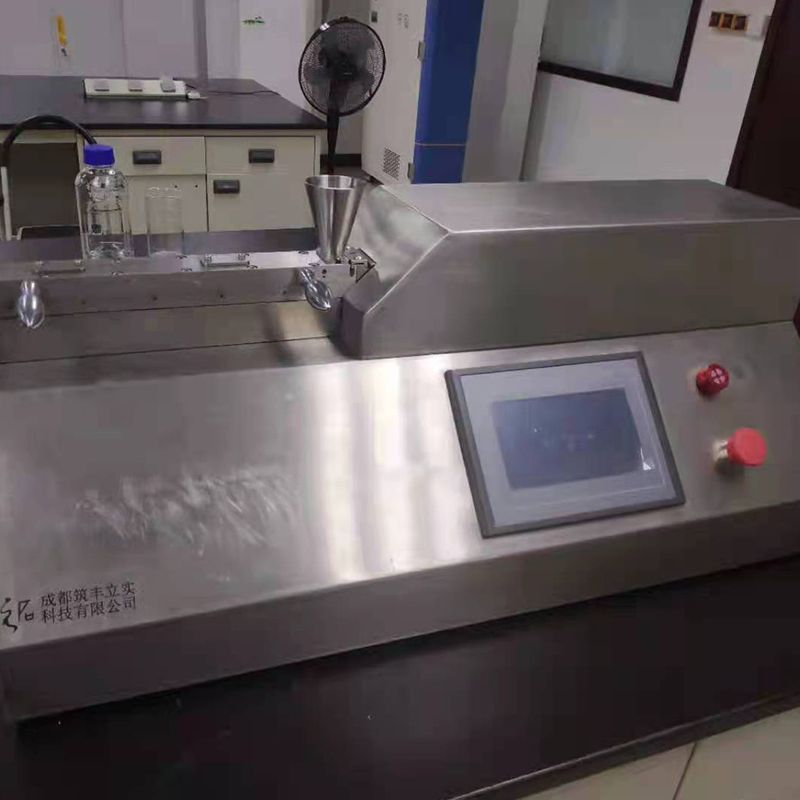

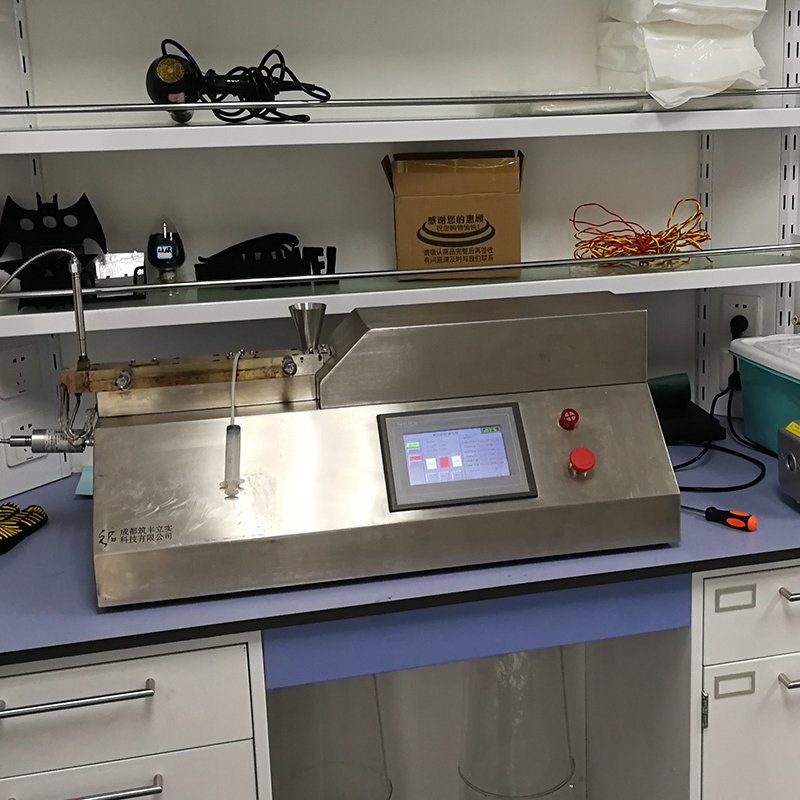

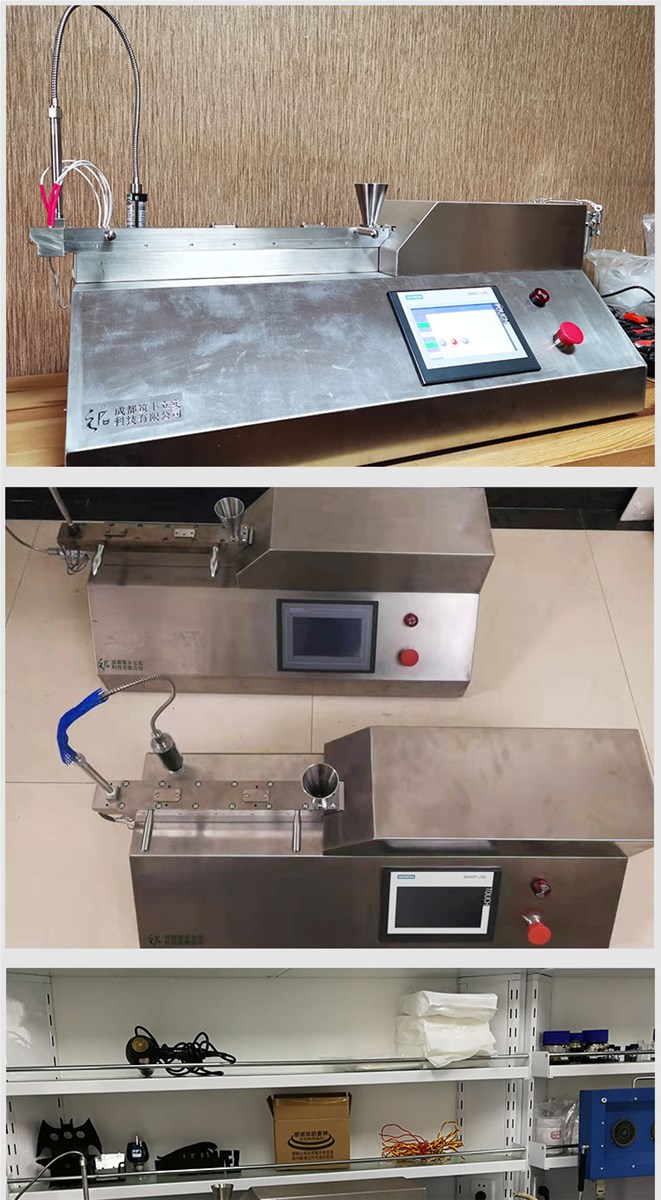

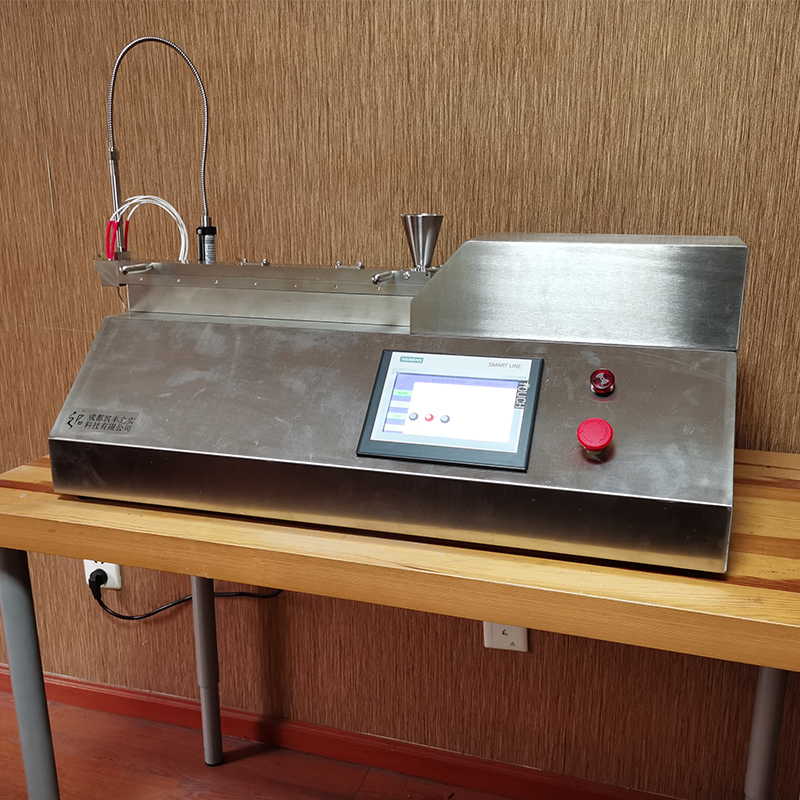

Miniature Parallel Codirectional, Twin Screw Extruder ZF-12, Support Customization

FOB Price:	3360.00 - 60480.00 USD/Piece

In Stock

Inquiry Now Start Order

Related products from verified members

Fertilizer granulator machine

Price:

Min. Order:1 Set
EVA Granulation Machine/Line

Price:58000.00-60000.00 USD/Set

Min. Order:1 Set
ZL Series Rotating Granulator

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Sichuan in China

Quick Details

Machine Type: Granulator
After-sales Service Provided: No overseas service provided
Certification: NO
Brand Name: twin screw extruder ZF-12
Condition: New
Machine Type: ZF-12

Specifications

Small footprint, can achieve continuous production, a single minimum feeding amount of 30g, can achieve material efficiency and labor efficiency, greatly reduce the cost of formula and process development and improve development efficiency

Product Specifications and Price:
40:1 hosting price:60480USD/unit
28:1 hosting price:50400USD/unit
Volumetric feeder:5040USD/unit
Weighted feeder:13440USD/unit
Customized maximum temperature 400°C:3360USD/unit
Forced water cooling system:8400USD/unit
Torque 10Nm: 8400USD/unit

Product Condition:

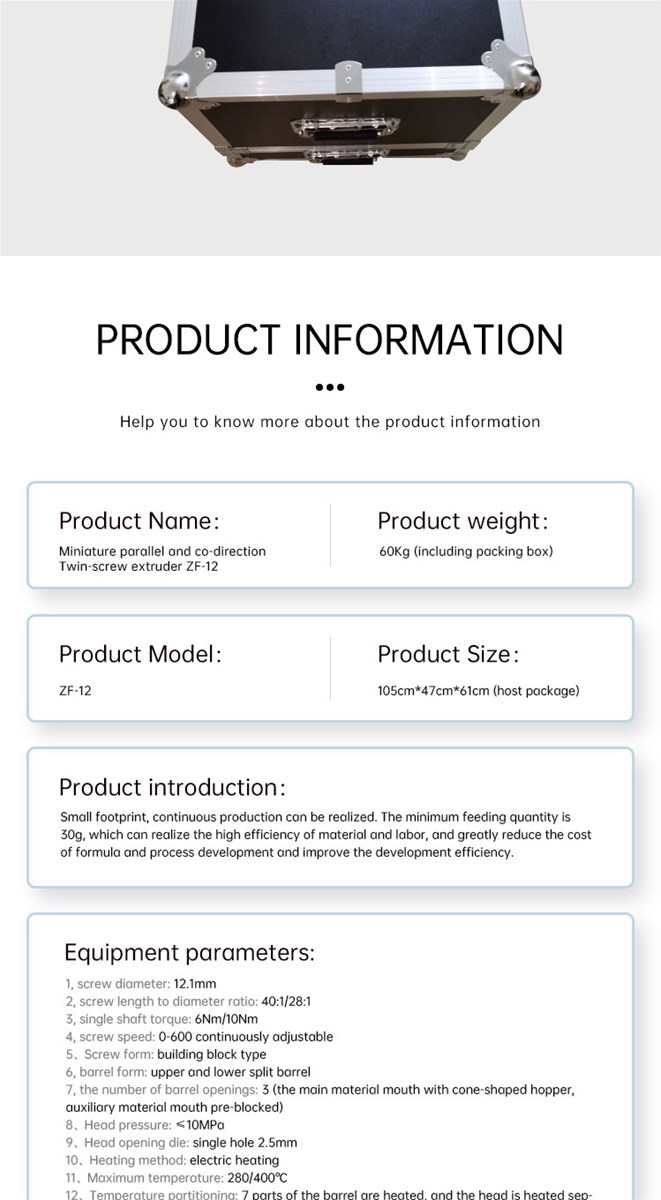

1. Screw diameter: 12.1mm
2. Screw length-diameter ratio: 40:1/28:1
3. Single shaft torque: 6Nm/10Nm
4. Screw speed: 0-600 continuously adjustable
5. Screw form: building block type
6. Barrel form: upper and lower split barrel
7. Number of barrel openings: 3 (main material port with conical hopper, auxiliary material port pre-blocked)
8. Machine head pressure: ≤10MPa
9. Head mouth mold: single hole 2.5mm
10. Heating method: electric heating
11. Maximum temperature: 280/400°C
12. Temperature division: the barrel is heated in sections in 7 zones, and the machine head is heated separately

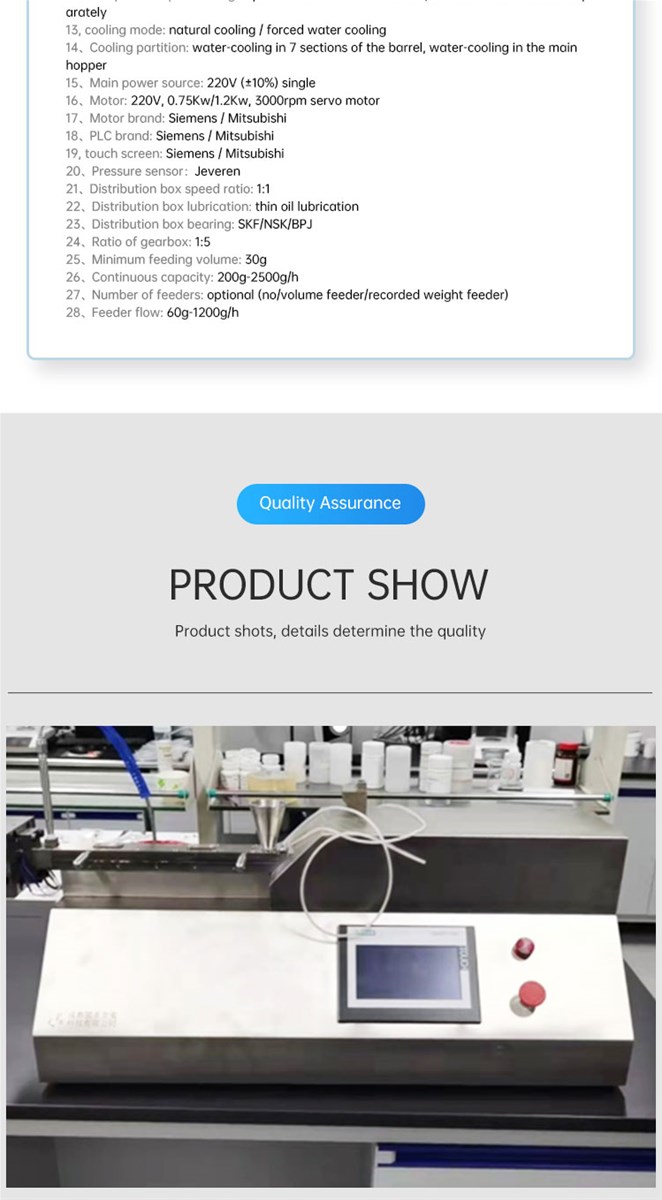

13. Cooling mode: natural cooling / forced water cooling
14. Cooling zone: barrel 7 section water cooling, main hopper water cooling
15. Main power supply: 220V (±10%)
16. Motor: 220V, 0.75Kw/1.2Kw, 3000rpm servo motor
17. Motor brand: Siemens/Mitsubishi
18. PLC brand: Siemens/Mitsubishi
19. Touch screen: Siemens/Mitsubishi
20. Pressure sensor: Jeffren
21. Distribution box speed ratio: 1:1
22. Distribution box lubrication: thin oil lubrication
23. Distribution box bearing: SKF/NSK/BPJ
24. Gearbox speed ratio: 1:5
25. Minimum feeding amount: 30g
26. Continuous capacity: 200g-2500g/h
27. Number of feeders: optional (none/volumetric feeder/weight-loaded feeder)
28. Feeder flow: 60g-1200g/h

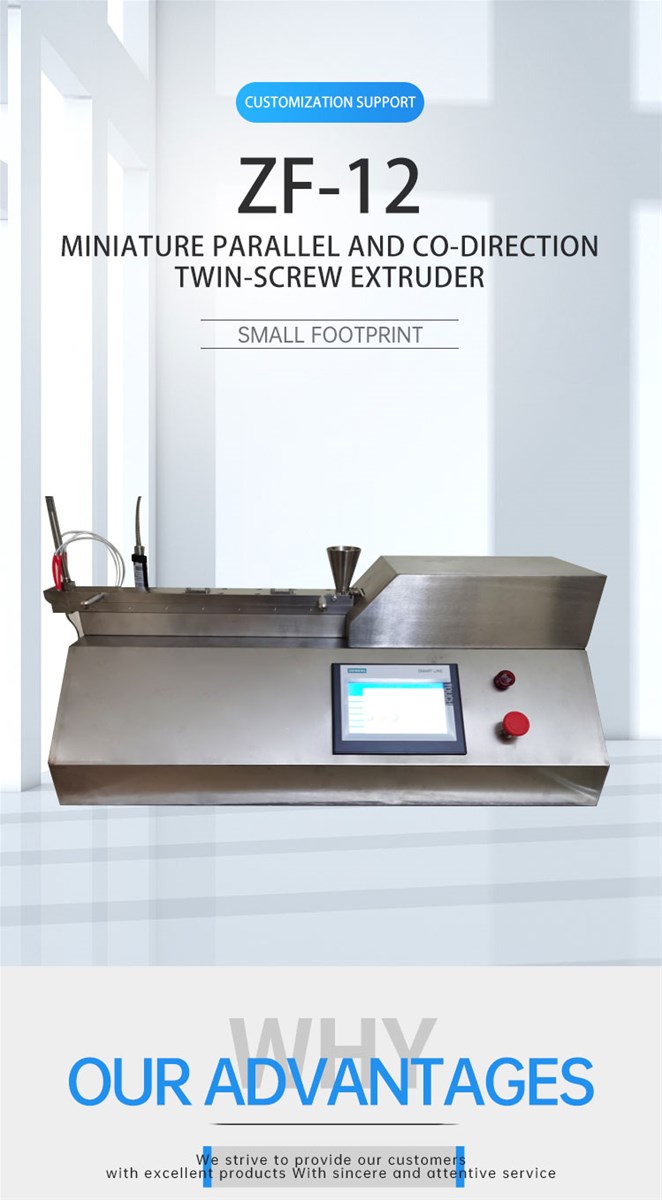

Miniature parallel codirectional twin screw extruder ZF12 support customization
