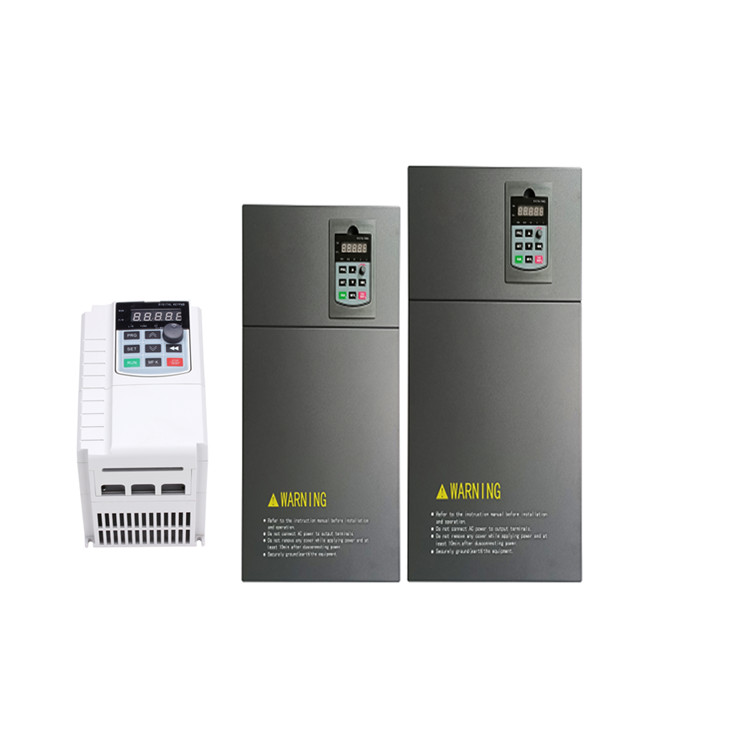

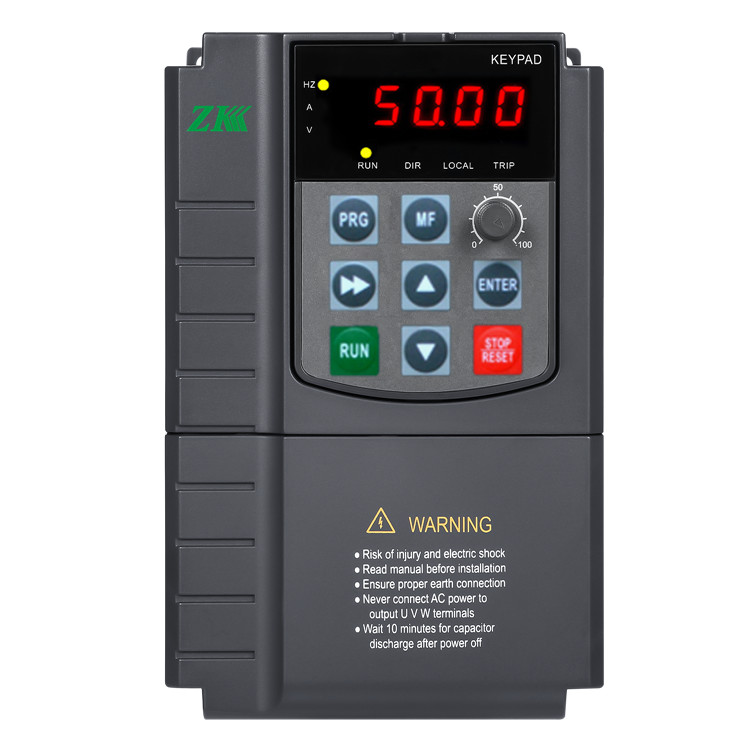

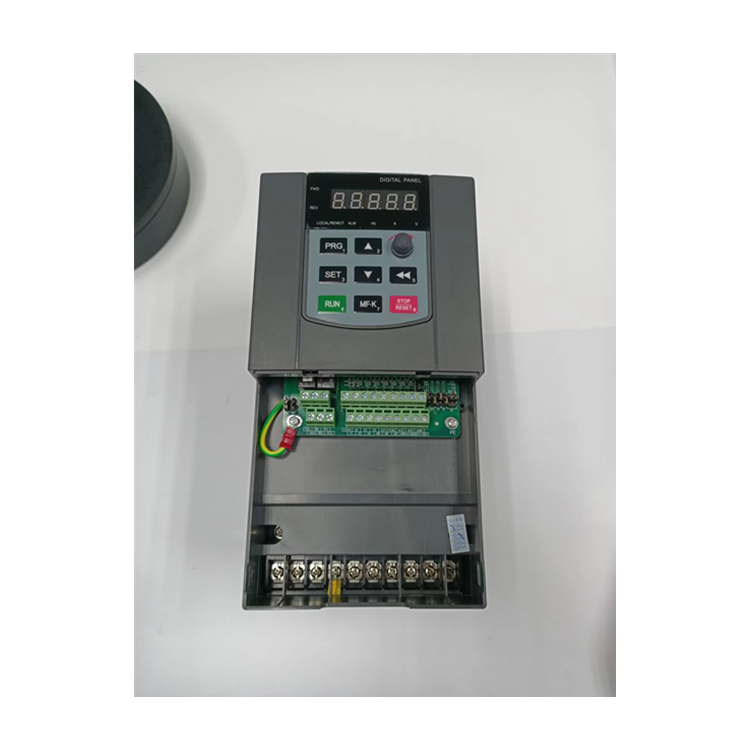

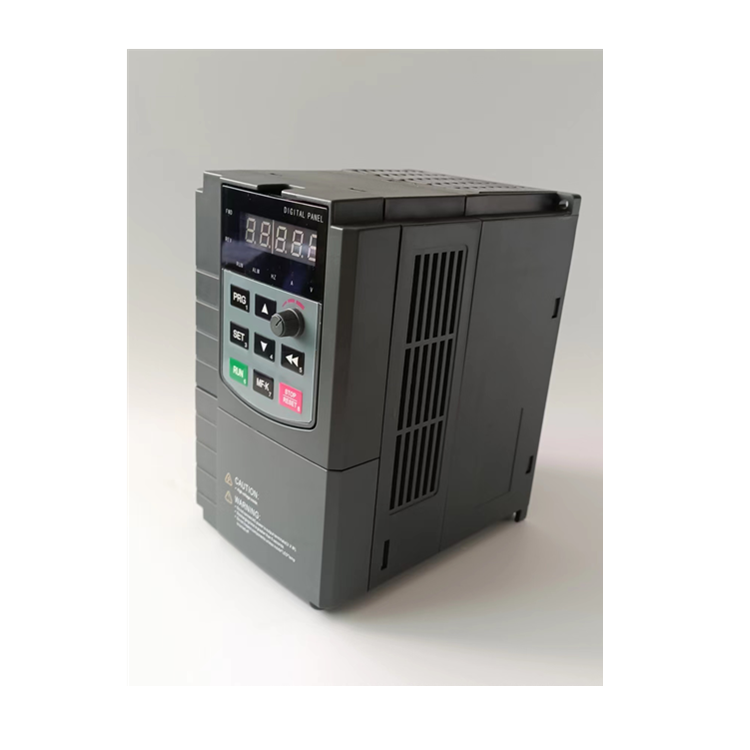

High Mppt 150-450vdc Input Small Power 1hp 2h 3hp 5hp Solar Pump Inverter for Irrigation
| FOB Price: | 170.00 - 180.00 USD/Piece |
|---|---|
| Supply Ability: | 6,000 Piece(s) per Month |
| Shipping: | by sea/ by air/ by express |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | paper box, wooden carton |
Quick Details
- Type: DC/AC Inverters
- Output Voltage: 220VAC
- Input Voltage: 150-450VDC
- Output Type: Triple
- Brand Name: ZK
- Output Current: 16A
- Output Frequency: 0-50HZ
- Weight: 3.6KG
- Size: 302*212*231
- Model Number: SG320-4K0GB-2S
- Color: black
- Protection function: 20 kinds of motor protection
- Overload tolerance: 150% rated current 60s
- Application: all kinds of 1/3 phase pumps
- Motor type: PMSM and IM
- MPPT( maximum power point tracking): 99.6%
- OEM: OEM
- Solar pump system consists of: Solar panels/water pump/solar pump inverter
- Max Input Voltage: 150-450VDC
- Pump Motor Voltage(V): 220VAC
Specifications
Shenzhen ZK SG320 Solar Pump InverterFully automatic system using variable speed drive compatible with AC, 1 /3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. the system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system.
Solar Water Pumping Solution is a fully automatic system designed to provide water at affordable cost for people with limited or no access to electricity. It uses the most advanced S300/3200 variable speed drive to regulate the speed of a 3-phase AC motor depending upon the solar energy available from the solar panel.
how does it work?
An arrays of solar panels generates the power and voltage required for the SG200/320 solar inverter to drive the motor. the solar pump inverter converts the DC voltage input to a 3 phase AC output with variable voltage and frequency. the MPPT algorithm of solar pump inverter extracts maximum power available from the solar panels during the day and operates the motor at variable speed based on the power input to the inverter. the frequency range in which the inverter operates depends upon the motors peed, hydraulic system and the power available from the solar panel. As the sunshine varies during the day, power input to the inverter varies and generates variable V/F ratio thus controlling the speed of the motor, which in turn regulates the pump impeller speed.
It is no need install battery for investment saving.
It is very suitable for 110VAC/220VAC/380VAC induction motor pumps and PMSM high efficiency pumps.
We also provide 1.5kw solar voltage booster to increase your solar panel voltage for saving solar panel sinvest.FeaturesControl mode: VF for induction motor pumps, open loop vector control for PMSM high speed pumps
MPPT function: always performance MPPT for gain highest efficiency
CVT: When sunlight is good, can select CVT control for excellent stable frequency output.
Dry run function: When little water or no water for pumping to protect pumps.
Maximum current protection: set maximum current protection is available
Minimum solar input power: When low power input, inverter no work
Stop frequency: Lower than stop frequency, inverter no work
Sleep mode: if lower than sleep voltage, inverter go to sleep, it will wake up when DC voltage rise.
Flow and generated energy calculating and monitoring
A lot of fault protection. Short circuit, ground short circuit, phase loss, over current, overheat
Built in RS485 interface, it is easy to connect GPRS remote controller.
Specifications
Item |
Specifications | |
Input |
Rated Voltage/Frequency |
150-450VDC for S2 220V pumps, 0.75KW-4.0KW( support output single phase) 250-900VDC for 4T 380V pumps, 0.75KW-15kw 250-800VDC for 4T 380V pumps, 18.5KW-500kw |
Recommended MPPT voltage(VDC) |
S1 series: Vmp 131 to 350 VDC S2 series: Vmp 280 to 375VDC 4T series: Vmp 450 to 750 VDC | |
VFD Efficiency |
above 96% | |
MPPT Efficiency |
above 99.6% | |
Power factor |
above 0.94( with DC reactor) | |
Allowable Variablerange |
Voltage:-20%~+20%, Frequency:±5% | |
Output |
Rated Voltage |
0~110V 220V 380V 480V |
Frequency Resolution |
0.01Hz | |
Overload capacity |
G type-150% Rated Curren/1 minute,180%:10s,200%:rated | |
Basic Functions |
Motor type |
Permanent magnet servo motor and asynchronous motor pumps. |
Solar pump control special performance |
MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, Dry run protection, low stop frequency protection, minimum power input, motor maximum Current protection, flow calculating, energy generated calculating | |
Running mode |
MPPT , CVT, variable frequency mode | |
Communication |
RS485 Standard Interface,supporting two formats MODBUS protocol | |
Protection |
over Current protection;over Voltage protection;under Voltage protection; over heat protection;Overload protection | |
Environment |
Altitude |
below 1000m; above 1000m, derated 1% for every additional 100m. |
Temperature |
-10℃~+50℃ | |
Ambient temperature |
Less than 90%RH, no water condenses | |
Vibration |
Less than 5.9m/sec 2(0.6G) | |
Storage temperature |
-30℃~+60℃ | |
Structure |
Level of Protection |
Standard IP20, operation IP54 IP55 |
Cooling-down method |
Forced air cooling | |
Installation |
Indoor, ,free from direct sunlight, dust, corrosive gas,Oiliness gas, water vapour | |
Selection of solar panel
Input voltage, power solar panels selection | ||||
Pump Model |
Inverter model |
Vmp |
Voc |
Total power of solar panels |
110VAC pump |
SG320-1S |
110*1.41=155VDC |
190VDC |
≧(1.3 to 2.0) rated power of pumps It is also depend on the quality of solar panels. the more power input, the better performance |
220VAC pump |
SG320-2S |
220*1.41=310VDC |
372VDC | |
380VAC pump |
SG320-4T(MAX 800VDC) standard |
380*1.41=540VDC |
648VDC | |
480VAC pump |
SG320-4T(MAX 900VDC) 0.75-15kw( above 15kw customized) |
480*1.41=677VDC |
812VDC | |
Applicationthe solar pump inverters are widely used in photovoltaic systems such as irrigation, agriculture, fountains, etc., and are the key components of the entire
