Breatech (Nanjing) Co., Ltd.
China Manufacturer with main products: Oil Free Compressor, Nitrogen Generator, Dental Vacuum Pump |

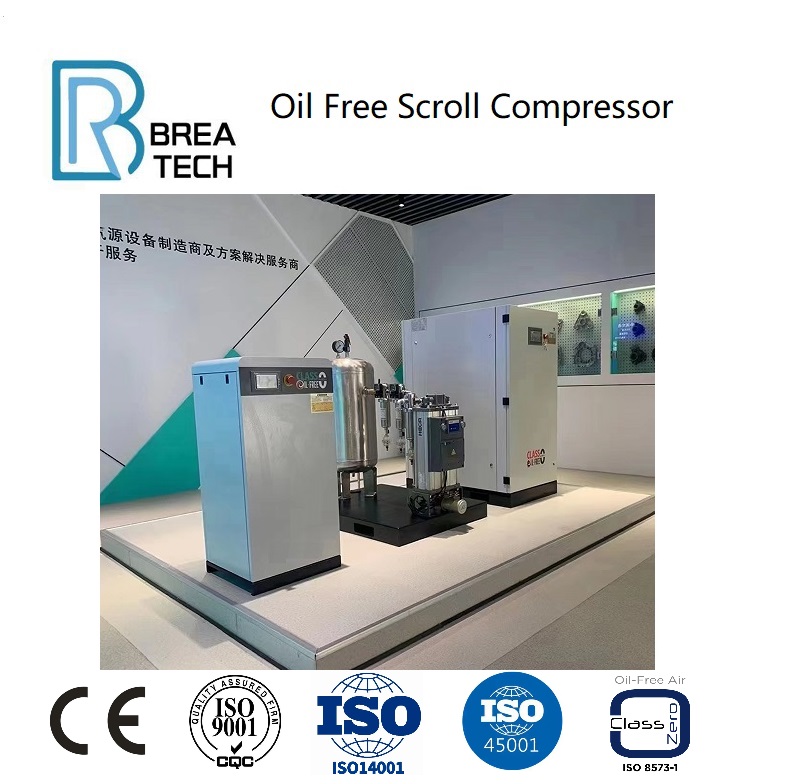

Oil Free Scroll Compressor 2.2kw ~ 30kw
| FOB Price: | 2000.00 - 30000.00 USD/Unit |
|---|---|
| Supply Ability: | 500 Piece(s) per Month |
| Shipping: | EX-WORK |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Brand Name: BreaTech
- Lubrication Style: Oil-free
- Configuration: Stationary
- Type: Scroll
- Condition: New
- After-sales Service Provided: No overseas service provided
- Warranty: 2 years
- Certification: ISO 9001 ISO 14001 ISO 45001
- Power Source: AC Power
Specifications
OIL-FREE COMPRESSED AIRTotally oil-free
Compressed air is a specific requirement in many production processes. the
Oil-free Scroll compressor satisfies all these sectors, with a dynamical range
of power and model sizes from 2.2 to 37 kW, at 116 or 140 PSI. The oil free scroll
Compressor are fixed speed, single stage, 100% oil free rotary scroll
Compressors from 3-10 HP (per pump), packaged in a sound attenuating enclosure.
Oil free Scroll compressor have been designed specifically for industrial,
Laboratory, and other clean air applications in a variety of configurations. Oil
Free scroll compressor provide the low sound level desired by most
Applications.
100% Oil-Free Air:Meets ISO 8573-1 Class 0 specifies air quality standards for processes within the food and Beverage, pharmaceutical, textile, and electronics industries Lower Energy Costs: Scroll pumps are certified in Class 0, in accordance with ISO8573-1 Directives. ISO 8573-1:2010 Class 0 certified 100% oil-free air for the most Critical applications. There are no motor bearings, pulleys, belts, couplings Or motor shaft seals to wear out, leak or need replacing. Oil free scroll compressor Will lower your operating costs with its dynamic efficiency.
VERY SILENTthe ASF range oil free scroll compressor is extremely quiet and can be Installed in any environment ensuring the comfort and safety of all operators with minimum impact to the surroundings.
ROBUST DESIGNthe ASF oil-free scroll compressors are built using the highest Quality components throughout. the attention to detail in the build, finishing and testing of the product results in a high performance, high reliability, and Silent operation. Oil free scroll compressor could running in 100% duty cycle at 10 bar with very long lifetime.
MULTIPLE SCROLL PUMPSExtremely flexible design, from 2 to 10 pumps for different Possible assemblies. Two spirals without any metal-to-metal contact in between, Intake air and compress it in 3 successive phases to deliver it at 8 or 10 bar of pressure. the simple process allows smooth contact-free operation of the Scrolls and thus provides a very long service life to all the components and Therefore to the complete unit.
OEM CustomizationVarious customized products are acceptable. Model Voltage(V) Power(KW) 8bar Flowrate(L/min) 10bar Flowrate(L/min) Size(mm)L*W*H Connect Weight(KG) Noise(DB) Airtank ASF-2.2KA 220 2.2 240 200 540*540*1190mm RC1/2 145 53±3 40L ASF-2.2KB 220 2.2 240 200 540*540*770mm RC1/2 110 53±3 ASF-3.7KA 380 3.7 400 340 540*540*1190mm RC1/2 155 56±3 40L ASF-3.7KB 380 3.7 400 340 540*540*770mm RC1/2 120 56±3 ASF-5.5KA 380 5.5 600 500 750*660*1200mm RC3/4 175 58±3 ASF-7.5KA 380 7.5 800 680 1000*590*976mm RC3/4 227 60±3 ASF-11KA 380 11 1200 1020 1235*740*1270mm RC1 459 61±3 ASF-15KA 380 15 1600 1360 1235*740*1630mm RC1 585 62±3 ASF-18.5KA 380 18.5 2000 1700 1235*740*1990mm RC1 734 62±3 ASF-22KA 380 22 2400 2040 1580*1235*1630mm RC1 1/2 990 63±3 ASF-30KA 380 30 3200 2720 1580*1235*1630mm RC1 1/2 1060 64±3 ASF-37KA 380 37 4000 3400 1580*1235*1990mm RC1 1/2 1260 65±3
