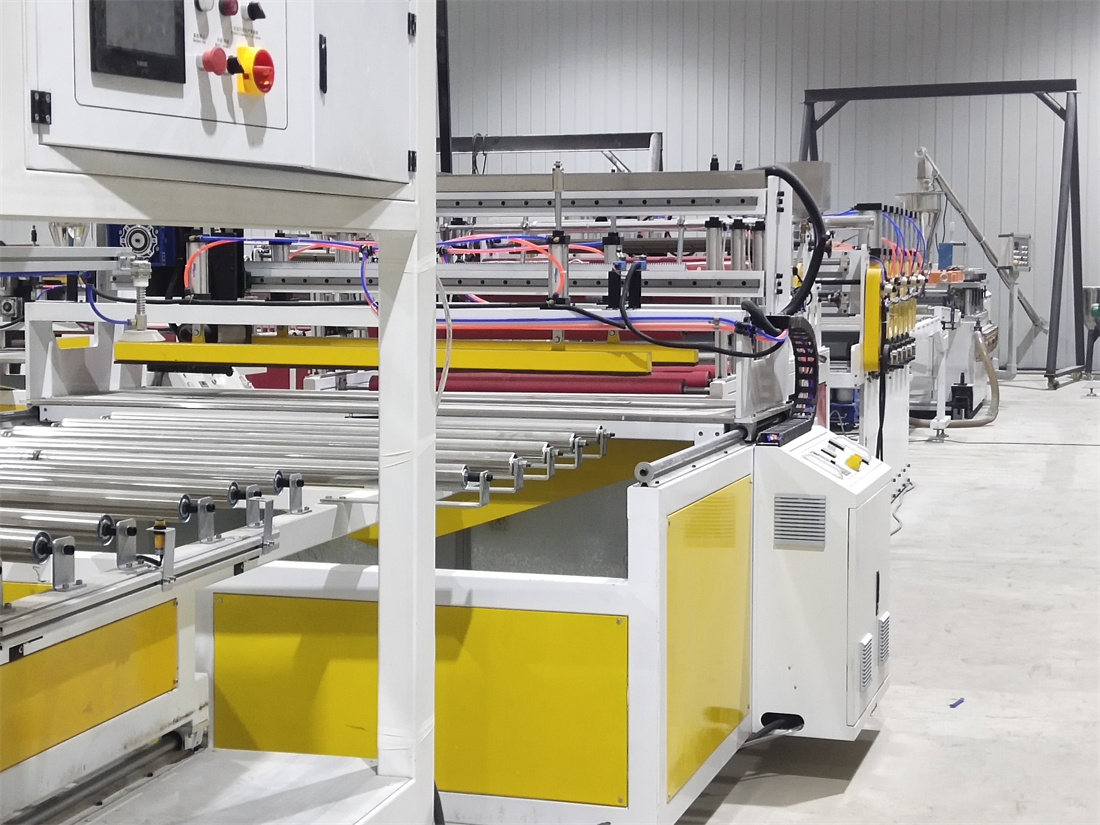

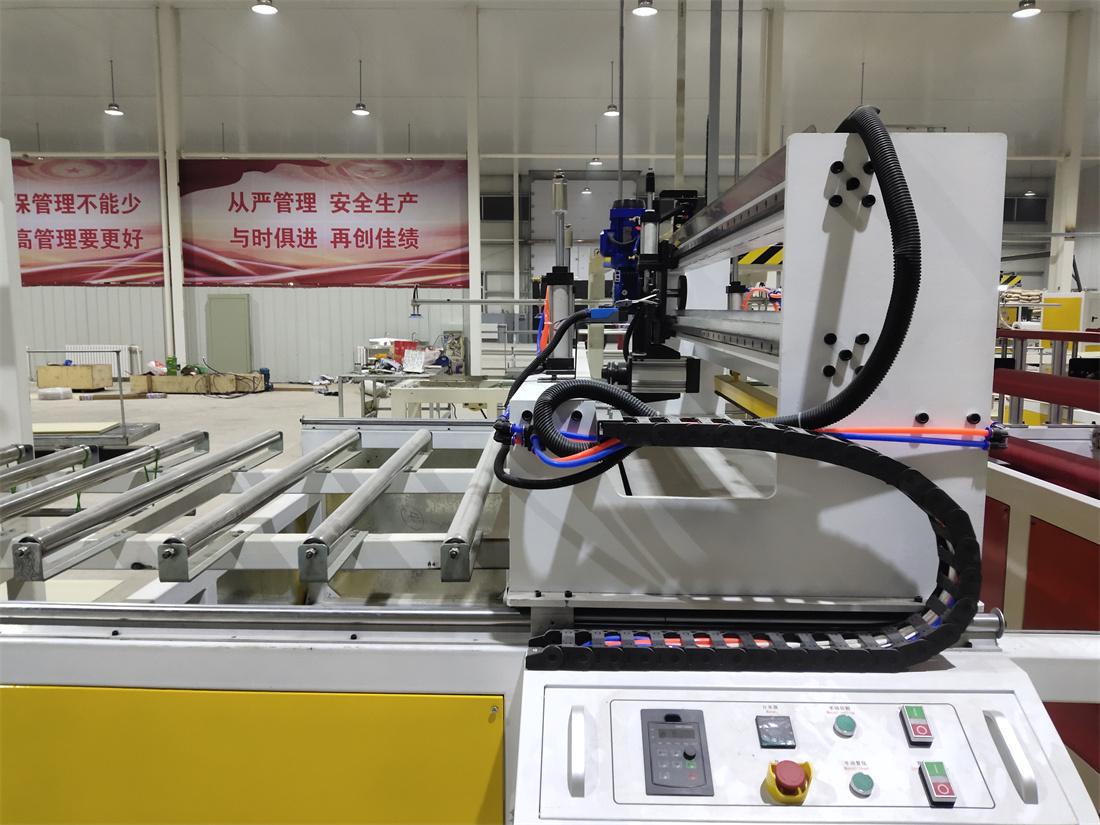

PVC WPC Crust Foam Board Extrusion Production Line

Specifications

Product Introduction

PVC Curst Foam Board Machine adopts Celuka foam technology, which can produce a kind of PVC foam boards with superior quality. these processes result in a "skinning" or outer layer of foam board, thus has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids.
PVC foam board can be100% recycled and reused. Besides, PVC foam board can be worked like wood with the tools for wood. It's suitable for sawing, cutting, nailing, screwing, planning and sticking. It's the perfect substitute for wood plates and steel plate.
the foam board is mostly used in transportation, advertisement, construction and furniture industry, ect.
the board thickness is from 3mm to25Mm, width is from 915mm to 1830mm.

Raw Materail:PVC +Additive   PVC + Wood Powder +Additive

Technical data

Work flow:

PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker

Application:

It is widely used as building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on.

Product Size:

Product specification: 1220*2440mm

Product thickness: 3mm-20mm

Product density: 0.35-0.9

Features:

1.Waterproof, flame retardant, acid and alkali resistance, moth-proof, light weight, heat preservation, sound insulation, shock absorption characteristics

2.the same processing as wood, and the processing performance is far better than wood

3.It is an ideal substitute for wood, aluminum and composite panels

4.the surface of the crusted board is very smooth, high hardness, not easy to have scratches, often used to make cabinets, furniture, etc.

Main composition

Auxiliary Machines for your choice

Advantages

PVCcrust foam board is acrust board produced bycrust technology, with hard skin, no deformation, and strong nail-holding power. It is suitable for applications in furniture manufacturing, construction, decoration, advertising, signs, car bodies and ship interiors.

1. PVCCrustFoam board has the characteristics of waterproof, flame retardant, acid and alkali resistance, mothproof, light weight, heat preservation, sound insulation and shock absorption.

2. PVCCrustFoam board and wood are processed equally, and the processing performance is far better than wood.

3. PVCCrustFoam board is an ideal substitute for wood, aluminum and composite boards.

4. the surface hardness of PVC crust foam board is very high, and it is difficult to produce scratches. It is widely used in cabinets, decoration, construction, furniture, etc.

5. the surface hardness of PVCcrust foam board is average, and it is widely used in advertising exhibition boards, mounted drawing boards, silk screens, carvings, etc.
